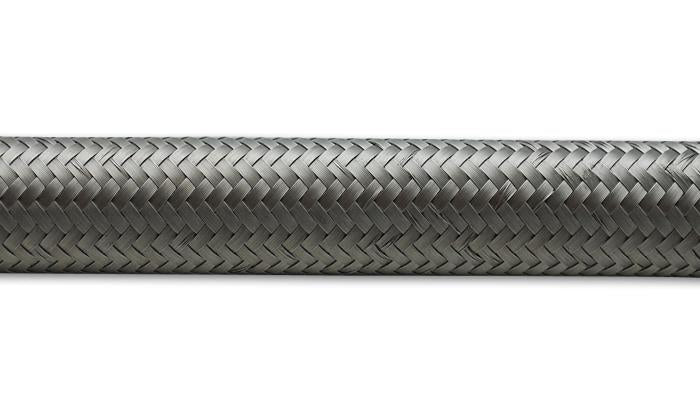

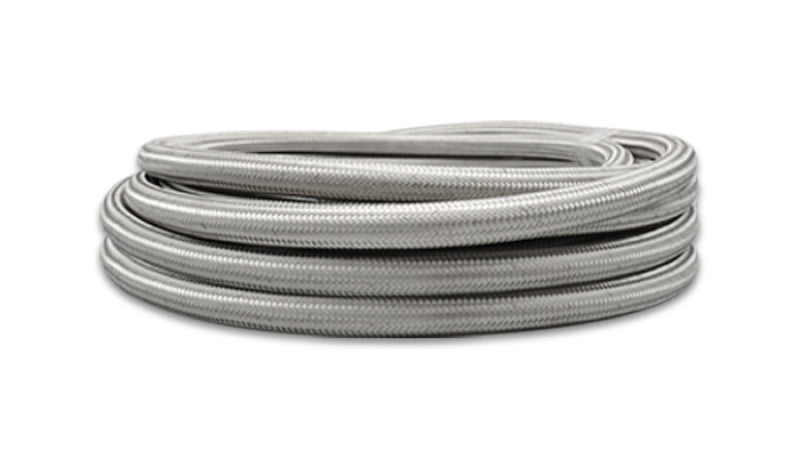

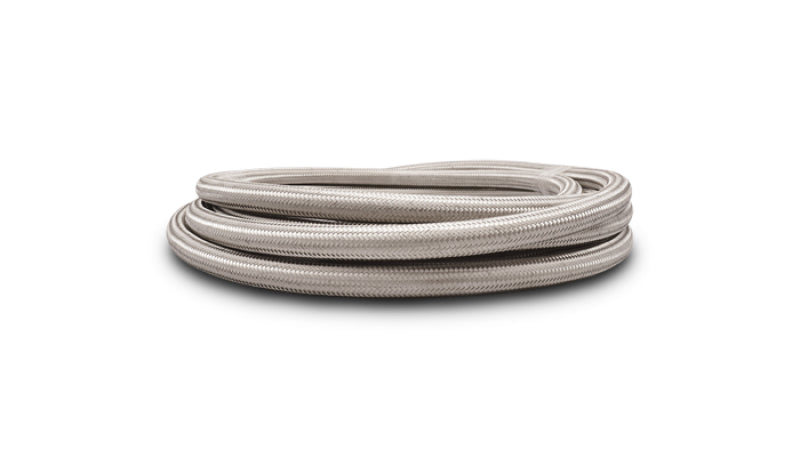

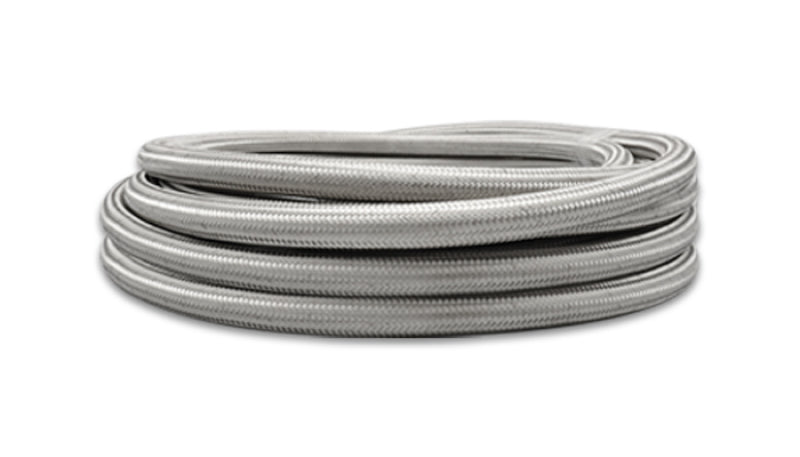

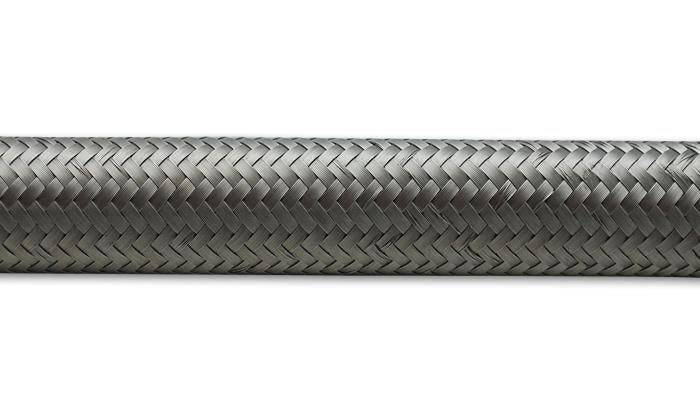

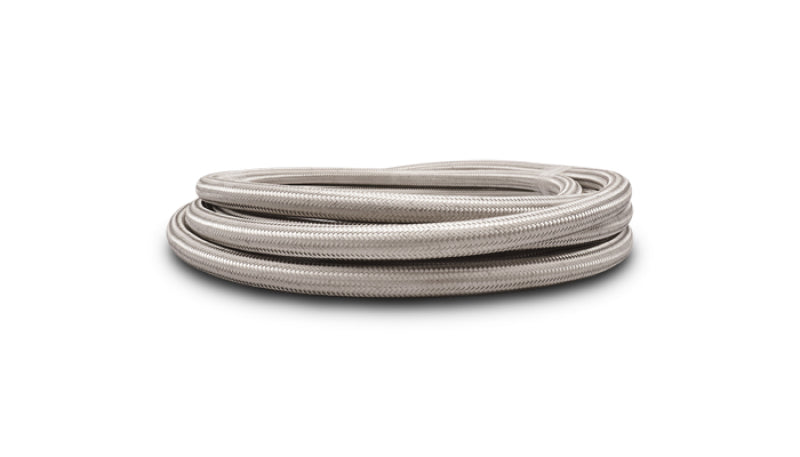

Vibrant Performance 11942 -12 AN SS Braided Flex Hose 5 Foot Roll 0.68" 1000PSI

Vehicle Fitment

• Universal - compatible with any -12 AN fluid system requiring stainless steel braided flex hose for oil, water, fuel, coolant, or vacuum lines in motorsport, street performance, or custom fabrication applications

Fitment Notes

• Universal fitment - not vehicle-specific; requires -12 AN hose end fittings (sold separately) at each connection point
• Sold as a 5-foot roll - cut to required length; for longer runs or full builds, the 10-foot variant (PN 11922) and 20-foot variant (PN 11932) are available
• Not suitable for use as brake lines or hydraulic pressure lines
• Not recommended for in-tank or extended fuel submersion - for extended E85 or methanol service use Vibrant's PTFE Flex Hose series
• E85 and methanol compatible for short-term use; fumes may permeate when fuel is left stagnant for extended periods

Features

• -12 AN sizing (0.68" I.D.) provides high-volume fluid flow capacity for large-bore oil returns, fuel supply and return lines, coolant circuits, and other high-flow motorsport applications
• 300 series stainless steel braid outer cover provides excellent abrasion and corrosion resistance with the classic motorsport hose appearance
• Reinforced CPE synthetic rubber inner liner rated to 1,000 psi operating pressure and 3,750 psi burst pressure
• Operating temperature range of -40°F to 300°F covers the full range of typical motorsport fluid system temperatures
• Compatible with oil, water, fuel, coolant, and vacuum service across a single hose type

Specifications

• Part Number: 11942
• Product Name: Stainless Steel Braided Flex Hose - -12 AN, 5-Foot Roll
• AN Size: -12 AN
• Hose I.D.: 0.68"
• Hose O.D.: 0.95"
• Braid Material: 300 series stainless steel
• Inner Liner: Reinforced CPE synthetic rubber
• Roll Length: 5 feet
• Operating Pressure: 1,000 psi
• Burst Pressure: 3,750 psi
• Operating Temperature Range: -40°F to 300°F (-40°C to 150°C)
• Compatible Fluids: Oil, water, fuel, coolant, vacuum (E85 short-term)
• UPC: 690092148447
• Warranty: 1-year limited
• Quantity: Sold as a 5-foot roll

Included Components

• 1x Vibrant Performance -12 AN Stainless Steel Braided Flex Hose - 5-foot roll (11942)

Product Description

The Vibrant Performance 11942 is a 5-foot roll of -12 AN stainless steel braided flex hose featuring a 300 series stainless steel braid over a reinforced CPE synthetic rubber inner liner. At 0.68" I.D., the -12 AN size is well suited for high-volume fluid applications including dry sump oil system returns, large-bore fuel supply and return lines, and coolant distribution circuits where maximum flow area is a priority. The 5-foot roll format is ideal for shorter runs or supplement purchases alongside longer roll variants - a 10-foot roll is available as PN 11922 and a 20-foot roll as PN 11932.

Rated to 1,000 psi continuous operating pressure with a 3,750 psi burst rating, the 11942 handles the demands of high-boost and high-performance fluid systems from -40°F to 300°F. It is E85 compatible for short-term use; for extended E85 or methanol exposure, Vibrant's PTFE Flex Hose series is recommended. Standard -12 AN hose end fittings (sold separately) are required at each termination point. Backed by Vibrant's 1-year limited warranty.
