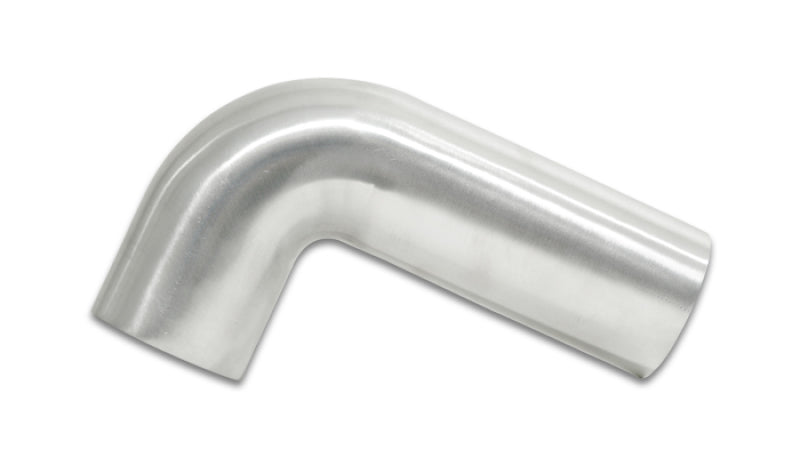

Vibrant Performance 12180 90 Deg Tight Radius Aluminum Bend 2.50" OD 6063 Universal

Vehicle Fitment

• Universal - compatible with any custom intercooler piping, intake fabrication, or charge air system requiring a 2.50" O.D. 90° tight radius aluminum bend in naturally aspirated or pressurized applications

Fitment Notes

• Universal fitment - not vehicle-specific; designed for custom fabrication using 2.50" O.D. aluminum tubing
• Tight radius centerline of 1.75" produces a compact bend suited to space-constrained routing in tight engine bays or chassis locations
• Leg Length A: 5.00"; Leg Length B: 2.00" - confirm available clearance before trimming to final length
• For the same 90° tight radius bend at 2.00" O.D., use PN 12179; for larger O.D. variants continue through the 121XX series
• Sold individually as a single 90° bend section

Features

• True mandrel bent construction maintains a consistent 2.50" internal diameter throughout the full 90° sweep - no kinking or cross-sectional restriction that would reduce airflow
• 6063 aluminum construction is lightweight and suitable for both pressurized intercooler and turbo inlet piping as well as naturally aspirated intake fabrication
• Tight 1.75" centerline radius allows compact directional changes in space-constrained engine bay and chassis routing - tighter than standard radius bends of equivalent diameter
• Brushed aluminum finish provides a clean professional appearance and requires minimal surface preparation for TIG welding
• 2mm wall thickness provides adequate rigidity for intercooler and intake piping applications while keeping overall weight low

Specifications

• Part Number: 12180
• Product Name: 90° Tight Radius Aluminum Bend - 2.50" O.D.
• Bend Angle: 90°
• Tube O.D.: 2.50"
• Centerline Radius (CLR): 1.75"
• Leg Length A: 5.00"
• Leg Length B: 2.00"
• Wall Thickness: 2mm
• Material: 6063 aluminum alloy
• Finish: Brushed aluminum
• UPC: 690092173005
• Quantity: Sold individually

Included Components

• 1x Vibrant Performance 90° Tight Radius Aluminum Bend - 2.50" O.D., Brushed (12180)

Product Description

The Vibrant Performance 12180 is a 6063 aluminum 90° tight radius mandrel bend at 2.50" O.D., designed for custom intercooler piping, intake fabrication, and other pressurized or naturally aspirated air system builds. The 1.75" centerline radius produces a tight bend geometry that is significantly more compact than standard radius bends at this diameter, making it particularly useful for routing intercooler pipes around tight obstacles in crowded engine bays where a standard radius bend would not fit. True mandrel bending preserves the full 2.50" internal diameter throughout the sweep, maintaining airflow velocity and eliminating the flow restriction of crush-bent alternatives.

Constructed from 6063 aluminum with a brushed finish, the 12180 is lightweight, corrosion resistant, and requires minimal surface preparation for TIG welding - making it the preferred choice of professional fabricators building custom intake and intercooler systems. Wall thickness of 2mm provides sufficient rigidity for pressurized applications. Leg lengths of 5.00" and 2.00" allow trimming to the exact fit required before welding or coupling with standard 2.50" O.D. silicone couplers and HD clamps. Sold individually.
