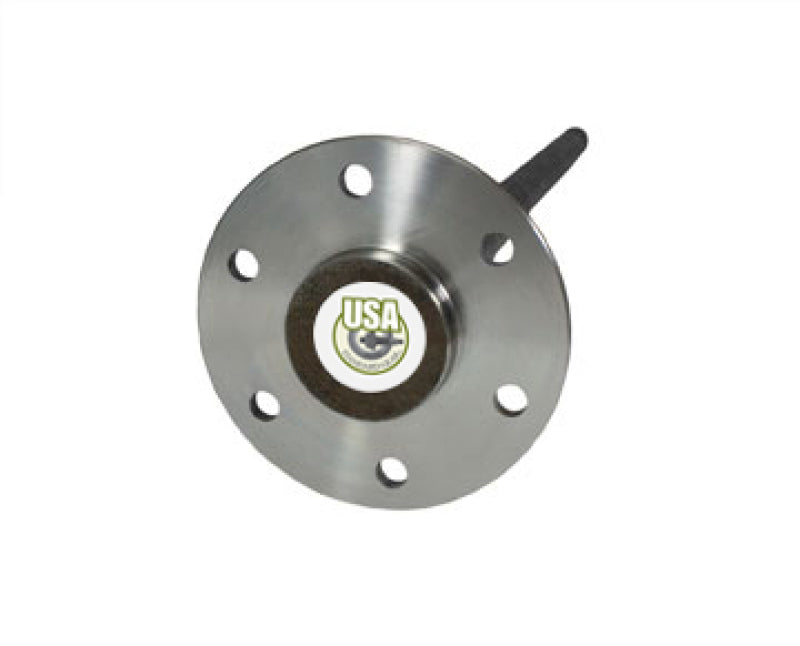

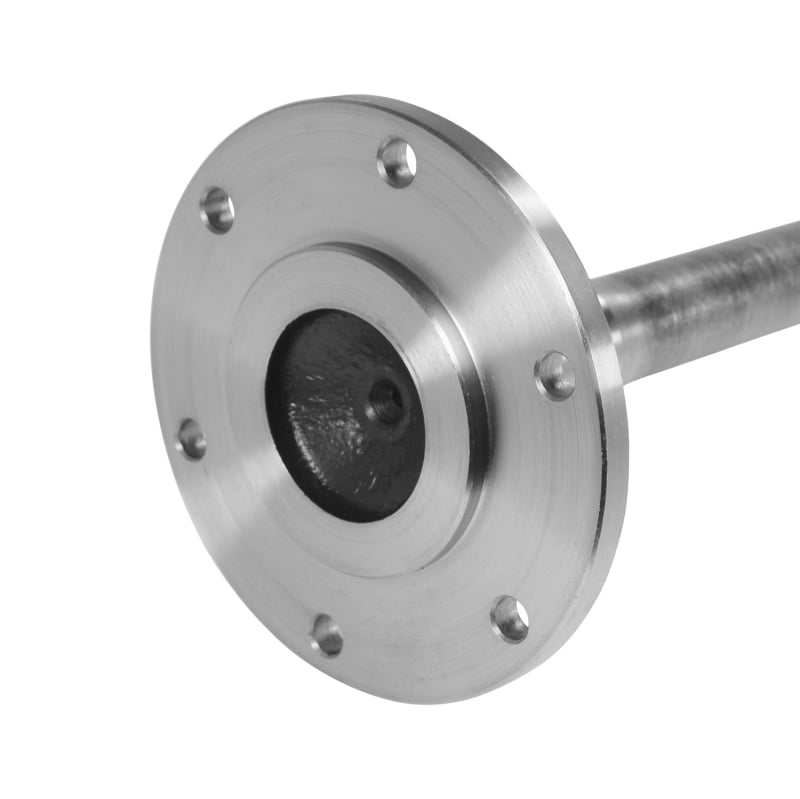

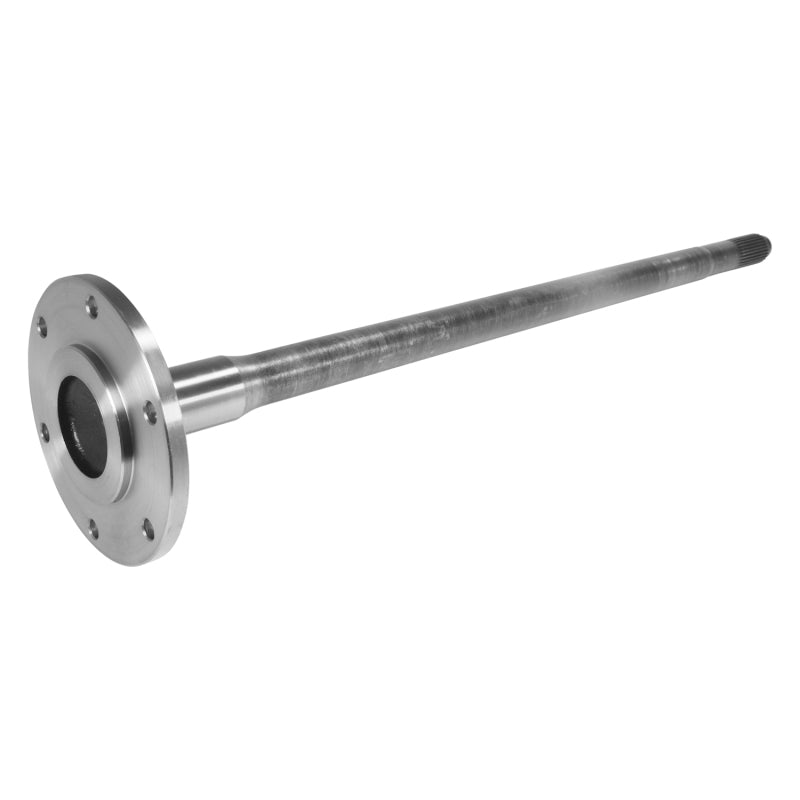

Yukon ZA G3893605 1541H 30-Spline 6-Lug Rear Axle for 1965-1969 GM 4WD Truck

Vehicle Fitment

• 1965-1969 Chevrolet C10/C15 and K10/K15 4WD pickups, GM 12-bolt truck differential (semi-float rear)
• 1965-1969 GMC C15/C1500 and K15/K1500 4WD pickups, GM 12-bolt truck differential (semi-float rear)

Fitment Notes

• Fits the GM 12-bolt truck differential - a different, non-interchangeable axle from the GM 12-bolt passenger car differential used in cars of the same era
• This is a 30-spline axle; stock 1965-1969 trucks originally used a 17-spline axle, so installing this axle also requires upgrading to a 30-spline carrier
• 1963-1964 model year trucks use a different axle seal (2.535" OD) than 1965-1969 trucks (2.579" OD) - confirm the correct seal for your model year, and note 1963-1964 trucks also require the 30-spline carrier upgrade if converting from the stock 17-spline setup
• Sold individually - order two for a complete rear axle set
• Wheel studs, bearings, and seals are not included

Features

• One-piece forged 1541H alloy axle shaft, approximately 25% stronger than OE 1040/1050 axles
• Rolled splines for roughly 30% greater strength than cut splines
• 30-spline, C-clip retained design
• 6 x 5.50" wheel stud pattern, press-in studs
• Manufactured by USA Standard Gear
• Built for street, off-road, and heavier-duty use than factory axles

Specifications

• Differential: GM 12-bolt truck (semi-float, 4WD)
• Axle type: C-clip
• Length: 30.75"
• Spline count: 30
• Wheel stud pattern: 6 x 5.50"
• Material: 1541H alloy steel

Included Components

• 1x Axle shaft

Product Description

The Yukon ZA G3893605 is a direct-fit replacement 1541H alloy axle shaft for the 1965-1969 Chevrolet and GMC 4WD pickups equipped with the GM 12-bolt truck differential. Forged from 1541H alloy steel with rolled splines, it's built to be notably stronger than the original 1040/1050 steel axles these trucks left the factory with, making it a common choice for owners upgrading a stock differential for street, tow, or off-road use.

This is a 30-spline axle, which is stronger than the 17-spline axle these trucks originally came with - but that strength upgrade only works if your differential carrier has also been converted to accept 30-spline axles. It's a common pairing with a carrier and gear upgrade rather than a standalone repair part. Seal specs also shift between 1963-1964 and 1965-1969 production, so confirming your exact model year is important before ordering the matching seal separately.

This axle is sold individually - a complete rear axle set requires two. It does not include wheel studs, bearings, or seals, so plan to order those separately if you're doing a full axle service. Installation involves removing the differential cover and carrier to access the axle, a job well within reach of an experienced DIY mechanic and a common step during a broader differential rebuild or upgrade.
