UMI 2046-C211-110 Rear Coilover Kit 110lb Drag for 1982-2002 Camaro/Firebird

Vehicle Fitment

• 1982-2002 Chevrolet Camaro
• 1982-2002 Pontiac Firebird

Fitment Notes

• Tested with 1-1/2" diameter UMI trailing arms, UMI's 22mm sway bar, and 32mm drag anti-roll bar. Fitment with other brands' sway bars or larger-diameter control arms is not guaranteed - contact UMI to confirm before ordering if running non-UMI parts.
• Drilling one 3/8" hole per side is required to complete installation; no welding needed.

Features

• Bolt-in rear coilover conversion with full ride height, spring rate, and damping adjustability
• Double-shear upper mount holds a true 2-1/2" racing coilover
• FEA-designed lower bracket bolts into the stock shock mount plus an added reinforcement hole
• Viking double-adjustable shocks offer 19 compression and 19 rebound settings
• Brackets laser-cut from 3/16" American-made mild steel for a precise fit
• TIG-welded bracket construction for strength and a clean finish
• Powder-coated for long-term durability
• Spacers included for use with control arm relocation brackets
• Designed, tested, and manufactured in Philipsburg, PA, USA

Specifications

• Application: Drag Racing
• Ride Height Adjustment: -1" to +1"
• Spring Rate: 110 lb
• Spring Diameter: 2-1/2"
• Shock Adjustment: 19-Way Compression / 19-Way Rebound
• Bracket Material: 3/16" Mild Steel
• Finish: Powder Coat

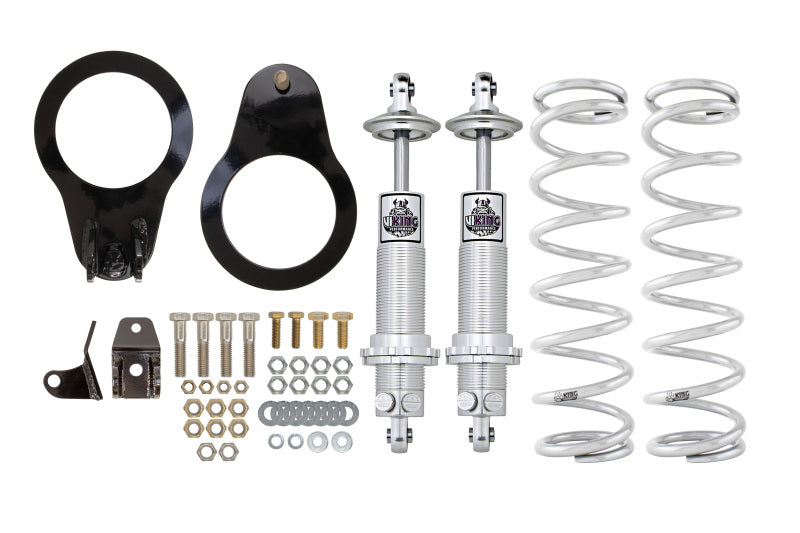

Included Components

• 2x Viking Double-Adjustable Rear Shocks (110 lb Springs)
• Upper & Lower Mounting Brackets
• Relocation Bracket Spacers
• Mounting Hardware

Product Description

The factory stud-type rear shock on 3rd-gen F-body Camaros and Firebirds offers no adjustability, leaving drag racers stuck with a fixed setup that can't be tuned for launch or track conditions. The UMI 2046-C211-110 replaces that setup with a true double-shear coilover conversion, opening up full control over ride height, spring rate, and damping through Viking's 19-way adjustable shocks.

Built specifically for drag applications with a 110 lb spring and -1" to +1" ride height range, it's paired with laser-cut, TIG-welded 3/16" steel brackets that bolt directly into the stock shock mount and an added reinforcement point - no welding required, just one 3/8" hole drilled per side. It's proven with UMI's own trailing arms and sway bars, making it a natural pairing for a full UMI rear suspension setup rather than a standalone shock swap.
