UMI 2336 Adjustable Front Upper A-Arm Mounts for 1993-2002 Camaro/Firebird

Vehicle Fitment

• 1993-2002 Chevrolet Camaro
• 1993-2002 Pontiac Firebird

Fitment Notes

• Factory upper a-arms will not bolt into the upper adjustment hole; UMI's own upper a-arms can use all available adjustment positions.

Features

• Direct bolt-on replacement - no drilling or welding required
• Corrects a known factory design flaw: the original bowl-shaped mount trapped water and caused rust
• Open design allows water to drain from the strut bolt, helping extend front shock life
• Multiple adjustment holes allow front roll center height tuning
• Raising roll center height improves responsiveness and camber gain for better cornering
• Compatible with factory and aftermarket upper a-arms
• Fits factory-style shocks in the stock mounting location
• Laser-cut from 3/16" USA steel - same weight as the factory mount
• Durable black powder coat finish

Specifications

• Position: Front, Upper
• Material: 3/16" Steel
• Adjustment Range: 3/8" up/down from factory center hole
• Finish: Black Powder Coat

Included Components

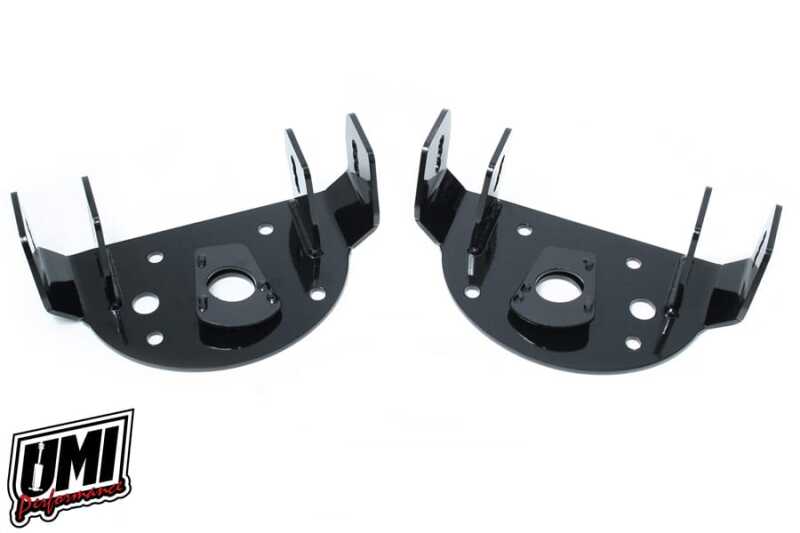

• 2x Front Upper A-Arm Mounts

Product Description

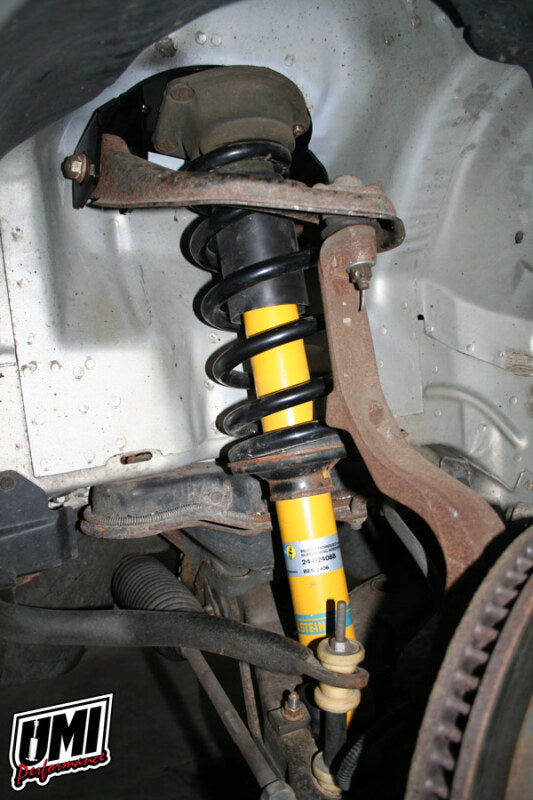

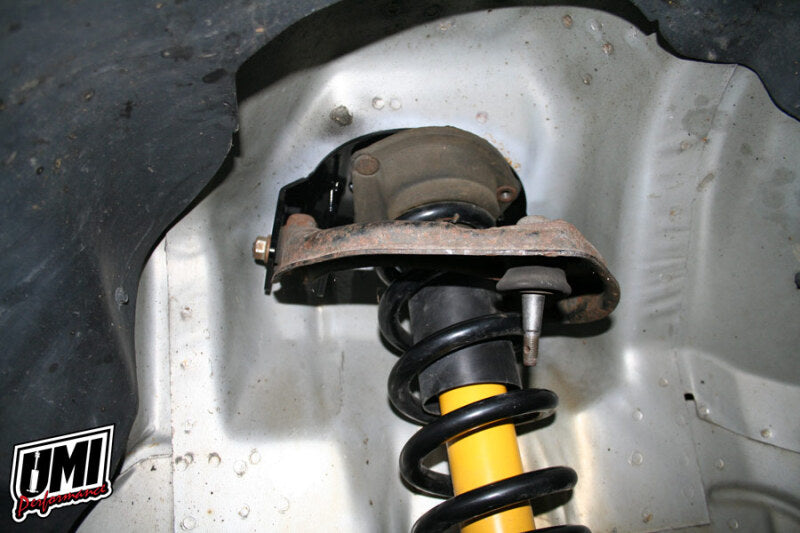

The factory upper strut mount on the 4th-gen Camaro and Firebird has a bowl-shaped design that traps water against the mount - a slow-motion rust problem that eventually weakens the mounting point and shortens shock life. The UMI 2336 replaces it with a fabricated mount that drains freely at the strut bolt, solving that failure point while matching the factory mount's weight and bolt-on simplicity.

Beyond fixing the rust issue, the added adjustment holes let you raise or lower the a-arm mounting point up to 3/8" to fine-tune front roll center height - useful for dialing in camber gain and cornering response without an aggressive alignment. It's a direct swap for anyone dealing with a corroded factory mount or looking to add some front-end tuning range at the same time.
