Quantity Decrease quantity for UMI 4034-R 1" Solid CrMo Rear Sway Bar for 64-72 GM A-Body Chevelle/GTO/442 Increase quantity for UMI 4034-R 1" Solid CrMo Rear Sway Bar for 64-72 GM A-Body Chevelle/GTO/442

Add to cart





Product Specification:

SKU:UMI4034-R

MPN: 4034-R

UPC: 4034-R

Weight: 17.6 lb

Inventory: 8

Type: Sway Bars

Description

Vehicle Fitment

• 1964-1972 Chevrolet Chevelle / Malibu
• 1964-1972 Pontiac GTO / LeMans / Tempest
• 1964-1972 Oldsmobile Cutlass / 442 / F-85
• 1964-1972 Buick Skylark / GS / Special
• 1970-1972 Chevrolet Monte Carlo
• 1971-1972 GMC Sprint

Fitment Notes

• GM A-Body platform only
• Rear sway bar -- mounts to lower control arms
• Bolt-on installation -- no modifications required
• Ford 9" rear end swap: drain plug guard may create clearance issue
• Works with most aftermarket tubular lower control arms
• Compatible with 10-bolt and 12-bolt rear housings
• End link center-to-center: 6 inches
• "-R" suffix = red powder coat finish

Features

• 1" solid 4140 CrMo steel -- hot formed and heat treated
• One-piece construction for maximum strength
• Hot forming process maintains bar shape and memory
• Reduces body roll, understeer, and improves cornering balance
• Keeps vehicle level during hard launches
• Red powder coat finish for corrosion resistance
• Includes all mounting hardware -- bolt-on installation

Specifications

• Type: Solid rear sway bar
• Diameter: 1 inch (25.4mm)
• Material: 4140 CrMo steel
• Construction: One-piece, hot formed and heat treated
• Adjustable: Fixed (non-adjustable)
• Finish: Red powder coat
• Mounting: Bolt-on to lower control arms
• Hardware Included: Yes
• Also available in black (PN 4034-B)

Included Components

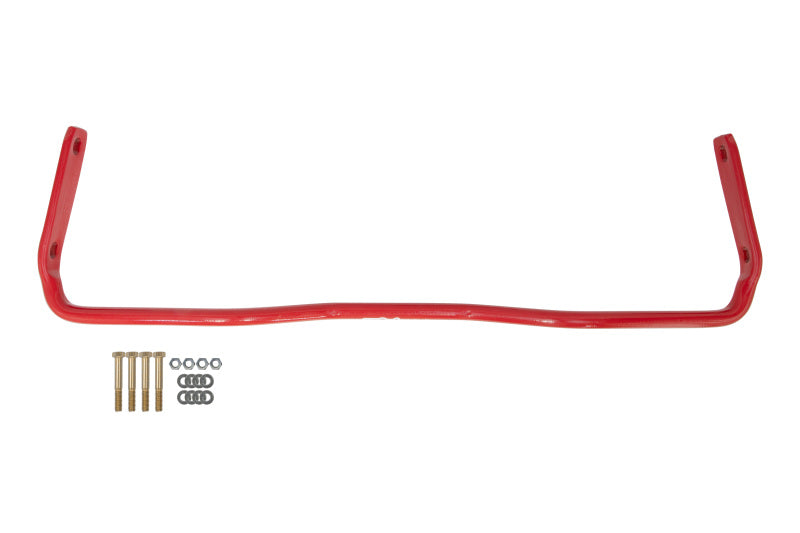

• 1x 1" solid CrMo rear sway bar (red powder coat)
• 1x Mounting hardware kit

Product Description

The UMI Performance 4034-R is a 1-inch solid 4140 CrMo rear sway bar for 1964-1972 GM A-Body vehicles including the Chevelle, Malibu, Monte Carlo, GTO, LeMans, Tempest, Cutlass, 442, Skylark, GS, and related models. Hot formed and heat treated as a single piece, this bar maintains its shape and memory far longer than cold-bent alternatives. It bolts directly to the lower control arms with included hardware -- no modifications needed -- and is compatible with both factory and most aftermarket tubular control arms as well as 10-bolt and 12-bolt rear housings.

Designed to significantly reduce body roll and understeer while improving cornering balance and straight-line stability during hard launches. The red powder coat finish provides lasting corrosion protection and a clean underbody appearance. When installing with an aftermarket Ford 9" rear end, verify clearance around the drain plug guard. Also available in black as PN 4034-B, or as a front/rear sway bar kit as PN 403534-R.
