UMI Performance 6569 Viking D220 Rear Shock Lowered for 2015-2025 Ford F-150 2WD

Vehicle Fitment

• 2015-2025 Ford F-150 (All Trims, 2WD, Lowered Minimum 3.5" or Equipped with Flip Kit)
• 2015-2025 Ford F-150 (All Trims, 4WD, Lowered Minimum 5.5" or Equipped with Flip Kit)

Fitment Notes

• Designed for lowered trucks only - minimum 3.5" of rear lowering on 2WD models or minimum 5.5" of rear lowering on 4WD models required; not intended for stock-height applications
• Compatible with flip kit-equipped F-150s, including UMI's own F-150 flip kit system
• Sold individually as a single rear shock assembly - two units required for a complete rear replacement
• Included UMI-machined spacers correct the Viking D220 bushing width for proper fitment to the Ford F-150 rear mounting points
• Does not fit 2015-2025 Ford F-150 Raptor - Raptor uses a different rear suspension configuration

Features

• Viking D220 double adjustable shock with 19 independent compression and 19 independent rebound settings, allowing precise tuning of ride quality and performance independently
• Double adjustability enables separate optimization of compression (body control under load) and rebound (wheel return speed) for both street and performance use on lowered trucks
• Includes 4x UMI-machined steel spacers that correct the Viking D220 bushing width for proper fit at the factory F-150 rear shock mounting points - no fabrication required
• Street and race proven performance - validated on lowered and flip kit-equipped F-150 platforms
• Compatible with UMI's complete F-150 lowering suspension system for a fully coordinated setup

Specifications

• Part Number: 6569
• Product Name: 2015-2025 Ford F-150 Rear Viking D220 Double Adjustable Shock Assembly
• Shock Model: Viking D220 Double Adjustable
• Compression Adjustments: 19 settings
• Rebound Adjustments: 19 settings
• Position: Rear
• Compatible Drivetrain: 2WD and 4WD
• Minimum Lowering Required: 3.5" (2WD), 5.5" (4WD)
• Included Spacers: 4x UMI-machined bushing width correction spacers
• Quantity: Sold individually (1x shock assembly)

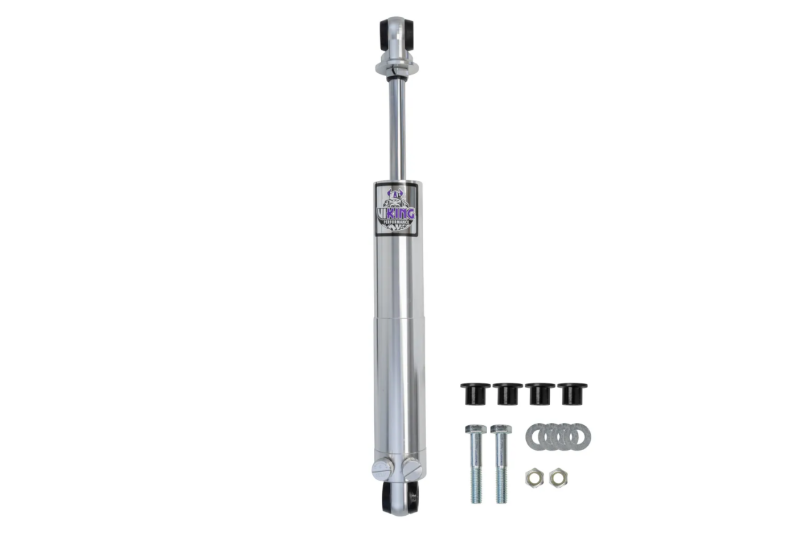

Included Components

• 1x Viking D220 Double Adjustable Rear Shock
• 4x UMI-machined steel bushing width spacers
• 1x Hardware/installation kit

Product Description

The UMI Performance 6569 pairs the Viking D220 double adjustable shock with a set of UMI-machined spacers and hardware specifically designed to make the D220 fit correctly at the factory rear shock mounting points on 2015-2025 Ford F-150 trucks. The Viking D220 features 19 independent compression and 19 independent rebound adjustment settings, giving the builder precise control over both the body control and wheel return characteristics of the rear suspension - a significant upgrade over the fixed-valving factory shocks that are no longer suited to the altered suspension geometry of a lowered truck.

This shock assembly is designed exclusively for lowered F-150 applications - minimum 3.5" of rear lowering on 2WD models and 5.5" on 4WD models - or trucks equipped with a rear flip kit such as UMI's own F-150 system. The included UMI-machined spacers correct the D220's bushing width to match the Ford F-150's factory mounting points without requiring any custom fabrication. Sold individually - two units are required for a complete rear shock replacement.
