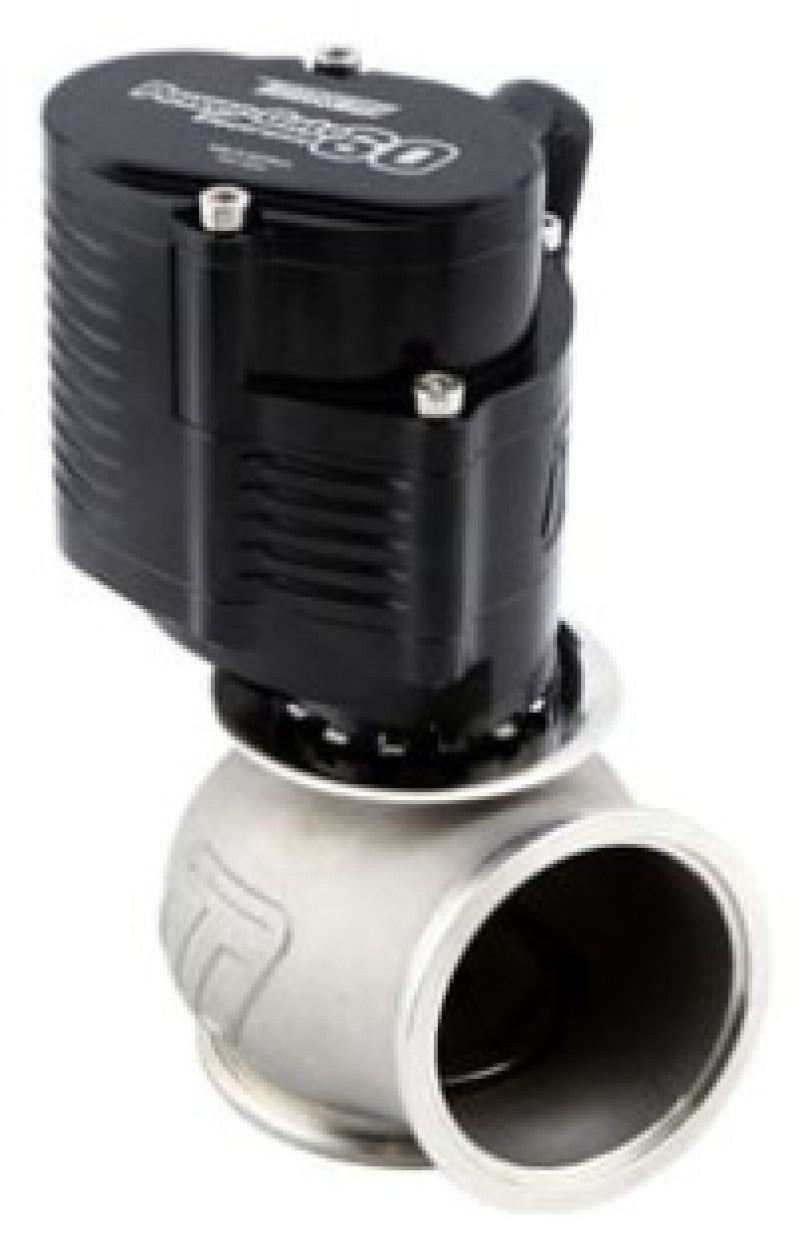

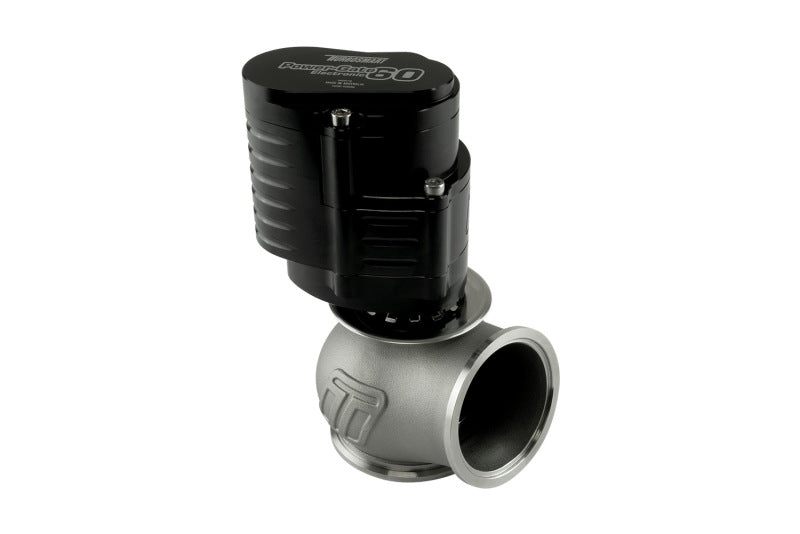

Turbosmart TS-0555-1502 GenV 60 mm Electronic PowerGate Wastegate

Vehicle Fitment

• Universal -- fits turbocharged engines with external 60 mm wastegate flanges

Fitment Notes

• Direct replacement for GenV PowerGate60 flange-mount systems
• Requires 12 V dual half-bridge ECU output or Turbosmart BlackBox for PWM control
• Liquid-cooled port available for high-temp applications--hose required

Features

• Fully electronic actuator--no springs or boost-reference hoses
• 60 mm poppet valve with Nitronic 60 valve guide and 347 stainless body
• Liquid-cooled actuator option enhances thermal stability
• Rotatable, 360° adjustable actuator housing for hose routing
• Onboard 0-5 V position and temperature sensors for precise tuner feedback
• Strap-style V-band clamps and matching inlet/outlet flanges included
• Clockable design allows optimal orientation of ports
• Capable of controlling boost up to 80 psi via PWM

Specifications

• Valve Size: 60 mm poppet
• Body Material: High-temp 347 stainless steel
• Valve Guide: Nitronic 60 stainless
• Actuator: Electronic PWM with liquid-cooling provision
• Sensors: Built-in 0-5 V position and thermal outputs
• Flanges & Clamps: Strap-type V-band inlet/outlet included
• Control Voltage: 12 V PWM (dual half-bridge input required)
• Boost Capability: Up to 80 psi controlled

Included Components

• 1x GenV Electronic PowerGate60 wastegate body (TS-0555-1502)
• 1x Electronic actuator with wiring harness
• 1x Nitronic 60 poppet valve seat
• 2x Strap-style V-band clamps
• 1x Inlet flange and 1x outlet flange
• 1x Rotatable actuator housing collar
• 1x Un-terminated flying-lead harness
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0555-1502 GenV 60 mm Electronic PowerGate wastegate is a cutting-edge, fully electronic external wastegate engineered for precise boost control in high-performance turbo systems. Building on the proven GenV PowerGate60 platform, this advanced model replaces pneumatic springs with a PWM-driven actuator for seamless boost regulation from 0 psi up to 80 psi--directly controlled via your ECU or compatible controller.

Constructed from 347 stainless body with a Nitronic 60 valve guide and rotatable actuator housing, it includes onboard position and temperature sensors for real-time tuning feedback. The kit arrives complete with strap-style V-band clamps, flanges, and hardware, making it a ready-to-install solution for turbocharged engines using external wastegate configurations. Ideal for track-focused builds and high-boost applications demanding reliability and tunable performance.
