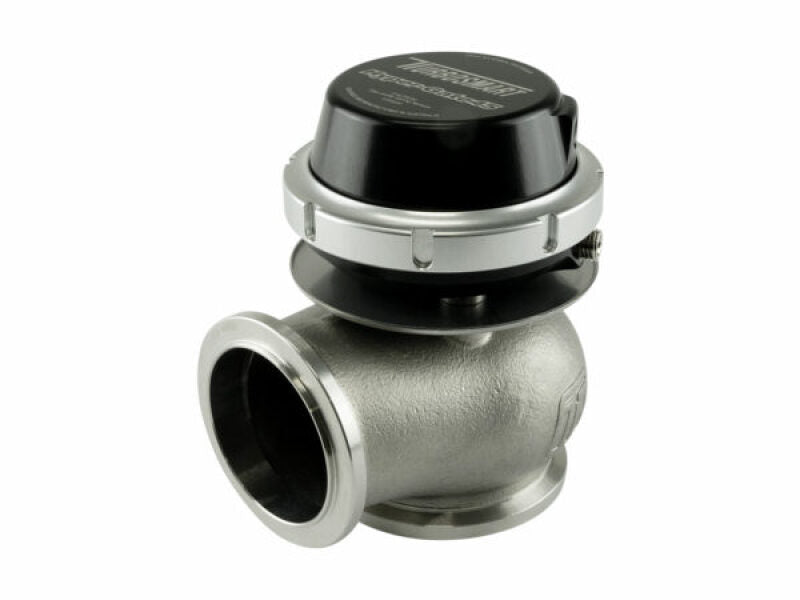

Turbosmart TS-0506-1041 Gen4 HyperGate45 WG45 45mm 14PSI Street Wastegate Black

Vehicle Fitment

• Universal - No direct OEM vehicle fitment. Suitable for medium-to-large capacity turbocharged engines requiring a 45mm V-band external wastegate compatible with 44/46mm peer flanges.

Fitment Notes

• V-band inlet and outlet - compatible with all popular 44mm and 46mm peer weld flanges; suits welding to 1.75" / 1-7/8" O.D. manifold pipe.
• Gen4 platform - officially re-introduced by Turbosmart and still in active production; supported by the Turbosmart Legacy Program with full spares and accessories availability.
• This is the standard Gen4 HyperGate45, not the HP (High Pressure) variant - base spring options run from 3 to 26 PSI; for applications requiring more than 26 PSI base pressure, the HyperGate45HP should be considered instead.
• 14 PSI base spring pre-installed; spring range of 3-26 PSI available separately for custom pressure tuning.
• Kit Builder Packs available separately for custom flange specifications.

Features

• Australian-made, hand-assembled and individually tested before shipping - consistent with Turbosmart's 25+ year manufacturing standard.
• Stainless steel cast body and aluminum actuator housing deliver a balance of thermal durability and lightweight construction.
• Solid one-piece stainless steel 45mm valve provides high-temperature resistance and long-term durability under sustained boost cycling.
• Proprietary high-temp silicon Nomex diaphragm ensures reliable actuator sealing across a wide operating temperature and pressure range.
• Unique locking collar design reduces overall unit height compared to older generation wastegates and enables faster spring changes.
• V-band inlet and outlet connections provide a secure, leak-resistant seal with broad compatibility across common 44/46mm manifold flanges.
• Twin 1/16" NPT reference ports on both cap and base allow flexible boost reference hose routing.
• Suitable for pump fuel and E85 applications - confirmed by Turbosmart as a genuine street performer for real-world daily and modified use.

Specifications

• Part Number: TS-0506-1041
• Wastegate Generation: Gen4 (4th Generation)
• Wastegate Type: HyperGate45 External Wastegate
• Valve Size: 45mm
• Valve Material: Solid One-Piece Stainless Steel
• Body Material: Stainless Steel Cast
• Actuator Housing Material: Aluminum
• Diaphragm Material: High-Temp Silicon Nomex
• Connection Type: V-Band Inlet and Outlet (suits 44/46mm peer fitment)
• Pipe O.D. for Welding: 1.75" / 1-7/8"
• Base Spring Pressure (Pre-installed): 14 PSI
• Available Spring Range: 3-26 PSI (optional springs sold separately)
• Reference Ports: Twin 1/16" NPT (Cap and Base)
• Finish: Black

Included Components

• 1x Gen4 HyperGate45 Wastegate Unit - Black (14 PSI spring pre-installed)
• 2x Stainless Steel Weld Flanges (Inlet and Outlet)
• 2x V-Band Clamps (Inlet and Outlet)
• 1x Valve Seat
• 2x 1/16" NPT Pressure Nipples
• 2x 1/16" NPT Blanking Plugs
• 1x Locking Collar Tool

Product Description

The Turbosmart TS-0506-1041 Gen4 HyperGate45 is a 45mm V-band external wastegate positioned as a cost-effective, street-performance solution for medium-to-large capacity turbocharged engines that don't require full motorsport-specification components. Originally introduced in 2011 and officially re-introduced after the GenV launch at a reduced price point, the Gen4 HyperGate45 remains Australian-made, hand-assembled, and individually tested to the same manufacturing standards that have defined Turbosmart for over 25 years. It is positioned specifically for builders and tuners who want genuine Turbosmart quality and reliability in a value-tier package suitable for street performance, pump fuel, and E85 builds.

The stainless steel cast body and aluminum actuator housing provide solid thermal durability while keeping overall weight low. The solid one-piece stainless steel valve and proprietary high-temp silicon Nomex diaphragm deliver reliable operation under the heat and pressure cycling demands of turbocharged street use. The unique locking collar design reduces unit height and allows spring changes to be performed quickly without removing the wastegate from the manifold, and the V-band connections on both the inlet and outlet ensure compatibility with all popular 44mm and 46mm peer flanges.

Installation suits 1.75" O.D. manifold pipe and uses the included stainless steel weld flanges and V-band clamps. The 14 PSI base spring is pre-installed, with the full 3-26 PSI spring range available separately for custom base pressure tuning. Twin 1/16" NPT reference ports on both the cap and base provide flexible boost reference routing. Full spares and accessories support is available through Turbosmart's Legacy Program for long-term serviceability. Kit Builder Packs are also available separately for builders needing custom flange configurations.
