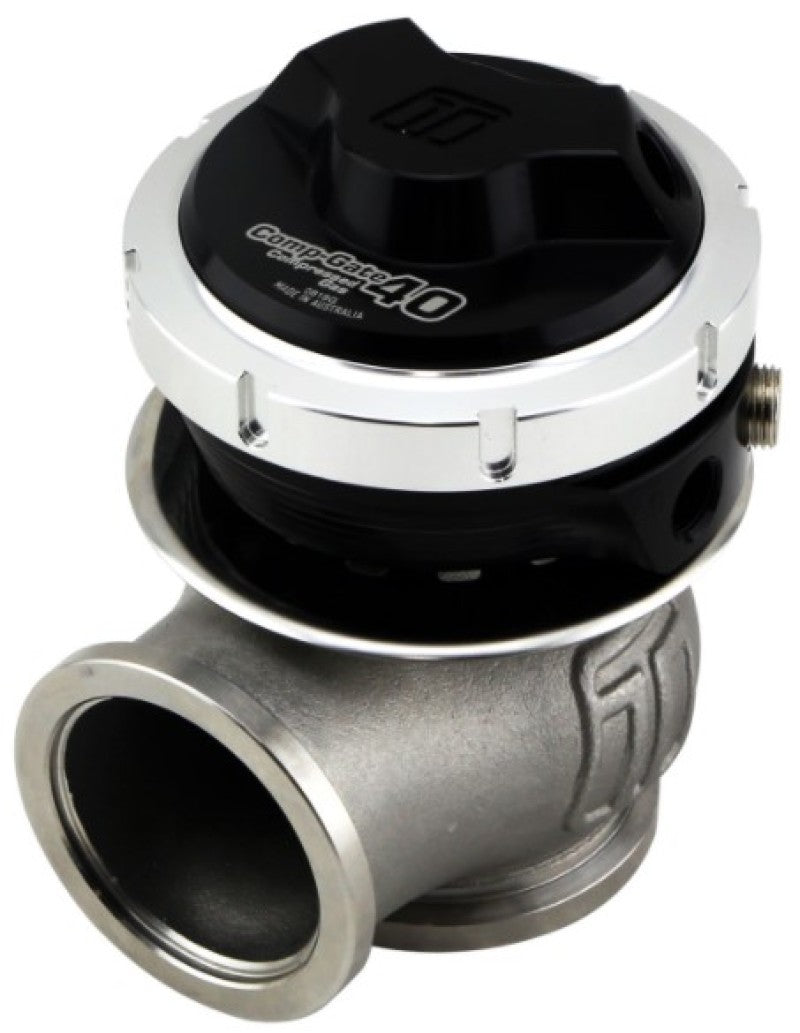

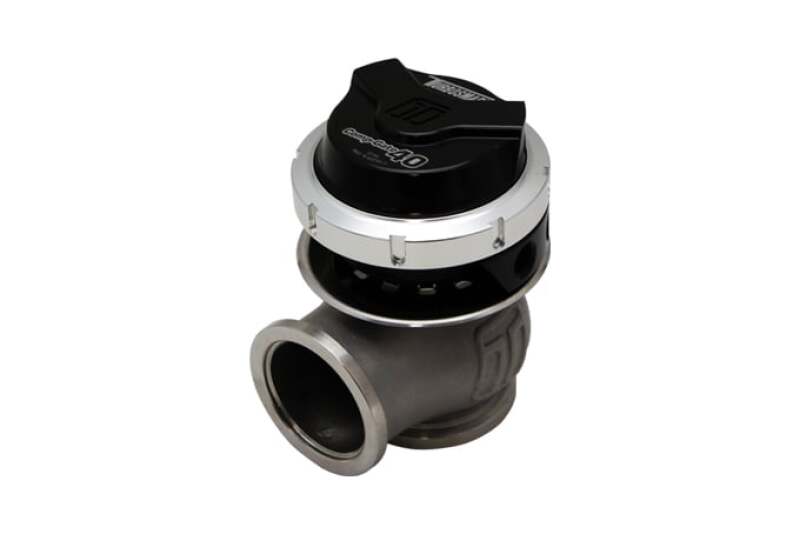

Turbosmart TS-0552-1202 GenV CompGate40CG 5PSI External Wastegate Universal

Vehicle Fitment

• Universal - Designed for turbocharged systems with external wastegate ports (not vehicle specific)

Features

• GenV CompGate40CG 40 mm external wastegate with compressed gas (CG) diaphragm
• Pre-installed 5 psi base spring for controlled low boost operation
• Inverted diaphragm designed to withstand high top-chamber pressure environments
• Mechanical diaphragm actuator with modular adjustability
• 360° adjustable actuator orientation for versatile installation
• Strap-type V-band inlet and outlet clamps for secure sealing
• Optional liquid actuator cooling provision
• Complete spring kit included for boost tuning flexibility

Specifications

• Part Number: TS-0552-1202
• Wastegate Valve Diameter: 40 mm
• Installed Spring: 5 psi
• Actuator Type: Mechanical diaphragm (compressed gas optimized)
• Connection Type: Strap-type V-band inlet and outlet
• Body Material: High-temp stainless steel body with Nitronic60 valve guide
• Reference Ports: 1/8" NPT
• Orientation: 360° actuator adjustment

Included Components

• 1x GenV CompGate40CG external wastegate (pre-assembled with 5 psi spring)
• 1x SS316 internal valve seat
• 1x inlet V-band clamp
• 1x inlet SS304 weld flange
• 1x outlet V-band clamp
• 1x outlet SS304 weld flange
• 1x collar tool (master/slave)
• 4x 1/8" NPT plugs (1x installed)
• 2x 1/8" NPT nipples
• Full spring kit for boost tuning
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0552-1202 GenV CompGate40CG 5 PSI external wastegate is a high-performance boost control component engineered for turbocharged applications requiring precise low-pressure control. Its compressed gas (CG) diaphragm design is optimized to handle high top chamber pressures such as those seen in CO2 or compressed air systems, enhancing diaphragm longevity and consistent boost control under demanding conditions. This universal external wastegate is suitable for most turbo systems with an external wastegate port.

Featuring a 40 mm valve, a modular mechanical diaphragm actuator, and a 360° adjustable actuator orientation, this wastegate offers flexibility for installation in tight engine bays or custom layouts. The inverted diaphragm and advanced design provide excellent thermal and flow performance, while the included strap-type V-band connections and spring kit allow for boost tuning across a range of pressures. The TS-0552-1202 is ideal for performance builders, racers, and tuners seeking reliable, consistent boost management in street, track, and competition applications.
