Turbosmart TS-0505-3006 Gen4 Diaphragm Assembly for WG38 WG40 WG45 ProGate50

Vehicle Fitment

• Universal - Replacement diaphragm assembly for Turbosmart Gen4 external wastegates; not vehicle-specific

Fitment Notes

• Compatible with Turbosmart Gen4 Ultra-Gate38 (38mm) collared external wastegate
• Compatible with Turbosmart Gen4 Comp-Gate40 (40mm) external wastegate
• Compatible with Turbosmart Gen4 Hyper-Gate45 (45mm) external wastegate
• Compatible with Turbosmart Gen4 ProGate50 (50mm) external wastegate
• Not compatible with Gen V (GenV) Turbosmart wastegate models - confirm your generation before ordering
• Clevis must be purchased separately; it is not included in this assembly
• This is a replacement/service part; it is not a complete wastegate

Features

• Direct OEM-spec replacement diaphragm assembly engineered to Turbosmart's factory standards for fit and function
• Silicon Nomex diaphragm construction delivers linear valve travel across all spring pressures and boost levels
• Maintains consistent boost control response after replacement, restoring wastegate performance to like-new condition
• Includes sealing gasket to ensure a leak-free, airtight fit between the diaphragm housing and wastegate body
• Designed and hand-assembled at Turbosmart's Sydney, Australia factory under strict quality control standards
• Tested to the same demanding motorsport standards as Turbosmart's full wastegate range
• Restores diaphragm travel linearity, improving boost response and throttle control accuracy
• Cost-effective service solution - allows full wastegate rebuild without replacing the entire unit

Specifications

• Part Type: Replacement Diaphragm Assembly with Sealing Gasket
• Generation Compatibility: Turbosmart Gen4 (collared locking collar design)
• Compatible Wastegate Sizes: 38mm (WG38), 40mm (WG40), 45mm (WG45), 50mm ProGate Lite (WG50L)
• Diaphragm Material: Silicon Nomex
• Includes: Diaphragm assembly + sealing gasket
• Position: Actuator top cap / diaphragm housing
• Origin: Manufactured in Sydney, Australia

Included Components

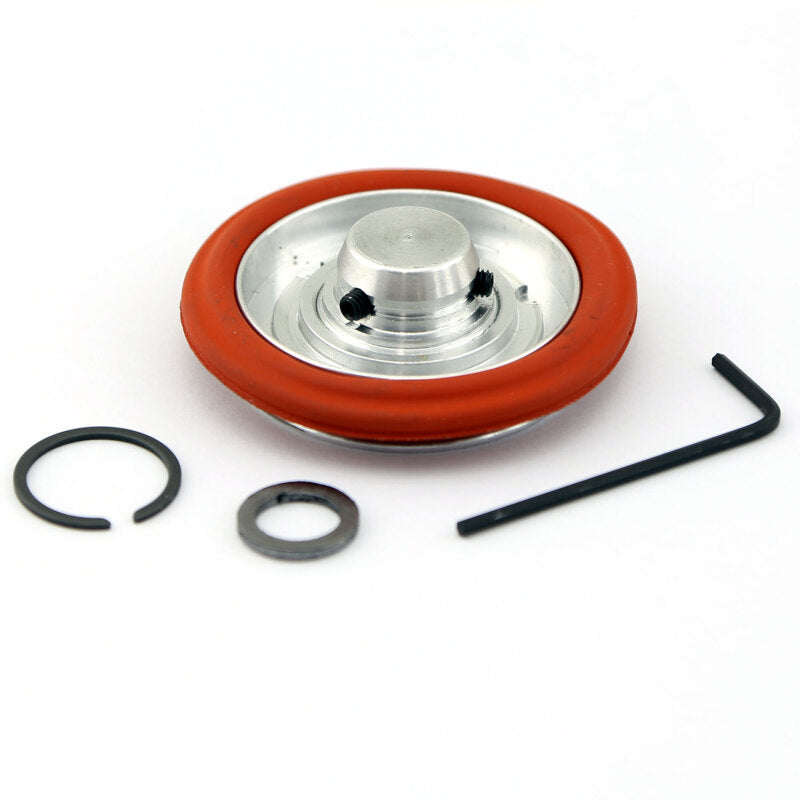

• 1x Silicon Nomex Diaphragm Assembly
• 1x Sealing Gasket

Product Description

The Turbosmart TS-0505-3006 is the factory-spec Gen4 diaphragm assembly replacement designed to service the Ultra-Gate38, Comp-Gate40, Hyper-Gate45, and ProGate50 collared external wastegates. Over time and under the heat cycles of high-performance use, wastegate diaphragms can degrade, causing inconsistent boost control, boost creep, or poor throttle response. This genuine Turbosmart replacement assembly allows a full diaphragm rebuild that restores the wastegate to like-new operating condition without the cost of replacing the complete unit.

The assembly uses Turbosmart's proven Silicon Nomex diaphragm material, the same specification used in their original wastegate builds. This material is engineered to maintain linear valve travel regardless of spring load or boost pressure, ensuring accurate and repeatable boost control across the full operating range. A sealing gasket is included to guarantee an airtight seal between the diaphragm housing and the wastegate body upon reassembly.

This is a universal service part suited to any turbocharged street or motorsport application running a compatible Turbosmart Gen4 collared wastegate. Builders and tuners maintaining performance setups will benefit from having this assembly on hand as a preventative maintenance item. Note that this part is Gen4-specific and is not compatible with Turbosmart's GenV wastegate range. The clevis is not included and must be sourced separately if replacement is also required.
