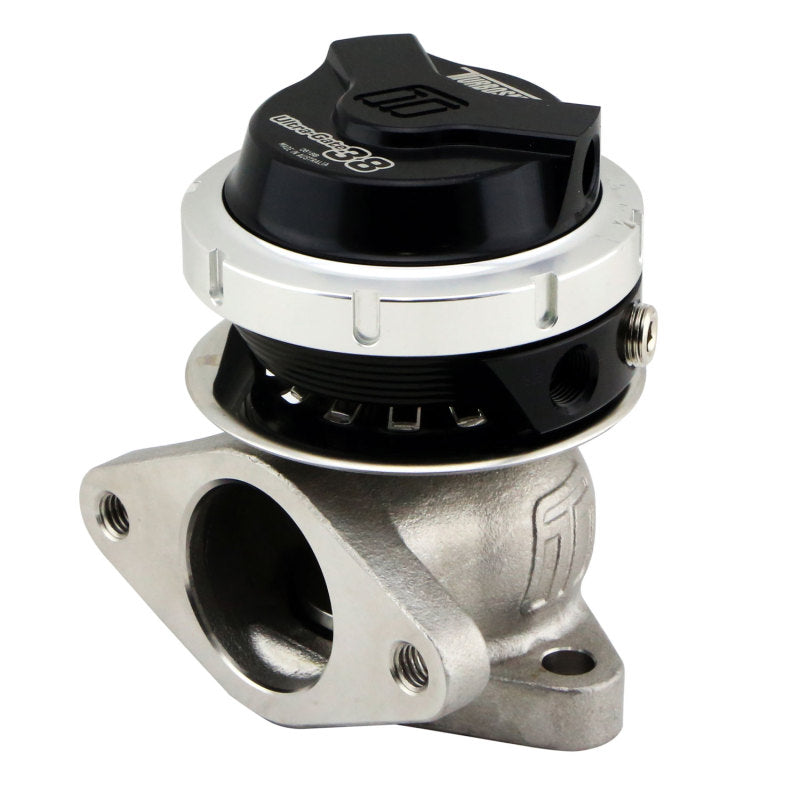

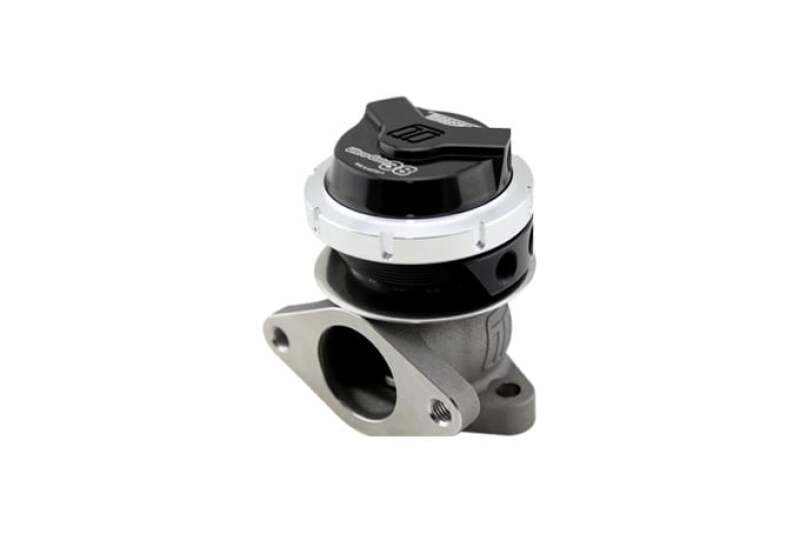

Turbosmart TS-0551-1012 Gen V WG38 Ultra-Gate 38mm Wastegate 14psi Black

Vehicle Fitment

• Universal fitment for turbocharged applications requiring external wastegate

Fitment Notes

• 2-bolt flange with 71mm spacing (Delta Gate style)
• Inlet flanges suit 1.50" OD exhaust pipe
• Direct upgrade for Gen4 Turbosmart 38mm wastegates
• Weld flanges sold separately (TS-0501-2001 SS / TS-0501-2002 mild steel)
• Professional installation and ECU tuning required
• Not CARB approved - race/off-road use only

Features

• Gen V design with CFD-optimized flow and thermal management
• Highest flowing 38mm wastegate in the world - 116 CFM max flow
• Handles 1250°C EGT continuous (>30 min non-cooled, >24 hr water-cooled)
• Collar-locking system for tool-free spring changes
• 360-degree adjustable actuator positioning
• Optional position sensor and liquid cooling upgrades
• 750,000+ cycle actuator life at 180°C ambient
• One-piece stainless steel valve with proprietary plating
• Nitronic 60 valve guide for high-temp wear resistance
• High-temp 347 SS body construction
• 17/7 PH stainless springs (beryllium-free)
• Complete spring kit included (3, 5, 7, 14 psi)

Specifications

• Manufacturer: Turbosmart
• Part Number: TS-0551-1012
• Product Line: Gen V Ultra-Gate 38 (WG38)
• Valve Diameter: 38mm
• Flange Type: 2-Bolt (71mm spacing)
• Pre-Installed Spring: 14 psi (Red)
• Color: Black
• Maximum Flow: 116 CFM @ 1 psi differential
• Mass: 860g (1.90 lbs)
• Set Pressure Accuracy: ±0.5 psi
• Actuator/Valve Ratio: 2.17:1
• Safe Working Pressure: 220 psi / 15 bar max
• Spring Base Pressure Range: 3-26 psi
• Actuator Life: 750k cycles @ 180°C / 1M cycles @ 80°C
• Max Actuator Temp: 310°C / 590°F
• Port Fittings: 1/8" NPT
• Body Material: 347 Stainless Steel
• Actuator Housing: 6061 T6 Anodized Aluminum
• Valve Guide: Nitronic 60
• Valve: EV8 with Proprietary Plating
• Diaphragm: Proprietary Silicone/Nomex
• Springs: 17/7 PH Stainless Steel
• Warranty: 1-Year Limited
• UPC: 9329677018523

Included Components

• Gen V WG38 wastegate with 14 psi spring installed (1)
• SS316 valve seat (1)
• SS manifold gaskets (2)
• Mounting bolts and nuts
• Collar removal tool (master/slave)
• Spring kit - 3, 5, 7, 14 psi (4 total)
• 1/8" NPT plugs (4) and hose nipples (2)
• Turbosmart decal and instructions

Product Description

The Turbosmart TS-0551-1012 Gen V WG38 Ultra-Gate 38 represents the pinnacle of external wastegate technology, delivering the highest flow rates available in any 38mm wastegate on the market. This fifth-generation design was completely re-engineered using CFD optimization and bench validation to achieve 116 CFM maximum flow while maintaining precise boost control. The 2-bolt flange with 71mm spacing provides direct compatibility with Delta Gate style manifolds and serves as a direct upgrade from Gen4 Turbosmart wastegates.

Constructed from high-temperature 347 stainless steel with Nitronic 60 valve guide and proprietary-plated EV8 valve, the Ultra-Gate 38 delivers class-leading thermal performance for continuous 1250°C EGT operation. The 6061 T6 aluminum actuator housing features Turbosmart's collar-locking system for tool-free spring changes and 360-degree adjustable positioning. Complete spring kit allows 3-26 psi base pressure adjustment. Optional liquid cooling ports enable extreme-duty applications. Backed by Turbosmart's 1-year limited warranty.
