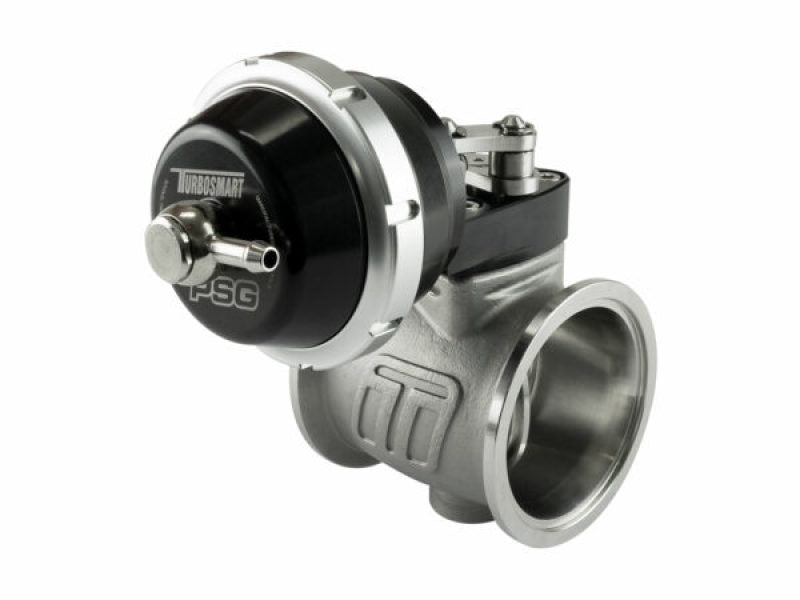

Turbosmart TS-0565-1212 WG50 GenV Power-Gate50 50mm 14psi CO2 External Wastegate

Vehicle Fitment

• Universal Performance Application (Turbocharged Engines)

Features

• WG50 GenV Power-Gate50 external wastegate designed for compressed-gas (CO2) boost control
• 50mm high-flow valve optimized for high-horsepower turbo systems
• Pre-configured 14 PSI base spring for precise boost regulation
• Compatible with CO2 or compressed-air boost control systems
• CFD-optimized internal flow path for maximum exhaust bypass efficiency
• Rotatable actuator housing for flexible installation and vacuum/pressure line routing
• Optional liquid-cooling ports for extreme motorsport environments
• Nitronic 60 valve guide for improved durability under high temperature and stress
• Strap-style V-band clamps for secure installation and ease of service

Specifications

• Part Number: TS-0565-1212
• Product Series: Turbosmart WG50 GenV Power-Gate50 CO2
• Wastegate Type: External compressed-gas diaphragm-actuated wastegate
• Valve Diameter: 50mm
• Base Spring Pressure: 14 PSI
• Reference Ports: 1/8" NPT
• Mounting Style: V-band inlet and outlet connections
• Body Material: High-temperature 347 stainless steel
• Valve Guide Material: Nitronic 60
• Spring Material: 17-7 PH stainless steel
• Finish: Black anodized

Included Components

• 1x WG50 GenV Power-Gate50 External Wastegate
• 1x Pre-installed 14 PSI spring
• 1x Additional spring kit for CO2 applications
• 1x Stainless steel valve seat
• 2x V-band clamps
• 2x Stainless weld flanges
• 4x 1/8" NPT blanking plugs
• 2x 1/8" NPT vacuum/pressure fittings
• 1x Locking collar tool
• 1x Turbosmart decal

Product Description

The Turbosmart TS-0565-1212 WG50 GenV Power-Gate50 is a 50mm external wastegate engineered for turbocharged engines utilizing compressed-gas (CO2) boost control strategies. This high-performance wastegate allows for precise and stable boost regulation in racing and high-horsepower applications, with a pre-installed 14 PSI base spring and additional spring kit for fine-tuning CO2 boost control setups.

Featuring the GenV design, the wastegate incorporates CFD-optimized internal flow paths, a rotatable actuator housing, and optional liquid cooling ports for extreme motorsport conditions. Constructed from 347 stainless steel with a Nitronic 60 valve guide and durable 17-7 PH stainless steel springs, it is built to handle high exhaust temperatures and maintain long-term reliability.

Designed for universal turbocharged applications, the WG50 GenV Power-Gate50 CO2 is ideal for custom turbo builds and professional motorsport setups. Installation depends on turbo manifold configuration and exhaust routing, and professional tuning is recommended for optimal performance and safe operation.
