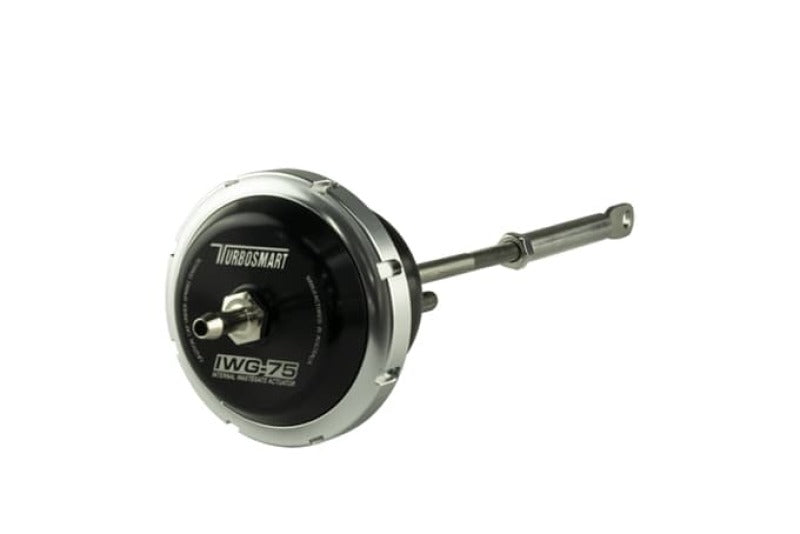

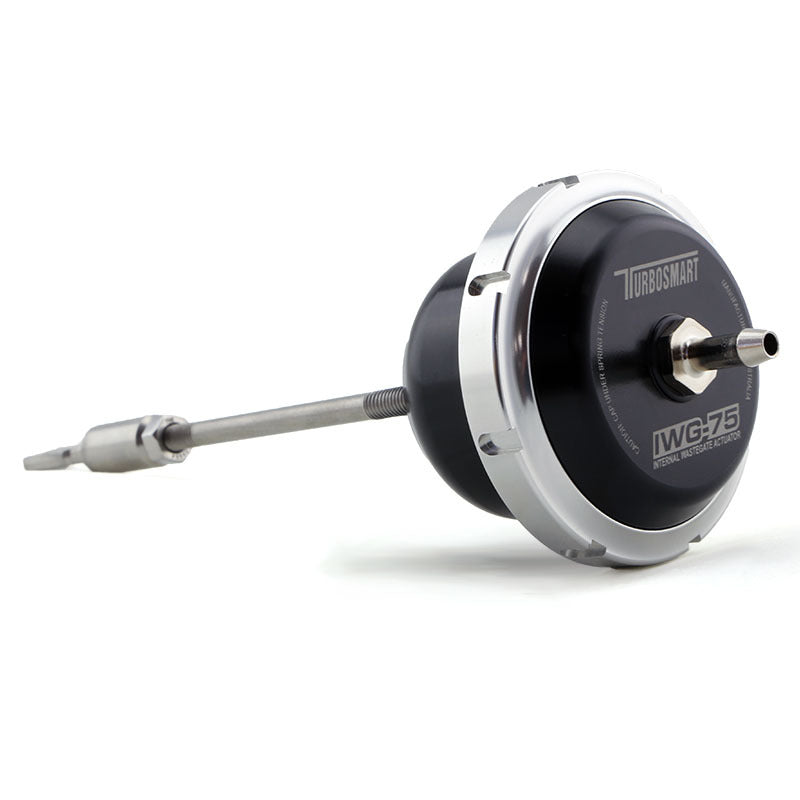

Turbosmart TS-0622-1003 IWG75 Actuator 14PSI for15-23 Ford Mustang 2.3L EcoBoost

Vehicle Fitment

• 2015-2023 Ford Mustang EcoBoost 2.3L Turbo (with Turbonetics/Precision NX2 upgraded turbo)

Features

• High-performance IWG75 internal wastegate actuator built for boosted turbo control
• Pre-set 14 PSI internal spring designed for higher boost response and sensitivity
• Billet aluminum housing with black anodized finish for strength and thermal resistance
• Proprietary silicone diaphragm with Nomex reinforcement for high-temp durability
• Stainless steel rod and clevis resist corrosion and flex under repeated use
• Turbosmart unique locking collar system allows easy spring swaps
• Improved "working ratio" over OEM actuator for better boost reaction across RPM range
• Works well with aftermarket boost controllers for refined tuning control

Specifications

• Part Number: TS-0622-1003
• Actuator Type: IWG75 internal wastegate
• Base Spring Pressure: 14 PSI
• Material: Billet aluminum housing, reinforced silicone/Nomex diaphragm
• Color: Black anodized finish
• Fitment: Designed for Turbonetics/Precision NX2 turbo upgrade on EcoBoost Mustangs
• Boost Range: Adjustable with optional springs (3-26 PSI system capability)
• Installation: Bolt-on via included vehicle-specific bracket and fasteners

Included Components

• 1x Turbosmart IWG75 Internal Wastegate Actuator (TS-0622-1003)
• Pre-installed 14 PSI internal spring
• 1x Vehicle-specific mounting bracket
• Required installation fasteners
• Swivel hose barb fitting

Product Description

The Turbosmart TS-0622-1003 IWG75 Internal Wastegate Actuator is engineered specifically for the 2015-2023 Ford Mustang EcoBoost 2.3L equipped with a Turbonetics or Precision NX2 turbo upgrade. This high-quality internal wastegate actuator provides more precise boost control and improved responsiveness compared to many stock actuators. With a pre-set 14 PSI spring and robust construction, this unit helps deliver a more controlled boost curve, especially useful on tuned or elevated boost applications where stock actuators can fall short.

Manufactured with a billet aluminum body, a Nomex-reinforced silicone diaphragm, and corrosion-resistant stainless steel components, the TS-0622-1003 is built to withstand demanding thermal and pressure environments. The Turbosmart locking collar system allows for easy future spring changes should your tuning goals evolve. Proper ECU calibration is recommended when using this actuator outside of stock boost levels to ensure reliable boost management and engine safety.
