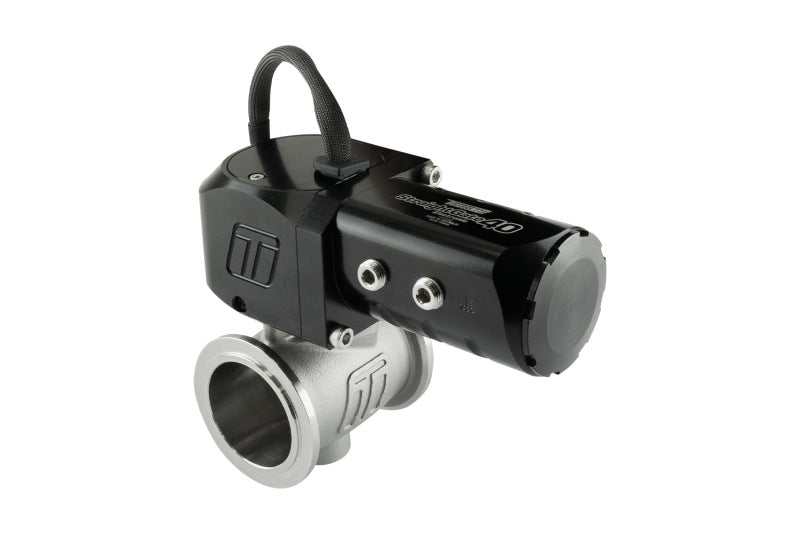

Turbosmart TS-0563-1002 eSG40 Electronic StraightGate 40mm Butterfly Wastegate
- Regular price
-
$1,242.89 - Regular price
-
$1,380.99 - Sale price
-
$1,242.89
In Stock: 8
Orders by 1pm PST ship same business dayFree Shipping w/2-4 Day Delivery
Authorized Dealer
Fitment Guarantee
90-Day Free Returns
Couldn't load pickup availability
Product Specification:
SKU:TURTS-0563-1002
MPN: TS-0563-1002
UPC: 9329677023954
Weight: 5.1 lb
Inventory: 8
Type: Wastegates
Vehicle Fitment
- Universal - No direct OEM vehicle fitment. Compatible with any custom turbocharged build requiring a 40mm butterfly-style electronically actuated external wastegate with V-band inlet and outlet connections.
Fitment Notes
- Requires a programmable ECU with a High Current (20 Amp) H-Bridge output for electronic actuation control. Compatible ECUs can use PWM, 0-5V analog, or CAN-based output. The optional Turbosmart BlackBox (TS-0305-1001) can be used as an external driver for factory recalibrated ECUs.
- Actuator housing offers 3 clocking positions (3 x 120° options); the valve body is also rotatable on the V-band axis and non-directional, providing extensive fitment flexibility in tight engine bays.
- Liquid cooling line connection is required for actuator thermal stability - ensure coolant routing is planned prior to installation.
- No springs, diaphragms, or reference hoses required - this is a fully electronic unit with no pneumatic boost reference.
- Not legal for sale or use in California on pollution-controlled motor vehicles.
Features
- 40mm zero-offset butterfly valve design allows exhaust drive pressure to act equally on both sides of the valve, creating a self-balancing effect that reduces actuation effort even under extreme drive pressures.
- Straight-through flow path eliminates the 90-degree exhaust gas turn required by traditional poppet-style wastegates, resulting in dramatically higher flow capacity - 217.4 CFM / 6.16 m³ per minute.
- Full electronic actuation via servo motor and Turbosmart's zero-back drive gearbox eliminates springs, diaphragms, and reference hoses for the widest possible tuning window.
- Onboard 0-5V analog actuator temperature sensor provides real-time thermal monitoring for data logging and protection.
- Onboard 0-5V analog and PWM digital valve position sensors deliver precise closed-loop feedback for accurate boost control.
- 360-degree V-band mounting orientation combined with three actuator clocking positions provides maximum installation flexibility.
- Grade 630 stainless steel butterfly valve and shaft, grade 347 stainless steel main body, and heat-treated 431 stainless steel V-band clamps for high-temperature durability.
- Liquid-cooled actuator housing maintains servo motor stability under sustained high exhaust gas temperature conditions.
Specifications
- Part Number: TS-0563-1002
- Valve Type: Zero-Offset Butterfly Style
- Valve Size: 40mm / 1.57"
- Flow Capacity: 217.4 CFM / 6.16 m³ per minute
- Actuation: Full Electronic (Dual H-Bridge Input)
- ECU Requirement: Programmable ECU with 20 Amp High Current H-Bridge output
- Control Inputs: PWM, 0-5V Analog, or CAN-based override
- Valve Position Sensor: 0-5V Analog + PWM Digital (onboard)
- Actuator Temperature Sensor: 0-5V Analog (onboard)
- Wiring: 7-Wire Unterminated Flying Lead Loom
- Actuator Clocking: 3 x 120° Options
- Connection Type: V-Band Inlet and Outlet
- Butterfly / Shaft Material: Stainless Steel 630
- Main Body Material: Stainless Steel 347
- V-Band Clamp Material: Stainless Steel 431 (Heat Treated)
- Cooling: Liquid-Cooled Actuator
- Finish: Matte Black
Included Components
- 1x Turbosmart eSG40 Electronic StraightGate Wastegate Unit
- 1x Unterminated 7-Wire Flying Lead Wiring Loom
- 2x V-Band Clamps (Inlet and Outlet)
- 2x Weld Flanges (Inlet and Outlet)
- 1x Turbosmart Decal
Product Description
The Turbosmart TS-0563-1002 eSG40 Electronic StraightGate is a 40mm fully electronic external wastegate built for high-performance turbocharged applications where precise boost control and maximum flow efficiency are the priority. As the smallest butterfly-style wastegate in Turbosmart's lineup, the eSG40 is purpose-designed for tight engine bay installations where traditional poppet-style wastegates or larger units cannot be packaged easily. Its zero-offset butterfly valve generates a self-balancing effect against exhaust drive pressure, meaning the servo motor requires less force to actuate the valve - even at extreme boost and backpressure levels - resulting in more stable and responsive boost control.
Unlike conventional pneumatic wastegates, the eSG40 eliminates springs, diaphragms, and boost reference hoses entirely. Full electronic control is achieved via a servo motor paired with Turbosmart's zero-back drive gearbox, which prevents reverse actuation under high drive pressures. The onboard analog and digital valve position sensors, combined with the actuator temperature sensor, provide real-time closed-loop feedback for the ECU or Turbosmart BlackBox controller, enabling a tuning window that spans from zero boost to maximum available boost.
Installation requires a compatible turbo manifold with V-band wastegate provisions, a liquid cooling line connection for actuator thermal management, and a programmable ECU capable of a 20-amp H-Bridge output. The three actuator clocking positions and fully rotatable V-band valve body provide broad fitment flexibility across a wide range of engine configurations. The optional Turbosmart BlackBox (TS-0305-1001) is available for those using factory-based ECUs requiring an external H-Bridge driver. This wastegate is best suited for advanced tuners and motorsport builds demanding electronic-grade boost control precision.
