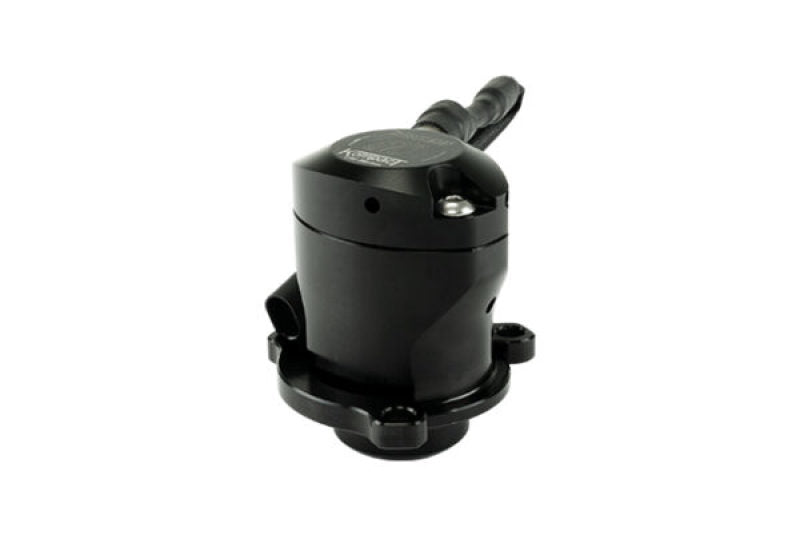

Turbosmart TS-0223-1250 Kompact EM Plumb Back BOV for BMW N20/N26 VR23

Vehicle Fitment

• 2014-2016 BMW 228i F22 (N20/N26 2.0L Turbo)
• 2011-2016 BMW 320i / 328i F30 (N20/N26 2.0L Turbo)
• 2013-2016 BMW 328i GT F34 (N20/N26 2.0L Turbo)
• 2014-2016 BMW 428i F32/F33/F36 (N20/N26 2.0L Turbo)
• 2012-2016 BMW 520i / 528i F10 (N20 2.0L Turbo)
• 2011-2015 BMW X1 E84 xDrive28i / sDrive28i (N20/N26 2.0L Turbo)
• 2012-2017 BMW X3 F25 xDrive20i / xDrive28i (N20 2.0L Turbo)
• 2014-2017 BMW X4 F26 xDrive28i (N20 2.0L Turbo)
• 2016-2018 BMW X5 F15 xDrive40e (N20 2.0L Turbo)
• 2011-2016 BMW Z4 E89 sDrive28i (N20/N26 2.0L Turbo)

Fitment Notes

• Fits all BMW N20 and N26 engine applications
• Compatible with both pneumatic and electronic turbo actuator configurations
• N26 is the US SULEV variant of the N20 -- mechanically identical for this application
• Plumback version -- recirculates air to intake, preserves MAF signal for street use
• Dual Port (VTA) version: Turbosmart TS-0223-1050
• Not CA legal for use on emissions-controlled vehicles

Features

• True plug-and-play -- no hoses, solenoids, or adaptors needed
• Boost-Balance Technology -- valve cannot open under boost load
• Viton O-ring face seal -- zero boost leak
• Integrated high-temp solenoid -- full OEM ECU control retained
• Billet aluminum construction
• Faster response than OEM plastic diverter valve

Specifications

• Series: Kompact EM VR23
• Configuration: Plumback / Recirculating
• Engine: BMW N20 / N26 2.0L Turbo
• Construction: Billet aluminum
• Seal: Viton O-ring face seal
• USA Patent: 10,781,745 / AUS Patent: 2018253619
• Warranty: 1 year

Included Components

• 1x Kompact EM VR23 Plumback blow-off valve
• High-temperature O-rings
• Mounting hardware

Product Description

The Turbosmart TS-0223-1250 is the Kompact EM VR23 Plumback blow-off valve for BMW N20 and N26 2.0L turbocharged applications across the 2, 3, 4, 5 Series, X1, X3, X4, X5, and Z4 (2011-2018). Direct bolt-on replacement for the factory plastic diverter valve -- no additional hardware, hoses, or tuning required.

Turbosmart's Boost-Balance design exposes both sides of the piston to equal boost pressure under load, making it impossible for the valve to open unintentionally regardless of boost level. A Viton O-ring face seal eliminates the boost leakage common with worn OEM valves. The plumback configuration recirculates vented air back into the intake, preserving the MAF signal -- the correct choice for street-driven N20/N26 vehicles. For vent-to-atmosphere, see TS-0223-1050.
