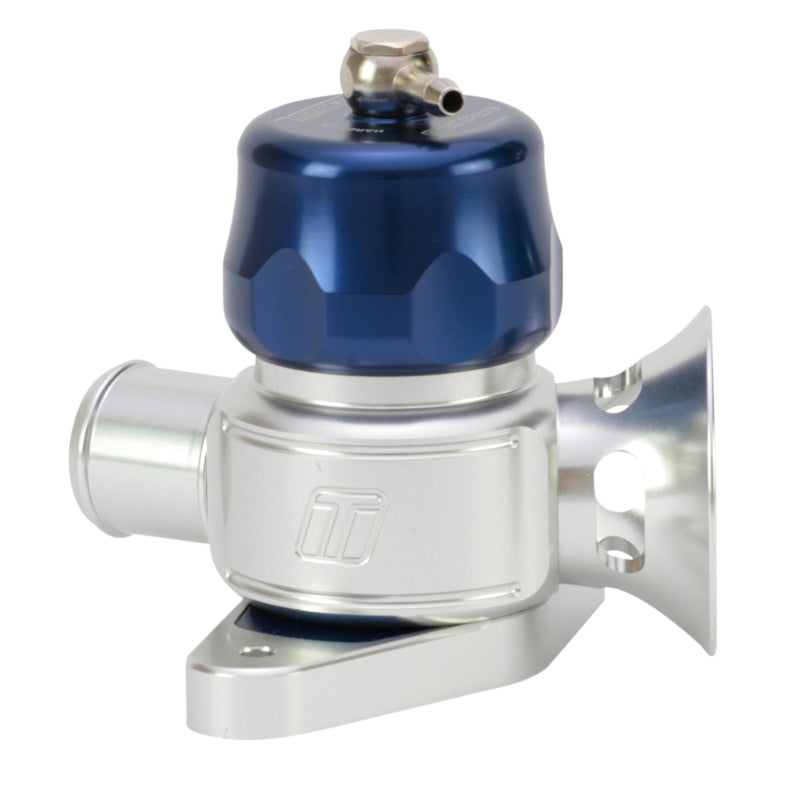

Turbosmart TS-0205-1009 Dual Port BOV Blue for 08-14 Subaru WRX/Mazdaspeed 3/6

Vehicle Fitment

• 2008-2014 Subaru WRX (GR/GV) -- EJ255 2.5L Turbo H4
• 2005-2009 Subaru Legacy GT (BP) -- EJ255 2.5L Turbo H4
• 2007-2013 Mazdaspeed 3 (BK/BL) -- MZR DISI 2.3L Turbo I4
• 2006-2007 Mazdaspeed 6 (GG) -- MZR DISI 2.3L Turbo I4
• 2007-2012 Mazda CX-7 Turbo -- MZR DISI 2.3L Turbo I4

Fitment Notes

• Vehicle-specific flange -- direct bolt-on replacement for factory BPV/BOV
• No tune required for dual port (recirculating) configuration
• Convertible: Dual Port (default), full Supersonic (atmosphere), or Plumb Back (recirculate)
• Blanking plug included for conversion to full atmospheric
• Works with stock and aftermarket turbochargers
• NOT CARB legal -- not for sale in California
• Black finish version: TS-0205-1010

Features

• BOV5 series 38mm positive-seal piston design
• Boost-balance technology -- higher boost = tighter seal
• 50/50 dual port: 50% recirculate / 50% vent to atmosphere
• Staged venting -- bypass port opens first, atmospheric trumpet follows
• Billet aluminum construction (aerospace-grade)
• Precision matched piston for maximum response
• Adjustable spring tension to fine-tune opening threshold
• 4 configurable sound modes
• Capable of flowing 800+ HP worth of air
• Each valve individually tested before shipping

Specifications

• Part Number: TS-0205-1009
• Series: Turbosmart BOV5 Dual Port
• Valve Size: 38mm
• Type: Positive-seal piston, boost-balanced
• Port Configuration: Dual (recirculate + atmosphere)
• Material: Billet aluminum
• Finish: Blue anodized
• Flow Capacity: 800+ HP
• Fitment: Vehicle-specific flange (Subaru/Mazda)
• UPC: 9329677006506
• Designed and manufactured in Sydney, Australia

Included Components

• 1x Turbosmart BOV5 Dual Port blow-off valve (blue)
• Vehicle-specific mounting flange/adapter
• Blanking plug for full atmospheric conversion
• Conversion hardware for Plumb Back and Supersonic modes
• Mounting hardware and gasket

Product Description

The Turbosmart TS-0205-1009 is a BOV5 Dual Port blow-off valve in blue anodized finish with a vehicle-specific flange for the 2008-2014 Subaru WRX, 2005-2009 Legacy GT, 2007-2013 Mazdaspeed 3, 2006-2007 Mazdaspeed 6, and 2007-2012 Mazda CX-7 turbo models. The 38mm positive-seal piston uses Turbosmart's motorsport-proven boost-balance technology -- the more boost fed to the valve, the tighter it seals -- ensuring zero boost leak under all operating conditions. The dual port design recirculates 50% of the air back into the intake for ECU and MAF sensor compatibility while venting the remaining 50% to atmosphere through the staged trumpet for the signature BOV sound.

Three BOVs in one: the included hardware allows conversion to full Supersonic (100% atmospheric) by installing the blanking plug into the recirculating port, or full Plumb Back (100% recirculate) for silent operation. The adjustable spring tension lets the user fine-tune the opening threshold to match boost levels -- preventing both boost leak (too soft) and compressor surge (too stiff). Precision-machined from billet aluminum with a matched piston for maximum response, each valve is individually tested before shipping. Capable of flowing over 800 HP worth of air for compatibility with stock through heavily modified turbo setups. Designed and manufactured in Sydney, Australia.
