Turbosmart TS-0205-1010 Dual Port BOV for 2008-14 Subaru & 2007-13 Mazda

Vehicle Fitment

• 2008-2014 Subaru Impreza WRX (Turbocharged)
• 2008-2012 Subaru Forester XT (Turbocharged)
• 2003-2009 Subaru Legacy/Liberty GT (Turbocharged)
• 2007-2009 Mazda 3 Mazdaspeed (Turbocharged)
• 2010-2013 Mazda 3 Mazdaspeed (Turbocharged, aftermarket airbox may be required)
• 2005-2007 Mazda 6 Mazdaspeed (Turbocharged)
• 2006-2012 Mazda CX-7 2.3L Turbo (Turbocharged)

Features

• Dual Port blow-off valve design with staged venting for balanced performance
• Boost-Balance technology for reliable operation up to high power levels
• Billet aluminum construction with a black anodized finish
• 38 mm positive-seal piston for improved sealing under boost pressure
• Vehicle-specific flange for direct bolt-on fitment
• Factory ECU and MAF-friendly recirculation at low boost
• Vent-to-atmosphere trumpet for high-flow venting under load
• Capable of handling high airflow for performance and tuned engines

Specifications

• Part Number: TS-0205-1010
• Valve Type: Dual Port Blow-Off Valve
• Material: Billet Aluminum, Black Anodized
• Piston Diameter: 38 mm positive-seal style
• Flow Capability: Supports high-boost applications (up to ~800 HP airflow capability)
• Mounting: Vehicle-specific flange (not universal flange)
• Operating Principle: Boost Balance Technology with dual sequential ports

Included Components

• 1x Turbosmart Dual Port Blow-Off Valve (Black)
• 1x Vehicle-Specific Flange
• 1x Gasket
• Vacuum fittings and necessary hardware

Product Description

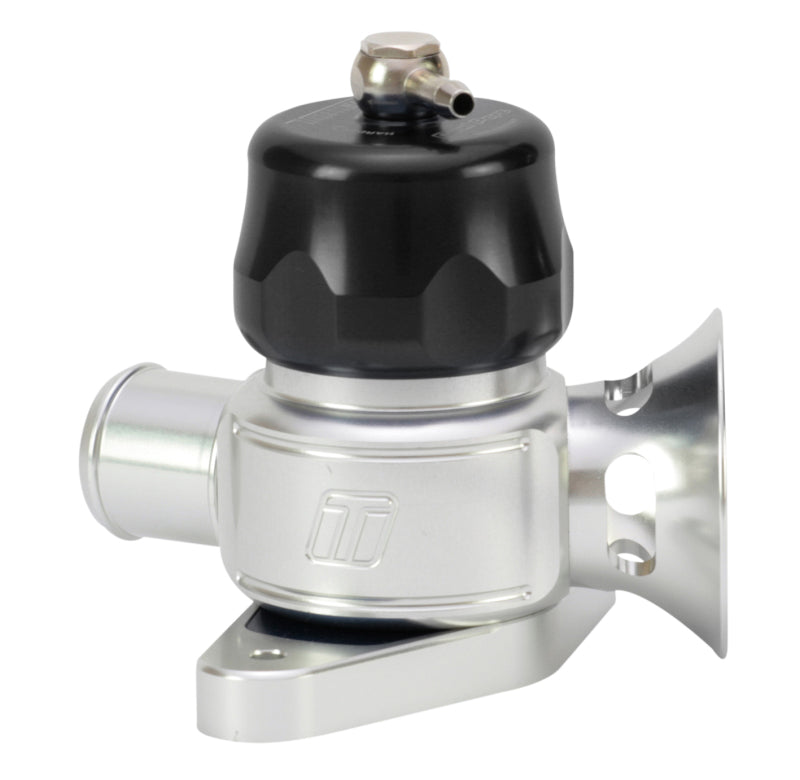

The Turbosmart TS-0205-1010 Dual Port Blow-Off Valve is a high-performance turbocharger pressure relief upgrade designed specifically for select Subaru and Mazda turbocharged models. Featuring Turbosmart's Boost-Balance technology and a positive-seal 38 mm piston, this blow-off valve provides quiet recirculation at partial throttle while delivering significant vent-to-atmosphere flow when needed. Its dual port design helps maintain turbo stability, reduce compressor surge, and improve throttle response across a variety of boost levels - making it ideal for both street and tuned applications.

Constructed with billet aluminum and finished in black anodize, the TS-0205-1010 mounts via a vehicle-specific flange for straightforward installation on compatible Subaru Impreza WRX, Forester XT, Legacy/Liberty GT and Mazda Mazdaspeed and CX-7 platforms. This valve supports increased airflow requirements for modified turbo systems and helps the engine breathe more efficiently under dynamic driving conditions. Always check local compliance and ensure the correct vacuum routing and intake configuration for optimal performance.
