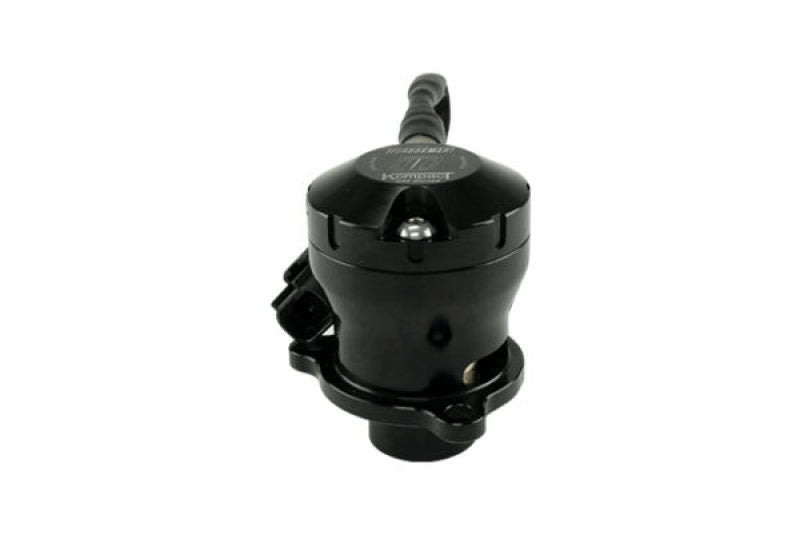

Turbosmart TS-0223-1068 Kompact EM Dual Port BOV VR24 for 22-26 Subaru WRX 2.4L

Vehicle Fitment

• 2022-2026 Subaru WRX 2.4L Turbo (FA24F Engine)

Fitment Notes

• Direct replacement for factory diverter valve
• True plug-and-play installation - no adaptors, hoses, or extra assembly required
• Unplug and unbolt OEM valve, install Kompact EM valve in its place
• Full OE ECU integration and control
• Dual Port design vents to atmosphere for aggressive blow-off sound
• For quiet/recirculating operation, use Plumb Back Part# TS-0223-1268 instead
• NOT CARB legal - cannot ship to California
• No tuning required

Features

• Award-winning Kompact EM Series - world's first true plug-and-play upgrade
• Boost-Balance Valve Technology - the more boost you have, the better it seals
• Patented integrated pressure control channels
• Integrated proprietary high-temperature solenoid valve
• Positive seal O-ring on piston face for maximum boost holding
• Motorsport-proven billet aluminum construction
• Overcomes common faults of plastic factory valves
• Improved boost response and throttle feel
• No reference hoses or separate solenoids required
• Hand-assembled quality

Specifications

• Part Number: TS-0223-1068
• UPC: 9326977026258
• Brand: Turbosmart
• Product Line: Kompact EM Series
• Model: VR24
• Type: Blow-Off Valve (BOV) / Diverter Valve
• Configuration: Dual Port (Vent to Atmosphere)
• Control Type: Electro-Mechanical (EM)
• Valve Design: Piston Style with Boost-Balance Technology
• Construction: Billet Aluminum
• Finish: Black Anodized
• Sealing: Positive Seal O-Ring on Piston Face
• Solenoid: Integrated High-Temperature Proprietary Design
• ECU Integration: Full OE Integration
• Installation Style: Plug-and-Play / Bolt-On
• USA Patent: 10,781,745
• AUS Patent: 2018253619
• CARB Legal: No (Not for Sale in California)
• Country of Origin: Australia
• Warranty: Turbosmart 1 Year Warranty

Included Components

• (1) Turbosmart Kompact EM VR24 Dual Port Valve with Sensor Harness
• (3) Mounting Bolts
• (1) O-Ring
• Installation Instructions

Product Description

The Turbosmart TS-0223-1068 Kompact EM Dual Port BOV is the world's first true plug-and-play blow-off valve upgrade for the 2022-2025 Subaru WRX FA24F engine. This award-winning electro-mechanical valve combines motorsport-proven billet aluminum construction with an onboard proprietary solenoid system and patented internal pressure control channels for full OE ECU integration. The Boost-Balance Valve Technology ensures the more boost you run, the better it seals, while the positive seal O-ring on the piston face eliminates the common failures associated with plastic factory valves. The Dual Port design vents to atmosphere for an aggressive blow-off sound between shifts. Simply unplug and unbolt your factory valve and install the Kompact EM in its place with no adaptors, hoses, or tuning required. Backed by Turbosmart's 1 Year Warranty.
