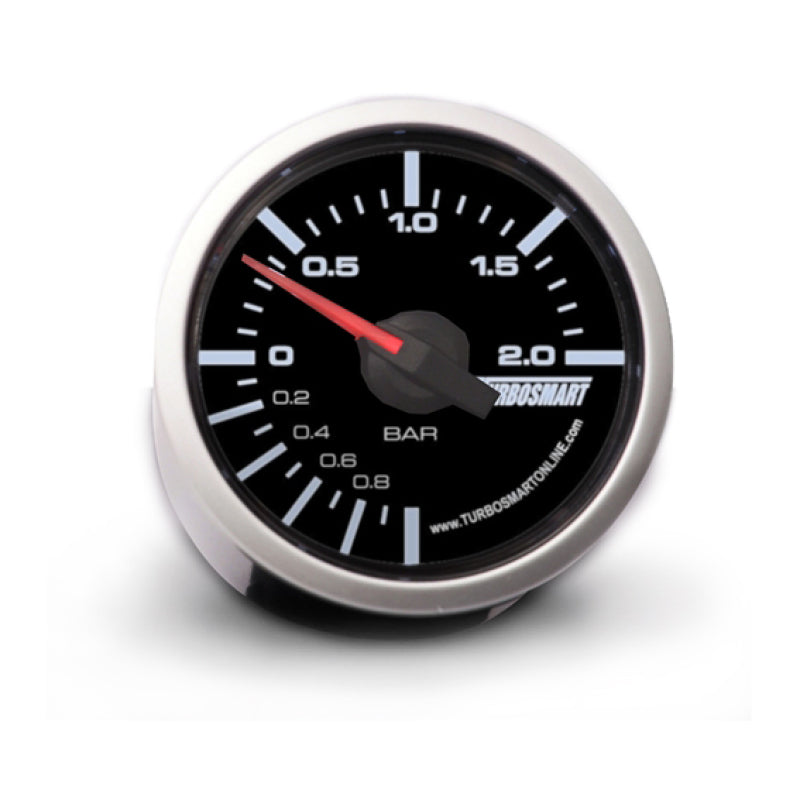

Turbosmart TS-0101-2025 52mm Mechanical Boost Gauge 0-2 Bar Black Universal

Vehicle Fitment

• Universal Fitment - Compatible with any turbocharged petrol or diesel engine vehicle equipped with a suitable vacuum or boost source on the inlet manifold

Fitment Notes

• Mechanical gauge - requires tapping into a boost or vacuum source on the inlet manifold using the included tee piece and vacuum hose; no electronic MAP sensor required
• Gauge reads from vacuum (-100 kPa) through +200 kPa (+2 Bar) - suited to boosted applications running up to 2 Bar (~29 PSI) of boost pressure, displayed in metric units
• TS-0101-2025 is the metric (Bar/kPa) variant - for the same gauge with imperial (PSI) markings, see Turbosmart part number TS-0101-2023 (0-30 PSI)
• Backlight wiring requires connection to a 12V ignition source (red wire) and chassis ground (black wire); an optional dimming circuit connects to the headlight or stereo illumination wire (orange wire) to reduce brightness at night
• Gauge mounting cup (TS-0101-2024) is sold separately; triple gauge mounting bracket (TS-0740-1002) also available separately
• Designed to pair with Turbosmart Gated Boost Control Valves but fully functional as a standalone boost monitoring gauge on any compatible turbocharged application

Features

• Mechanical operation provides reliable, real-time boost readings in metric units (Bar/kPa) without the complexity or failure points of electronic sensors or additional wiring harnesses
• Reads from vacuum (-100 kPa) to +200 kPa (0 to 2 Bar), covering the full range of boost and vacuum conditions encountered in turbocharged performance driving - displayed in the metric scale used in most OEM turbo vehicles outside North America
• 52mm (2-1/16") diameter fits the most common aftermarket gauge mounting cups, pods, and pillar mounts used across all vehicle platforms worldwide
• Black gauge face with bright backlighting ensures clear, easy readability in any lighting condition - day or night
• Silver bezel provides a clean, professional appearance suitable for both factory-style interiors and custom builds
• Optional orange dimming circuit allows backlight brightness to be reduced when headlights or stereo illumination is active, preventing driver distraction at night
• Supplied tee piece includes an integral restrictor pill that dampens pressure spikes at the gauge, protecting the bourdon tube and improving reading stability
• All hookup and panel mounting hardware is included - no additional parts required for a complete mechanical installation
• Designed and manufactured at Turbosmart's factory in Sydney, Australia
• Backed by a 1-year limited warranty

Specifications

• Part Number: TS-0101-2025
• Brand: Turbosmart
• UPC: 9329677012781
• Gauge Type: Mechanical Boost/Vacuum
• Pressure Range: -100 kPa (vacuum) to +200 kPa / 0-2 Bar (metric scale)
• Diameter: 52mm (2-1/16")
• Face Color: Black
• Bezel Color: Silver
• Backlighting: Yes
• Dimming Circuit: Yes (orange wire, 12V illumination input)
• Power Required: 12V DC (backlighting only)
• Operation: Analog Mechanical (no electronic sensor)
• Warranty: 1-Year Limited
• Country of Origin: Australia (designed and manufactured in Sydney)

Included Components

• 1x TS-0101-2025 52mm Mechanical Boost/Vacuum Gauge (0-2 Bar metric scale)
• 1x Tee Piece with Restrictor Pill
• 1x Vacuum Hose
• 1x Panel Mounting Hardware Set
• 1x Hookup Hardware Set

Product Description

The Turbosmart TS-0101-2025 is the metric variant of Turbosmart's 52mm (2-1/16") mechanical boost and vacuum gauge, displaying pressure in the 0-2 Bar / kPa scale rather than PSI. Its reading range spans from -100 kPa of vacuum through +200 kPa (+2 Bar) of boost pressure, making it the preferred choice for builds using metric boost targets, OEM-style tuning references, and markets outside North America where Bar is the standard unit. Like the PSI-scaled TS-0101-2023, it connects directly to a boost or vacuum source on the inlet manifold using the included tee piece and vacuum hose - no electronic sensor, wiring harness, or controller box required.

The gauge face is black with a silver bezel and features bright backlighting powered by a 12V ignition source connection. An optional orange dimming circuit wire allows the backlight brightness to be scaled back when the vehicle's headlight or stereo illumination is active, reducing glare during nighttime driving. The included tee piece incorporates an integral restrictor pill that dampens sudden pressure spikes before they reach the gauge mechanism, protecting the bourdon tube from fatigue and improving reading stability at elevated boost levels. All hookup and panel mounting hardware is included in the box for a complete, ready-to-install solution.

The TS-0101-2025 suits use alongside any Turbosmart Gated Boost Control Valve in markets or builds where metric targets are used, and is equally capable as a standalone boost gauge on any turbocharged build where the installer or driver prefers Bar-based readings. It fits the industry-standard 52mm gauge diameter used across virtually all aftermarket gauge pods, pillar mounts, and mounting cups. The optional Turbosmart gauge mounting cup (TS-0101-2024) and triple gauge mounting bracket (TS-0740-1002) are available separately. Designed and manufactured at Turbosmart's facility in Sydney, Australia, and backed by a 1-year limited warranty.
