Tuff Country 20816 Axle Pivot Drop Brackets for 1983-97 Ford Ranger/Explorer 4WD

Vehicle Fitment

• 1983-97 Ford Ranger 4WD (with ~4" front lift kit)
• 1991-97 Ford Explorer 4WD (with ~4" front lift kit)

Features

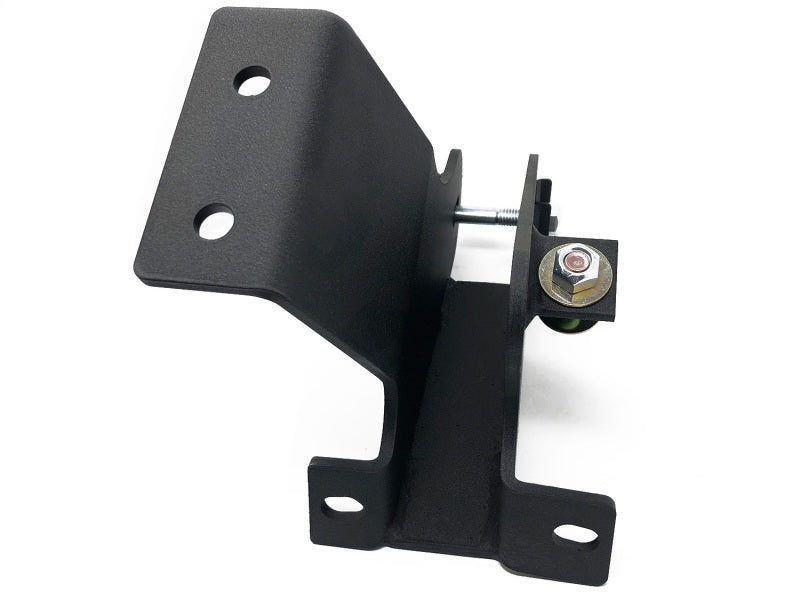

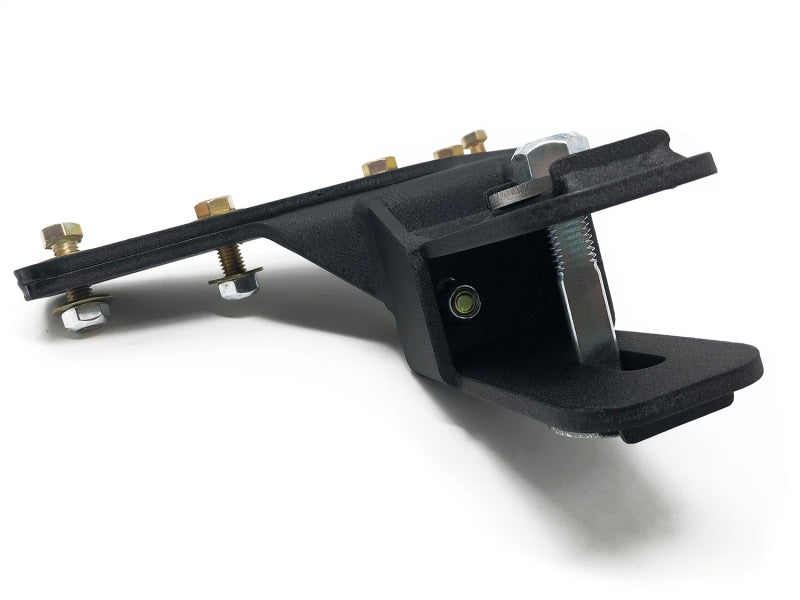

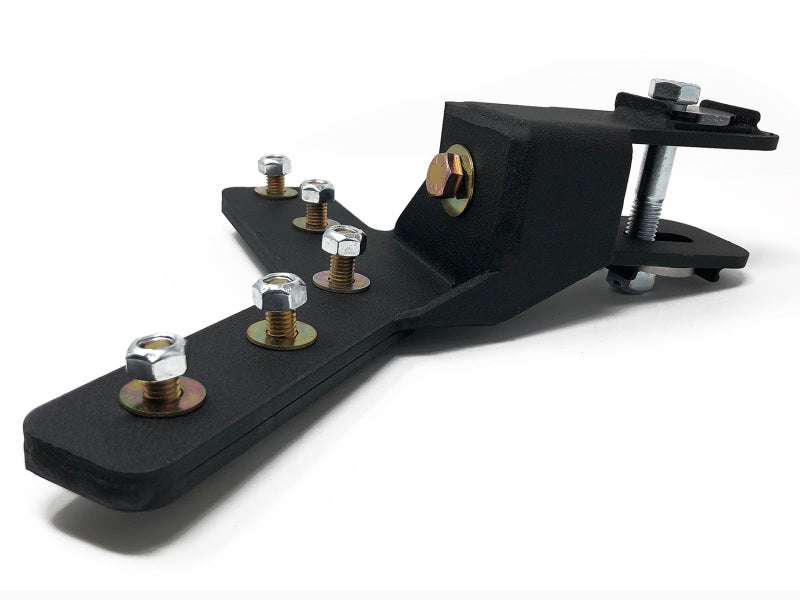

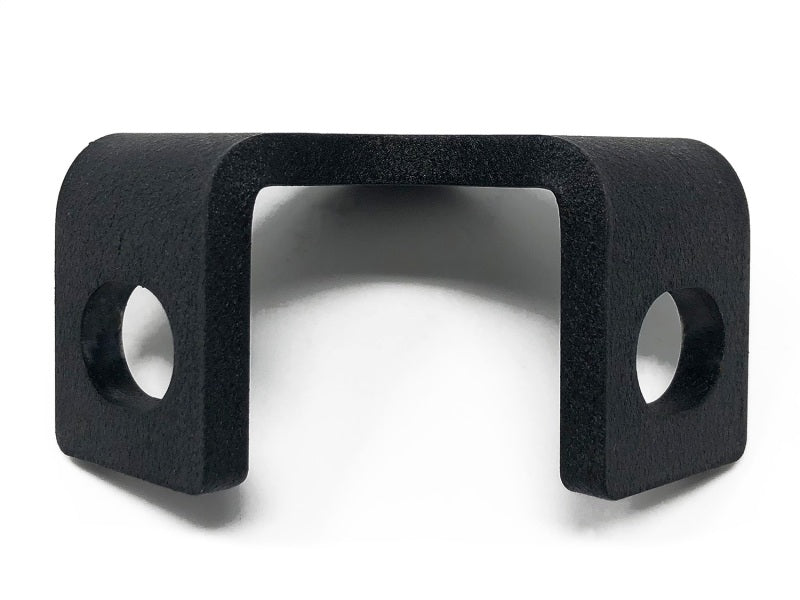

• Heavy-duty axle pivot drop brackets engineered for lifted vehicles
• Designed specifically for use with ~4" front lift kits on the listed models
• Corrects front axle pivot geometry after lifting - prevents misalignment issues
• Includes camber adjustment bolts allowing approx -2.25° to +2.25° adjustment range
• Black powder-coat finish for corrosion resistance in off-road conditions
• Bolt-on installation - no major welding required in most cases
• Ideal for restoring proper suspension alignment on 4WD Ranger/Explorer builds
• Made in USA with limited lifetime structural warranty (non-commercial use)

Specifications

• Part Number: 20816
• Application: Axle pivot drop brackets for 4WD Ford Ranger/Explorer (see above)
• Material: High-strength steel brackets + camber adjustment bolts
• Installation: Sold as a pair (driver-side & passenger-side brackets)
• Fitment note: Intended for front lifts of approximately 4" on the listed models

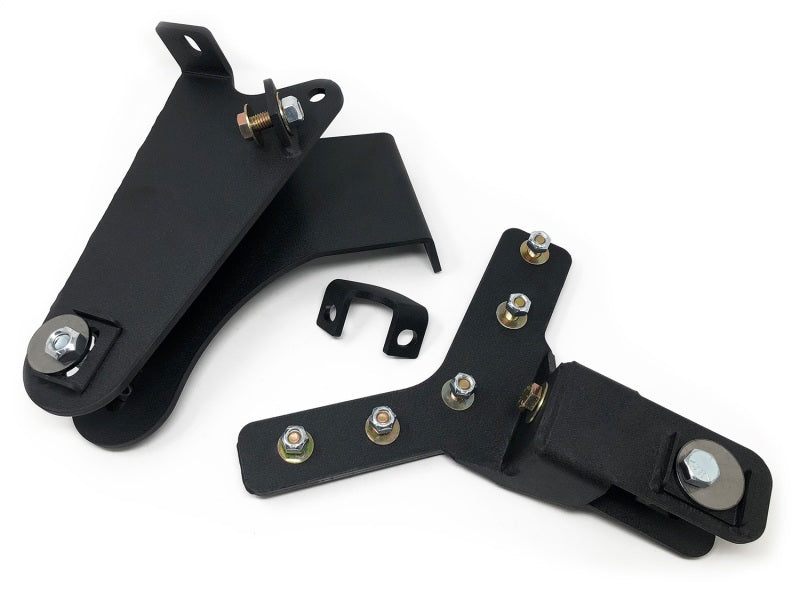

Included Components

• 2x Axle pivot drop brackets (left & right)
• 2x Camber adjustment bolts (one per side)
• Installation instructions

Product Description

The Tuff Country 20816 Axle Pivot Drop Brackets are designed to restore proper front axle pivot geometry for 1983-97 Ford Ranger and 1991-97 Ford Explorer 4WD vehicles that have been lifted approximately 4" in the front. When a truck or SUV is lifted without lowering or re-indexing the factory axle pivot brackets, alignment problems and early suspension wear can occur. This kit drops the axle pivots back toward stock positioning and includes camber-adjust bolts to fine-tune front end alignment.

Installation is straightforward for experienced mechanics: the brackets replace the factory pivot mounts and work in conjunction with the existing lift setup. With the camber adjustment capability, the front axle angle can be tuned to within -2.25° to +2.25°, helping optimise tire wear and vehicle handling. Ideal for users upgrading suspension on older Ford trucks and SUVs who want proper geometry and alignment back in place after lifting.

Important fitment note: This part is confirmed for 1983 through 1997 for the Ford Ranger (4WD) and 1991 through 1997 for the Ford Explorer (4WD) when used with approximately 4" front lift kits. Fitment for models with different lift heights, 2WD variants, or other years is **unconfirmed** at time of listing. Always verify your vehicle's front suspension configuration, drivetrain, lift height and axle pivot design before purchase.
