Torque Solution TS-SU-599V2-S Subaru EJ V2 HD Street Oil Pan Kit WRX STI EJ20

Vehicle Fitment

• All Subaru EJ20 and EJ25 engines - including:
• 2002-2014 Subaru WRX (EJ20/EJ205/EJ255)
• 2004-2021 Subaru STI (EJ207/EJ257)
• All other EJ20 and EJ25 powered Subaru applications (Legacy GT, Forester XT, Outback XT, etc.)

Fitment Notes

• Will NOT fit Moroso oil pickup - incompatible with Moroso baffled pickup tube
• Tested to fit with most aftermarket headers; confirmed fitment with ETS and Killer B headers
• Perrin header requires minor modification - compress the primary upper tube slightly downward toward the lower tube for clearance
• Requires use of the included V2 HD oil pickup - OEM pickup is NOT compatible with the V2 pan depth
• Professional installation recommended

Features

• Complete Street-spec oil system kit - includes the V2 HD cast aluminum oil pan, V2 HD stainless steel oil pickup, and Street windage tray/baffle in one package
• 6-quart oil capacity - over 30% increase vs. the OEM pan - provides improved lubrication reserve under spirited street and occasional track use
• CNC machined cast aluminum construction - precision fit, excellent heat dissipation, and long-term durability
• Seamless FKM rubber O-ring gasket - leak-proof seal; no gasket scraping required for installation or removal
• CNC'd cooling fins on the bottom of the pan - positioned for airflow to actively reduce oil temperatures during driving
• Welded internal baffles in the pan - prevent oil slosh from starving the pickup under hard cornering, braking, or acceleration
• Street windage tray - additional baffling optimized for spirited street driving and occasional track days
• V2 HD stainless steel oil pickup - mandrel bent, TIG welded heavy-gauge stainless steel with heavy bracing; large stainless mesh screen; replaces the failure-prone OEM plastic pickup
• M20 drain port and 1/2" NPT auxiliary port for oil temperature sensor or additional drain
• All installation hardware included - no additional parts required for a complete install
• Backed by Torque Solution's Limited Lifetime Warranty

Specifications

• Part Number: TS-SU-599V2-S
• Kit Configuration: Street (pan + V2 HD pickup + street windage tray/baffle)
• Pan Construction: CNC Machined Cast Aluminum
• Oil Capacity: 6 quarts (30%+ increase over OEM)
• Gasket: Seamless FKM Rubber O-Ring
• Pickup Material: TIG Welded Heavy-Gauge Stainless Steel
• Ports: M20 drain + 1/2" NPT auxiliary
• Warranty: Limited Lifetime Warranty

Included Components

• 1x V2 HD Cast Aluminum Oil Pan
• 1x Seamless FKM Rubber Oil Pan O-Ring Gasket
• 2x FKM Rubber Dipstick Tube O-Ring Gaskets
• 1x M20 OEM Subaru Drain Plug
• 5x M20 Copper Drain Plug Gaskets
• 1x 1/2" NPT Brass Plug with Teflon Tape
• 1x V2 HD Stainless Steel Oil Pickup Tube
• 1x Street Oil Baffle / Windage Tray
• 1x Billet Aluminum Oil Pickup Suction Tube Spacer with FKM O-Ring
• 2x Billet Aluminum Oil Pickup Pedestal Spacers
• Complete stainless steel and alloy installation hardware set

Product Description

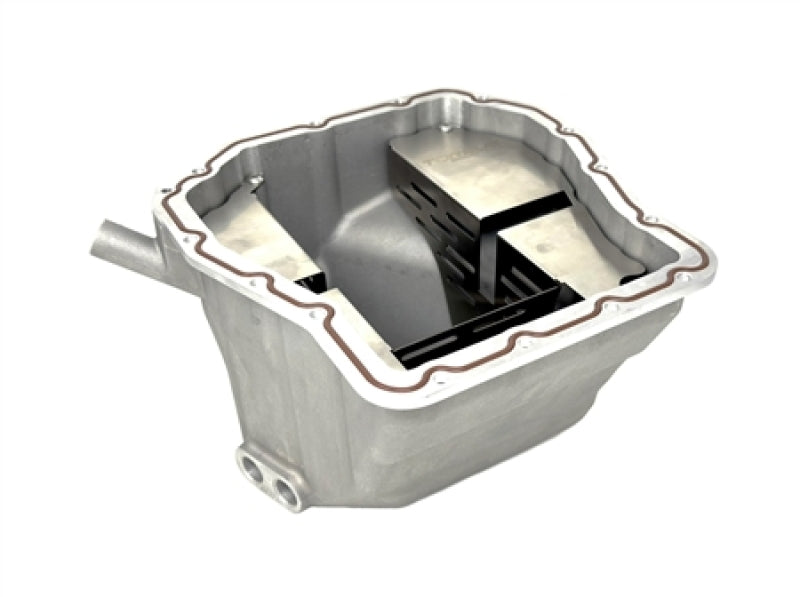

The Torque Solution V2 HD Oil Pan Street Kit (TS-SU-599V2-S) is a complete oil system upgrade for Subaru EJ20 and EJ25 engines, combining the V2 HD cast aluminum oil pan, V2 HD stainless steel oil pickup, and Street windage tray into a single package. Designed for enthusiasts who push their EJ-powered Subaru hard on the street and occasional track days, the Street kit addresses the same core vulnerabilities as the Race version - the failure-prone OEM plastic oil pickup and the shallow OEM pan - while using a street-oriented baffle tuned for the demands of spirited road driving rather than sustained circuit racing.

The V2 pan delivers a 6-quart capacity (over 30% more than stock), welded internal baffles, and CNC'd cooling fins, all sealed with a seamless FKM O-ring gasket for easy, leak-free installation. The V2 HD stainless steel pickup is TIG welded from heavy-gauge material with a large stainless mesh screen for reliable oil delivery under all driving conditions. All hardware is included for a complete drop-in install. For sustained racing applications, see the Race variant (TS-SU-599V2-R). Backed by Torque Solution's Limited Lifetime Warranty.
