Torque Solution TS-SU-599V2-R V2 HD Oil Pan Race Baffle Kit for Subaru EJ20 EJ25

Vehicle Fitment

• All Subaru EJ20 and EJ25 engines - including:
• 2002-2014 Subaru WRX (EJ20/EJ205/EJ255)
• 2004-2021 Subaru STI (EJ207/EJ257)
• All other EJ20 and EJ25 powered Subaru applications (Legacy, Forester XT, Outback XT, etc.)

Fitment Notes

• Will NOT fit Moroso oil pickup - incompatible with Moroso baffled pickup tube
• Tested to fit with most aftermarket headers; confirmed fitment with ETS and Killer B headers
• Perrin header requires minor modification - compress the primary upper tube slightly downward toward the lower tube for clearance
• Requires use of the included V2 HD oil pickup - OEM pickup is NOT compatible with the V2 pan depth
• Professional installation recommended; alignment of pickup and baffle components requires care during assembly

Features

• Complete Race-spec oil system kit - includes the V2 HD cast aluminum oil pan, V2 HD stainless steel oil pickup, and Race windage tray/baffle in one package
• 6-quart oil capacity - over 30% increase vs. the OEM pan - provides improved lubrication reserve under sustained high-RPM and racing conditions
• CNC machined cast aluminum construction - precision fit, excellent heat dissipation, and long-term durability
• Seamless FKM rubber O-ring gasket - leak-proof seal; no gasket scraping required for installation or removal
• CNC'd cooling fins on the bottom of the pan - positioned for airflow to actively reduce oil temperatures during driving
• Welded internal baffles in the pan - prevent oil slosh from starving the pickup under hard cornering, braking, or acceleration
• Race windage tray - additional baffling for high-g and sustained racing applications where oil movement is most aggressive
• V2 HD stainless steel oil pickup - mandrel bent, TIG welded heavy-gauge stainless steel with heavy bracing; large stainless mesh screen; replaces the failure-prone OEM plastic pickup
• M20 drain port and 1/2" NPT auxiliary port for oil temperature sensor or additional drain
• All installation hardware included - no additional parts required for a complete install
• Backed by Torque Solution's Limited Lifetime Warranty

Specifications

• Part Number: TS-SU-599V2-R
• Kit Configuration: Race (pan + V2 HD pickup + race windage tray/baffle)
• Pan Construction: CNC Machined Cast Aluminum
• Oil Capacity: 6 quarts (30%+ increase over OEM)
• Gasket: Seamless FKM Rubber O-Ring
• Pickup Material: TIG Welded Heavy-Gauge Stainless Steel
• Ports: M20 drain + 1/2" NPT auxiliary
• Warranty: Limited Lifetime Warranty

Included Components

• 1x V2 HD Cast Aluminum Oil Pan
• 1x Seamless FKM Rubber Oil Pan O-Ring Gasket
• 2x FKM Rubber Dipstick Tube O-Ring Gaskets
• 1x M20 OEM Subaru Drain Plug
• 5x M20 Copper Drain Plug Gaskets
• 1x 1/2" NPT Brass Plug with Teflon Tape
• 1x V2 HD Stainless Steel Oil Pickup Tube
• 1x Race Oil Baffle / Windage Tray
• 1x Billet Aluminum Oil Pickup Suction Tube Spacer with FKM O-Ring
• 2x Billet Aluminum Oil Pickup Pedestal Spacers
• Complete stainless steel and alloy installation hardware set

Product Description

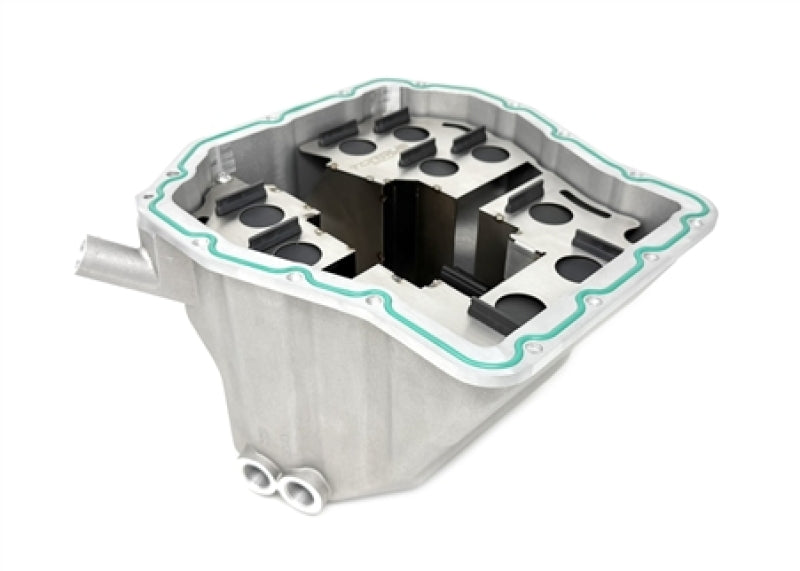

The Torque Solution V2 HD Oil Pan Race Kit (TS-SU-599V2-R) is a complete oil system upgrade for Subaru EJ20 and EJ25 engines, combining the V2 HD cast aluminum oil pan, V2 HD stainless steel oil pickup, and Race windage tray into a single package. The stock EJ oil system has well-known vulnerabilities - the OEM plastic oil pickup is prone to cracking and causing catastrophic oil starvation failures, and the shallow OEM pan offers no protection against oil slosh under hard driving. This kit addresses both failure points comprehensively.

The V2 pan delivers a 6-quart capacity (over 30% more than stock), welded internal baffles, and CNC'd cooling fins to reduce oil temps, all sealed with a seamless FKM O-ring gasket that requires no gasket scraping. The Race windage tray adds an additional layer of baffling for sustained high-g and racing use. The V2 HD stainless steel pickup is mandrel bent and TIG welded from heavy-gauge material with a large stainless mesh screen - essentially bulletproof compared to the OEM unit. All hardware is included for a complete drop-in install. Backed by Torque Solution's Limited Lifetime Warranty.
