Torque Solution TS-CAM-PLTR Red Billet Cam Plate 2013-2021 BRZ/FR-S/86 FA20

Vehicle Fitment

• 2013-2021 Subaru BRZ (Manual Transmission, FA20 2.0L H4) - All Trims
• 2013-2016 Scion FR-S (Manual Transmission, FA20 2.0L H4) - All Trims
• 2017-2020 Toyota 86 / GT86 (Manual Transmission, FA20 2.0L H4) - All Trims

Fitment Notes

• Manual transmission models only - does not fit automatic transmission variants
• Direct replacement for the OEM cam plate on the FA20 4U-GSE engine
• Eliminates the known manual transmission cam plate oil leak caused by failing OEM RTV sealant
• Does not fit 2022+ Subaru BRZ (GR86 generation) - those use a different FA24 engine and cam plate design
• Available in Red (TS-CAM-PLTR), Silver (TS-CAM-PLTS), Blue (TS-CAM-PLTBU), and Black (TS-CAM-PLTB)

Features

• Permanently eliminates the factory cam plate oil leak - replaces failure-prone OEM RTV sealant with a precision Viton O-ring seal
• CNC-machined from 6061-T6 billet aluminum for superior dimensional accuracy and long-term durability
• Red anodized finish with engraved Torque Solution logo for a clean, motorsport-inspired engine bay appearance
• High-temperature Viton O-ring provides a reliable, leak-free seal under sustained engine heat and oil pressure
• All installation hardware included - no additional parts required
• Made in the USA by Torque Solution; Limited Lifetime Warranty

Specifications

• Part Type: Cam Plate (Direct OEM Replacement)
• Material: CNC-Machined 6061-T6 Billet Aluminum
• Finish: Red Anodized
• Seal Type: High-Temperature Viton O-Ring (replaces OEM RTV sealant)
• Compatible Engine: FA20 4U-GSE 2.0L H4
• Transmission: Manual Only
• Color: Red

Included Components

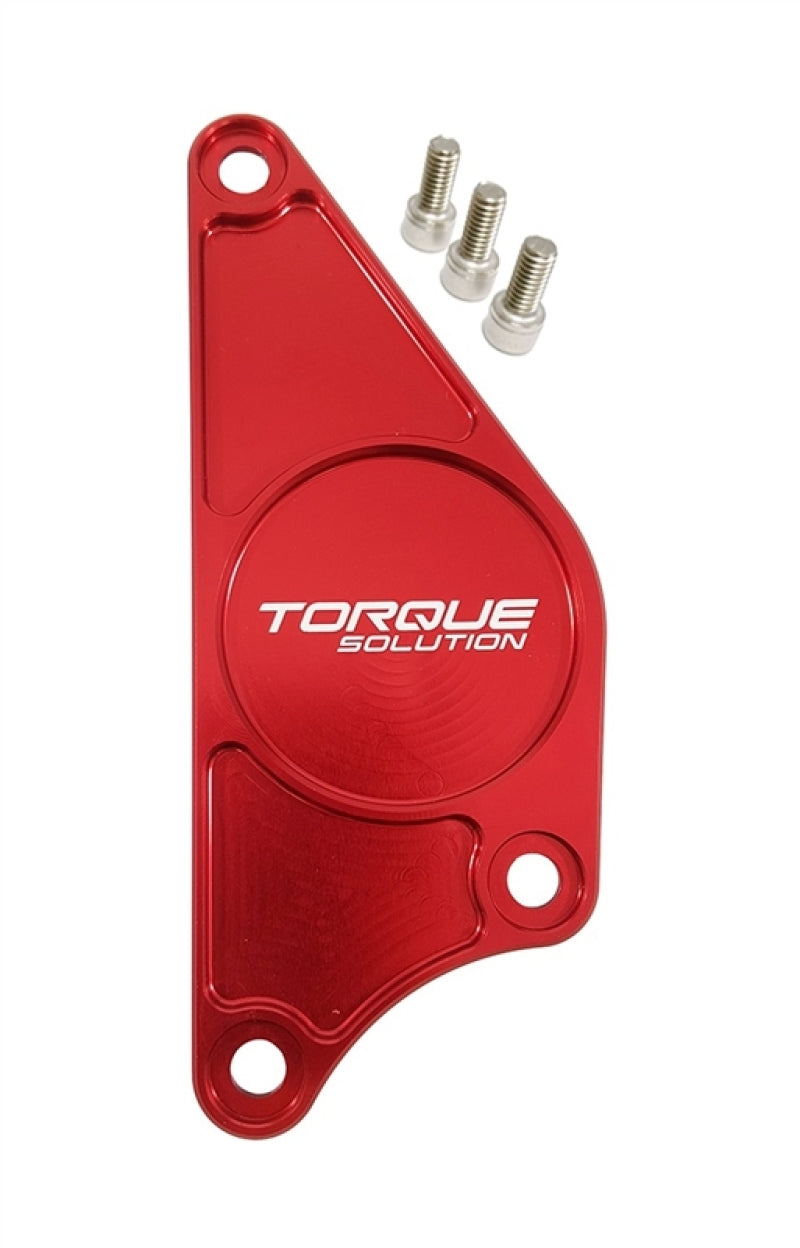

• 1x Red Anodized Billet Aluminum Cam Plate
• 1x High-Temperature Viton O-Ring
• Installation Hardware (bolts and fasteners)

Product Description

The Torque Solution TS-CAM-PLTR is a CNC-machined 6061-T6 billet aluminum cam plate in red anodized finish, designed as a direct OEM replacement for the 2013-2021 Subaru BRZ, 2013-2016 Scion FR-S, and 2017-2020 Toyota 86/GT86 equipped with a manual transmission. This part addresses one of the most well-documented issues on the FA20 platform - the cam plate oil leak caused by the factory RTV sealant degrading over time. When the leak is repaired under factory warranty, dealers typically reapply fresh RTV sealant, which will eventually fail again. The Torque Solution cam plate solves the problem permanently by replacing the sealant-dependent OEM design with a precision-machined Viton O-ring groove that maintains a reliable, leak-proof seal under sustained heat and oil pressure.

Installation is a direct swap for the factory cam plate using the included hardware, and the red anodized finish adds a clean motorsport aesthetic to the engine bay. Note that this part is for manual transmission FA20 variants only and does not fit the 2022+ GR86/BRZ generation (FA24 engine). Also available in Silver, Blue, and Black anodized finishes under separate part numbers. Backed by Torque Solution's Limited Lifetime Warranty.
