Timbren FRF53A SES Rear Suspension Enhancement System 89-26 Ford F-53 Motorhome

Vehicle Fitment

• 1989-2026 Ford F-53 Motorhome Chassis (Leaf Spring Front Suspension)

Fitment Notes

• Rear axle application only
• Mounts between truck chassis and rear axle
• Works in conjunction with existing leaf spring suspension
• Easy installation with basic hand tools--most applications require no drilling
• Installs in approximately 30 minutes
• Does NOT increase vehicle GVWR--do not exceed manufacturer weight ratings

Features

• Patented Aeon hollow rubber spring technology
• Progressive spring rate increases resistance as load increases
• Eliminates rear suspension sag, squat, sway, and body roll
• Keeps vehicle level when towing or hauling heavy loads
• Cushions road shock and absorbs vibration
• Maintains comfortable ride quality when unloaded
• Zero post-installation maintenance required
• No air lines, compressors, or pressure adjustments needed
• All-weather performance--operates in extreme heat and sub-freezing conditions
• Cannot be punctured or popped like air springs
• Made in North America

Specifications

• Part Number: FRF53A
• Brand: Timbren
• Product Line: SES (Suspension Enhancement System)
• Position: Rear
• Kit Type: Standard Kit
• Rated Capacity: 8,600 lbs (per pair)
• Kit Height: 5.75 in
• Shipping Weight: 13 lbs
• Shipping Dimensions: 10.5" L x 8.5" W x 6" H
• Warranty: Timbren Lifetime Limited Warranty

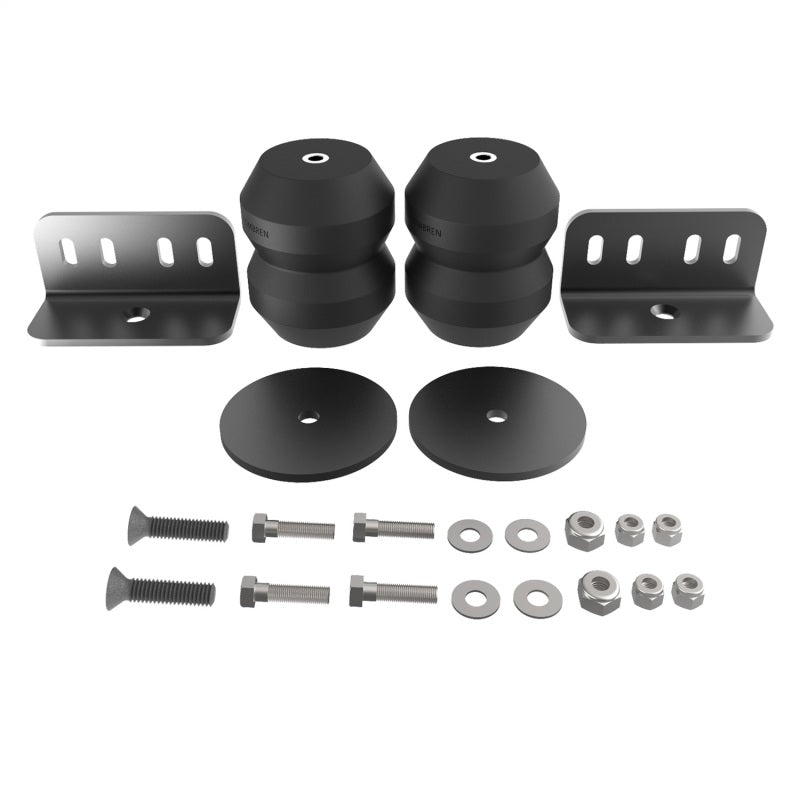

Included Components

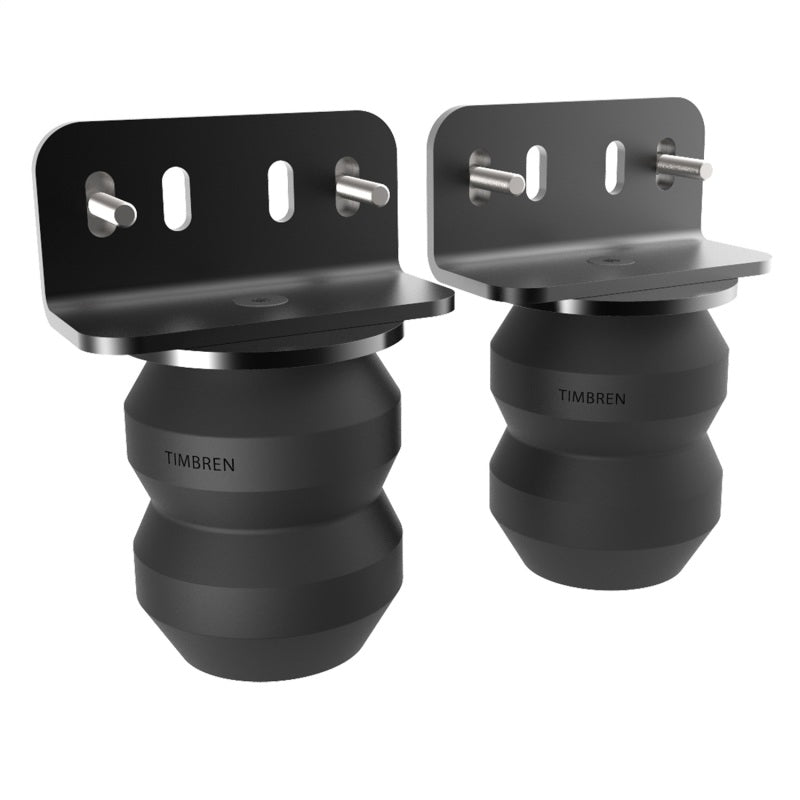

• 2 Patented Aeon SES Hollow Rubber Springs
• 2 Mounting Brackets
• 2 Mounting Discs
• All Necessary Mounting Hardware
• Installation Instructions

Product Description

The Timbren FRF53A SES Rear Suspension Enhancement System is engineered specifically for 1989-2026 Ford F-53 motorhome chassis applications. This system utilizes Timbren's patented Aeon hollow rubber spring technology to eliminate rear suspension sag, reduce body roll, and improve handling when your motorhome is loaded. The progressive spring rate design means the rubber springs push back harder as load increases, automatically leveling your vehicle without any manual adjustments. Unlike air bag systems that require compressors, air lines, and constant pressure monitoring, the Timbren SES is completely maintenance-free after installation. The hollow rubber springs mount between the chassis and rear axle, working in conjunction with your existing leaf springs to provide superior load support with an 8,600 lb capacity per pair. Installation is straightforward and can be completed in approximately 30 minutes with basic hand tools--no drilling required for most applications. The all-weather Aeon rubber construction performs reliably in extreme temperatures from desert heat to freezing winter conditions, and unlike air springs, cannot be punctured or popped. Enjoy improved handling, reduced sway when passing semis or in crosswinds, and a comfortable ride whether loaded or unloaded. Backed by Timbren's Lifetime Limited Warranty and 100-Day Money Back Guarantee.
