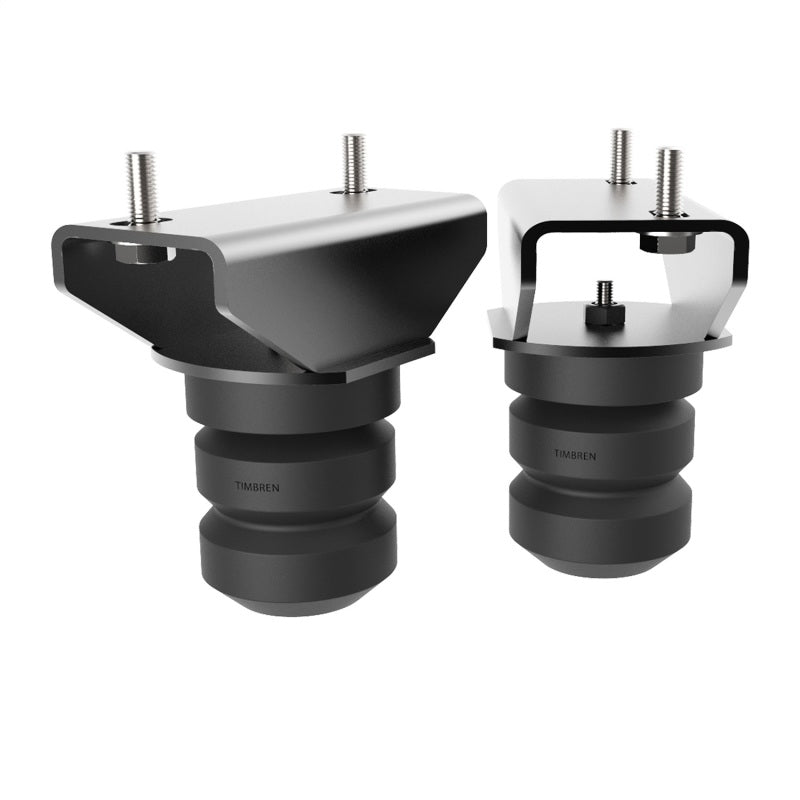

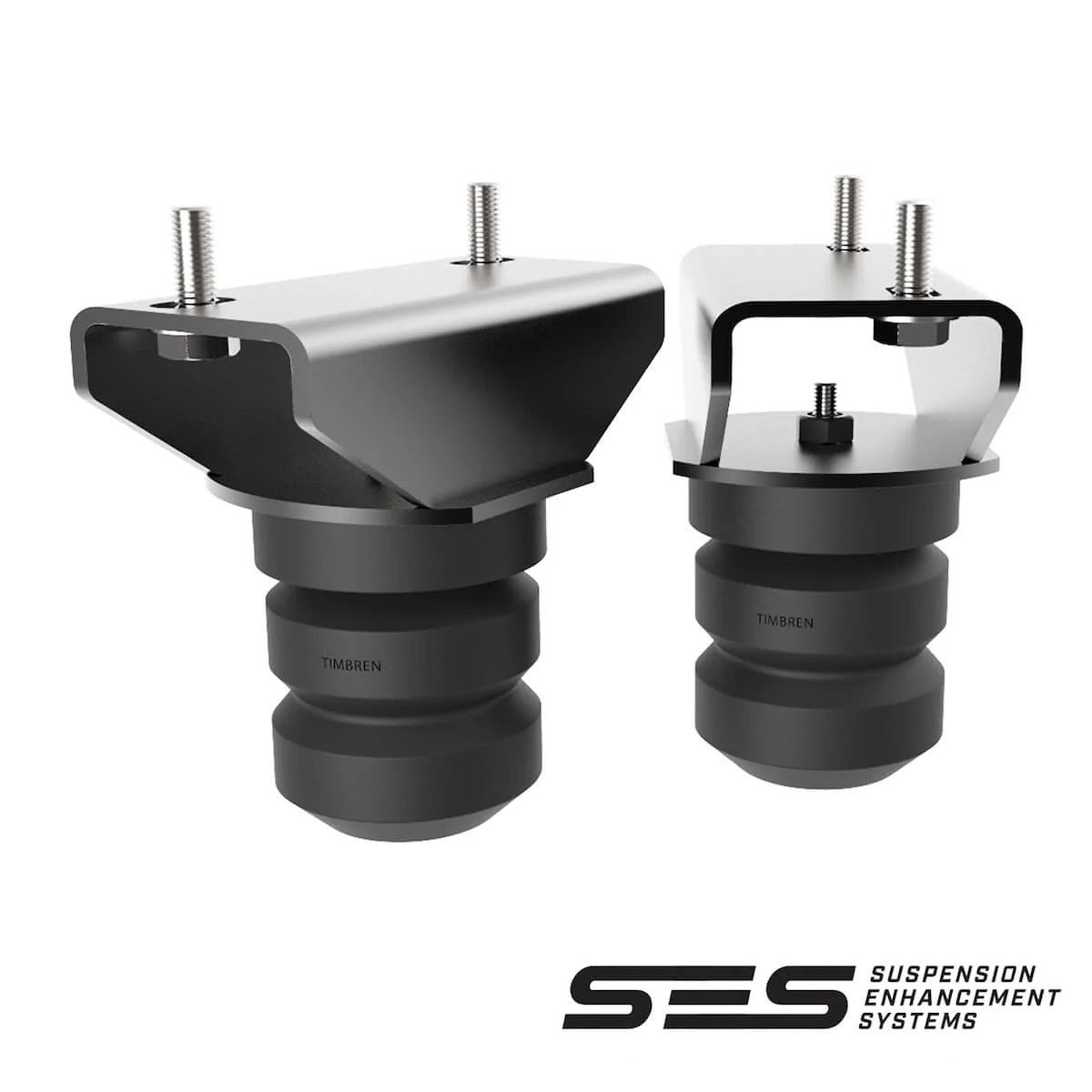

Timbren DR1525H4 Rear Suspension Enhancement Kit for 94-08 Dodge Ram 1500/2500

Vehicle Fitment

• 1994-2001 Dodge Ram 1500 4WD
• 2006-2008 Dodge Ram 1500 2WD/4WD (Regular, Quad, Crew Cab)
• 1994-2002 Dodge Ram 2500 4WD

Fitment Notes

• Rear axle application only
• Replaces factory jounce stops on frame
• Bolt-on installation, no drilling required
• Maintain 1/2" to 1-1/2" gap between rubber spring and axle when unloaded
• Does NOT increase GVWR, do not exceed manufacturer weight ratings
• Compatible with diesel and gas engine applications

Features

• Patented Aeon hollow rubber springs with progressive spring rate
• Automatically adjusts to varying loads and road conditions
• Eliminates vehicle squatting and rear-end sag
• Reduces body roll and improves roll stability
• Cushions road shocks and prevents bottoming out
• Maintains factory ride quality when unloaded
• No air lines, fittings, or adjustments required
• Maintenance-free operation

Specifications

• Part Number: DR1525H4
• Brand: Timbren
• Series: SES (Suspension Enhancement System)
• Type: Rear Suspension Helper Spring Kit
• Position: Rear
• Capacity: 6,000 lbs (per pair)
• Spring Material: Hollow Rubber (Aeon)
• Bracket Material: Laser-Cut Steel, Powder-Coated
• Kit Type: Standard Duty
• ISO 9001 Certified Manufacturing
• Warranty: Lifetime

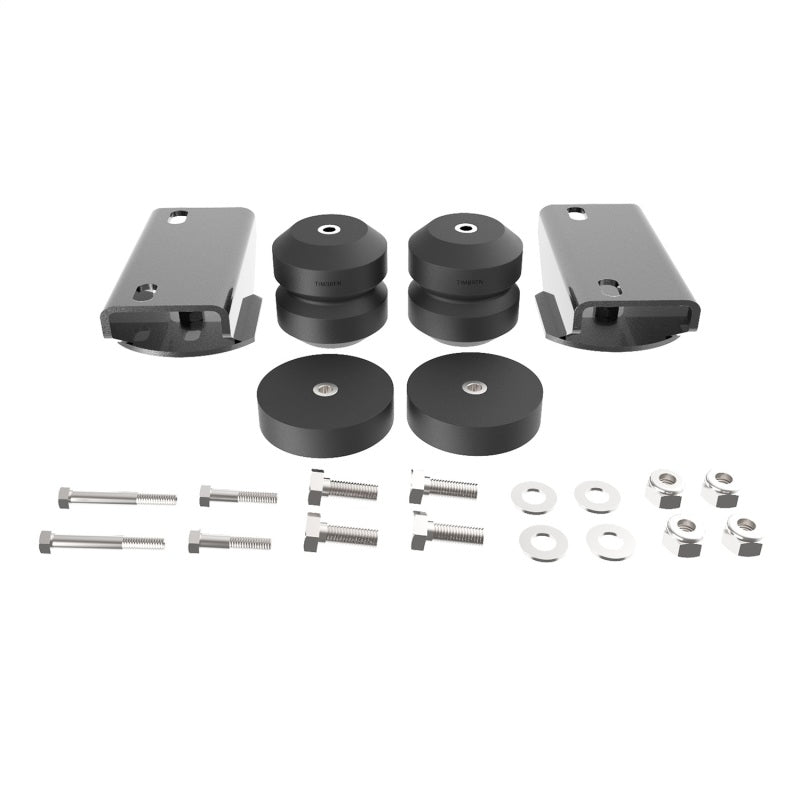

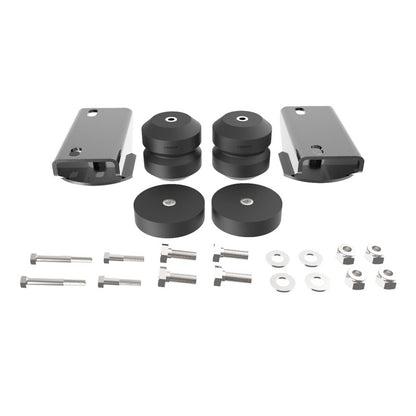

Included Components

• 2 Aeon Rubber Springs
• 2 Steel Mounting Brackets
• Mounting Hardware
• Installation Instructions

Product Description

The Timbren DR1525H4 Suspension Enhancement System improves load-handling capability on 1994-2008 Dodge Ram 1500 and 1994-2002 Ram 2500 trucks. Patented Aeon hollow rubber springs deliver a progressive spring rate that automatically firms up under increasing load while maintaining factory ride quality when unloaded. The system eliminates rear-end sag, reduces body roll and sway, and prevents bottoming out when towing or hauling heavy loads. Laser-cut steel brackets are precision bent and powder-coated for long-term durability. Simple bolt-on installation requires no drilling or air lines. Backed by Timbren's lifetime warranty and 100-day money-back guarantee.
