TiALSport 002953 MV-S 38mm External Wastegate w/All Springs & V-Bands Sil

Vehicle Fitment

• Universal turbocharged application - not vehicle-specific
• Fits turbo systems that accept a 38 mm external wastegate
• Requires compatible turbo manifold flange and plumbing for proper installation
• Confirm flange type and wastegate port size before installation

Features

• TiALSport MV-S 38 mm external wastegate with compact profile
• V-band inlet and outlet flanges with clamps included for secure connections
• Comes with a full set of springs for flexible boost tuning
• Three lower and two top air signal ports for versatile actuator routing
• Integrated water cooling ports help manage actuator temperature
• High-temperature reinforced diaphragm for durability
• Stainless-steel valve seat and hardware for long service life
• Silver anodized finish for corrosion resistance and visual appeal

Specifications

• Part type: MV-S 38 mm external wastegate
• Valve diameter: 38 mm
• Actuator ports: 3 lower, 2 top air signal ports
• Mounting: V-band inlet and outlet flanges with clamps
• Valve housing material: Stainless steel
• Actuator diaphragm: High-temperature reinforced
• Integrated water cooling ports (-4 AN fittings)
• Finish: Silver anodized

Included Components

• 1x MV-S 38 mm external wastegate assembly (silver)
• 1x V-band inlet clamp and flange
• 1x V-band outlet clamp and flange
• Air and water port fittings
• Plugs for unused air ports
• Full set of wastegate springs for tuning

Product Description

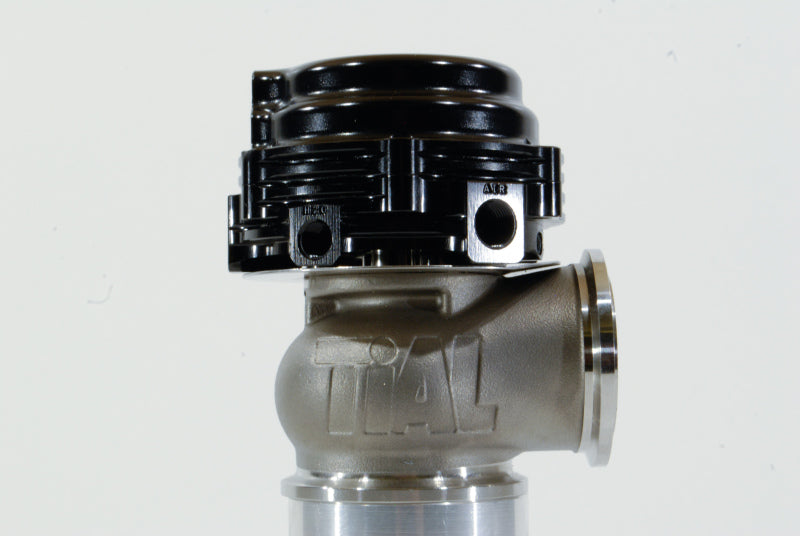

The TiALSport 002953 MV-S 38 mm External Wastegate is a universal boost control component designed for turbocharged engines that require precise management of exhaust bypass and boost pressure. Its compact profile allows installation in tight engine bays while providing smooth and consistent wastegate performance. The included V-band flanges and clamps ensure secure, leak-free connections, and multiple air signal ports allow flexible routing of boost control lines.

This wastegate comes with a full set of springs to tune opening pressures to match your turbo setup. Integrated water cooling ports help regulate actuator temperature under high-load conditions, and the stainless-steel valve components combined with a reinforced diaphragm provide durability and long service life. Confirm flange and wastegate port compatibility with your turbo system before installation.
