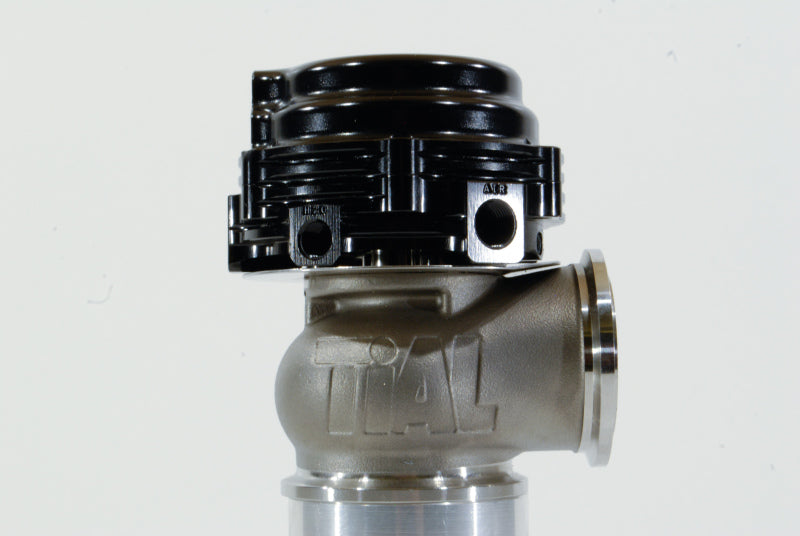

TiAL Sport 003046 MVS 38mm V-Band External Wastegate Black 1.0 Bar/14.50 PSI Kit

Vehicle Fitment

• Universal - compatible with all turbocharged forced induction applications requiring a 38mm external wastegate

Fitment Notes

• V-Band inlet and outlet - requires V-band compatible exhaust manifold or wastegate collector for installation
• Comes pre-installed with a 1.0 Bar (14.50 PSI) spring; full set of extra actuator springs included to achieve pressures from 4.35 PSI (0.3 bar) to 24.66 PSI (1.7 bar)
• 5 air ports total (3 lower, 2 upper - M10 x 1.0 thread); plugs for unused ports included
• Integrated -4AN water cooling ports (M8 x 1.0 thread) - leak tested at factory; can be removed if not utilized
• Direct replacement for the legacy TiAL F38 wastegate - same form factor, more compact design

Features

• Ultra-compact design at only 3.7" tall - the most compact 38mm external wastegate on the market
• High-temp NiCrFe alloy valve and 347SS valve housing for superior corrosion, wear, and galling resistance over competing designs
• Nomex-reinforced, high-temperature silicone diaphragm withstands sustained heat and boost pressure cycling
• 17-7 PH Stainless Steel actuator spring resists relaxing up to 900°F (483°C) for consistent boost pressure at high temperatures
• Nitronic 60 stainless steel valve seat and bushing for long-term wear resistance
• Integrated water-cooled actuator top with -4AN ports to manage heat in sustained high-load applications such as road racing
• CNC-machined billet aluminum actuator housing - Black anodized finish; made in the USA

Specifications

• Valve Diameter: 38mm
• Overall Height: 3.7 in
• Installed Spring Pressure: 1.0 Bar (14.50 PSI)
• Achievable Spring Pressure Range: 0.3-1.7 Bar (4.35-24.66 PSI) using included spring set
• Connection Type: V-Band Inlet and Outlet
• Inlet/Outlet Flange Material: 304L Stainless Steel (included)
• Air Ports: 5 total - 3 lower + 2 upper (M10 x 1.0 thread)
• Water Cooling Ports: 2x -4AN removable fittings (M8 x 1.0 thread)
• Actuator Housing: CNC-Machined Billet Aluminum, Black Anodized
• Diaphragm: High-Temperature Silicone, Nomex Reinforced
• Actuator Spring: 17-7 PH Stainless Steel
• Fitment: Universal

Included Components

• 1x MVS 38mm Wastegate Assembly (Black actuator)
• 1x MVS Valve Seat
• 1x Inlet V-Band Flange (304L Stainless Steel)
• 1x Outlet V-Band Flange (304L Stainless Steel)
• 1x Inlet V-Band Clamp
• 1x Outlet V-Band Clamp
• 2x TiAL -4AN Removable Water Fittings
• 2x TiAL Air Fittings
• Plugs for Unused Air Ports
• Full Set of Extra Actuator Springs (covering 0.3-1.7 Bar / 4.35-24.66 PSI range)

Product Description

The TiAL Sport 003046 is the MVS 38mm V-Band External Wastegate in Black, pre-installed with a 1.0 Bar (14.50 PSI) spring and supplied with a complete set of actuator springs covering 4.35 PSI to 24.66 PSI - giving builders the flexibility to fine-tune boost targets without sourcing additional hardware. At only 3.7 inches tall, the MVS is the most compact external wastegate in its class, making it ideal for tight engine bays where its larger predecessor, the F38, would not fit. V-Band inlet and outlet connections and included 304L stainless flanges and clamps make installation clean and straightforward, with no gaskets or bolted flanges to contend with.

Built in the USA from a high-temp NiCrFe alloy valve, 347SS housing, Nitronic 60 stainless seat and bushing, and a Nomex-reinforced silicone diaphragm, the MVS is engineered for long-term durability in both street and motorsport applications. The integrated water-cooled actuator top with removable -4AN fittings keeps actuator temperatures in check during sustained high-load driving such as road racing or extended boost runs - and can be left unplumbed for builds that don't require it. Five air ports (3 lower, 2 upper) provide flexible boost controller hookup without rotating the actuator top.
