Tein GSB96-8USS2 Street Basis Z Coilovers for 2009-2014 Acura TL FWD

Vehicle Fitment

• 2009-2014 Acura TL (Base, UA8, 3.5L V6, FWD)
• 2009-2014 Acura TL (Tech, UA8, 3.5L V6, FWD)

Features

• TEIN Street Basis Z coilover suspension system for improved handling
• Twin-tube damper design for smoother ride quality and longer stroke
• Thread-type ride height adjustment for stance and performance tuning
• Durable steel damper body with corrosion-resistant ZT-coated threads
• High-tensile SAE9254 steel springs engineered to resist sagging
• 1-piece aluminum spring seat with Delrin thrust washer
• Full dust boots to protect piston rods from debris and contamination
• Designed to reuse factory OEM upper mounts
• Sealed damper structure for improved reliability and durability

Specifications

• Series: TEIN Street Basis Z
• Damper Type: Twin-tube
• Damping Adjustment: Fixed (non-adjustable)
• Ride Height Adjustment: Thread-type spring seat
• Upper Mounts: Reuses OEM mounts (front and rear)
• Front Spring Rate: 12 kg/mm (672 lb/in)
• Rear Spring Rate: 5 kg/mm (280 lb/in)
• Front Ride Height Adjustment Range: approx. -0.2 to -3.3 in (-6 to -83 mm)
• Rear Ride Height Adjustment Range: approx. -0.4 to -3.0 in (-10 to -76 mm)
• Recommended Ride Height Drop: approx. -30 mm (-1.2 in)
• EDFC Compatibility: No

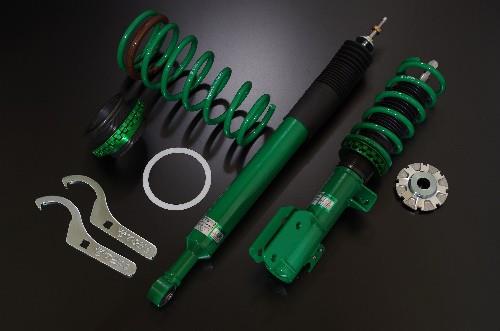

Included Components

• 4x TEIN coilover shock absorbers
• 4x TEIN performance springs
• 4x rubber bump stops
• 4x spring seats
• 4x spring locks
• 4x dust covers
• 4x Delrin thrust washers
• 2x hook spanners
• 1x TEIN sticker sheet
• 1x installation instruction manual

Product Description

The TEIN Street Basis Z Coilover Kit (GSB96-8USS2) is engineered to provide an affordable and reliable suspension upgrade for the 2009-2014 Acura TL FWD platform. Designed with TEIN's twin-tube damper architecture, the system delivers improved ride comfort while maintaining stable handling during spirited driving. The design allows for longer damper stroke and smoother response over rough roads compared to many monotube suspension setups.

Ride height is adjustable using a threaded spring seat, allowing owners to achieve a more aggressive stance and improved cornering balance. The system typically provides lowering capability from approximately 0.2 to 3.3 inches in the front and 0.4 to 3.0 inches in the rear depending on setup. High-tensile steel springs and corrosion-resistant threaded bodies ensure durability, while factory upper mounts are reused to simplify installation. This coilover system is designed specifically for the Acura TL UA8 FWD chassis and is not intended for other platforms.
