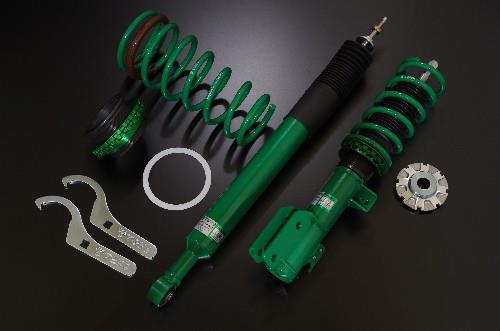

Tein GSB78-8USS2 Street Basis Z Coilovers for 08-14 Honda Accord/Acura TSX FWD

Vehicle Fitment

• 2008-2012 Honda Accord Sedan (CP2) - K24Z2/K24Z3 2.4L I4 FWD
• 2008-2012 Honda Accord Coupe (CS1) - K24Z3 2.4L I4 FWD
• 2009-2014 Acura TSX Sedan (CU2) - K24Z3 2.4L I4 FWD
• 2010-2014 Acura TSX V6 Sedan (CU4) - J35Z6 3.5L V6 FWD
• 2011-2014 Acura TSX Sport Wagon (CW2) - K24Z3 2.4L I4 FWD

Fitment Notes

• FWD models only
• Fits 4-cylinder and V6 Accord sedans and coupes
• Reuses OEM upper mounts (not included); replace if worn
• Does NOT fit Accord V6 Coupe (CS2) or Crosstour
• Does NOT fit 2013+ Accord (9th gen)
• Adjustable damping version: Tein GSB78-9USS2
• Alignment required after installation

Features

• Entry-level coilover with thread-type ride height adjustment
• Twin-tube damper for longer stroke and improved ride comfort
• SAE9254 cold-formed springs with high sag resistance
• Patented 2-layer, 1-bake powder coating on shock body
• ZT Coating on adjustment threads for abrasion and rust protection
• Optimized dust boot to protect piston rod and seal out debris
• High-performance damper oil with stable viscosity across broad temps
• Non-rebuildable sealed damper for reduced cost
• Manufactured and assembled in Yokohama, Japan

Specifications

• Position: Front and rear (complete 4-corner kit)
• Product line: Tein Street Basis Z (SBZ)
• Damper type: Twin-tube, sealed (non-rebuildable)
• Damping adjustment: Fixed (not adjustable)
• Ride height adjustable: Yes (threaded lower spring seat)
• Upper mounts: Uses OEM (not included)
• Front spring rate: 10 kgf/mm (560 lbs/in)
• Rear spring rate: 4 kgf/mm (224 lbs/in)
• Front spring I.D.: 70mm
• Rear spring free length: 250mm
• Lowering -- TSX 4-cyl (CU2): 0.7"-3.9" front / 0.7"-3.1" rear
• Lowering -- TSX V6 (CU4): 0.8"-4.1" front / 0.7"-3.1" rear
• Lowering -- TSX Sport Wagon (CW2): 1.1"-4.3" front / 1.4"-3.8" rear
• Lowering -- Accord Sedan/Coupe: 0.6"-3.9" front / 0.4"-2.8" rear
• Recommended drop: ~1.5"-2.0" for optimal ride and clearance
• EDFC compatible: No
• Sold as a complete 4-corner kit

Included Components

• Front coilover assemblies (pair) -- damper, spring, spring seat, locking collar
• Rear coilover assemblies (pair) -- damper, spring, spring seat, locking collar
• Adjustment wrenches
• Dust boots
• Installation hardware

Product Description

The Tein GSB78-8USS2 Street Basis Z is a complete 4-corner coilover kit for the 2008-2012 Honda Accord and 2009-2014 Acura TSX, offering ride height adjustability at an entry-level price point. The twin-tube damper design provides longer effective stroke than comparable mono-tube setups, resulting in a comfortable daily-driver ride quality even at lowered heights. Ride height is adjusted by threading the lower spring seat up or down on the ZT-coated shock body, with the recommended range of approximately 1.5" to 2.0" providing an aggressive stance while maintaining adequate ground clearance. Springs are cold-formed from SAE9254 steel for excellent sag resistance and durability. Damping is fixed at a street-tuned setting calibrated by Tein's USA R&D facility for North American road conditions, eliminating the guesswork of damper adjustment. The kit reuses the vehicle's original upper mounts, keeping costs down while simplifying installation. Tein's patented 2-layer powder coating and ZT thread treatment provide proven corrosion resistance in harsh climates including coastal and heavy snowfall regions.
