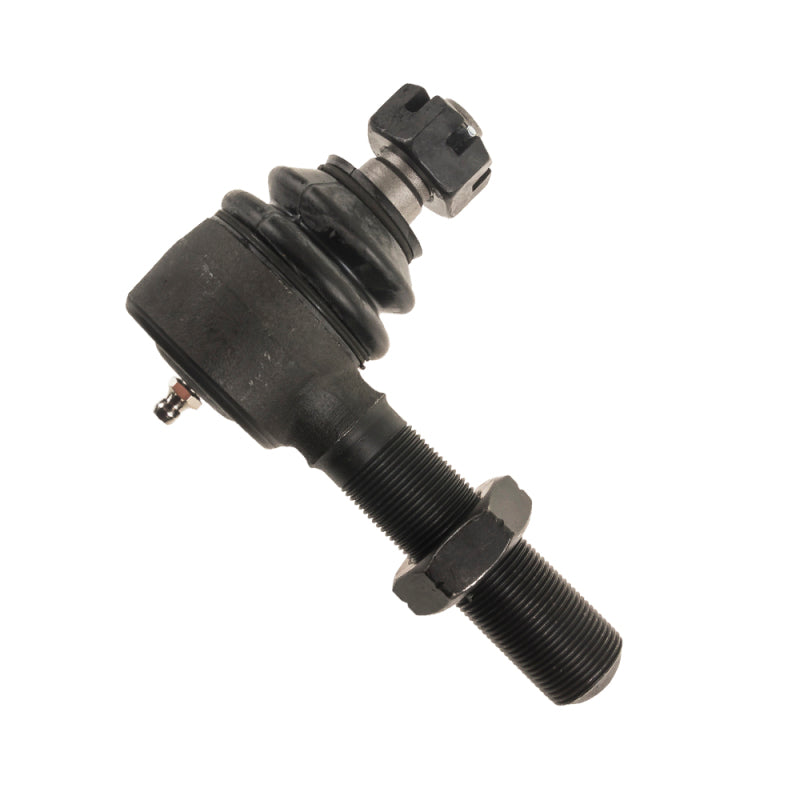

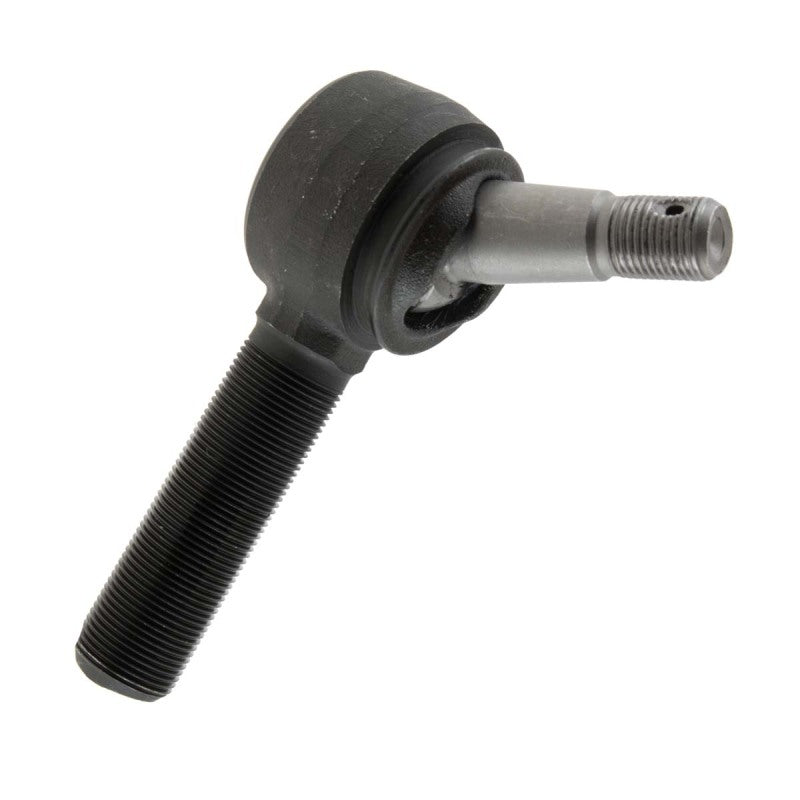

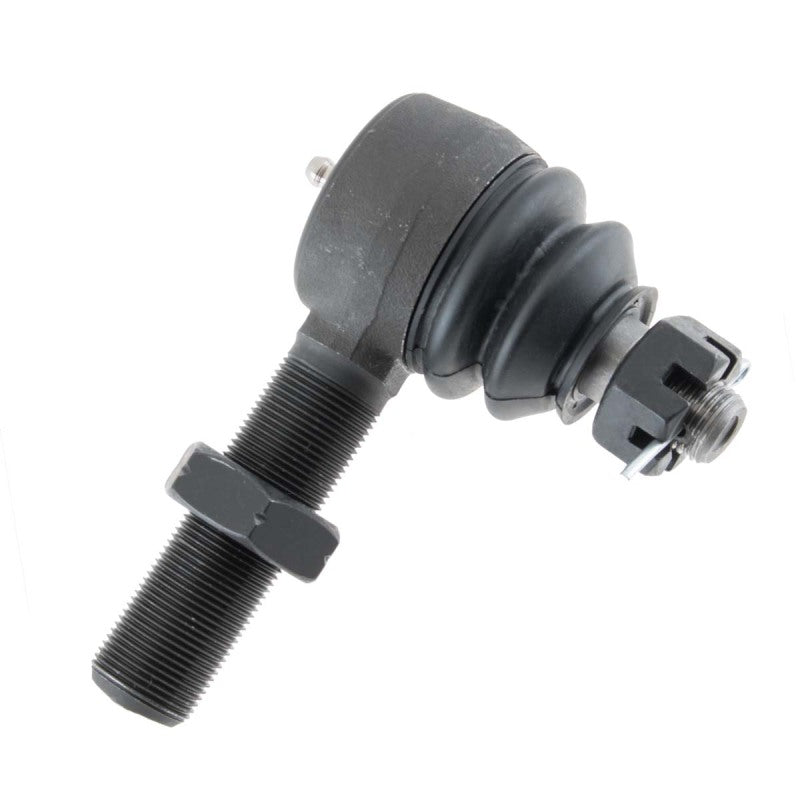

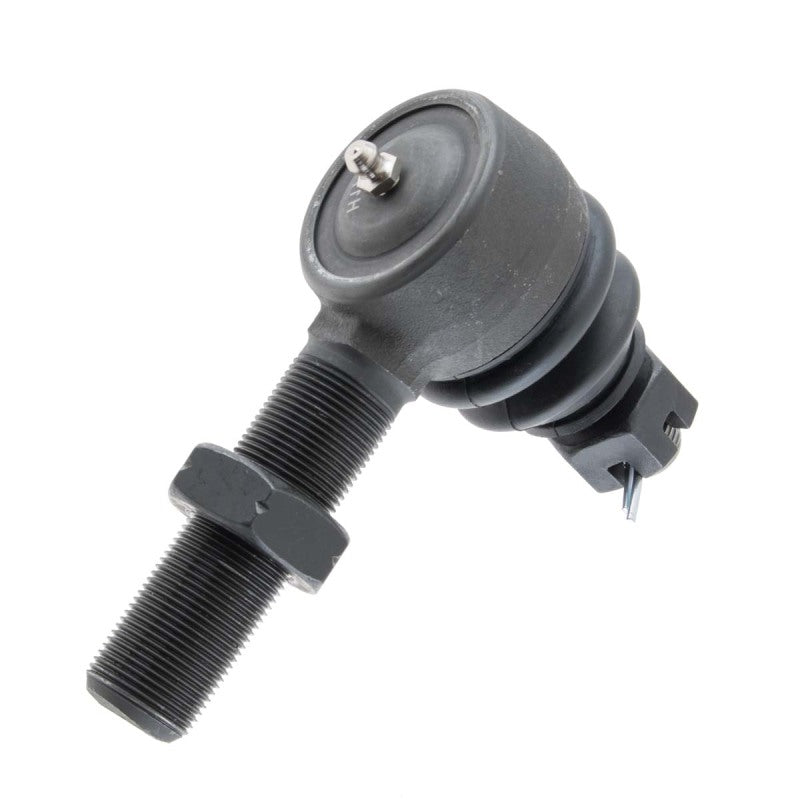

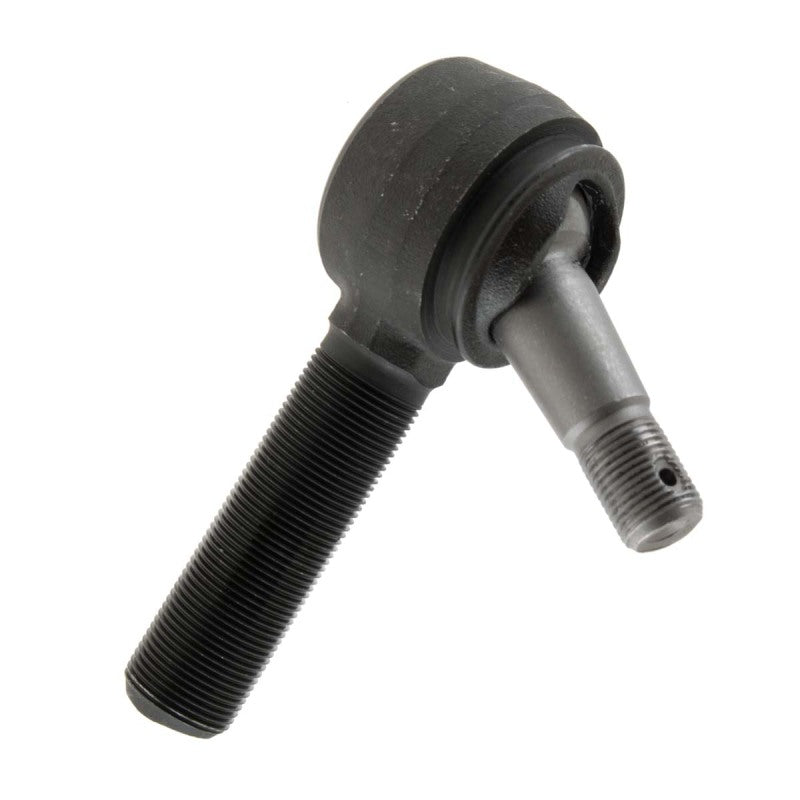

Synergy 4162-L HD Drag Link Tie Rod End Metal-on-Metal 1-14 LH for 18-26 Jeep

Vehicle Fitment

• 2018-2026 Jeep Wrangler JL (2-Door)
• 2018-2026 Jeep Wrangler JLU (4-Door, Unlimited)
• 2020-2026 Jeep Gladiator JT

Fitment Notes

• Designed for Synergy 8800-01 Heavy Duty Drag Link Kit applications
• Replacement tie rod end for Synergy MFG steering components only
• Not compatible with factory OEM steering linkages
• Single plane design eliminates drag link flop on applications designed for this end

Features

• Fully greaseable sintered metal-on-metal bushing design delivers exceptional wear resistance
• Precision-engineered grease grooves machined into induction heat-treated ball bearing for maximum lubrication
• Ultra-strong forged bearing housing manufactured from 1018 steel for long-lasting durability
• Spring-loaded bearing design maintains constant pressure on bearings and keeps joint tight as it wears
• Oversized tie rod end stud crafted from 4140 steel with extra-large shank eliminates stress risers
• Larger shank design prevents necking down at base for superior fatigue resistance and strength
• Eliminates factory nylon ball race allowing for larger ball bearing and increased strength capacity
• Heavy-duty nitrile-butadiene rubber (NBR) boots with retaining springs resist tearing and weathering

Specifications

• Part Number: 4162-L
• Application: JL/JLU/JT Drag Link (Driver Side)
• Thread Size: 1-14 Left Hand (LH)
• Taper: 1:8 Taper (7.125 Degree Included Angle)
• Style: Single Plane Metal-on-Metal
• Stud Material: 4140 Heat-Treated Steel
• Housing Material: Forged 1018 Steel
• Bushing Type: Sintered Metal-on-Metal
• Grease Fitting: DynaFlo 1/4-28 Straight Steel Zinc with Ball Check
• Weight: Approximately 2 lbs

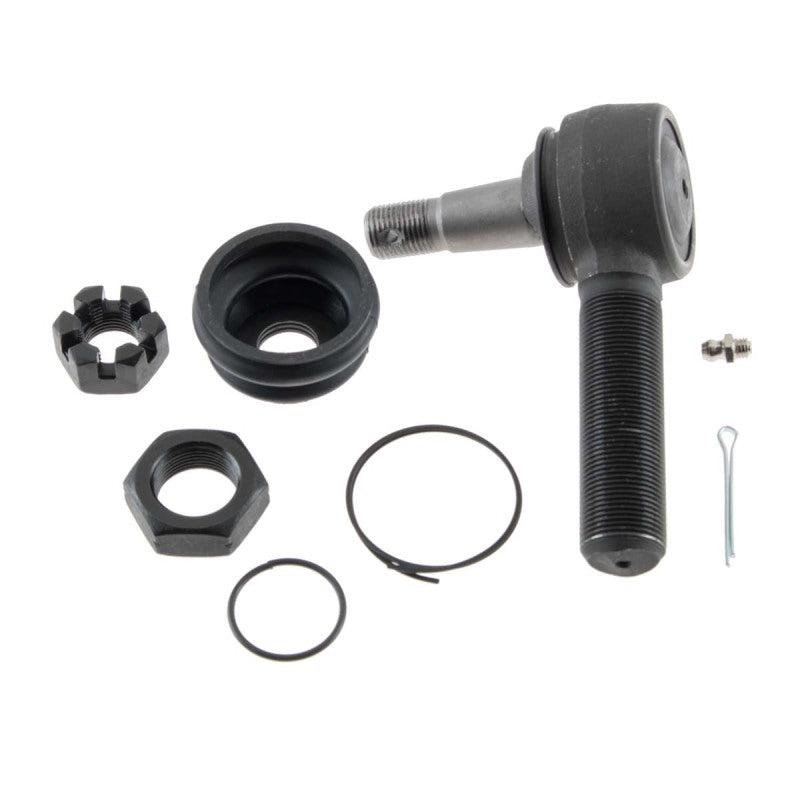

Included Components

• 1x HD Drag Link Tie Rod End with Forged Housing
• 1x Heavy Duty NBR Boot with Retaining Spring
• 1x DynaFlo Grease Fitting Pre-Installed

Product Description

The Synergy 4162-L Heavy Duty Drag Link Tie Rod End represents a significant upgrade over OEM and competitor steering components for 2018-2026 Jeep Wrangler JL/JLU and 2020-2026 Gladiator JT models. This precision-engineered replacement end is specifically designed for Synergy's 8800-01 Heavy Duty Drag Link Kit, providing the critical connection between your steering system and front axle. Unlike factory tie rod ends that use weak nylon ball races and undersized studs prone to premature failure, the 4162-L features a fully greaseable sintered metal-on-metal design that delivers exceptional longevity even under the most punishing off-road conditions. The single plane configuration offers misalignment in one direction of movement only, effectively eliminating the drag link flop that plagues many aftermarket alternatives.

Built with a forged 1018 steel housing surrounding an induction heat-treated ball bearing, this tie rod end is engineered to withstand extreme articulation, heavy shock loads, and years of aggressive trail use. The precision-machined grease grooves in the ball bearing ensure maximum lubrication reaches all critical wear surfaces, while the spring-loaded bearing design continuously maintains pressure on the joint to prevent play as components naturally wear over time. The oversized 4140 steel stud features an extra-large shank that eliminates the stress concentration points found in factory-style ends, where the stud traditionally necks down at the base - a common failure point that can lead to catastrophic steering loss. This design philosophy allows the Synergy tie rod end to outperform and outlast all OEM and aftermarket alternatives.

Installation requires the removal of your existing Synergy drag link tie rod end and replacement with this component using basic hand tools and a properly sized taper breaker or pickle fork. The heavy-duty NBR boot and retaining spring provide excellent protection against contamination while remaining resistant to tearing from trail debris. Regular greasing using Synergy High Performance Chassis & Bearing Grease (recommended) through the included DynaFlo zerk fitting ensures maximum service life and maintains optimal performance. For Jeep Wrangler JL/JLU and Gladiator JT owners who have already upgraded to Synergy's heavy-duty steering systems, the 4162-L tie rod end is the factory-direct replacement that maintains the same exceptional quality and engineering standards that made Synergy a trusted name in the off-road industry.
