Synergy Mfg 8740-01 Rear Track Bar Relocation Bracket for 2014-24 Ram 2500 4x4

Vehicle Fitment

• 2014-2024 Ram 2500 4x4 (All Engines; Rear Suspension Track Bar Geometry Upgrade)

Features

• Rear track bar relocation bracket designed to correct track bar geometry on lifted trucks
• Raises rear track bar mounting location on the axle by ~3" to increase rear roll center
• Improves handling stability and reduces rear-end "wag" under suspension movement
• Centers rear axle without requiring a new track bar for 1-2.5" rear lifts
• Laser-cut, CNC-formed 1/4" steel for strength and durability
• Abrasion-resistant powder coat finish helps protect against corrosion
• 100% bolt-on installation - no cutting or drilling required
• Includes plated spacer and complete hardware kit for easy setup

Specifications

• Part number: 8740-01
• Application: Rear track bar relocation bracket
• Fitment range: 2014-2024 Ram 2500 4x4
• Roll center raise: ~3"
• Material: Laser-cut & CNC-formed 1/4" steel
• Finish: Powder coat corrosion-resistant
• Installation: Bolt-on, no cutting or drilling
• Lift range (standard use): 1.0-2.5" rear bump stop extension recommended

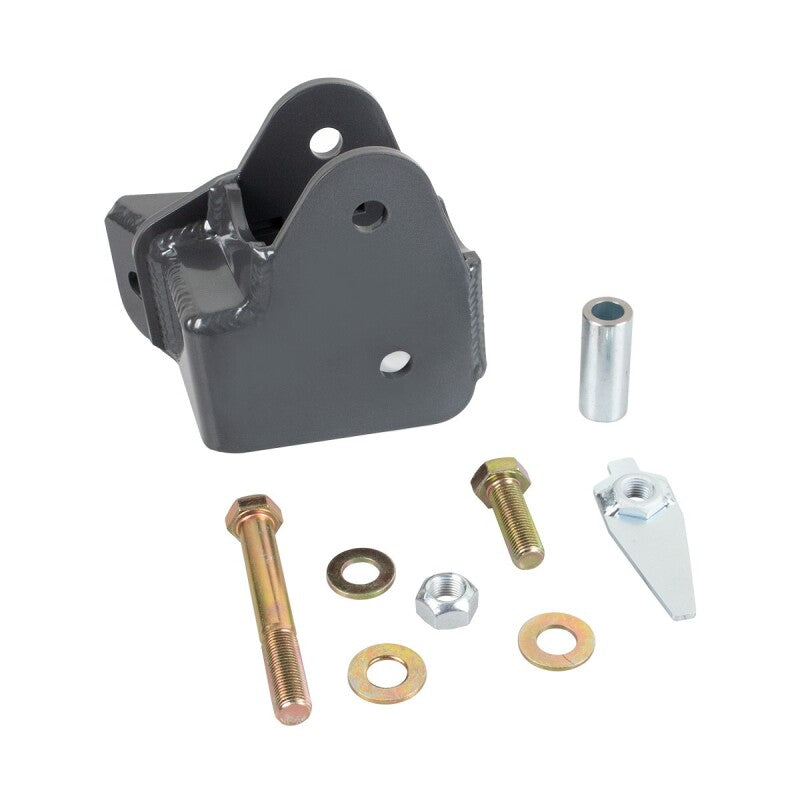

Included Components

• 1x Rear track bar relocation bracket
• 1x Plated spacer
• 1x Track bar relocation hardware kit (bolt & fasteners)

Product Description

The Synergy Mfg 8740-01 Rear Track Bar Relocation Bracket is engineered for **2014-2024 Ram 2500 4x4** trucks to improve rear suspension track bar geometry after a rear lift of approximately 1" to 2.5". By raising the rear track bar mounting point on the axle by about 3", this bracket increases the rear roll center and helps center the axle, which reduces the steep angle of the rear track bar that can cause rear-end "wag" and unpredictable movement as the suspension cycles. This results in improved overall handling stability on lifted vehicles.

Constructed from laser-cut and CNC-formed 1/4" steel with a durable powder coat finish, the 8740-01 bolts directly to the existing track bar mount without cutting or drilling, making installation straightforward with basic hand tools. The kit includes a plated spacer and necessary hardware, and for trucks lifted beyond ~2.5", this bracket pairs effectively with Synergy's adjustable track bar for larger lift heights. Minimum rear bump stop spacing of about 1" is recommended for proper clearance and performance.
