Synergy Mfg 8730-03 Front Radius Arm Drop Brackets for 14-24 Ram 2500/3500 4WD

Vehicle Fitment

• 2014-2024 Ram 2500 (4WD, 5.7L HEMI / 6.4L HEMI / 6.7L Cummins)
• 2013-2024 Ram 3500 (4WD, 6.4L HEMI / 6.7L Cummins)

Fitment Notes

• 4WD models only
• Designed for 2.5" to 6" lift applications
• Pairs with Synergy lift coils or aftermarket lift kits
• Running axle 1-1/2" forward may require sway bar relocation brackets
• Bolt-on installation
• Drop brackets do not need to be removed to service drivetrain
• Recommended Mopar upper coil isolator: 68268825AA (Power Wagon thicker unit)
• Compatible with Synergy front bump stop spacers

Features

• 3" frame-side radius arm mount drop
• Maintains factory front suspension geometry
• Improves ride quality at lifted ride height
• CAD-designed heavy-duty 3/16" steel plate construction
• Integrated crush-resistant skid plate
• Grade 50 A-572 steel skid plate
• Stainless steel flippable cam spacers
• 1/2" or 1-1/2" forward axle adjustment
• Bolt-on design with simple hand tools
• Abrasion-resistant powder coat finish
• Increases tire clearance for oversized tires
• Compatible with taller lift heights
• Made in USA

Specifications

• Type: Front Radius Arm Drop Brackets
• Position: Front frame
• Drop: 3" at radius arm frame mount
• Material: 3/16" steel plate
• Skid plate material: Grade 50 A-572 steel
• Cam spacer material: Stainless steel
• Axle forward adjustment: 1/2" or 1-1/2"
• Finish: Abrasion-resistant powder coat
• Lift compatibility: 2.5" - 6"
• Weight: 31 lbs
• Dimensions: 19" x 15" x 13"
• Country of origin: USA

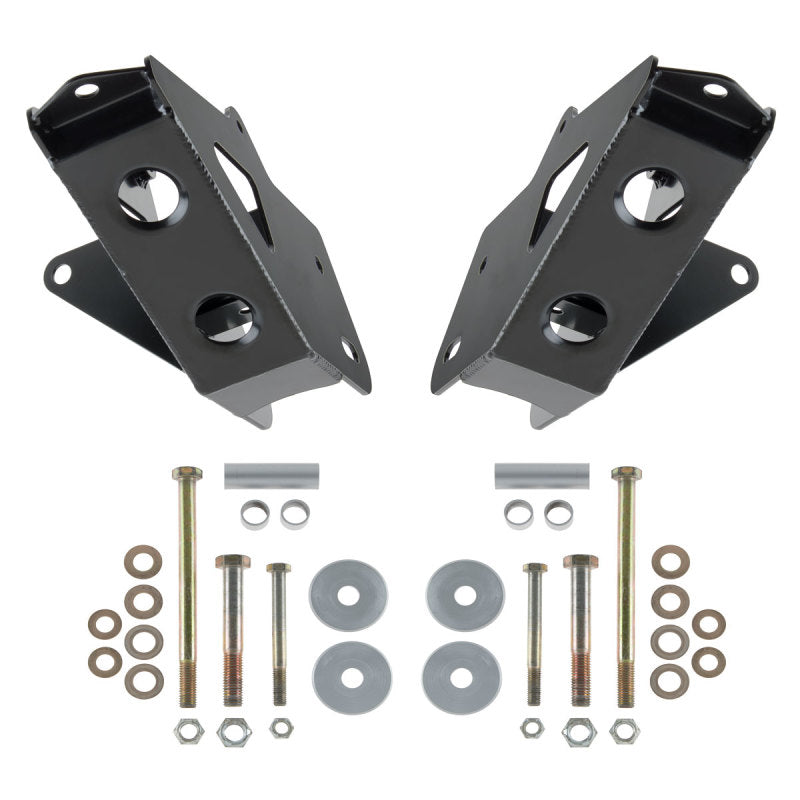

Included Components

• 2x Front radius arm drop brackets
• 1x Integrated skid plate
• 2x Stainless steel flippable cam spacers
• 1x Mounting hardware kit (18mm x 130mm bolts, 5/8" x 9" bolts)
• 1x Installation instructions

Product Description

The Synergy 8730-03 Front Radius Arm Drop Brackets are engineered specifically for the 2014+ Ram 2500 and 2013+ Ram 3500 4WD platforms running 2.5" to 6" of front lift. Their primary purpose is to improve ride quality by lowering the radius arm mounting locations at the frame by 3 inches, which maintains the factory front suspension geometry even at lifted ride heights -- preventing the binding, premature bushing wear, and degraded ride quality that result from running stock radius arms at extreme angles. The bolt-on design installs with simple hand tools and uses CAD-designed heavy-duty 3/16" steel plate construction with an integrated, crush-resistant grade 50 A-572 steel skid plate for added underbody protection.

Stainless steel flippable cam spacers in the drop brackets give the user the choice of running the axle 1/2 inch forward for leveled trucks or 1-1/2 inches forward to clear larger tires and accommodate taller lifts (sway bar relocation brackets may be required at the 1-1/2" position). The drop brackets do not need to be removed to service the drivetrain, and an abrasion-resistant powder coat finish ensures long-term corrosion resistance. Mopar Power Wagon upper coil isolator (PN 68268825AA) is recommended for the thicker construction that better holds up to lifted ride heights. Made in the USA -- Synergy Manufacturing has been producing premium suspension products since 2005.
