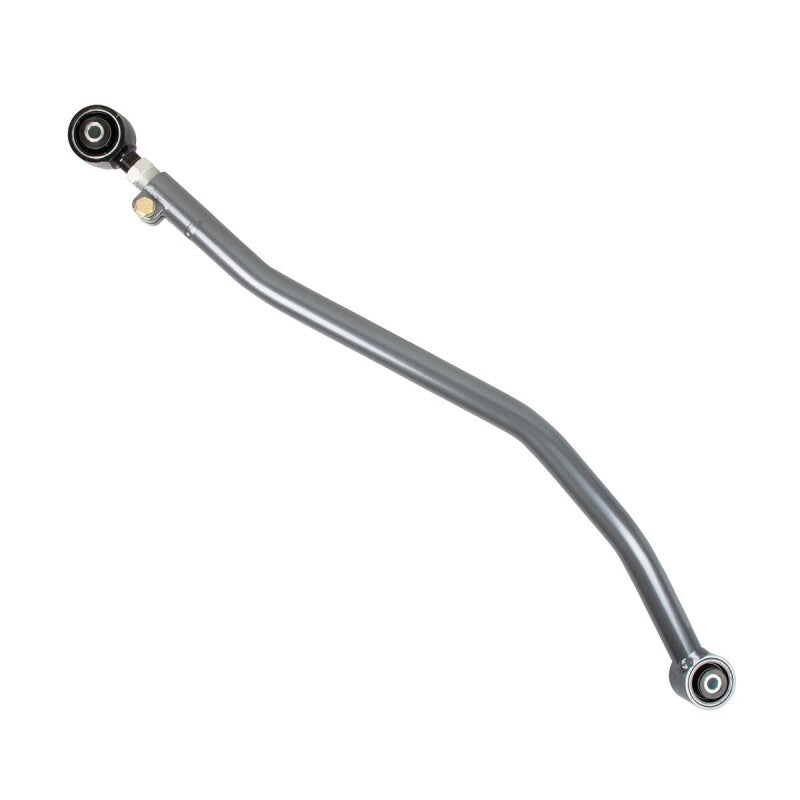

Synergy 8765-01 HD Adjustable Rear Track Bar for 14-25 Ram 2500 4WD w/0-4" Lift

Vehicle Fitment

• 2014-2025 Ram 2500 4WD

Fitment Notes

• Rear suspension application
• Compatible with 0-4.5" of lift (up to 7" with track bar relocation bracket)
• Requires Synergy Track Bar Relocation Bracket (8740-01) OR Synergy Brake Line Relocation Bracket (8765-02) for proper installation
• Track bar relocation bracket required to clear brake lines and ABS sensors on rear differential
• 1-1/4" of rear bump stop spacing required when using 8740-01 Relocation Bracket
• Does NOT fit Ram 2500 Power Wagon models
• Bent to clear most aftermarket differential covers
• Retains factory track bar mounting bolts and hardware
• Professional installation recommended

Features

• Heavy duty adjustable rear track bar for lifted Ram 2500 trucks
• Centers rear axle after installing suspension lift for proper geometry
• Significantly improves lateral stiffness and strength over stock
• Eliminates unwanted vehicle wandering and excessive axle movement
• Reduces noise, vibration, harshness, and death wobble
• Synergy Double Adjuster Sleeve and Pinch Bolt Assembly for on-vehicle adjustments
• No need to remove track bar from vehicle to make length adjustments
• Synergy Dual Durometer Bushings (DDB) with Teflon bearing surface
• Maintenance-free bushing design eliminates greasing requirements
• Eliminates binding issues associated with factory vulcanized bushings
• Two-stage abrasion-resistant powder coat finish for durability and corrosion resistance
• 100% bolt-on installation with basic hand tools
• Designed and manufactured in the USA

Specifications

• Part Number: 8765-01
• Brand: Synergy Manufacturing
• Product Type: Adjustable Rear Track Bar
• Position: Rear
• Tubing Material: DOM Steel (USA Made)
• Tubing Diameter: 1.50 in
• Wall Thickness: 0.250 in (1/4")
• Bushing Type: Synergy Dual Durometer Bushings (DDB)
• Bushing Bearing Surface: Teflon
• Adjustment Type: Double Adjuster Sleeve with Pinch Bolt
• Lift Range: 0 - 4.5 in (up to 7" with relocation bracket)
• Minimum Length (Collapsed): 35.50 in (center to center)
• Maximum Length (Extended): 36.375 in (center to center)
• Finish: Two-Stage Abrasion-Resistant Powder Coat
• Installation Type: Bolt-On
• Weight: 15.58 lbs
• Country of Origin: USA
• Warranty: Limited Lifetime

Included Components

• Heavy Duty Rear Adjustable Track Bar (1)
• Synergy Double Adjuster Sleeve (1)
• Pinch Bolt Assembly
• Synergy Dual Durometer Bushings (Pre-Installed)
• Installation Instructions

Product Description

The Synergy 8765-01 Heavy Duty Adjustable Rear Track Bar is a critical component for 2014-2025 Ram 2500 4x4 trucks running suspension lifts. Manufactured from 1.50" x 0.250" wall USA-made DOM steel tubing, this track bar significantly improves lateral stiffness and strength over stock to withstand the abuse of large tires and aggressive off-road driving. The fully adjustable design with Synergy's Double Adjuster Sleeve and Pinch Bolt Assembly allows precise rear axle centering without removing the track bar from the vehicle. Maintenance-free Dual Durometer Bushings with Teflon bearing surfaces eliminate binding, reduce noise and vibration, and provide unmatched ride quality. Bent to clear most aftermarket differential covers. Requires use with Synergy Track Bar Relocation Bracket (8740-01) or Brake Line Relocation Bracket (8765-02). Backed by Synergy's limited lifetime warranty.
