Superwinch 1595201 Tiger Shark 9500SR 9500 lb 12V Winch Dyneema Synthetic Rope

Vehicle Fitment

• Universal - fits any vehicle with a compatible winch mounting plate or bumper with a standard winch mounting pattern

Fitment Notes

• Universal fitment - a vehicle-specific mounting plate or winch-ready bumper is required; cutting, welding, or other vehicle modifications may be necessary depending on the application
• Designed for 12V DC electrical systems only
• Aluminium hawse fairlead included - matched for synthetic rope use; do not use a roller fairlead with synthetic rope
• Package weight: 63.0 lbs. | Package dimensions: 23.0 in. L x 12.0 in. W x 12.0 in. H

Features

• 9,500 lb. rated line pull - first-layer single-line rating from a 5.2 HP sealed series-wound motor; weather-sealed construction reduces damage from rain, snow, and blowing dust
• Certified Dyneema synthetic rope (3/8 in. x 80 ft.) - Dyneema is a premium-grade HMPE (high-modulus polyethylene) fibre with a higher strength-to-weight ratio than standard synthetic rope; lighter than steel, floats on water, and does not store kinetic energy if broken
• Synthetic-specific thickened drum - the Tiger Shark SR features a heavier, fabricated steel drum with added wall thickness specifically designed to manage the load distribution and compression characteristics of synthetic rope, which differ from steel wire
• Brake outside the drum (external motor brake) - the SR models relocate the brake to the motor end rather than inside the drum, eliminating heat transfer from the rope and drum to the brake mechanism during high-load pulls, improving brake longevity and consistency
• 3-stage heavy-duty planetary gearing with 218:1 ratio - handles high stress and torque on demand across the full load range
• 100% automatic load-holding mechanical brake - holds the load at any point in the pull without relying on the motor or solenoid to remain engaged

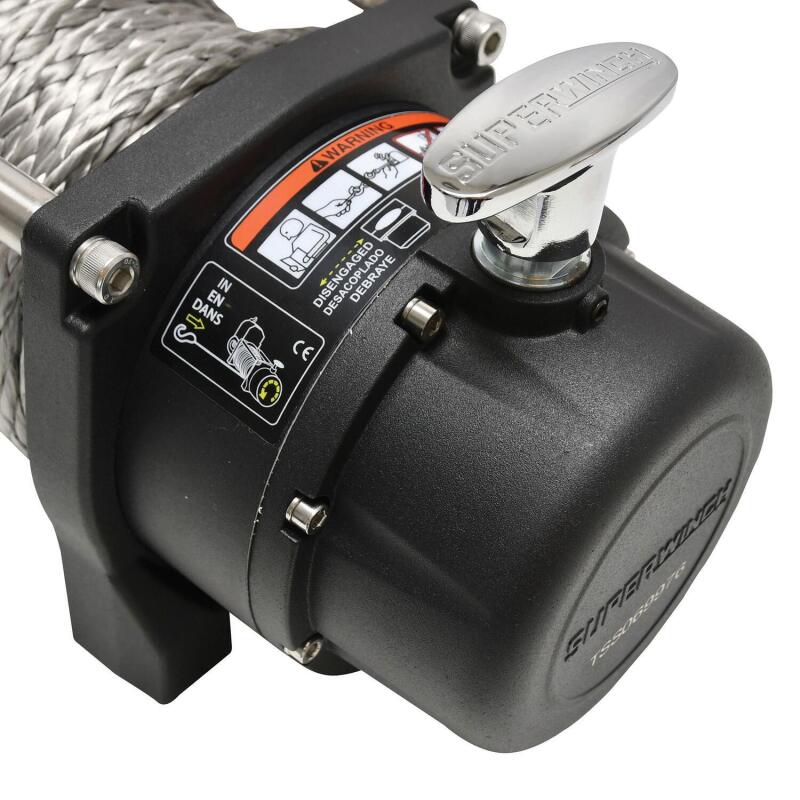

• Ergonomic pull-and-turn freespool clutch - tool-free drum disengagement for fast line deployment to the anchor point
• Aluminium hawse fairlead - low-friction, synthetic-rope-safe guide; lightweight and corrosion-resistant
• Heavy-duty clevis pinned and latched hook - secure hook attachment with positive retention latch
• Weather-sealed solenoid - protects the electrical system from moisture intrusion
• Stainless steel tie bars and hardware - resists corrosion from rain, snow, and salt for long-term appearance and structural integrity
• 12 ft. heavy-duty rubber handheld wired remote - field-proven ergonomic design with durable rubber overmoulding for all-conditions grip and reliability
• Multiple SEMA Award winner; ProPickup "Rock Solid" award recipient

Specifications

• Model: Tiger Shark 9500SR (TS9500SR)
• Rated Line Pull (Single Line, 1st Layer): 9,500 lbs.
• Motor: 5.2 HP sealed series-wound
• Voltage: 12V DC
• Gearing: 3-stage planetary
• Gear Ratio: 218:1
• Rope: 3/8 in. x 80 ft. certified Dyneema synthetic
• Fairlead: Aluminium hawse
• Clutch: Ergonomic pull-and-turn freespool
• Brake: 100% automatic load-holding mechanical (external, motor-end design)
• Solenoid: Weather-sealed
• Remote: 12 ft. heavy-duty rubber handheld wired
• Hardware: Stainless steel tie bars and fasteners
• UPC: 022705003650
• Installed Weight: 63.0 lbs.

Included Components

• 1x Tiger Shark 9500SR Winch Assembly (with pre-spooled 3/8 in. x 80 ft. Dyneema synthetic rope)
• 1x Aluminium Hawse Fairlead
• 1x 12 ft. Heavy-Duty Rubber Handheld Wired Remote
• 1x Heavy-Duty Clevis Pinned and Latched Winch Hook
• 1x Mounting Hardware Kit

Product Description

The Superwinch Tiger Shark 9500SR (1595201) is a 9,500 lb. rated 12V electric winch built around certified Dyneema synthetic rope and a suite of synthetic-specific engineering decisions that set it apart from winches that simply swap steel cable for synthetic rope without redesigning the underlying hardware. Dyneema is a premium-grade HMPE fibre that delivers a higher strength-to-weight ratio than standard synthetic rope and significantly higher than steel wire at the same diameter - and like all synthetic rope, it does not store kinetic energy when it breaks under load, dropping safely to the ground instead of snapping back.

Two features distinguish the Tiger Shark SR from winches that use off-the-shelf drums and brake designs with synthetic rope. First, the drum is built with added wall thickness using fabricated steel construction specifically designed to handle the different load distribution and compression behaviour of synthetic rope versus steel wire. Second, the brake is relocated to the motor end of the drivetrain rather than inside the drum - this eliminates heat transfer from the drum and rope to the brake mechanism during heavy pulling, a common failure mode in standard winch designs when used with synthetic rope for extended pulls. Combined with a 5.2 HP sealed motor, 218:1 3-stage planetary gearing, stainless steel tie bars and hardware, and a weather-sealed solenoid, the Tiger Shark 9500SR is a multiple SEMA Award winner and ProPickup "Rock Solid" award recipient.
