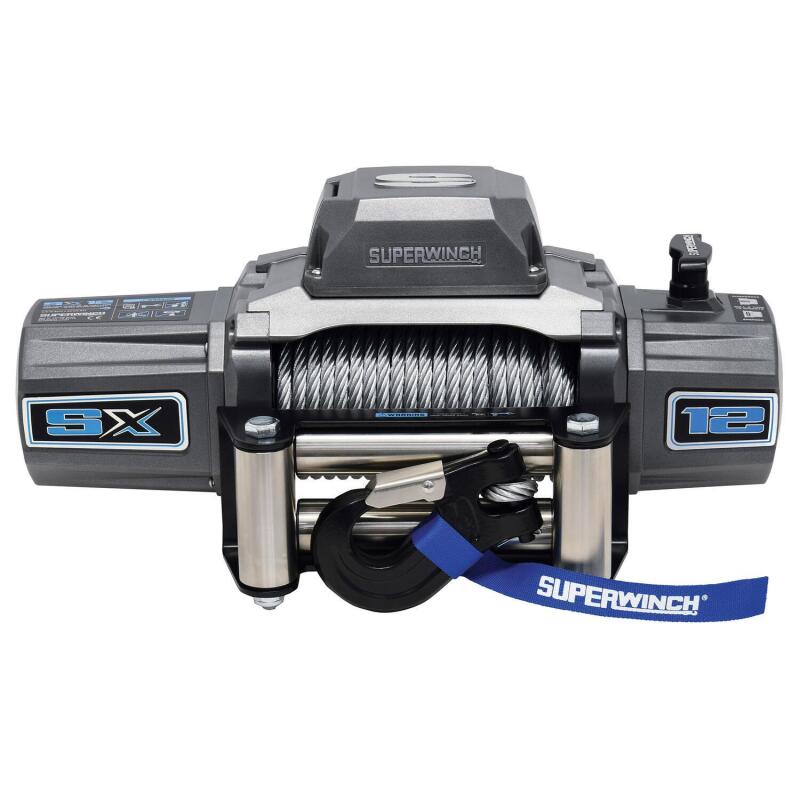

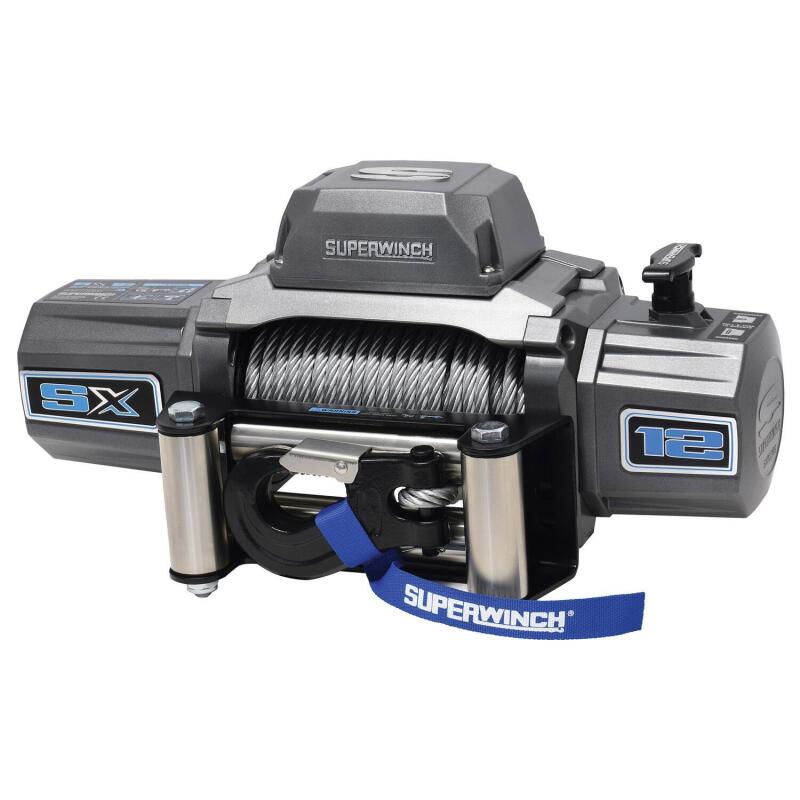

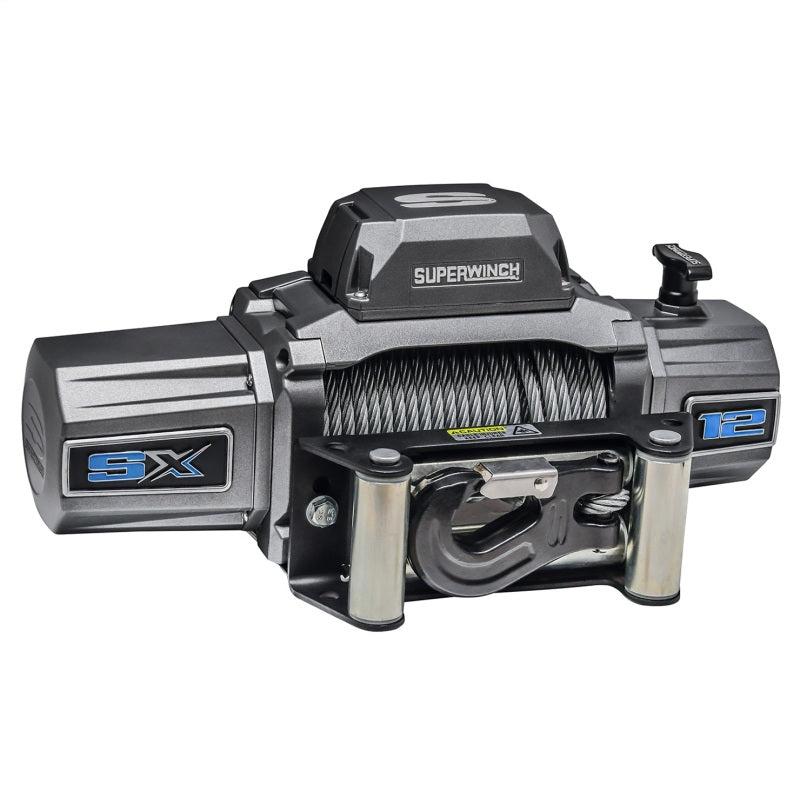

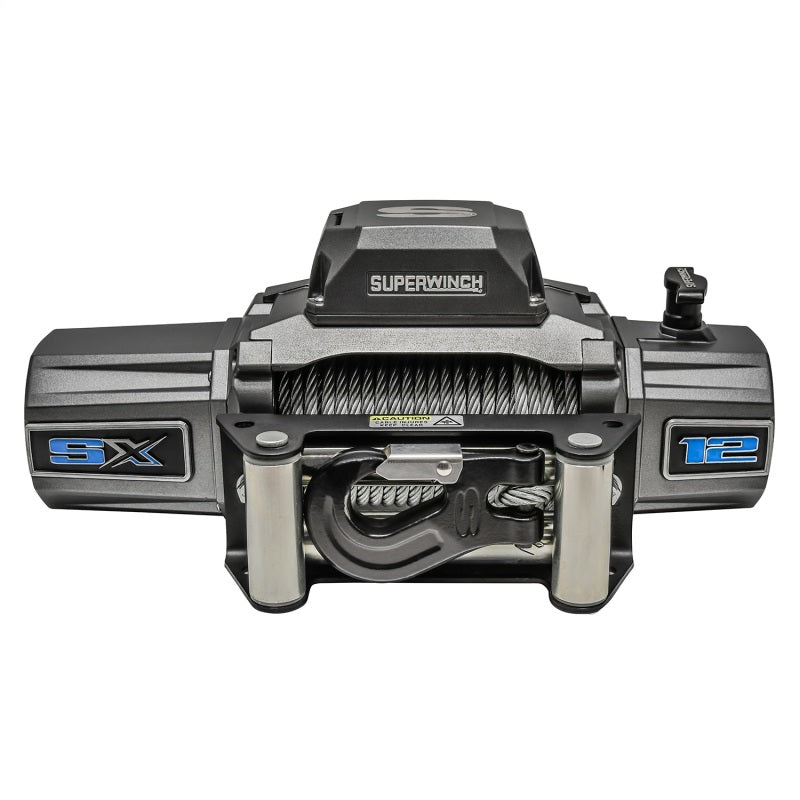

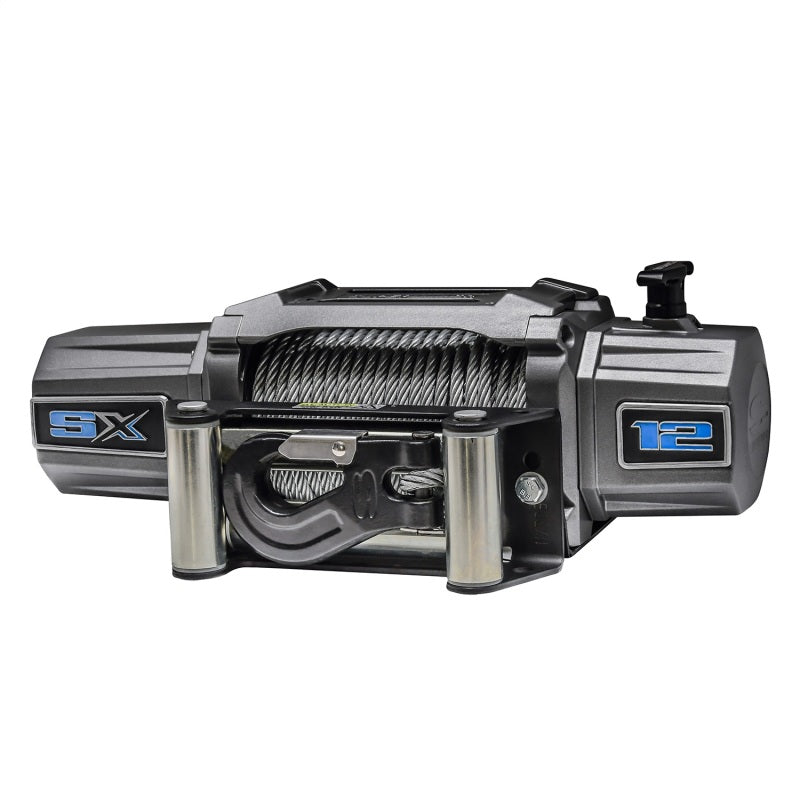

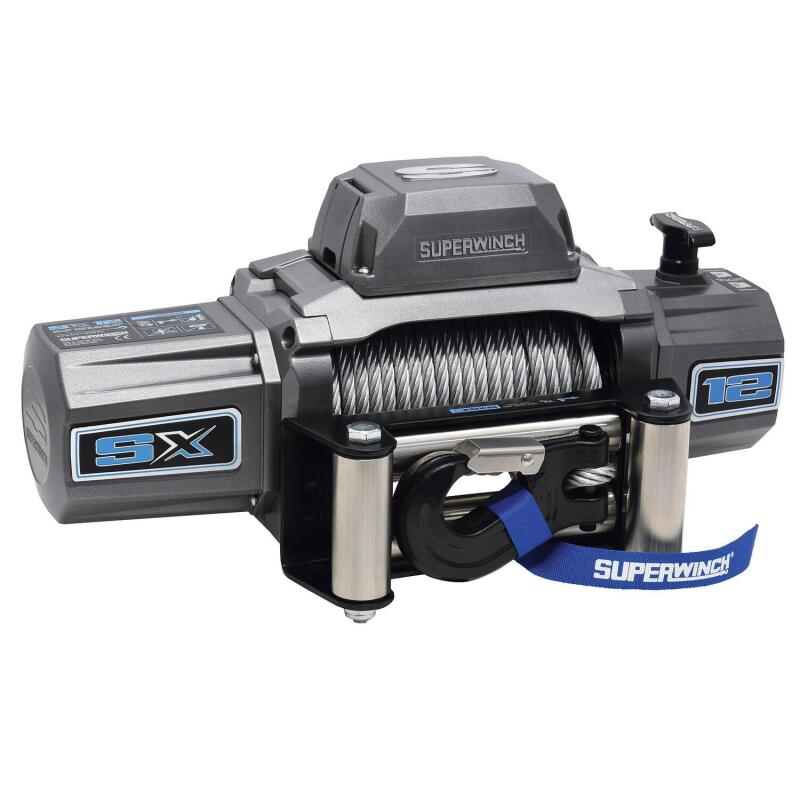

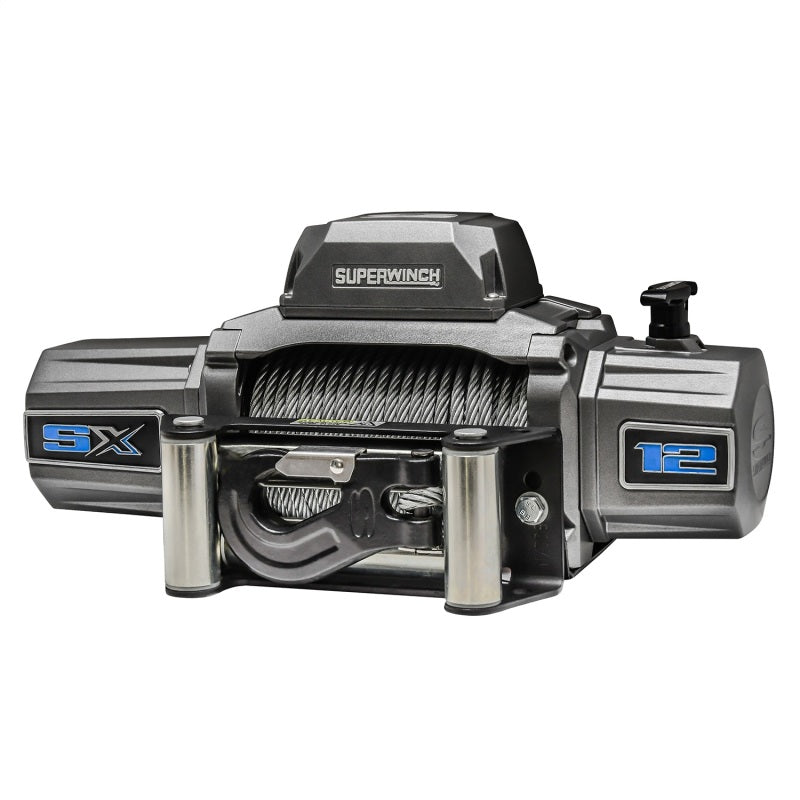

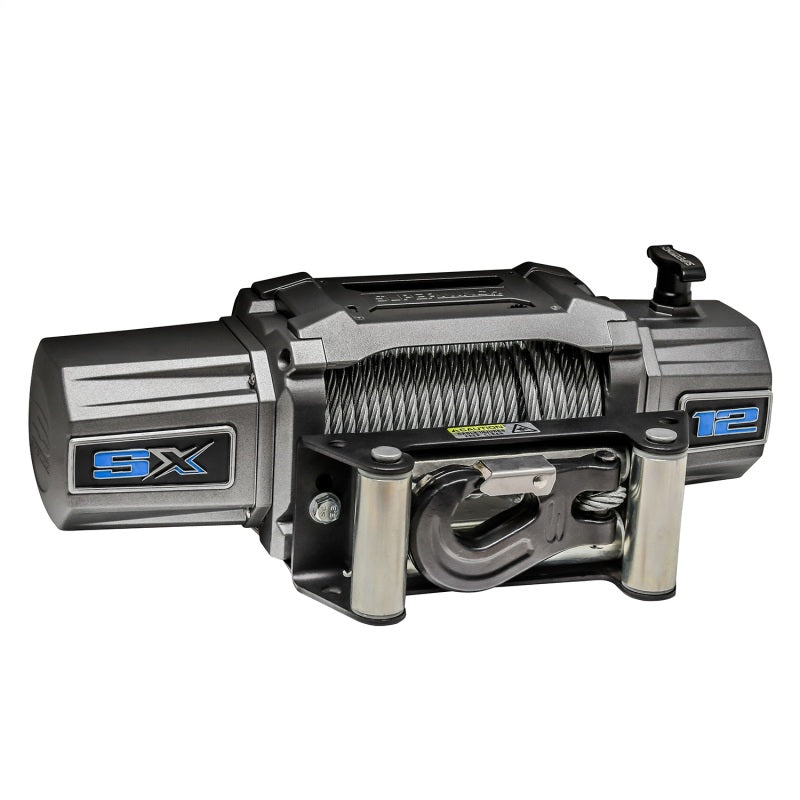

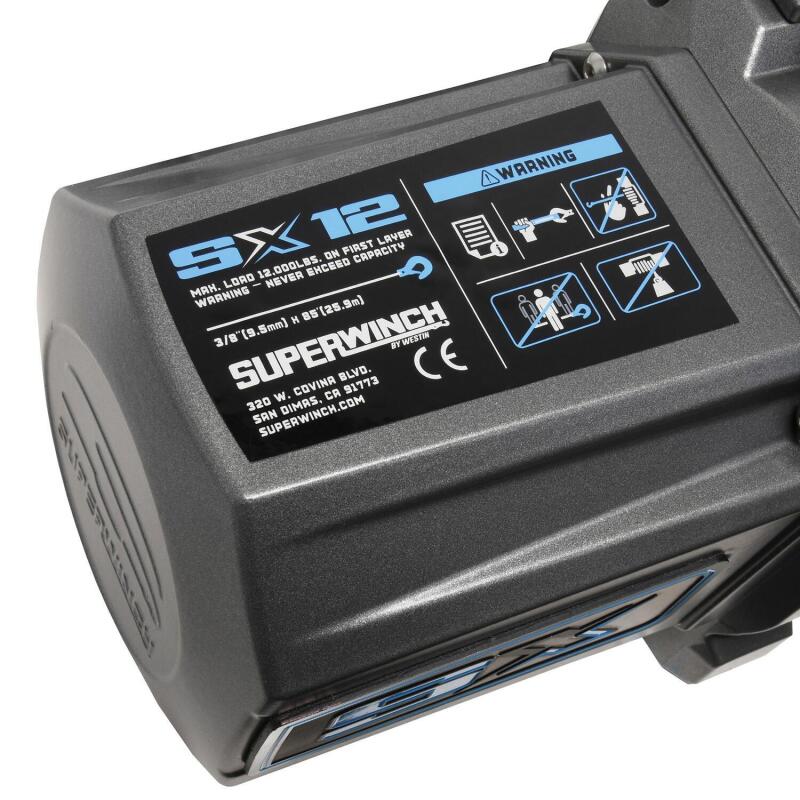

Superwinch 1712200 SX12 12000 lb 12V Electric Winch Steel Rope IP68 Graphite

Vehicle Fitment

• Universal - fits any vehicle with a compatible winch mounting plate or bumper with a standard winch mounting pattern

Fitment Notes

• Universal fitment - a vehicle-specific mounting plate or winch-ready bumper is required for installation; cutting, welding, or other vehicle modifications may be necessary depending on the application
• Designed for 12V DC electrical systems only
• For wireless remote upgrade, use Superwinch PN 2277R (SX-series specific - the standard 2277 wireless kit is not compatible with the SX10/SX12)

Features

• 12,000 lb. rated line pull - first-layer single-line rating from a 6.0 HP sealed series-wound motor delivering high torque for heavy vehicle recovery and load-pulling applications

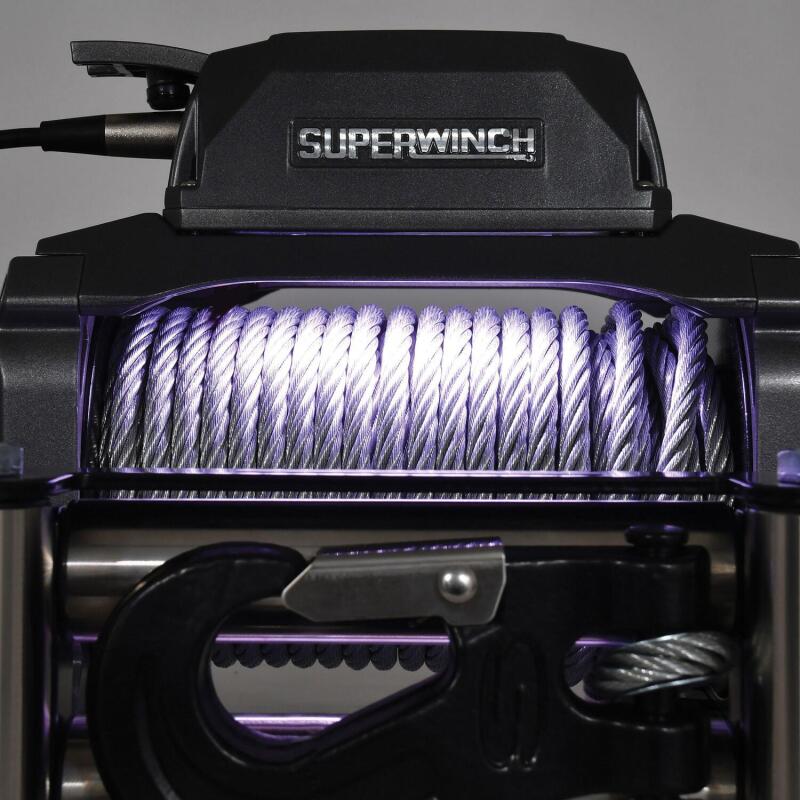

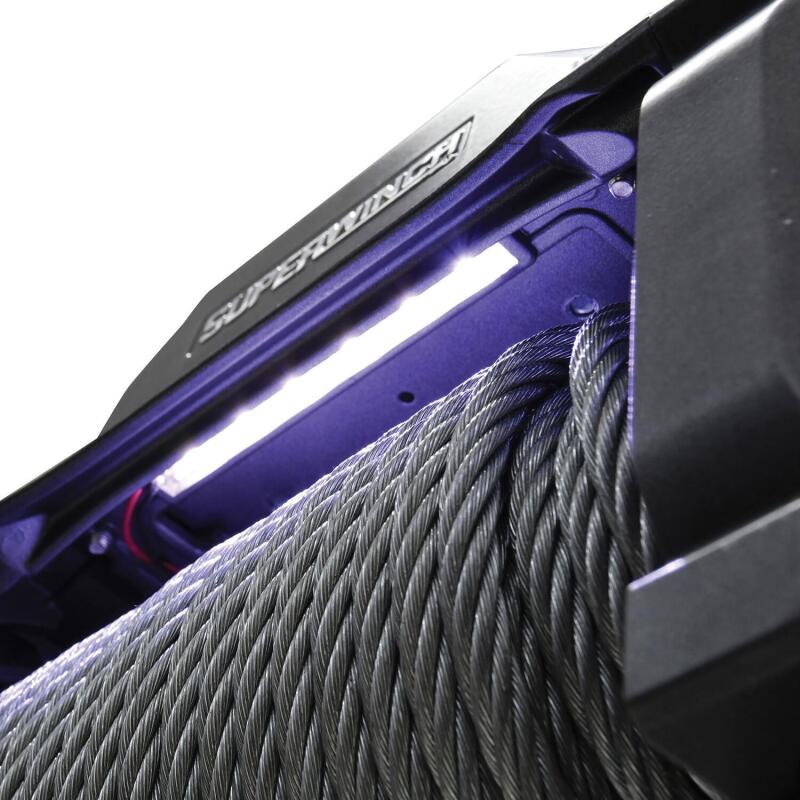

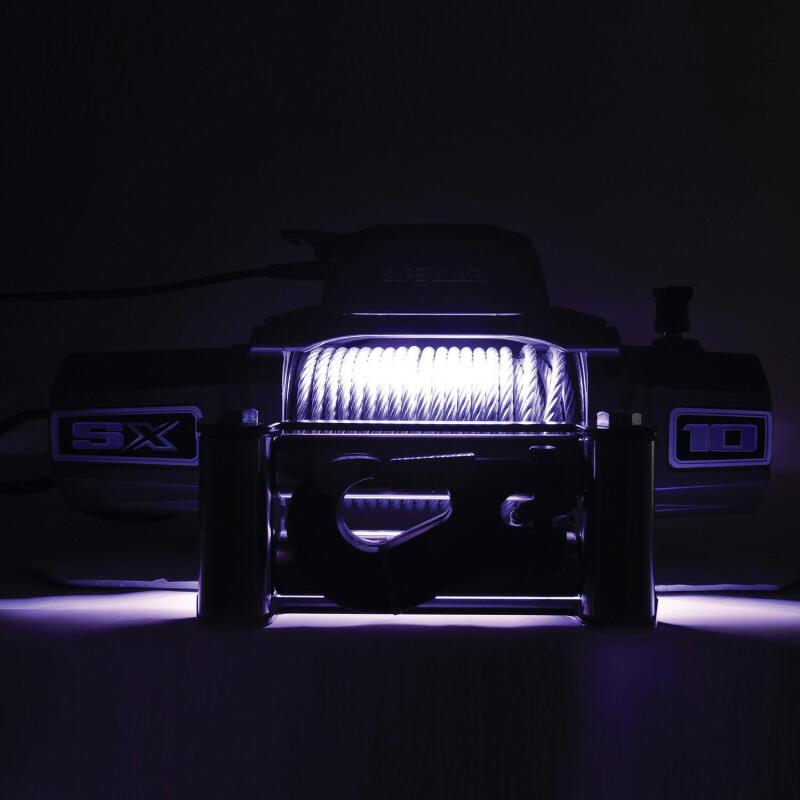

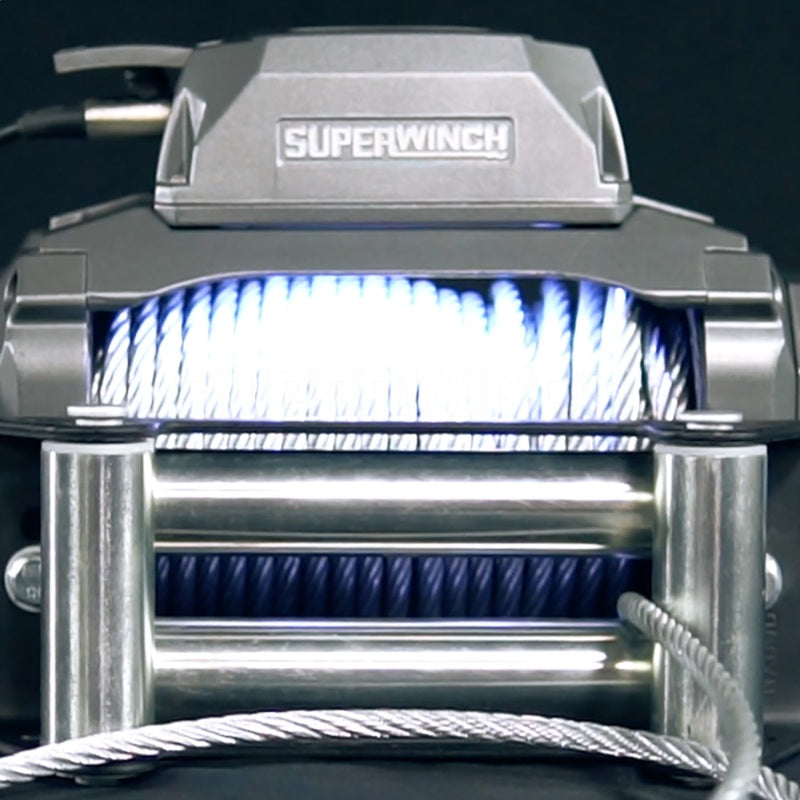

• Patented drum light with IP68 rating - illuminates the winch drum during nighttime operation for improved visibility and line management in low-light recovery situations

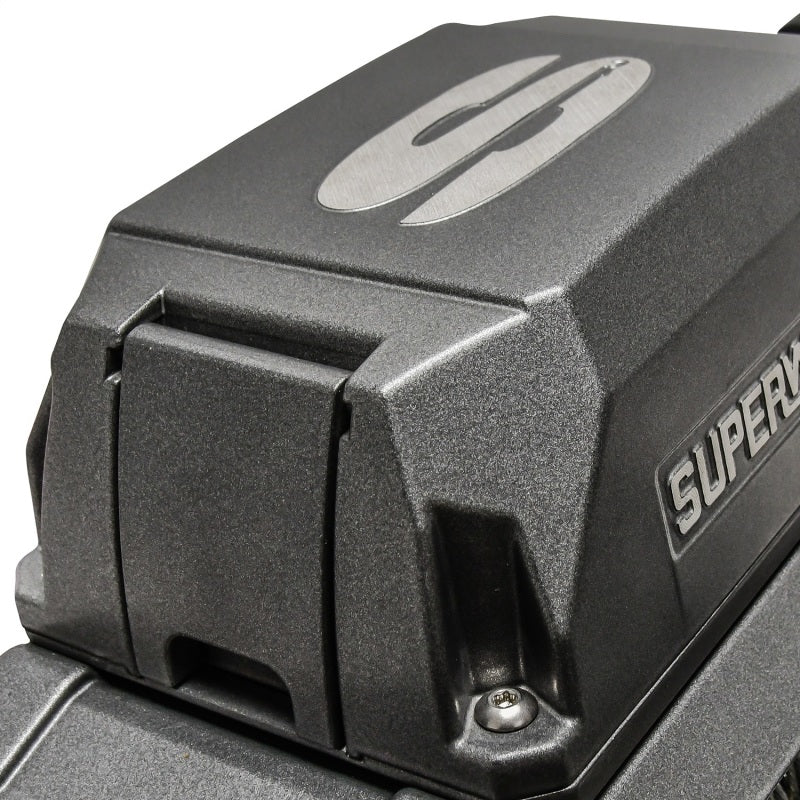

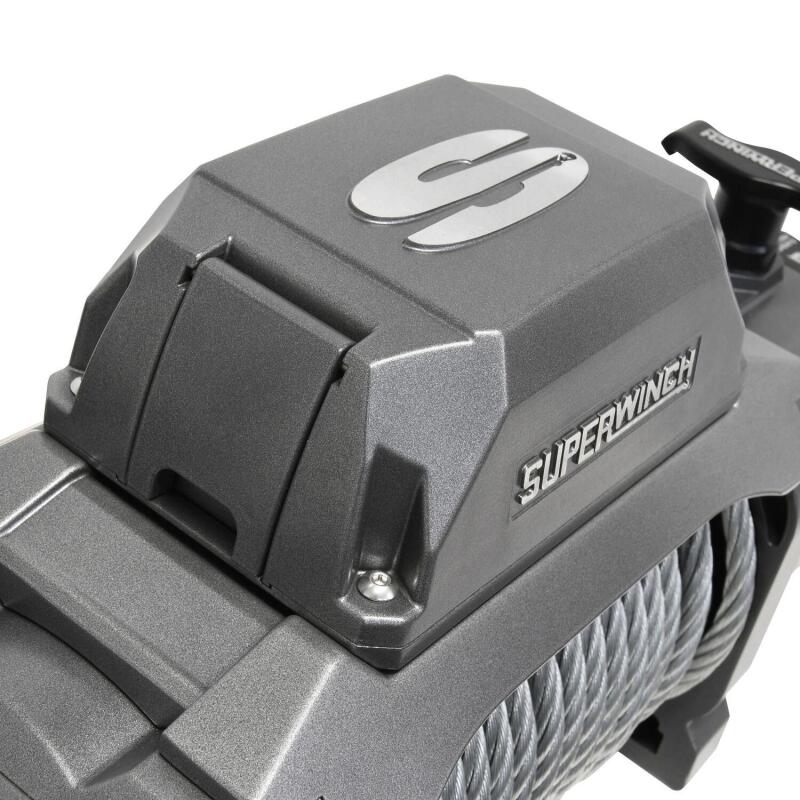

• Relocatable die-cast aluminium control box - the solenoid/control box can be repositioned during installation for flexible integration into tight or custom bumper setups

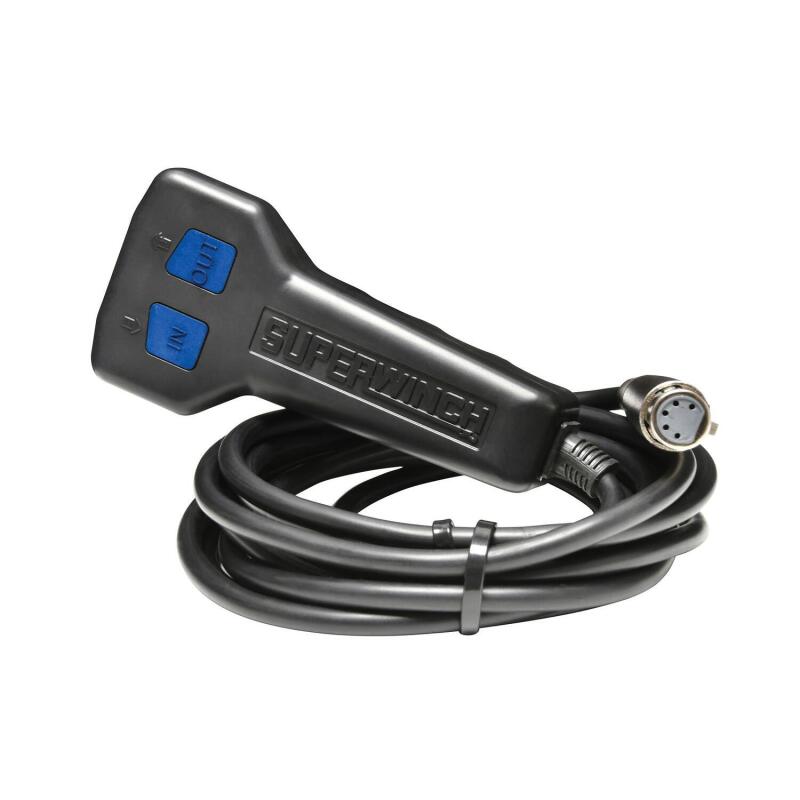

• 12 ft. lighted wired handheld remote with built-in rechargeable lithium-ion flashlight - provides illumination at the anchor or hook during night recoveries without a separate light source
• 3-stage planetary gearing with 231:1 gear ratio - delivers high mechanical advantage for maximum pulling efficiency across all load ranges
• 100% full-load holding automatic mechanical brake - holds the load without relying on motor or solenoid power, preventing unintended line release during rigging

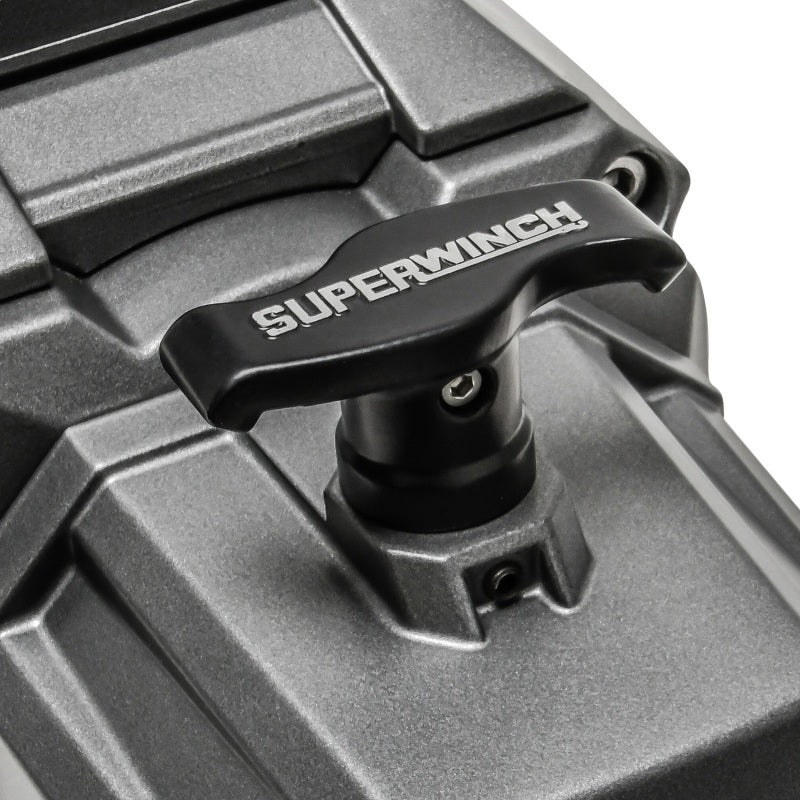

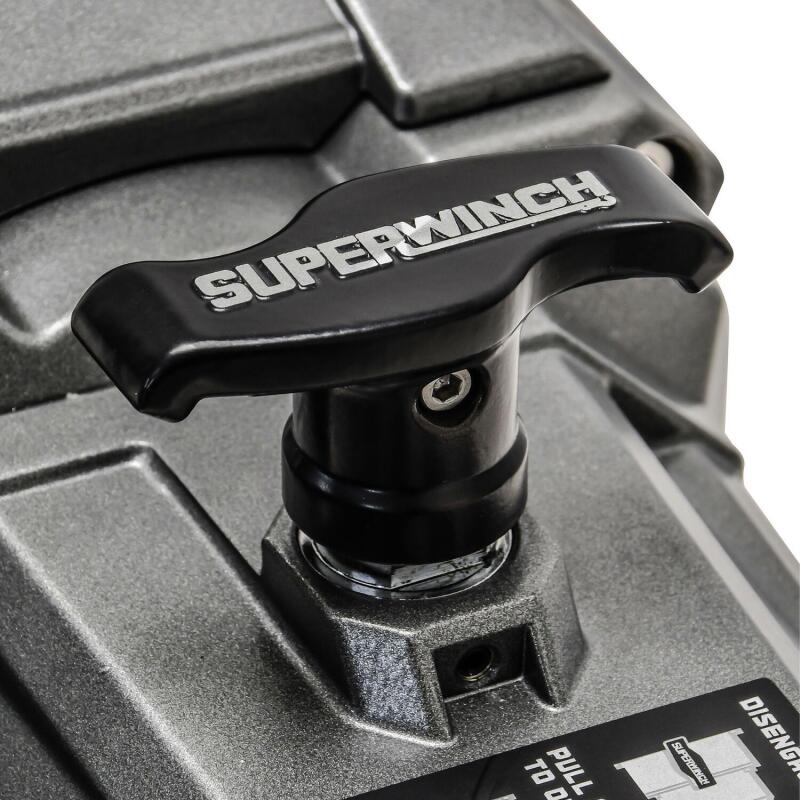

• Pull-and-turn ergonomic freespool clutch - disengages the drum for fast, easy hand-spooling of the line to the anchor without tools
• Stainless steel 4-way roller fairlead - guides the wire rope smoothly onto the drum from any horizontal or vertical angle; stainless construction resists corrosion from water and mud exposure

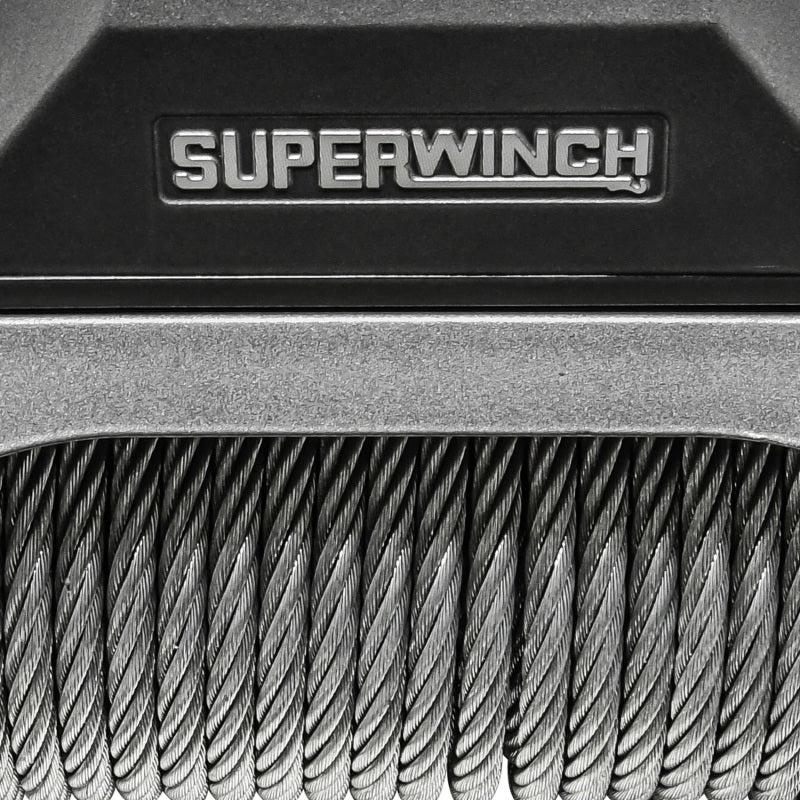

• Fully welded steel drum - provides enhanced structural integrity over multi-piece drum designs for sustained heavy-use performance
• IP68 rated - fully dustproof and waterproof for submersion and hard off-road use in mud, water crossings, and rain
• Metallic graphite powder-coated finish - durable corrosion-resistant finish with a sleek, modern appearance
• Weather-sealed solenoid with circuit breaker protection - protects the electrical system from moisture intrusion and overload conditions

Specifications

• Model: SX12
• Rated Line Pull (Single Line, 1st Layer): 12,000 lbs.
• Motor: 6.0 HP sealed series-wound
• Voltage: 12V DC
• Gearing: 3-stage planetary
• Gear Ratio: 231:1
• Wire Rope: 3/8 in. x 85 ft. steel
• Fairlead: Stainless steel 4-way roller
• Clutch: Pull-and-turn freespool (ergonomic)
• Brake: 100% automatic full-load holding mechanical brake
• Solenoid: Weather-sealed with circuit breaker protection
• Control Box: Relocatable die-cast aluminium
• Remote: 12 ft. lighted wired handheld with built-in rechargeable Li-Ion flashlight
• Drum Light: Patented, IP68 rated
• IP Rating: IP68 (dustproof and waterproof)
• Finish: Metallic graphite powder coat
• UPC: 022705003896
• Warranty: 7-year limited

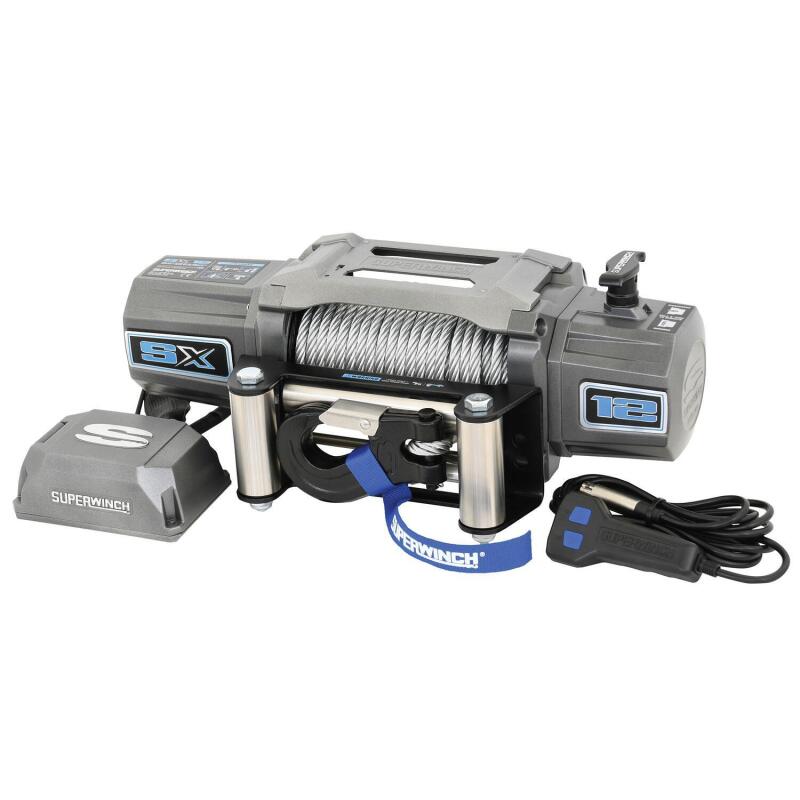

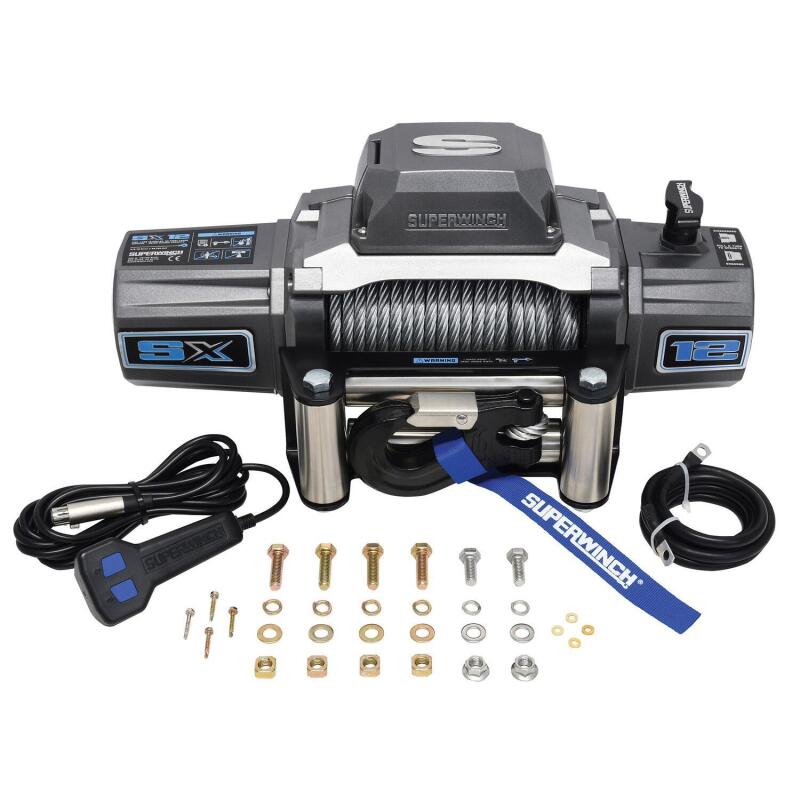

Included Components

• 1x SX12 Winch Assembly (with pre-spooled 3/8 in. x 85 ft. steel wire rope)
• 1x Stainless Steel 4-Way Roller Fairlead
• 1x Relocatable Die-Cast Aluminium Control Box
• 1x 12 ft. Lighted Wired Handheld Remote (with built-in rechargeable Li-Ion flashlight)

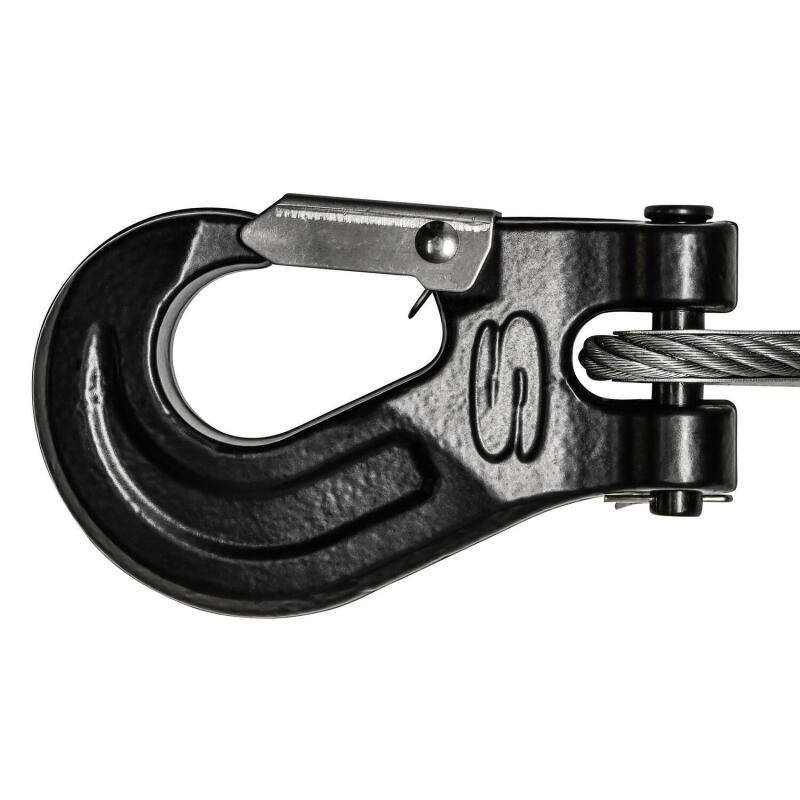

• 1x Heavy Duty Clevis Winch Hook
• 1x Mounting Hardware Kit

Product Description

The Superwinch SX12 (1712200) is a 12,000 lb. rated 12V electric winch designed for truck, SUV, and off-road vehicle recovery applications where a high-capacity, feature-rich winch is required. Built on the SX Series platform, the SX12 differentiates itself with several class-leading innovations including a patented IP68-rated drum light that illuminates the rope during nighttime recoveries, a relocatable die-cast aluminium control box for installation flexibility in tight bumper configurations, and a lighted 12 ft. wired remote with a built-in rechargeable lithium-ion flashlight - eliminating the need to carry a separate light when hooking up to an anchor in the dark.

The winch is powered by a 6.0 HP sealed series-wound motor driving through a 3-stage planetary gearset at a 231:1 ratio, delivering smooth, high-torque pulling across the full load range. The 100% automatic mechanical brake holds the load at any point in the pull without relying on the motor or solenoid to stay engaged - important for safe rigging and load control. The pull-and-turn ergonomic freespool clutch allows fast, tool-free line spooling to the anchor point. The entire assembly is IP68 rated for dustproof and waterproof operation, making it suitable for water crossings and mud-heavy environments. Backed by Superwinch's 7-year limited warranty.
