Superwinch SUW1712201 SX12SR 12V 12,000 lb Winch with Synthetic Rope

Vehicle Fitment

• Universal fit for trucks, SUVs, and off-road vehicles
• Compatible with 10" x 4.5" winch mounting bolt pattern

Features

• 12,000 lb single-line pull capacity
• 6.0 HP sealed 12V DC motor
• 3-stage planetary gearing with 231:1 ratio
• IP68-rated waterproof and dustproof construction
• Durable metallic graphite powder-coated finish
• Relocatable die-cast aluminum control box
• 12 ft wired remote with integrated lithium-ion rechargeable LED flashlight
• Wireless remote control included

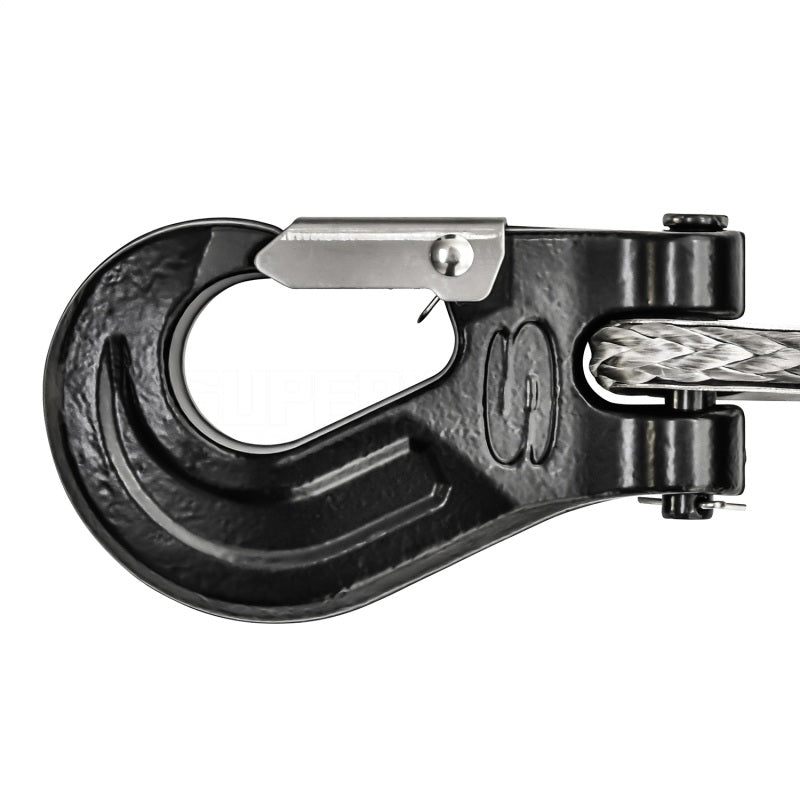

• Heavy-duty clevis winch hook

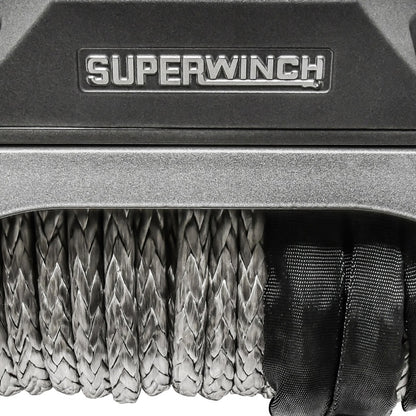

• Aluminum hawse fairlead for synthetic rope
• Ergonomic pull-and-turn clutch handle

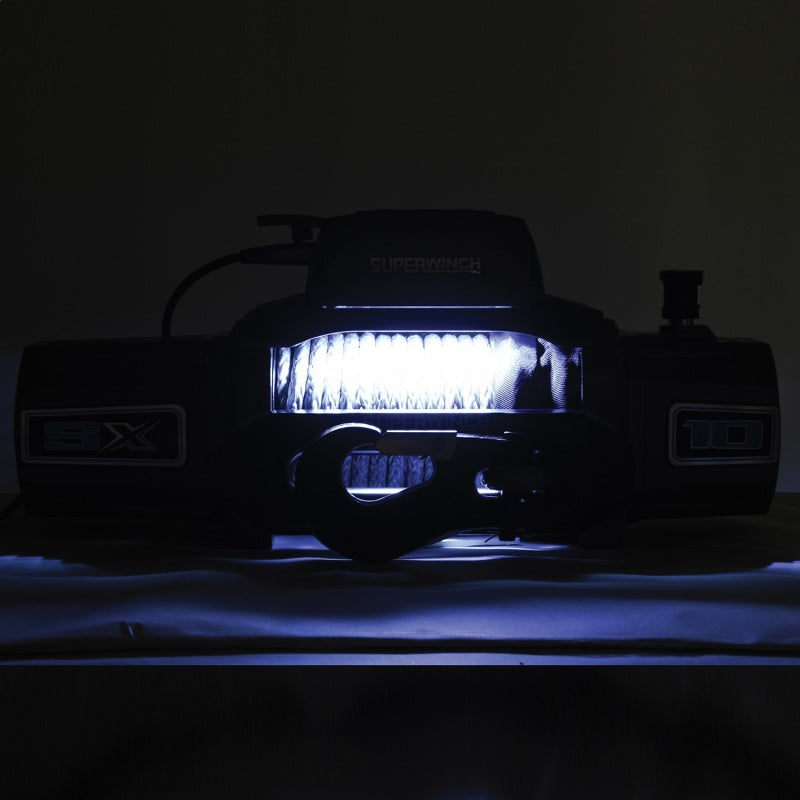

• Patented drum light for nighttime operation
• Clockable gearbox for flexible mounting options
• 100% full load holding automatic mechanical brake

Specifications

• Part Number: SUW1712201
• Rope Material: Synthetic (3/8" x 80 ft)
• Motor: 6.0 HP sealed 12V DC
• Gear Ratio: 231:1 (3-stage planetary)
• Drum Diameter: 2.5 inches
• Mounting Bolt Pattern: 10" x 4.5"
• Dimensions (L x W x H): 22.04" x 6.3" x 9.67"
• Weight: 62 lbs
• Finish: Metallic graphite powder coat
• Waterproof/Dustproof Rating: IP68
• Warranty: Limited Lifetime Mechanical / 7-Year Limited Electrical

Included Components

• 1x Winch Assembly
• 1x Synthetic Rope (3/8" x 80 ft)
• 1x Aluminum Hawse Fairlead
• 1x Die-Cast Aluminum Control Box
• 1x 12 ft Wired Remote with Integrated LED Flashlight
• 1x Wireless Remote Control
• 1x Heavy-Duty Clevis Winch Hook
• 1x Ergonomic Clutch Handle
• 1x Patented Drum Light
• 1x Clockable Gearbox
• All necessary mounting hardware

Product Description

The Superwinch SX12SR (Part No. SUW1712201) is a high-performance 12V winch designed for trucks, SUVs, and off-road vehicles. With a 12,000 lb single-line pull capacity, it is equipped with a 6.0 HP sealed motor and a 3-stage planetary gearing system with a 231:1 ratio, ensuring reliable and powerful performance in demanding conditions.

This winch features a synthetic rope (3/8" x 80 ft) for enhanced safety and durability, along with an aluminum hawse fairlead to reduce wear and tear. The IP68-rated waterproof and dustproof construction, combined with a metallic graphite powder-coated finish, ensures longevity and resilience against the elements.

For user convenience, the SX12SR includes a relocatable die-cast aluminum control box, a 12 ft wired remote with an integrated lithium-ion rechargeable LED flashlight, and a wireless remote control. The winch also boasts an ergonomic pull-and-turn clutch handle, a patented drum light for nighttime operation, and a clockable gearbox for flexible mounting options. The 100% full load holding automatic mechanical brake provides added safety during use.
