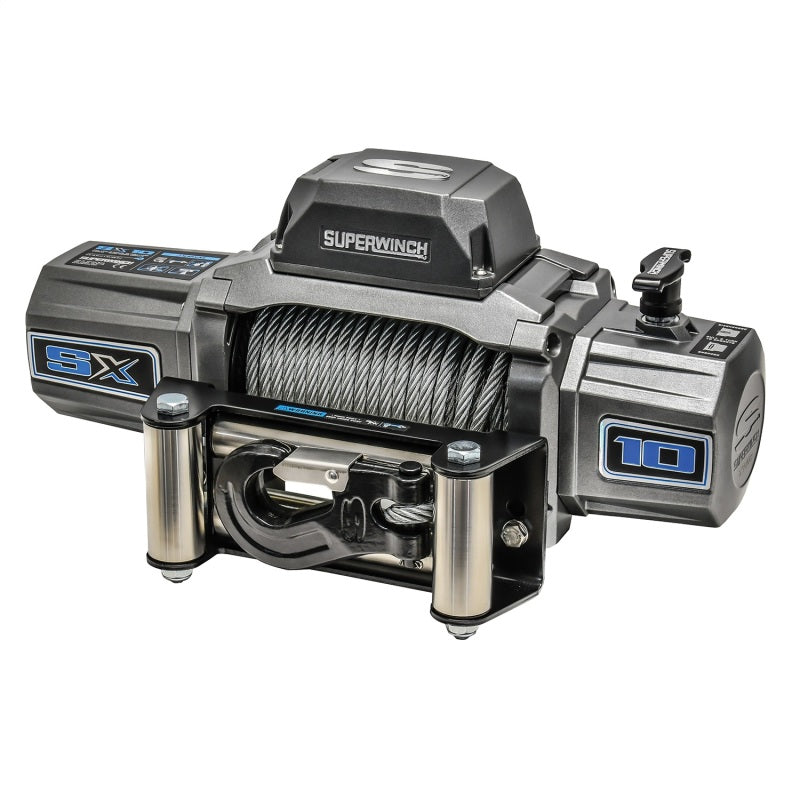

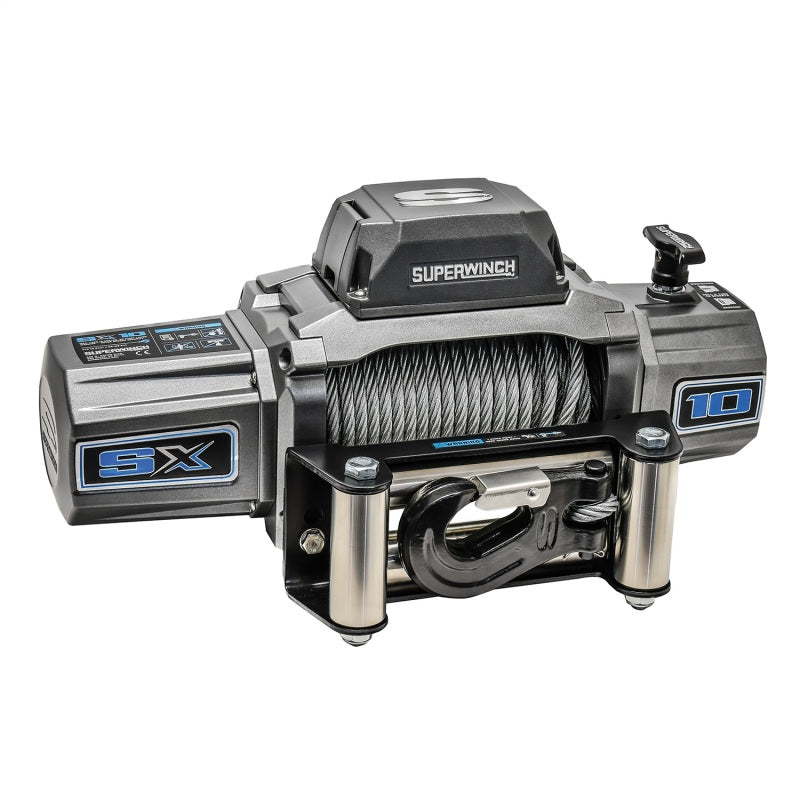

Superwinch 1710200 SX10 10000lb 12V 5.5HP 218:1 Winch IP68 Steel Rope Graphite

Fitment Notes

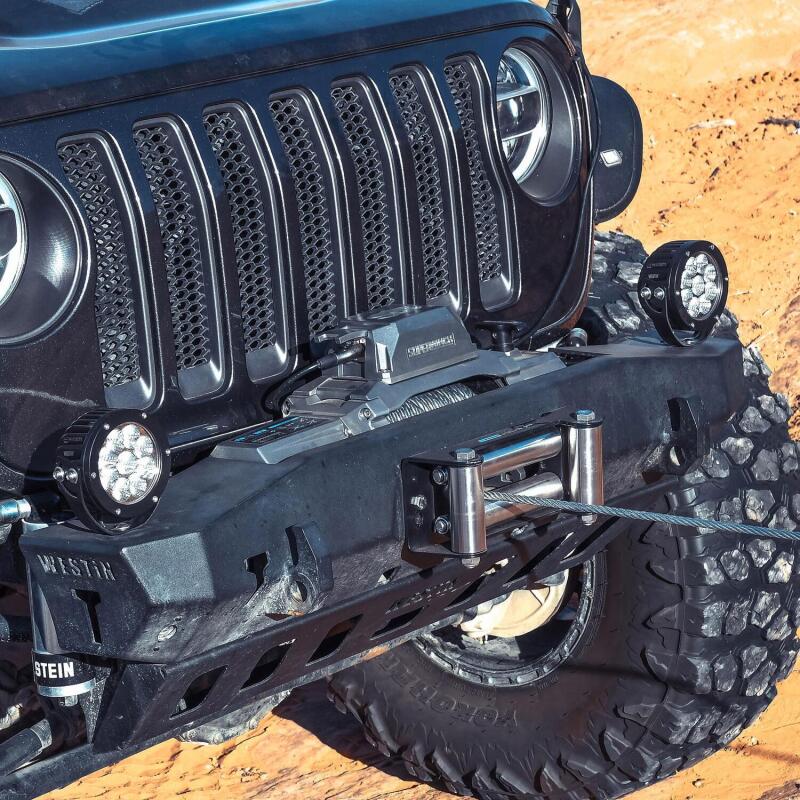

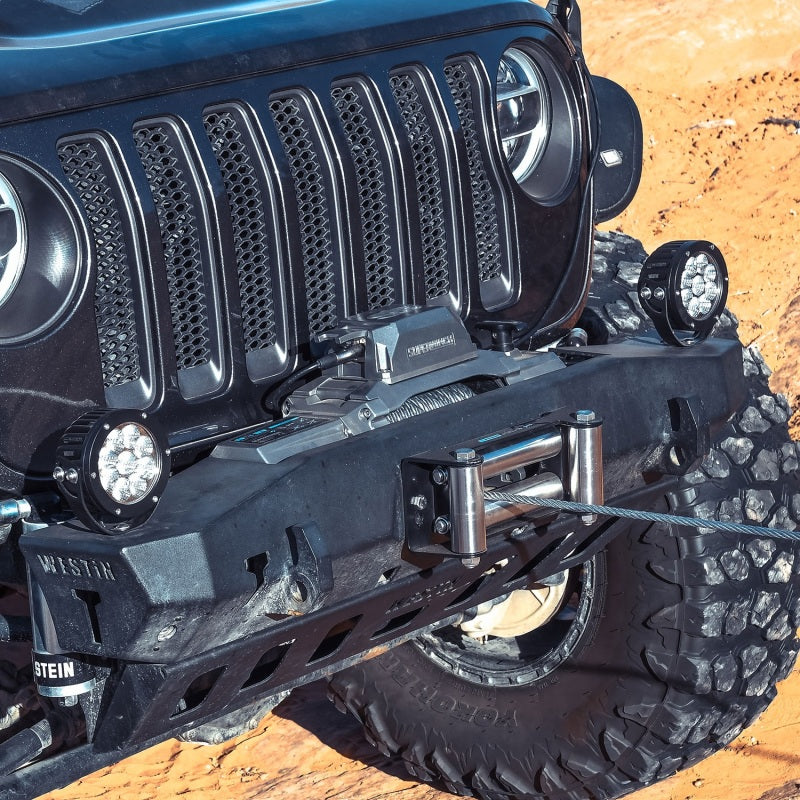

• Universal fitment - designed for trucks, Jeeps, and SUVs with a compatible winch mount or bumper
• Mounting bolt pattern: 10 in. x 4.5 in. (254mm x 114.3mm); mounting hardware included
• Clockable gearbox design allows motor repositioning to clear bumper structures and mounting obstructions

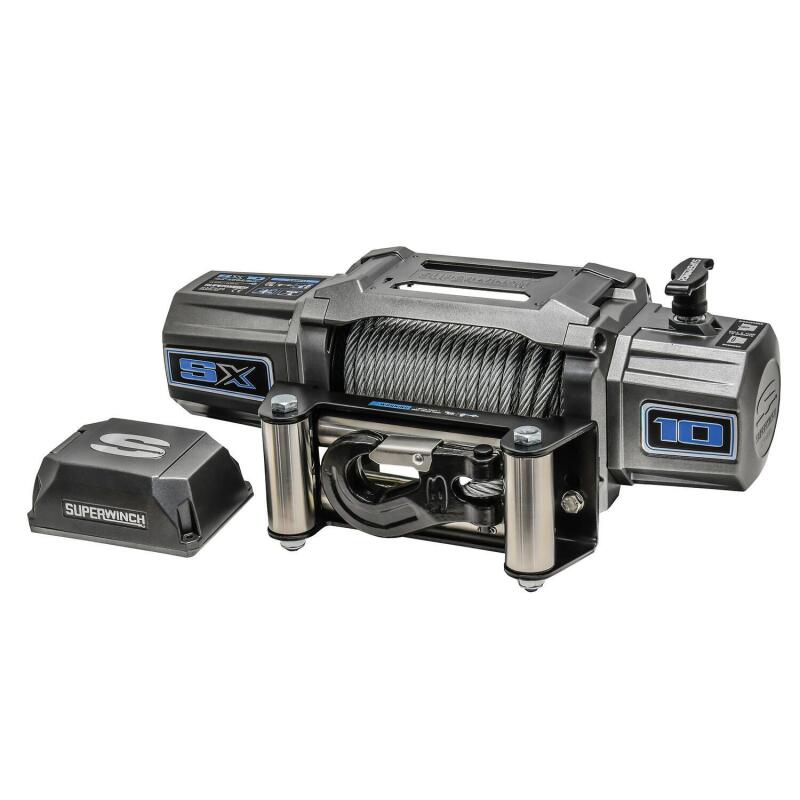

• Relocatable die-cast aluminum control box can be repositioned independently of the winch body
• Optional 2277R Wireless Remote Upgrade Kit available separately for wireless operation
• Not vehicle-specific; confirm winch mount or bumper opening compatibility before purchase
• Not designed for hoisting applications; rated for horizontal vehicle recovery use only

Features

• 10,000 lb. rated line pull delivers class-leading raw pulling power for full-size truck and Jeep recovery
• 5.5 HP sealed 12V DC motor provides sustained performance in rain, snow, dust, and mud environments
• 3-stage planetary gear system with a 218:1 ratio delivers maximum mechanical advantage under extreme loads
• 100% full load-holding automatic mechanical brake locks the drum securely whenever winching stops
• IP68-rated waterproof and dustproof construction - fully sealed drum, gearbox, and contactor for worry-free operation in all conditions

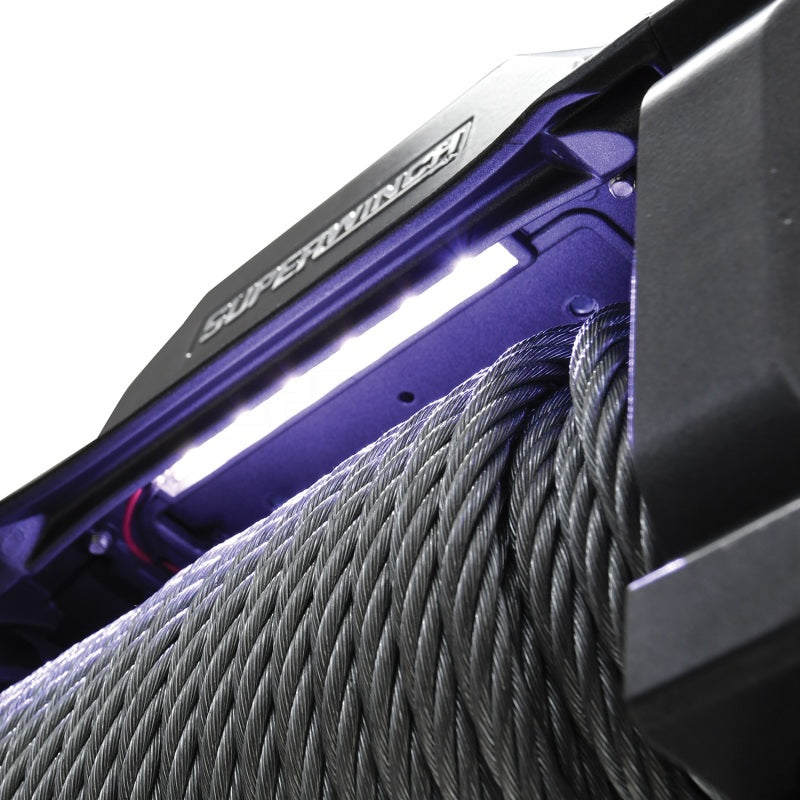

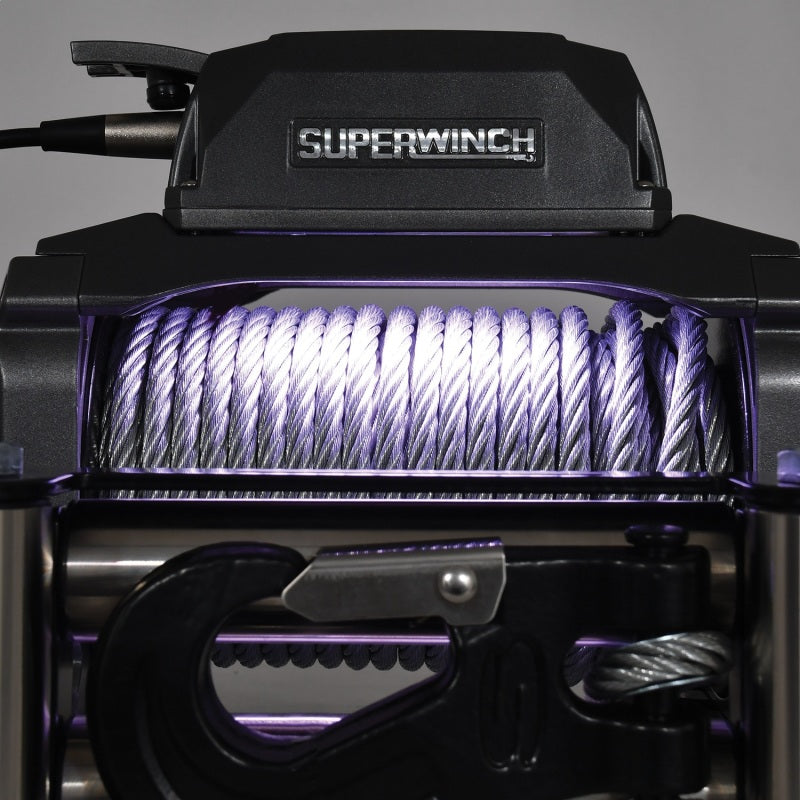

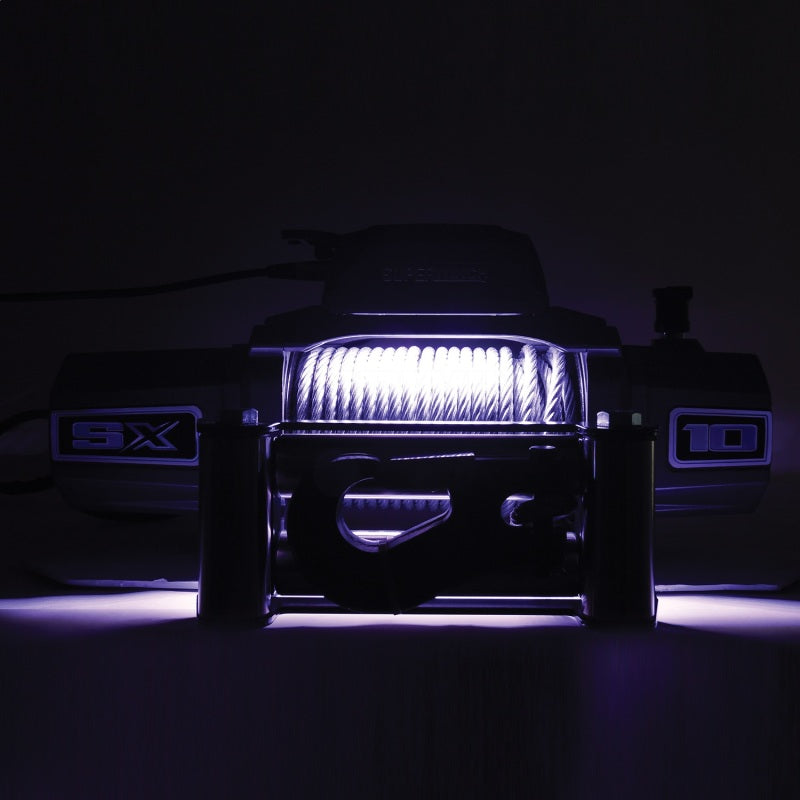

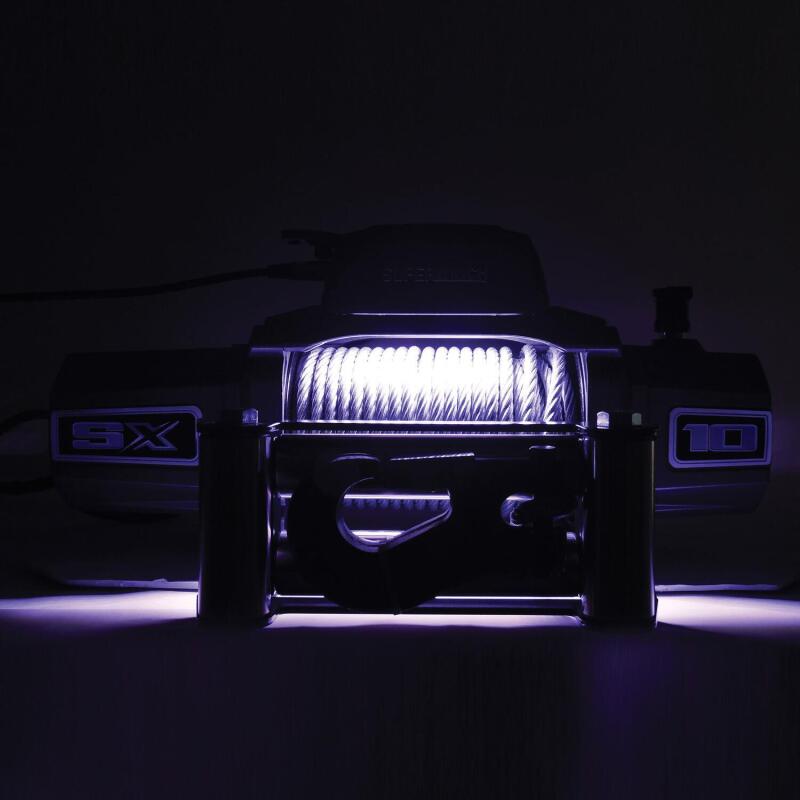

• Patented drum light illuminates the rope layer during winching operations for improved visibility at night or in low-light conditions
• Relocatable die-cast aluminum control box mounts independently for flexible installation in tight bumper configurations

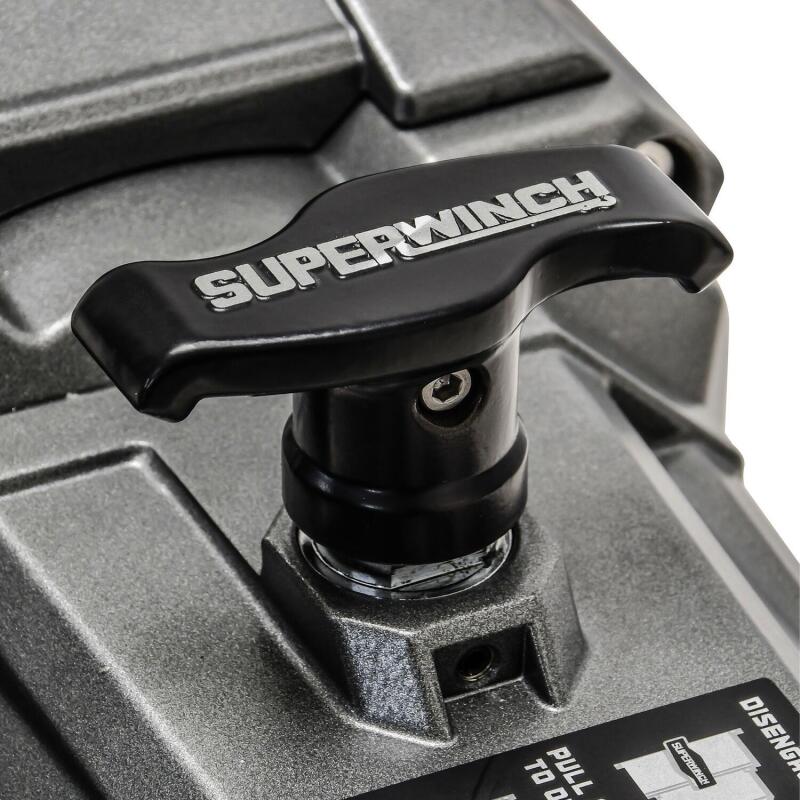

• Ergonomic pull-and-turn freespool clutch handle provides no-bind, easy rope deployment

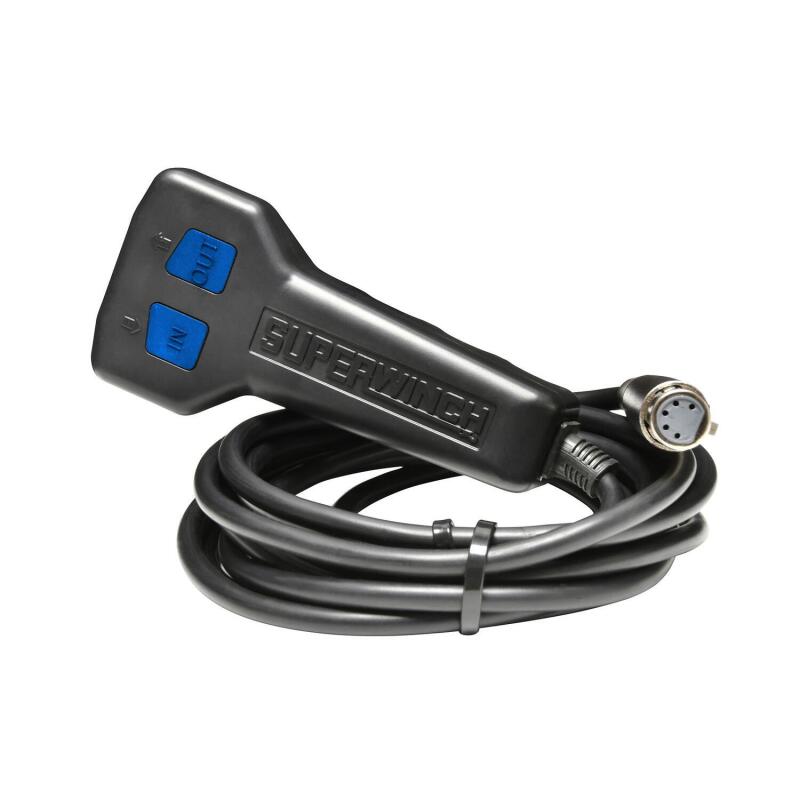

• 12 ft. lighted wired remote with integrated lithium-ION rechargeable LED flashlight for hands-free trail lighting

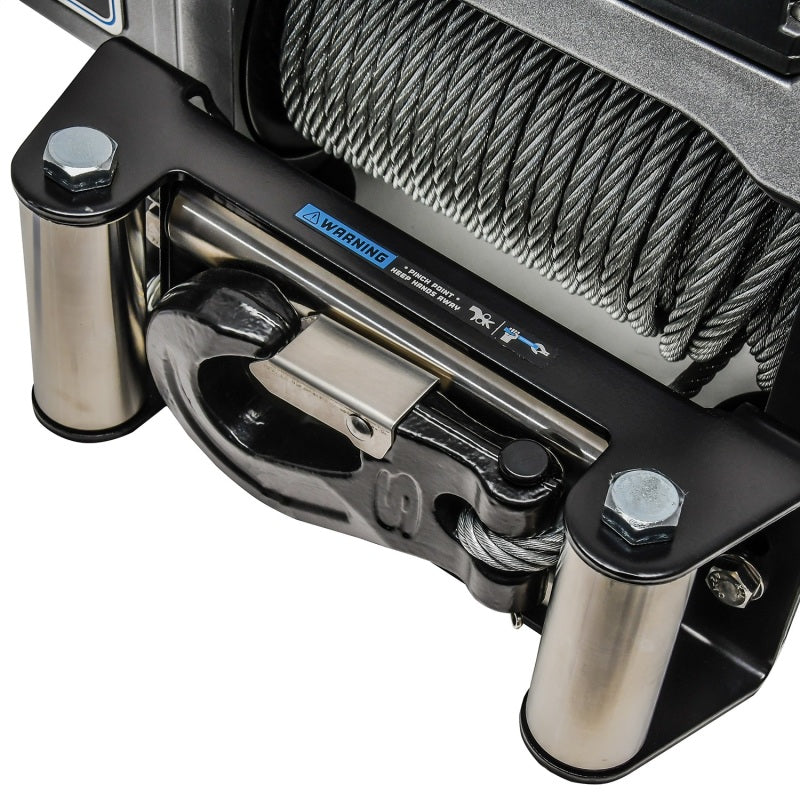

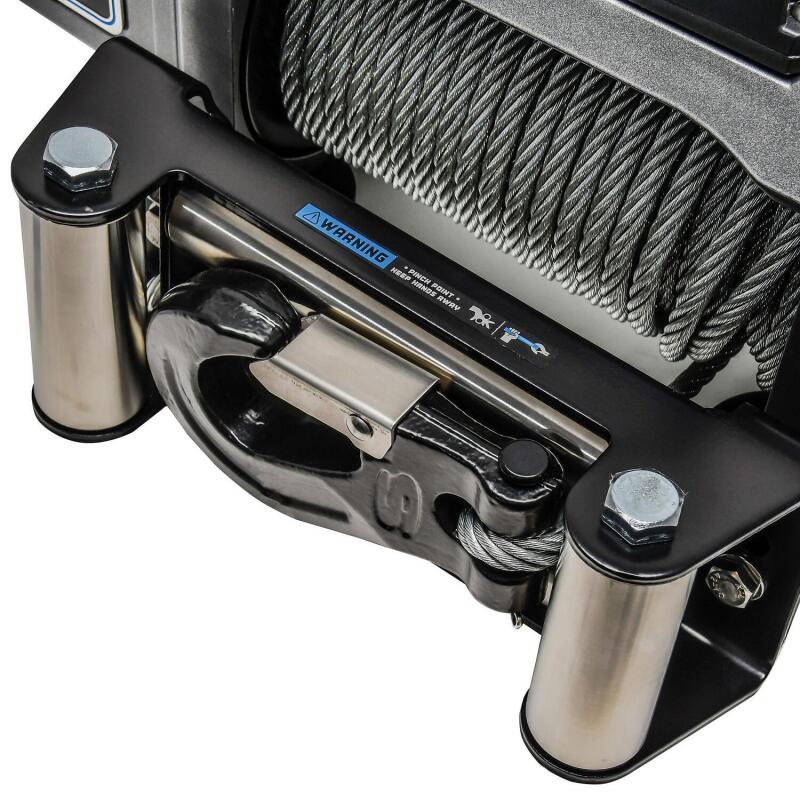

• Stainless steel 4-way roller fairlead with brushed finish withstands wire rope abrasion and outdoor exposure

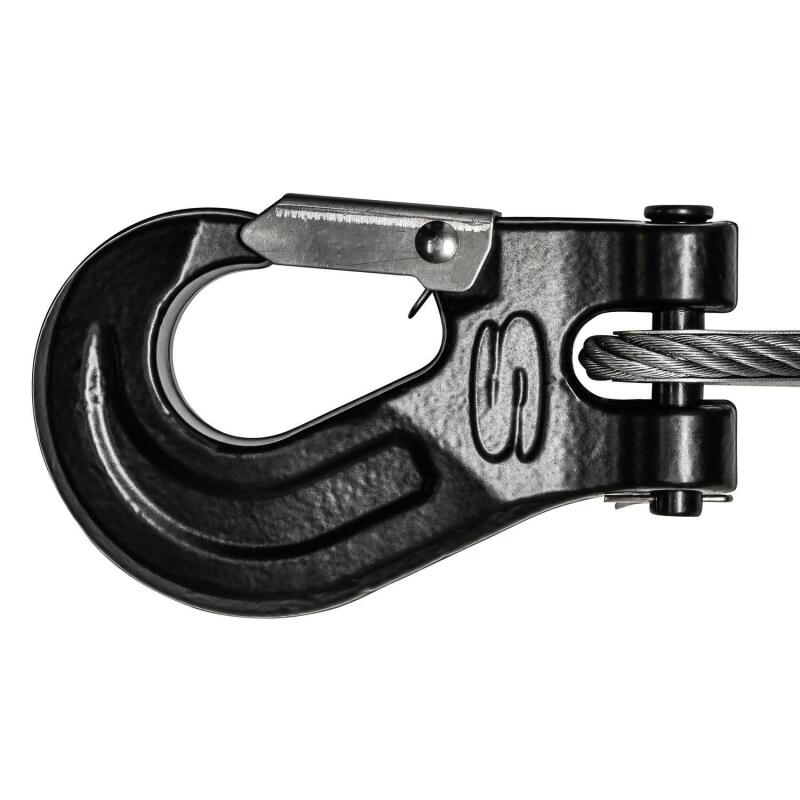

• Heavy-duty clevis pinned latched hook provides a secure, tool-free connection point
• Rugged steel drum is load-tested and rated for operation in temperatures from -40°F to 125°F
• Durable metallic graphite powder coat finish resists UV, corrosion, and off-road wear

Specifications

• Part Number: 1710200
• UPC: 022705003872
• Rated Line Pull: 10,000 lbs.
• Winch Type: Electric
• Voltage: 12V DC

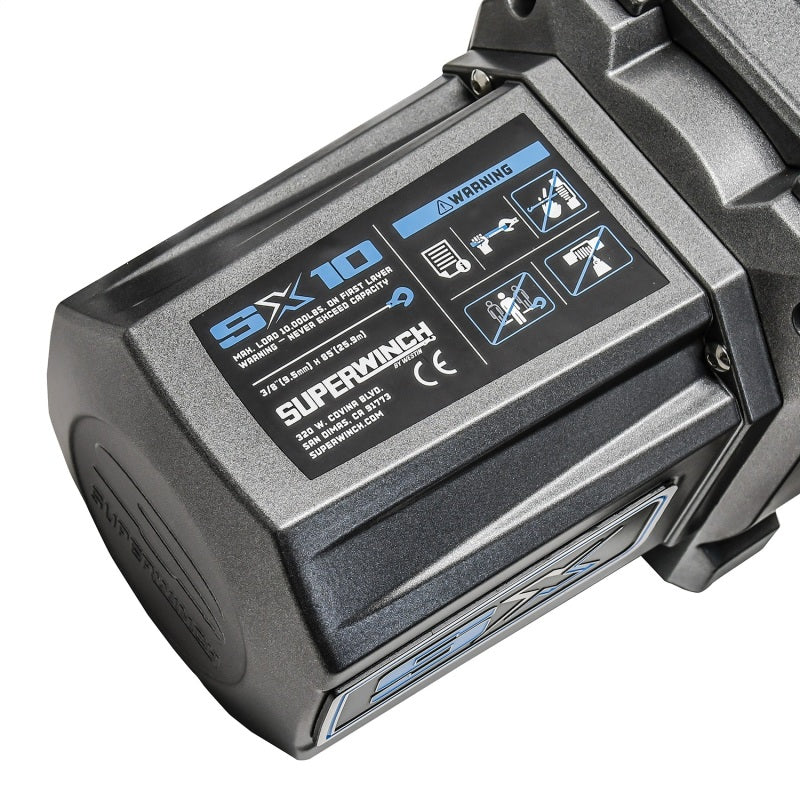

• Motor: 5.5 HP Sealed, 12V DC
• Motor Draw (No Load): 85 Amps
• Motor Draw (Full Load / Max): 363 Amps
• Gear System: 3-Stage Planetary
• Gear Ratio: 218:1
• Brake System: 100% Full Load-Holding Automatic Mechanical Brake
• Clutch: Ergonomic Pull-and-Turn Freespool Handle
• Line Speed (No Load): 27.3 FPM (8.32 MPM)
• Line Speed (Full Load): 4.5 FPM (1.37 MPM)
• Rope Material: Steel Wire
• Rope Diameter: 3/8 in. (9.5mm)
• Rope Length: 85 ft. (26m)
• Fairlead Type: Stainless Steel 4-Way Roller
• Remote: 12 ft. Lighted Wired Handheld with Integrated Lithium-ION LED Flashlight

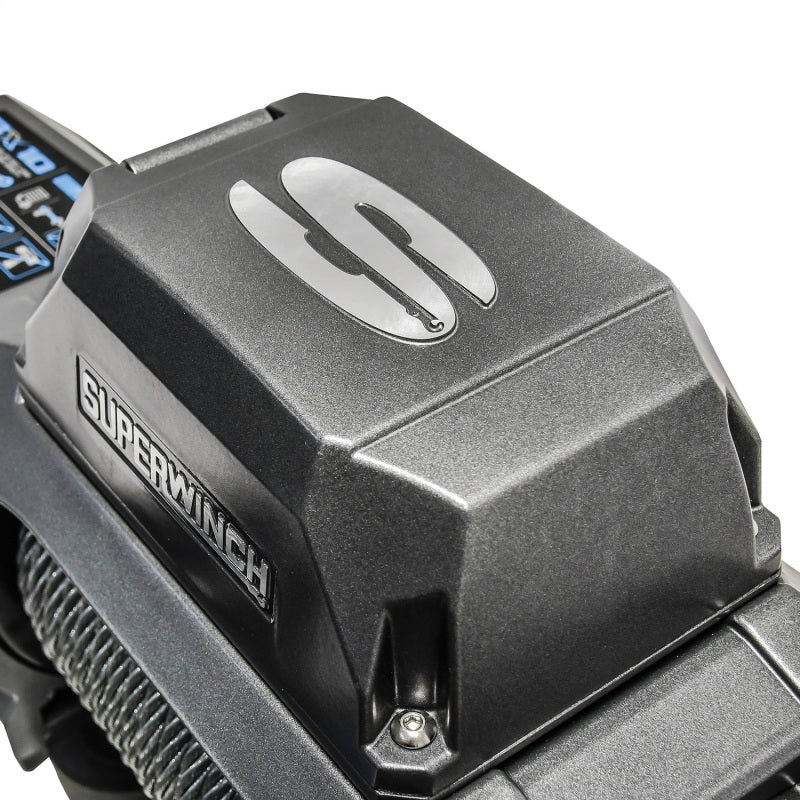

• Control Box: Relocatable Die-Cast Aluminum
• IP Rating: IP68 Waterproof and Dustproof
• Task Lighting: Patented Drum Light
• Drum: Fully Welded Steel; Diameter 2.5 in.

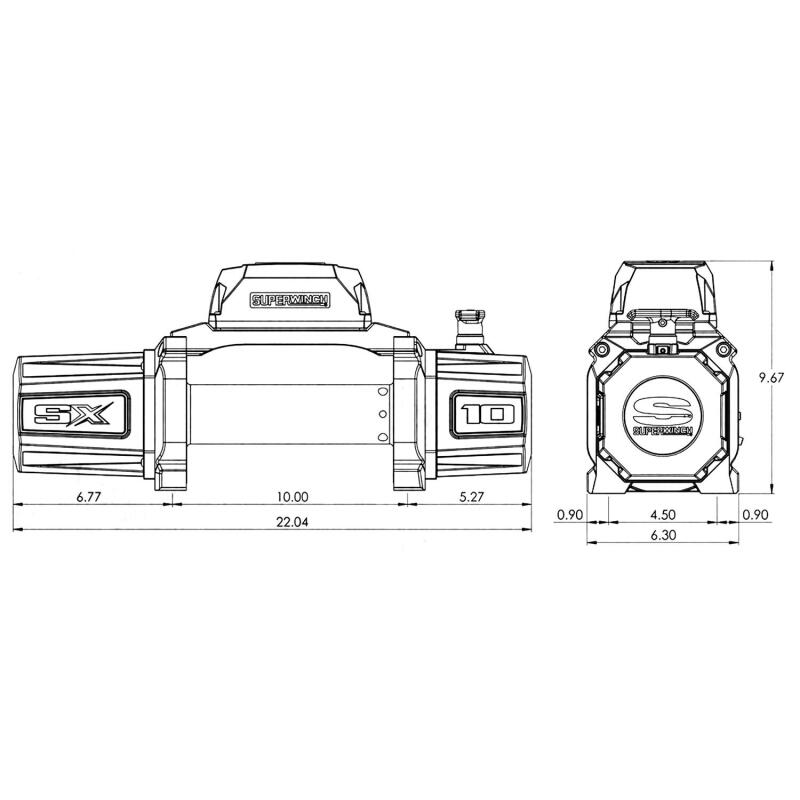

• Mounting Bolt Pattern: 10 in. x 4.5 in. (254mm x 114.3mm)
• Mounting Hardware: Included
• Operating Temperature Range: -40°F to 125°F
• Finish: Metallic Graphite Powder Coat
• Unit Weight: 88.0 lbs.
• Package Dimensions: 24 in. (L) x 13 in. (W) x 12 in. (H)
• Warranty: Limited Lifetime Mechanical / Limited 7-Year Electrical

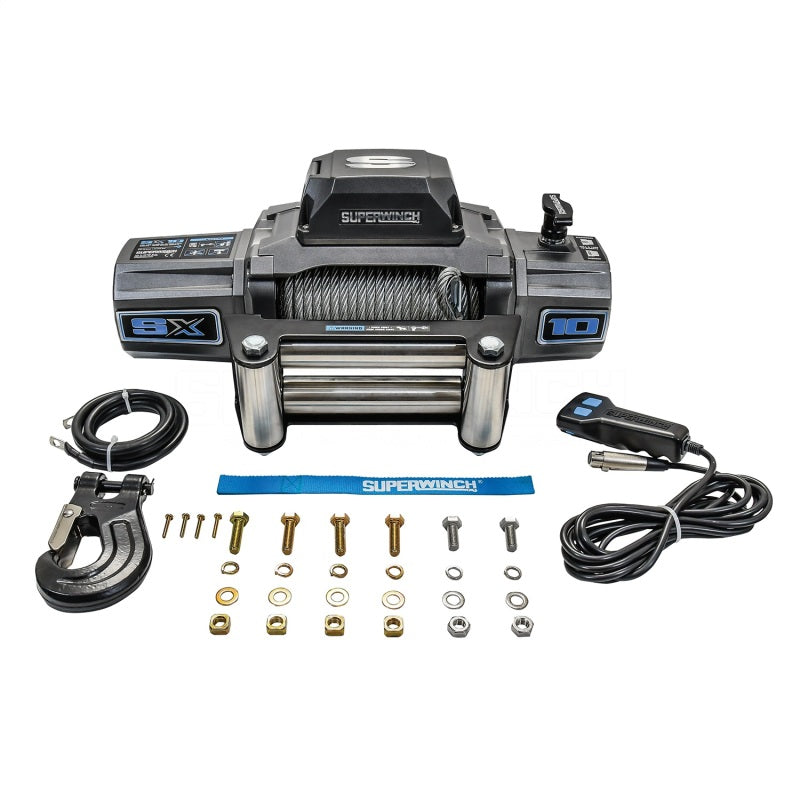

Included Components

• 1x SX10 Electric Winch (Part #1710200)
• 1x 3/8 in. x 85 ft. Steel Wire Rope
• 1x Heavy-Duty Clevis Pinned Latched Hook
• 1x Stainless Steel 4-Way Roller Fairlead
• 1x Relocatable Die-Cast Aluminum Control Box
• 1x 12 ft. Lighted Wired Handheld Remote with Integrated Lithium-ION LED Flashlight
• 1x Mounting Hardware Kit

Product Description

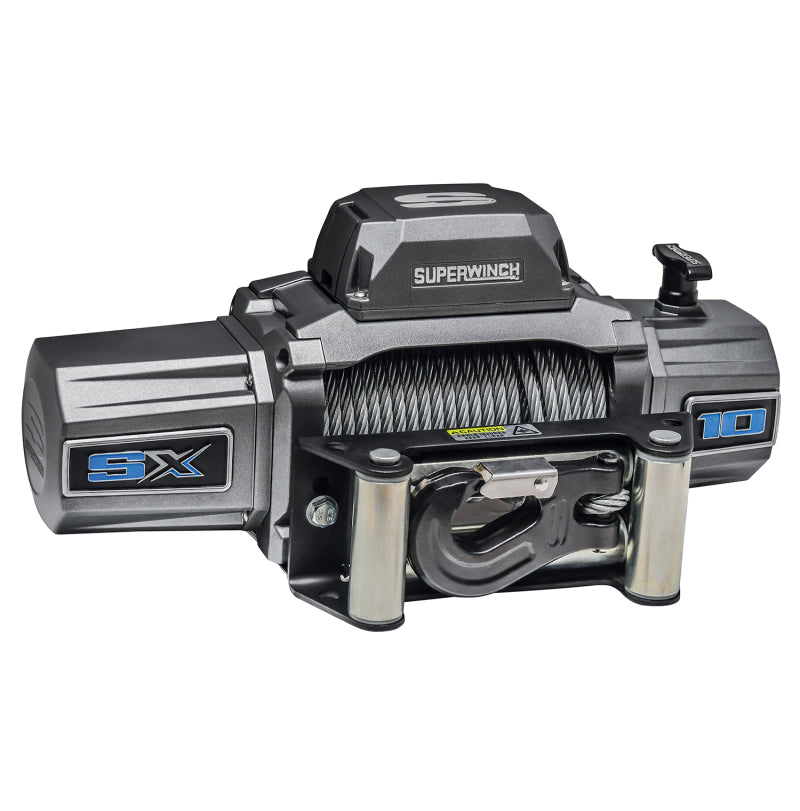

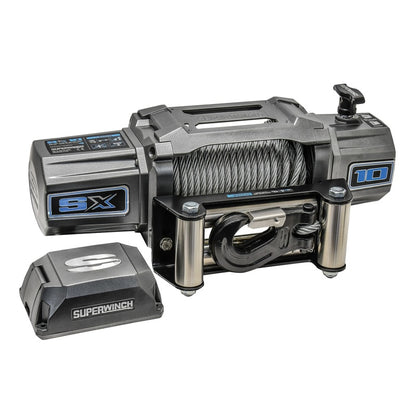

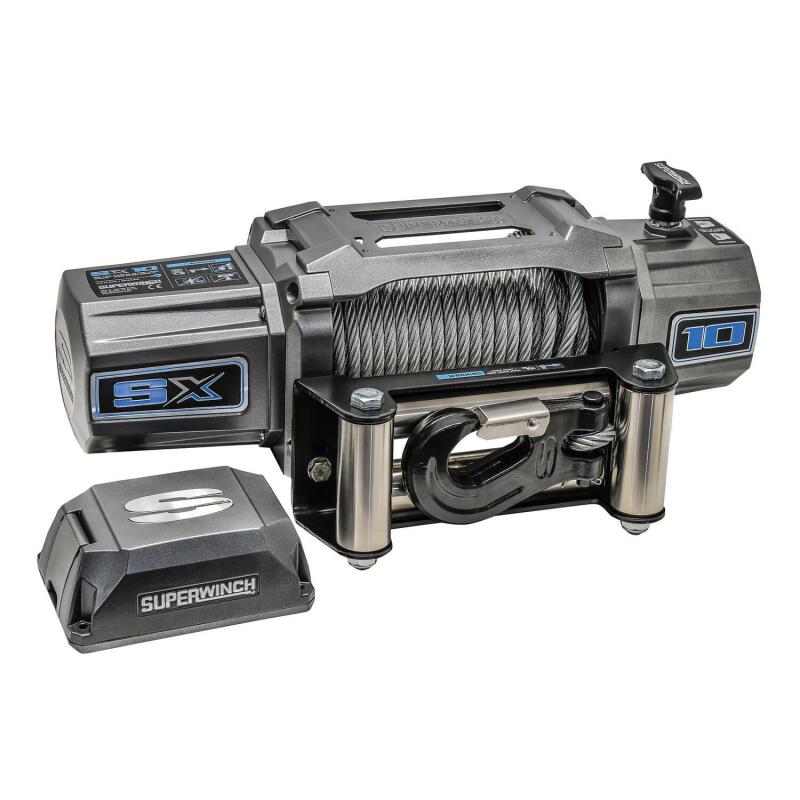

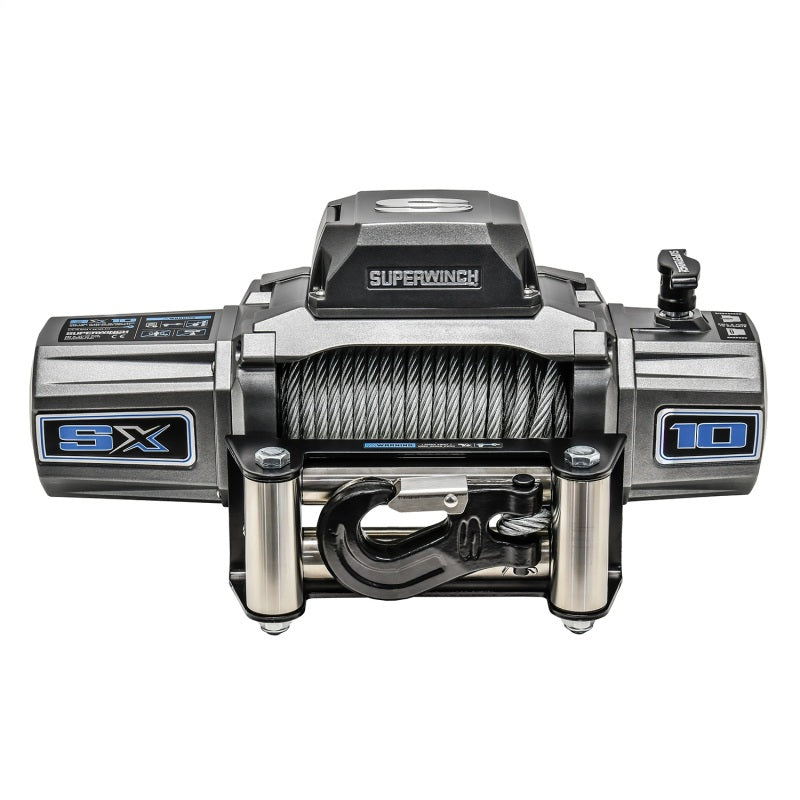

The Superwinch SX10 (Part #1710200) is a premium-grade 12V DC electric recovery winch engineered to deliver the ideal combination of pulling power, weather protection, and innovation for trucks, Jeeps, and full-size SUVs. With a 10,000 lb. rated line pull, a 5.5 HP sealed motor, and a 3-stage planetary gear system operating at a 218:1 ratio, the SX10 is designed to handle the full spectrum of off-road recovery situations with confidence. The IP68 waterproof and dustproof rating - covering the drum, gearbox, and contactor - ensures the SX10 remains fully operational in standing water, heavy mud, blowing dust, and extreme temperature conditions ranging from -40°F to 125°F.

What sets the SX10 apart from competitors is its lineup of class-leading innovations. The patented drum light automatically illuminates the rope layer during winching, improving operator visibility in darkness or low-light trail conditions. The relocatable die-cast aluminum control box mounts independently from the winch body, making installation in tight bumper configurations significantly more flexible. The 12 ft. lighted wired remote includes an integrated lithium-ION rechargeable LED flashlight - a practical hands-free lighting solution when rigging in the dark. The clockable gearbox and ergonomic no-bind pull-and-turn freespool clutch round out an installation-friendly and operator-friendly package.

The SX10 is backed by Superwinch's strongest warranty offering - Limited Lifetime Mechanical and Limited 7-Year Electrical coverage - reflecting the brand's confidence in long-term durability. The winch ships with a standard 10 in. x 4.5 in. bolt pattern mounting plate and hardware, providing broad compatibility with aftermarket winch bumpers and mounts for full-size trucks and Jeeps. For operators who want wireless capability, the optional 2277R Wireless Remote Upgrade Kit is available separately. The SX10 represents the pinnacle of Superwinch's truck and Jeep winch lineup - purpose-built for those who demand more from their recovery equipment.
