Superwinch 1710201 SX10SR 10000 lb 12V Winch Synthetic Rope IP68 Wireless Remote

Vehicle Fitment

• Universal - fits any vehicle with a compatible winch mounting plate or bumper with a standard winch mounting pattern

Fitment Notes

• Universal fitment - a vehicle-specific mounting plate or winch-ready bumper is required; cutting, welding, or other vehicle modifications may be necessary depending on the application
• Designed for 12V DC electrical systems only
• Includes a wireless handheld remote in addition to the standard wired remote - wireless remote is factory-included with the SX10SR (not an add-on)
• Aluminum hawse fairlead included - suited for use with synthetic rope; a roller fairlead should not be used with synthetic rope
• Mounting bolt pattern: 10 in. x 4.500 in.

Features

• 10,000 lb. rated line pull - first-layer single-line rating from a 5.5 HP sealed series-wound motor providing high torque for vehicle recovery and load-pulling applications
• 3/8 in. x 80 ft. UV-coated synthetic rope - lighter than steel wire rope, floats on water, does not store kinetic energy if broken (significantly safer than steel wire in a snap situation), and is UV-coated for extended outdoor durability
• Patented drum light with IP68 rating - illuminates the winch drum during nighttime operation for improved rope management and visibility in low-light recovery situations
• Wireless handheld remote included - factory-standard with the SX10SR; allows wireless winch control without a separate add-on kit purchase
• 12 ft. lighted wired handheld remote with built-in rechargeable lithium-ion flashlight - recharges automatically while connected to the winch; provides illumination during night recoveries

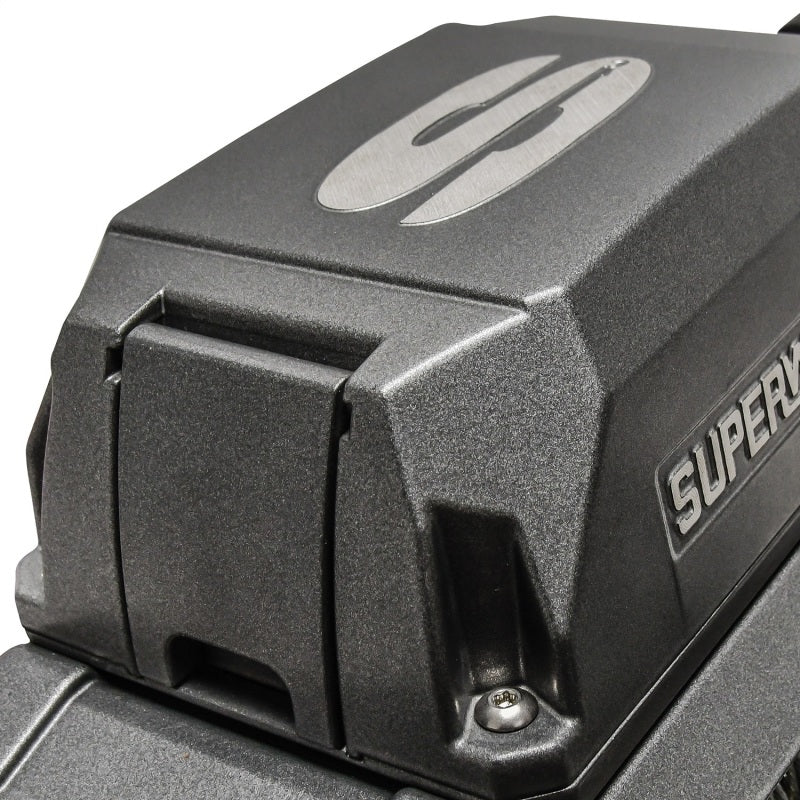

• Relocatable die-cast aluminium control box - solenoid/control box can be repositioned during installation for flexible integration into tight or custom bumper setups
• 3-stage planetary gearing with 218:1 gear ratio - provides high mechanical advantage for maximum pulling efficiency across all load ranges
• 100% full-load holding automatic mechanical brake - holds the load without relying on motor or solenoid power, preventing unintended line release during rigging

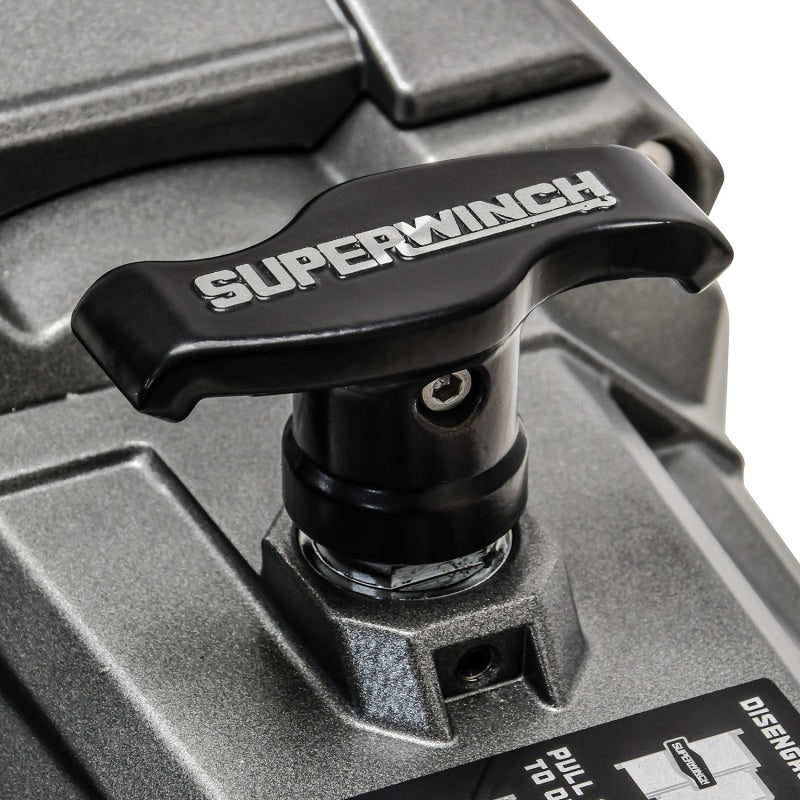

• Pull-and-turn ergonomic freespool clutch - disengages the drum for fast, tool-free hand-spooling of the line to the anchor point
• Aluminium hawse fairlead - smooth, low-friction rope guide matched for use with synthetic rope; lightweight and corrosion-resistant

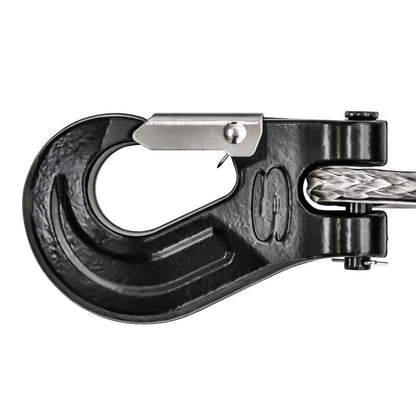

• Heavy-duty pin and latch clevis winch hook - secure hook attachment with positive retention latch
• IP68 rated - fully dustproof and waterproof for submersion and use in water crossings, mud, and rain
• Metallic graphite powder-coated finish - durable, corrosion-resistant finish
• Weather-sealed solenoid with circuit breaker protection - protects the electrical system from moisture and overload conditions

Specifications

• Model: SX10SR (SX10000SR)
• Rated Line Pull (Single Line, 1st Layer): 10,000 lbs.
• Motor: 5.5 HP sealed series-wound
• Voltage: 12V DC
• Gearing: 3-stage planetary
• Gear Ratio: 218:1
• Rope: 3/8 in. x 80 ft. UV-coated synthetic
• Fairlead: Aluminium hawse
• Clutch: Pull-and-turn freespool (ergonomic)
• Brake: 100% automatic full-load holding mechanical brake
• Solenoid: Weather-sealed with circuit breaker protection
• Control Box: Relocatable die-cast aluminium
• Wired Remote: 12 ft. lighted handheld with built-in rechargeable Li-Ion flashlight
• Wireless Remote: Included (factory-standard)
• Drum Light: Patented, IP68 rated
• Mounting Bolt Pattern: 10 in. x 4.500 in.
• IP Rating: IP68 (dustproof and waterproof)
• Finish: Metallic graphite powder coat
• Warranty: Limited Lifetime (mechanical); 7-year limited (electrical)

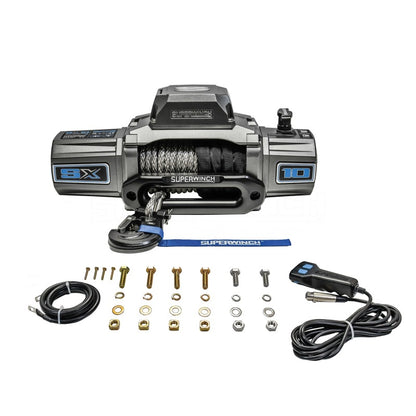

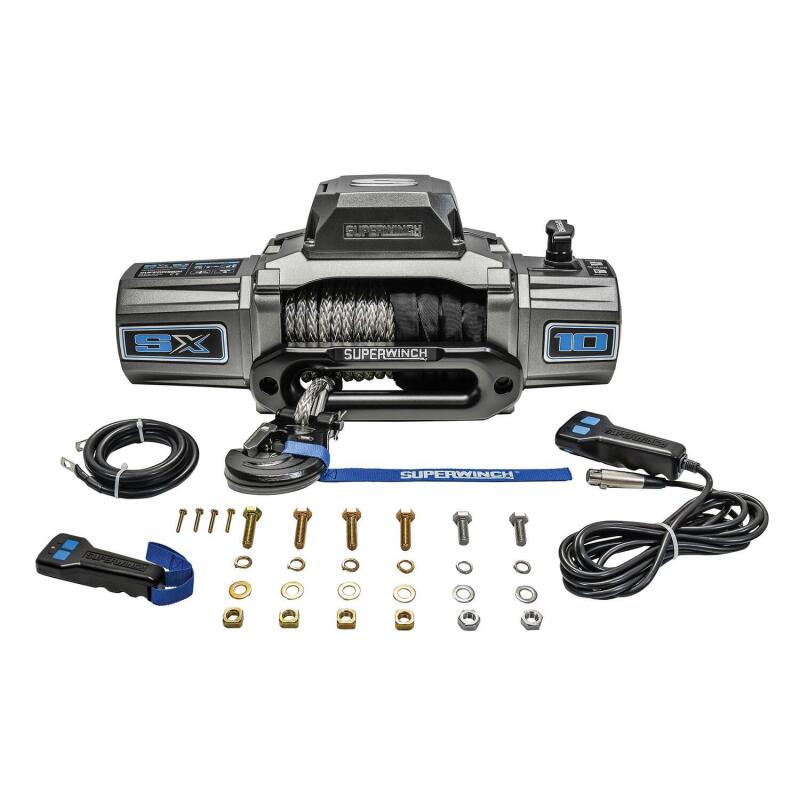

Included Components

• 1x SX10SR Winch Assembly (with pre-spooled 3/8 in. x 80 ft. UV-coated synthetic rope)
• 1x Aluminium Hawse Fairlead
• 1x Relocatable Die-Cast Aluminium Control Box
• 1x 12 ft. Lighted Wired Handheld Remote (with built-in rechargeable Li-Ion flashlight)
• 1x Wireless Handheld Remote
• 1x Heavy-Duty Pin and Latch Clevis Winch Hook
• 1x Mounting Hardware Kit

Product Description

The Superwinch SX10SR (1710201) is a 10,000 lb. rated 12V electric winch designed for truck, SUV, and off-road vehicle recovery, and is the synthetic rope variant of the SX Series lineup. The SX10SR ships with a 3/8 in. x 80 ft. UV-coated synthetic rope and an aluminium hawse fairlead, making it the preferred choice for drivers who prioritise safety and weight reduction over the steel wire rope alternative. Unlike steel cable, synthetic rope does not store kinetic energy if it breaks under load - it drops safely to the ground rather than snapping back with potentially lethal force. It is also significantly lighter, easier to handle barehanded, and floats on water, making it easier to retrieve in water crossing recovery situations.

A key differentiator of the SX10SR over comparable winches is the factory-included wireless remote - most competing models at this price point require a separate wireless kit purchase. The wired remote features a built-in rechargeable lithium-ion flashlight that charges automatically while the remote is connected to the winch, and the patented IP68-rated drum light illuminates the winch rope drum during nighttime operations. The relocatable die-cast aluminium control box allows installation flexibility in tight or non-standard bumper configurations. The pull-and-turn ergonomic freespool clutch enables fast, tool-free line deployment to the anchor point. Backed by a limited lifetime warranty on mechanical components and a 7-year limited warranty on electrical components.
