SPL Parts SPL FLCA G8X IX Front Lower Control Arms for 2022-24 BMW G80/G82 M3/M4

Vehicle Fitment

• 2022-2024 BMW M3 (G80 AWD) - all trims
• 2022-2024 BMW M4 (G82/G83 AWD) - all trims

Features

• Billet 6061-T6 aluminum front lower control arms engineered for G8X AWD chassis
• SPL "Double Adjuster" chromoly adjuster allows roll-center, camber & track-width tuning
• Rotating clamp system locks camber and track width settings - no jam nuts required
• FK-Racing Teflon-lined spherical bearings and high-misalignment rod ends to allow full articulation
• Ride-height sensor bracket maintained to ensure OEM sensor compatibility despite arm length changes
• Includes stainless steel roll-center spacer kit for lowered vehicle setups
• Designed for street and track use - engineered in USA, sold as a complete pair
• Direct replacement for factory front lower control arms on AWD G8X chassis (M3/M4); improves precision and eliminates flex from stock rubber bushings

Specifications

• Part Number: SPL FLCA G8X IX
• Position: Front lower control arms, left & right included
• Material: 6061-T6 billet aluminum arms, 4130 chromoly adjuster, titanium hardware
• Compatibility: BMW G80/G82/G83 (2022-24) AWD models only. RWD versions excluded. :contentReference[oaicite:1]{index=1}
• Adjustment: Camber & track width via slotted arm + pinch bolt + rotating clamp; roll-center spacers included
• Articulation: Designed to maintain correct ball-joint angle under full suspension travel and lowered ride height :contentReference[oaicite:2]{index=2}

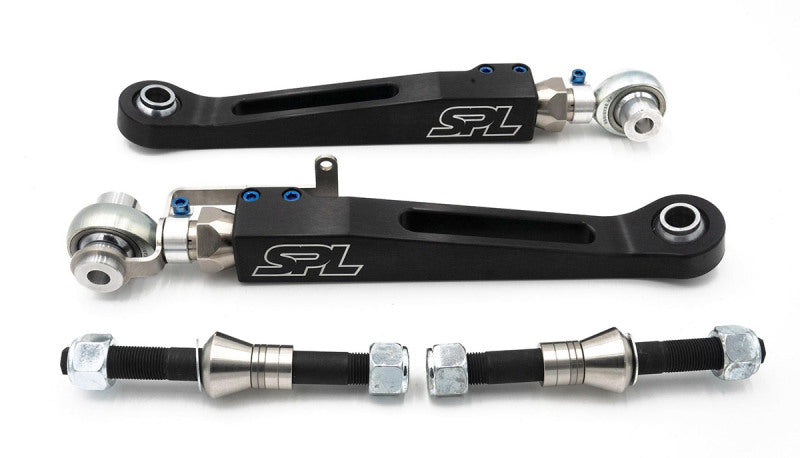

Included Components

• 2x Front lower control arms (left + right)
• 1x Set of roll-center spacers (various sizes)
• Installation hardware: pinch bolts, lock nuts, clamps
• Ride-height sensor bracket (pre-installed or included)

Product Description

The SPL FLCA G8X IX front lower control arm kit is designed specifically for the BMW M3/M4 AWD models on the G8X platform (G80/G82/G83) from 2022 to 2024. It replaces the factory front lower control arms with a fully engineered solution that gives you camber, track-width and roll-center adjustability - and eliminates the compliance and flex inherent in OEM rubber bushings. With billet aluminum arms, a chromoly adjuster, and high-misalignment spherical bearings, this kit offers high-performance articulation under load while maintaining durability for track use.

Whether your vehicle is lowered, upgraded with wider wheels/tyres, or seeing high cornering loads on the track, the SPL FLCA G8X IX kit enables you to fine-tune suspension geometry to your exact requirements. The rotating clamp design allows quick locking of camber and track-width settings without fumbling jam nuts, and the included roll-center spacers ensure proper geometry when ride height is altered. Professional installation and alignment are strongly recommended. Fitment covered through 2024; coverage for any later years (2025 onward) is unconfirmed at time of listing.
