SPL Parts FE G29 Front Swaybar Endlinks for BMW Z4 G29 Toyota GR Supra A90

Vehicle Fitment

• 2019+ BMW Z4 sDrive20i (G29)
• 2019+ BMW Z4 sDrive30i (G29)
• 2019+ BMW Z4 M40i (G29)
• 2020+ Toyota GR Supra Base, Premium, and Launch Edition (A90/A91)

Fitment Notes

• The BMW Z4 G29 and Toyota GR Supra A90 share the same BMW CLAR platform front suspension architecture - this endlink set is confirmed to fit both vehicles.
• If aftermarket coilovers or shocks have been installed, the sway bar upper mount location may have moved from the OEM position. Many aftermarket coilover manufacturers change this mounting location. Measure the distance between the sway bar and the shock mount, confirm it matches OEM length, and contact SPL Parts before ordering if unsure. SPL cannot confirm fitment with aftermarket coilovers.
• Sold as a pair - one pair covers the front axle. One pair per vehicle required.
• On the 2019+ Z4 and 2020+ Supra, the front sway bar runs close to the lower control arm from the factory. If SPL front lower control arms are also installed, verify clearance with SPL Parts before ordering endlinks.

Features

• SPL Parts PRO adjustable front sway bar endlinks for the 2019+ BMW Z4 G29 and 2020+ Toyota GR Supra A90 - eliminate sway bar preload caused by spring settling, corner weighting, or differing ride heights, and provide maximum load capacity for OEM or aftermarket sway bars
• FK 1/2" Teflon-lined spherical bearings provide maximum load capacity for the sustained side forces generated by stiff aftermarket sway bars - far exceeding the load rating of OEM ball-joint endlinks
• Custom heat-treated Chromoly high-misalignment studs with 65° of articulation - prevent endlink binding when using different adjustment holes on aftermarket sway bars at lowered ride heights
• Length-adjustable via black anodized 6061-T6 aluminum turnbuckles with left and right hand threads - allows precise endlink length setting for true sway bar neutral on any suspension setup
• Suitable for street, autocross, track days, and racing applications - designed, engineered, and assembled in the USA by SPL Parts

Specifications

• Part Number: FE G29
• Brand: SPL Parts
• Product Type: Adjustable Front Sway Bar Endlinks (PRO Series)
• Bearings: FK 1/2" spherical bearings with Teflon (PTFE) lining
• High Misalignment Stud Material: Heat-treated Chromoly steel
• Articulation: 65° maximum
• Turnbuckle Material: 6061-T6 Aluminum, black anodized
• OEM Length: Verify sway bar-to-shock-mount distance matches OEM before ordering if using aftermarket coilovers
• Sold As: Pair (2 pieces)
• Origin: Made in USA

Included Components

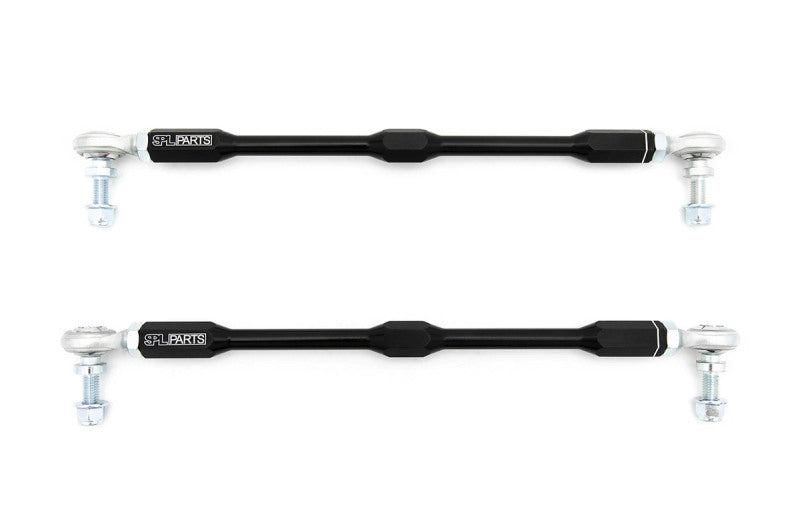

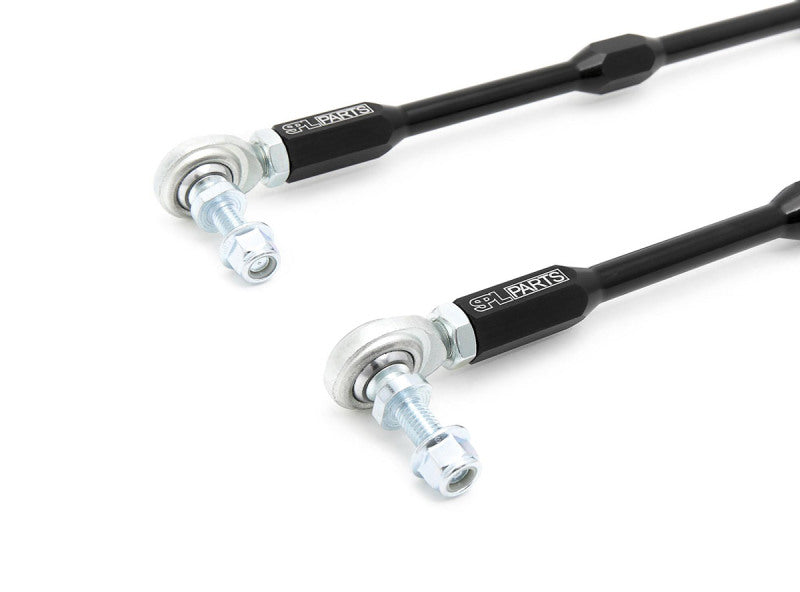

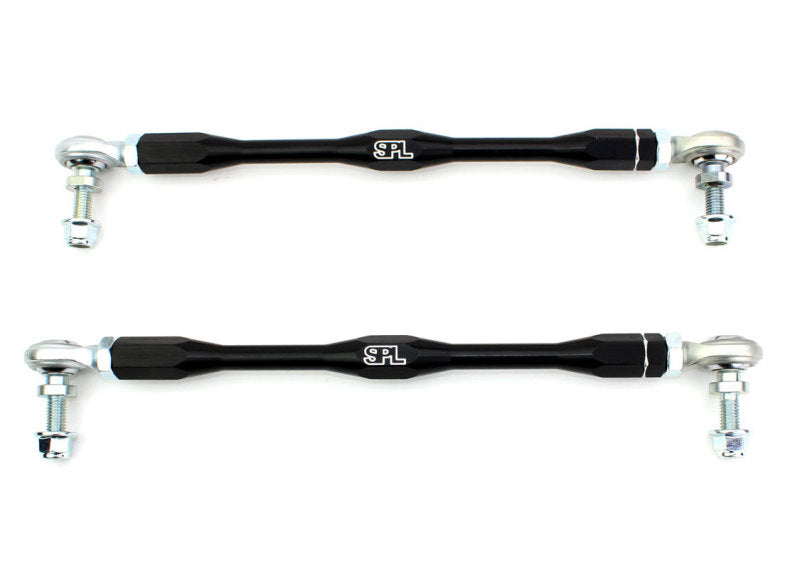

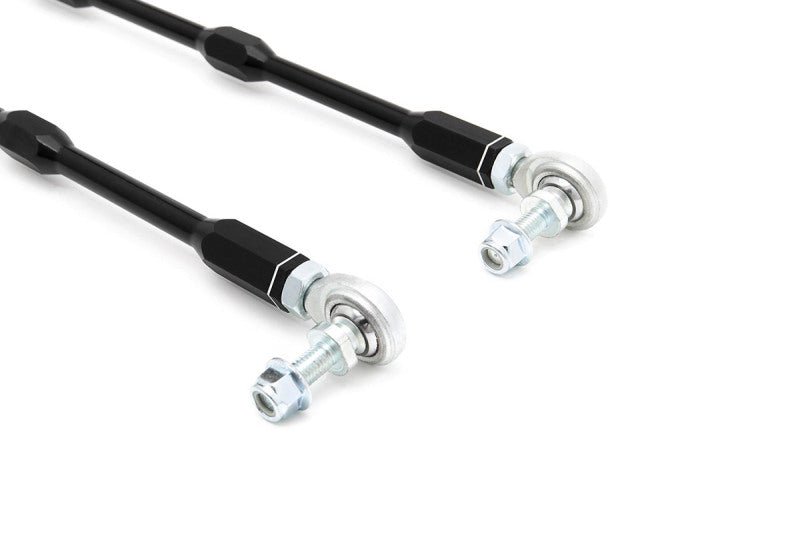

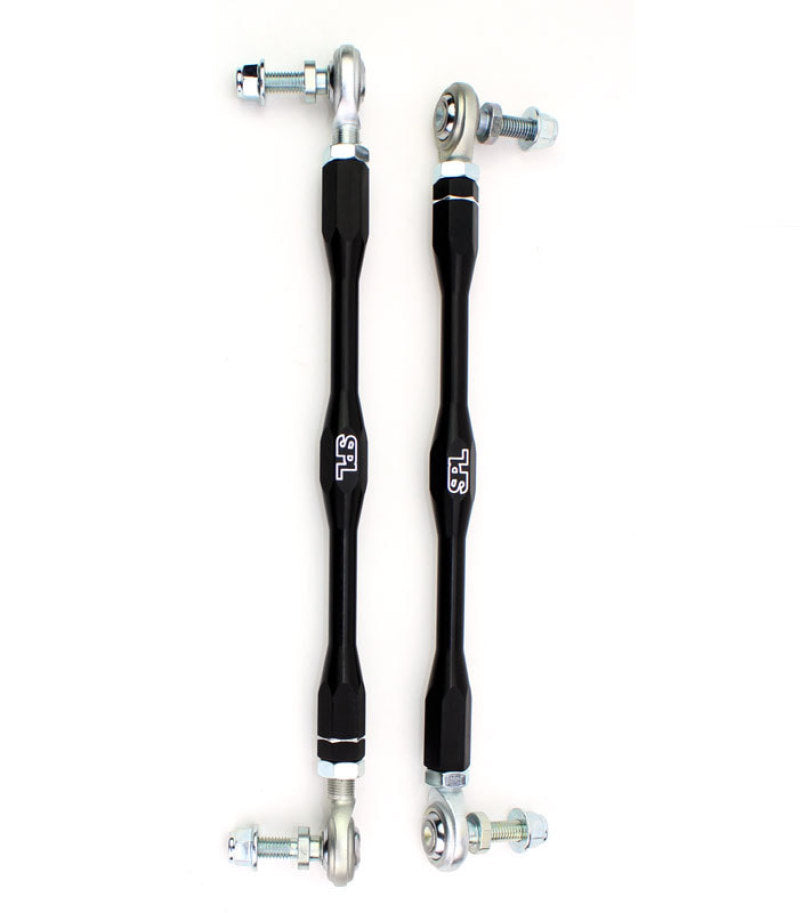

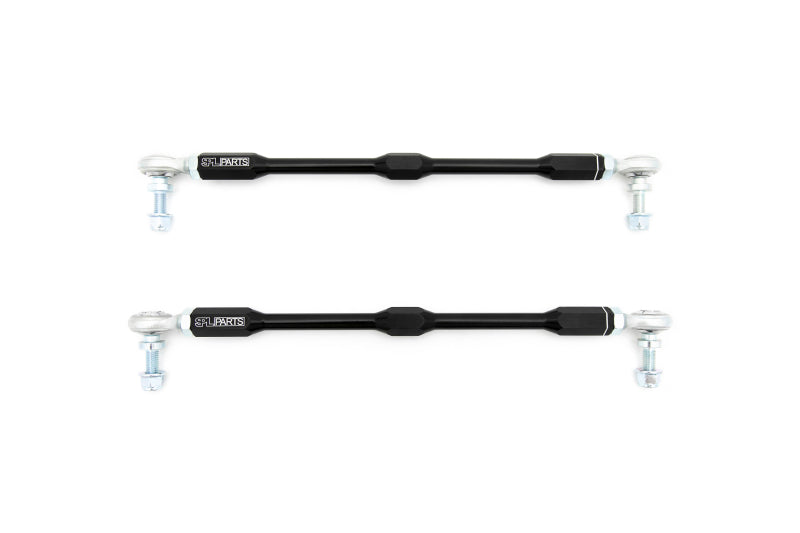

• 2x Adjustable front sway bar endlink assemblies (FK 1/2" PTFE-lined bearing, Chromoly high-misalignment stud, 6061-T6 aluminum turnbuckle)

Product Description

The SPL Parts FE G29 are PRO Series adjustable front sway bar endlinks engineered for the 2019+ BMW Z4 (G29) and 2020+ Toyota GR Supra (A90/A91) - both sharing the same BMW CLAR platform front suspension. These endlinks eliminate sway bar preload - the unwanted tension or compression placed on the sway bar by uneven spring settling, corner weighting, or mismatched ride heights between corners - which corrupts anti-roll balance tuning and creates an unpredictable handling bias. The adjustable turnbuckle design allows the endlinks to be precisely set to the correct neutral length for any given suspension configuration, keeping the sway bar truly neutral.

FK 1/2" Teflon-lined spherical bearings handle the high sustained side loads generated by stiff aftermarket sway bars, while custom heat-treated Chromoly high-misalignment studs (65° articulation) prevent binding at lowered ride heights or when using different sway bar adjustment positions. If aftermarket coilovers are installed, verify that the sway bar-to-shock-mount distance remains at OEM length before ordering - contact SPL if the measurement has changed, as many coilover manufacturers relocate the upper sway bar mount position. Sold as a pair, made in the USA by SPL Parts.
