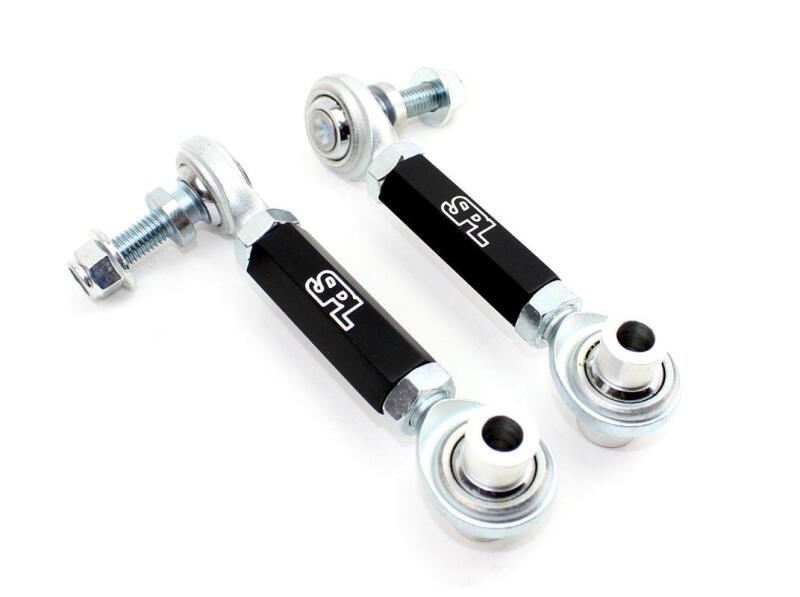

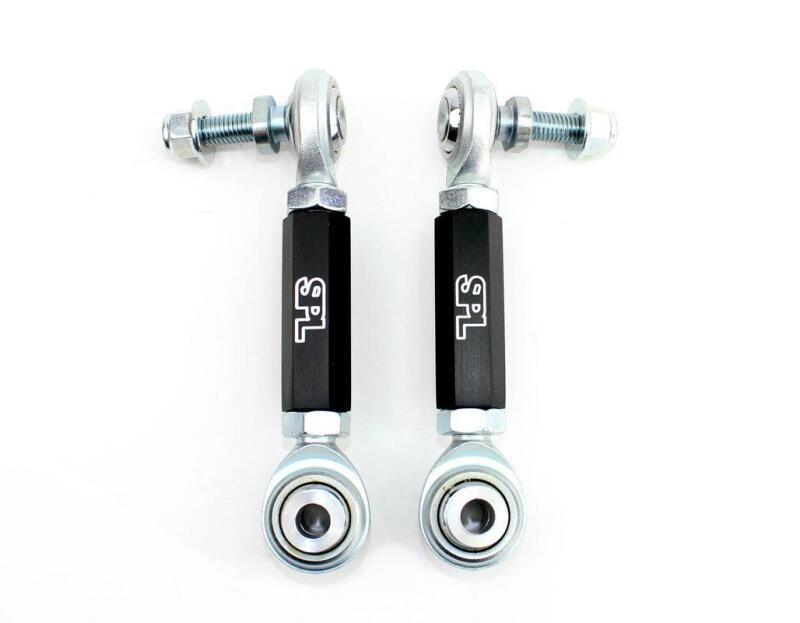

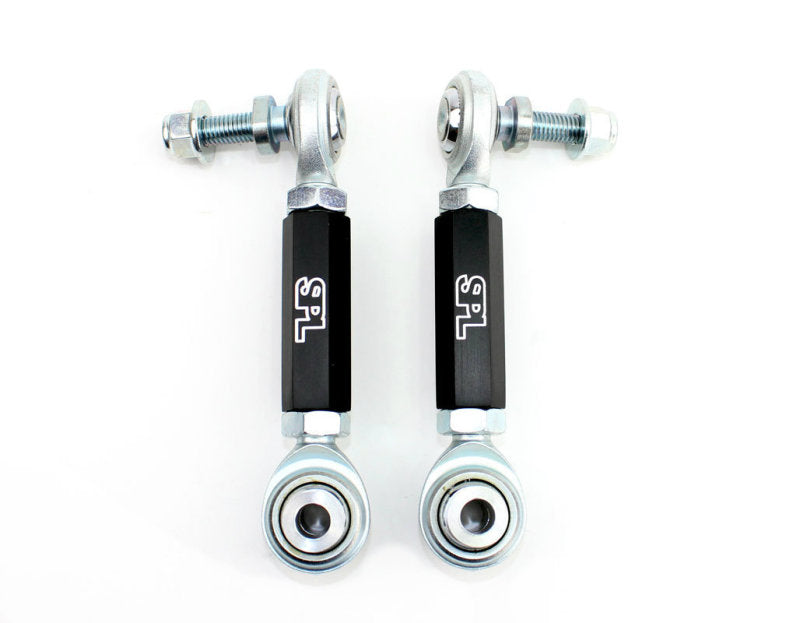

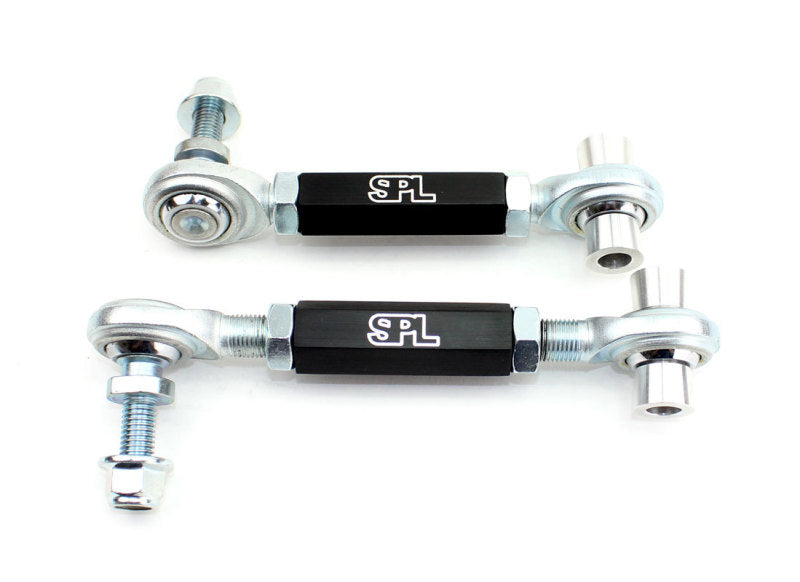

SPL Parts SPL RE F8X Rear Sway Bar End Links for BMW F8X/G8X M2/M3/M4 RWD AWD

Vehicle Fitment

• 2016-2021 BMW M2 (F87, 3.0L S55 Twin-Turbo I6, RWD) - Rear
• 2015-2020 BMW M3 Sedan (F80, 3.0L S55 Twin-Turbo I6, RWD) - Rear
• 2015-2020 BMW M4 Coupe (F82, 3.0L S55 Twin-Turbo I6, RWD) - Rear
• 2015-2020 BMW M4 Convertible (F83, 3.0L S55 Twin-Turbo I6, RWD) - Rear
• 2021-2026 BMW M3 Sedan (G80, 3.0L S58 Twin-Turbo I6, RWD/xDrive AWD) - Rear
• 2021-2026 BMW M4 Coupe (G82, 3.0L S58 Twin-Turbo I6, RWD/xDrive AWD) - Rear
• 2021-2026 BMW M4 Convertible (G83, 3.0L S58 Twin-Turbo I6, RWD/xDrive AWD) - Rear
• 2023-2026 BMW M2 Coupe (G87, 3.0L S58 Twin-Turbo I6, RWD) - Rear

Fitment Notes

• Fits the rear sway bar position only on all F8X and G8X M-series vehicles. For the front sway bar position, see SPL FE F8X (sold separately).
• All F8X chassis variants (F80, F82, F83, F87) are rear-wheel drive only - no xDrive variants exist for these platforms.
• G8X chassis (G80, G82, G83) are available in both RWD and xDrive AWD; G87 M2 is RWD only. This endlink is compatible with all drivetrain configurations on G8X.
• Sold as a pair (one left, one right) covering the rear axle on one vehicle.

Features

• Massive Teflon-lined FK 1/2" spherical bearings deliver the highest load capacity available at this endlink size, providing long service life under the elevated lateral forces generated by stiffer aftermarket sway bars and high-performance driving conditions at the rear axle.
• Custom heat-treated chromoly high misalignment studs provide up to 65 degrees of articulation capability, keeping the endlink completely bind-free through full rear suspension travel and across all adjustment holes on multi-position aftermarket sway bars.
• Length-adjustable design eliminates rear sway bar preload caused by spring settling, corner weighting, or ride height changes - allowing the bar to be set at a true horizontal angle for maximum roll resistance effectiveness and balanced, symmetric cornering behavior.
• Black anodized 6061-T6 aluminum turnbuckles with opposing left-hand and right-hand threaded rod ends enable fast, precise on-car length adjustment - turn the turnbuckle to the target length and snug the jam nuts without removing the endlink from the vehicle.
• Reduces the asymmetric rear roll resistance that develops from OEM fixed-length endlink preload, contributing to more predictable and consistent rear end behavior on both road and track.
• Equally suited for street driving, track days, autocross, and dedicated circuit racing on any F8X or G8X M-series platform.
• Designed and manufactured entirely in the USA by SPL Parts' in-house engineering and machining team.

Specifications

• Bearing: Teflon-lined FK 1/2" spherical bearing (per endlink)
• Stud Material: Heat-treated chromoly steel, high misalignment design
• Turnbuckle Material: 6061-T6 aluminum, black anodized
• Maximum Articulation Angle: 65 degrees
• Adjustment: Length-adjustable via opposing LH/RH threaded rod ends, on-car adjustable
• Position: Rear sway bar only
• F8X Drivetrain: RWD only (F80/F82/F83/F87)
• G8X Drivetrain: RWD and xDrive AWD (G80/G82/G83); RWD only (G87)
• Country of Manufacture: USA
• Part Number: SPL RE F8X

Included Components

• 2x Adjustable rear sway bar endlinks (one left, one right)
• 2x Teflon-lined FK 1/2" spherical bearings (pre-installed)
• 2x Heat-treated chromoly high misalignment studs (pre-installed)
• 2x Black anodized 6061-T6 aluminum turnbuckles
• 4x Jam nuts (two per endlink for length-locking)

Product Description

The SPL Parts SPL RE F8X is a PRO-series adjustable rear sway bar endlink engineered for the BMW F8X and G8X M-series platforms, covering the M2, M3, and M4 across both generations at the rear axle. The OEM rear endlinks on these vehicles are fixed-length units that develop sway bar preload from spring settling, driver weight, corner weighting, and ride height changes. This preload shifts the sway bar away from its optimal horizontal angle and generates unequal roll resistance between left- and right-hand corners - a characteristic that becomes more pronounced when stiffer aftermarket rear sway bars are installed or when the car has been lowered. The SPL RE F8X resolves this with a length-adjustable black anodized 6061-T6 aluminum turnbuckle body using opposing left-hand and right-hand threads. The driver can set the exact length needed to hold the sway bar horizontal at their ride height, snug the jam nuts, and lock the adjustment in place - entirely on the car, without removal.

The Teflon-lined FK 1/2" spherical bearings in this endlink provide a significantly higher static radial load capacity than smaller-bore alternatives, meaning they sustain the elevated lateral forces generated by aftermarket rear bars and high-grip tires on both F8X and G8X platforms without the premature wear common to budget endlinks. Custom heat-treated chromoly high misalignment studs deliver up to 65 degrees of articulation, keeping the endlink bind-free throughout full rear suspension travel and when positioned at different adjustment holes on multi-position aftermarket bars. This is the rear-specific endlink for the F8X/G8X platform; for the matching front position, see SPL FE F8X.

The SPL RE F8X is equally effective on daily-driven street cars and full track builds. It is compatible with all RWD F8X variants (F80/F82/F83/F87) and with both RWD and xDrive AWD G8X variants (G80/G82/G83/G87). Designed and manufactured entirely in the USA by SPL Parts. Sold as a pair covering the rear axle.
