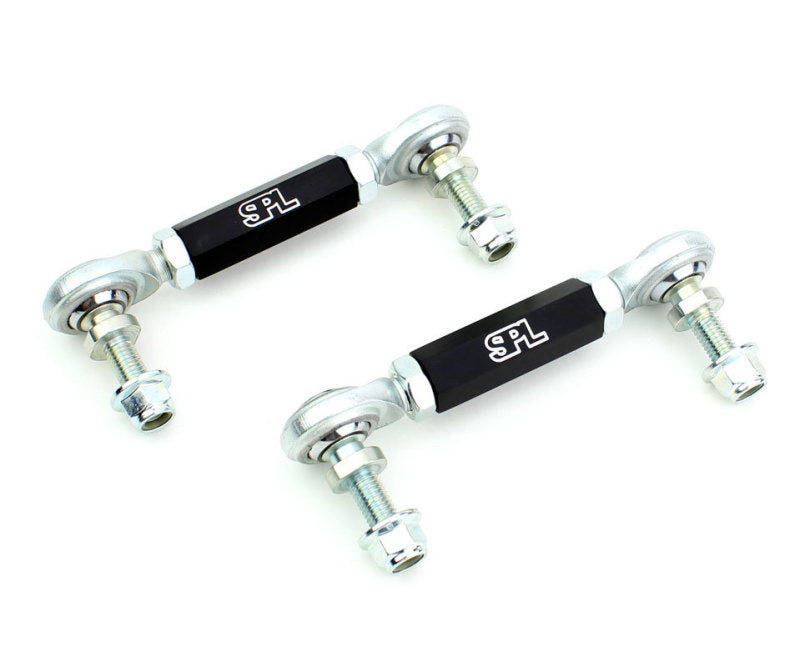

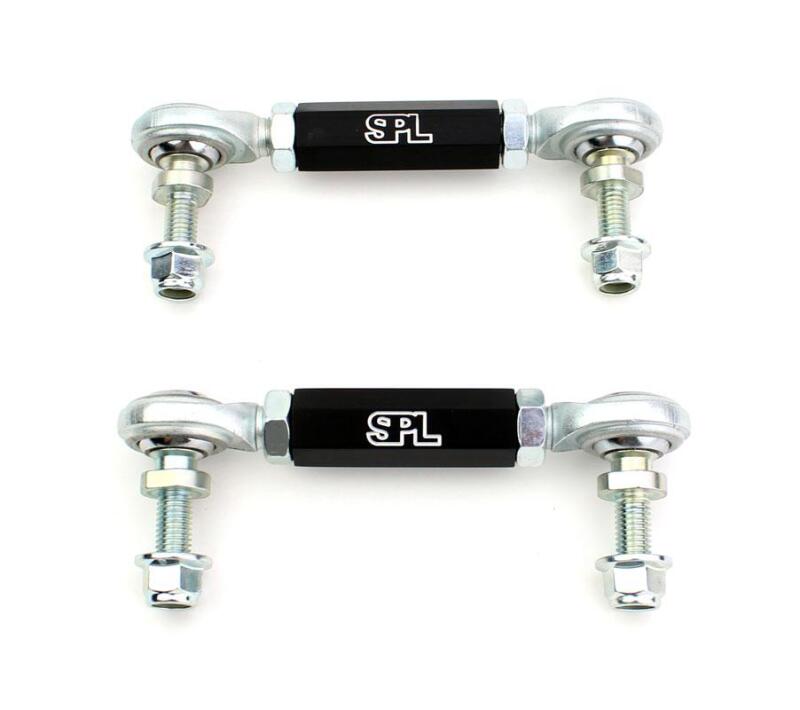

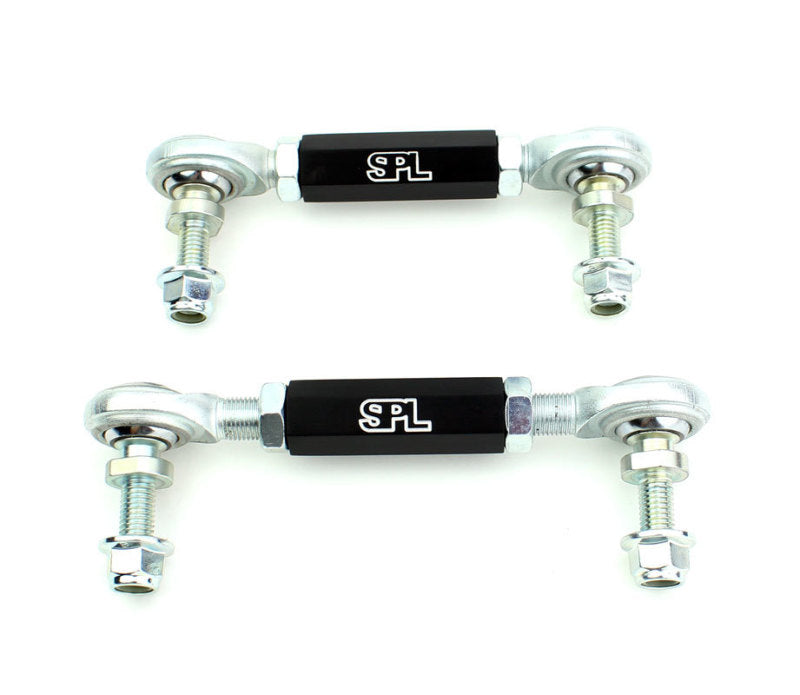

SPL Parts SPL RE F3X Adj Rear Sway Bar End Links for BMW F2X F3X 1 2 3 4 Series

Vehicle Fitment

• 2012-2019 BMW 1-Series 5-Door Hatchback (F20, All Engines, RWD/xDrive) - Rear
• 2012-2019 BMW 1-Series 3-Door Hatchback (F21, All Engines, RWD/xDrive) - Rear
• 2014-2021 BMW 228i / 230i Coupe (F22, 2.0L N20/B46 Turbo I4, RWD/xDrive) - Rear
• 2014-2021 BMW M235i / M240i Coupe (F22, 3.0L N55/B58 Turbo I6, RWD/xDrive) - Rear
• 2014-2021 BMW 228i / 230i Convertible (F23, 2.0L N20/B46 Turbo I4, RWD/xDrive) - Rear
• 2014-2021 BMW M235i / M240i Convertible (F23, 3.0L N55/B58 Turbo I6, RWD/xDrive) - Rear
• 2012-2019 BMW 3-Series Sedan (F30 - 320i, 328i, 328d, 330i, 335i, 340i, RWD/xDrive) - Rear
• 2014-2019 BMW 3-Series Touring / Wagon (F31 - 328i, 330i, 328d, RWD/xDrive) - Rear
• 2014-2019 BMW 3-Series Gran Turismo (F34 - 328i, 330i, 335i, RWD/xDrive) - Rear
• 2014-2020 BMW 4-Series Coupe (F32 - 428i, 430i, 435i, 440i, RWD/xDrive) - Rear
• 2014-2020 BMW 4-Series Convertible (F33 - 428i, 430i, 435i, 440i, RWD/xDrive) - Rear
• 2014-2020 BMW 4-Series Gran Coupe (F36 - 428i, 430i, 435i, 440i, RWD/xDrive) - Rear

Fitment Notes

• Fits the rear sway bar position only. For the front sway bar on F2X/F3X, see SPL FE F3X (sold separately).
• Compatible with both RWD (sDrive) and xDrive AWD variants across all applicable F2X and F3X models.
• This endlink is designed for standard F2X and F3X non-M chassis only. It does not fit the F80 M3, F82/F83 M4, or F87 M2 - those platforms use a different rear sway bar mounting geometry and require SPL RE F8X (sold separately).
• Sold as a pair (one left, one right) covering the rear axle on one vehicle.

Features

• Massive Teflon-lined FK 1/2" spherical bearings deliver the highest load capacity available at this endlink size, providing long service life under the lateral forces generated by OEM and stiffer aftermarket sway bars at the rear axle.
• Custom heat-treated chromoly high misalignment studs provide up to 65 degrees of articulation capability, keeping the endlink completely bind-free across full suspension travel and when used with different adjustment holes on multi-position aftermarket sway bars.
• Length-adjustable design eliminates rear sway bar preload caused by spring settling, corner weighting, or ride height changes - allowing the bar to be set at a true horizontal angle for maximum roll resistance effectiveness and balanced left-to-right cornering behavior.
• Black anodized 6061-T6 aluminum turnbuckles with opposing left-hand and right-hand threaded rod ends enable fast, precise on-car length adjustment - turn the turnbuckle and snug the jam nuts without removing the endlink.
• Reduces the asymmetric roll resistance that results from unresolved rear sway bar preload on OEM fixed-length endlinks, producing more consistent and predictable cornering balance.
• Suitable for all levels of use, from daily street driving and spirited canyon use to track days, autocross, and dedicated circuit applications.
• Designed and manufactured entirely in the USA by SPL Parts' in-house engineering and machining team.

Specifications

• Bearing: Teflon-lined FK 1/2" spherical bearing (per endlink)
• Stud Material: Heat-treated chromoly steel, high misalignment design
• Turnbuckle Material: 6061-T6 aluminum, black anodized
• Maximum Articulation Angle: 65 degrees
• Adjustment: Length-adjustable via opposing LH/RH threaded rod ends, on-car adjustable
• Position: Rear sway bar only
• Drivetrain: RWD (sDrive) and xDrive AWD (all applicable variants)
• Country of Manufacture: USA
• Part Number: SPL RE F3X

Included Components

• 2x Adjustable rear sway bar endlinks (one left, one right)
• 2x Teflon-lined FK 1/2" spherical bearings (pre-installed)
• 2x Heat-treated chromoly high misalignment studs (pre-installed)
• 2x Black anodized 6061-T6 aluminum turnbuckles
• 4x Jam nuts (two per endlink for length-locking)

Product Description

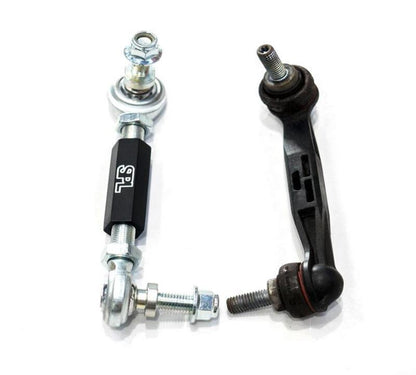

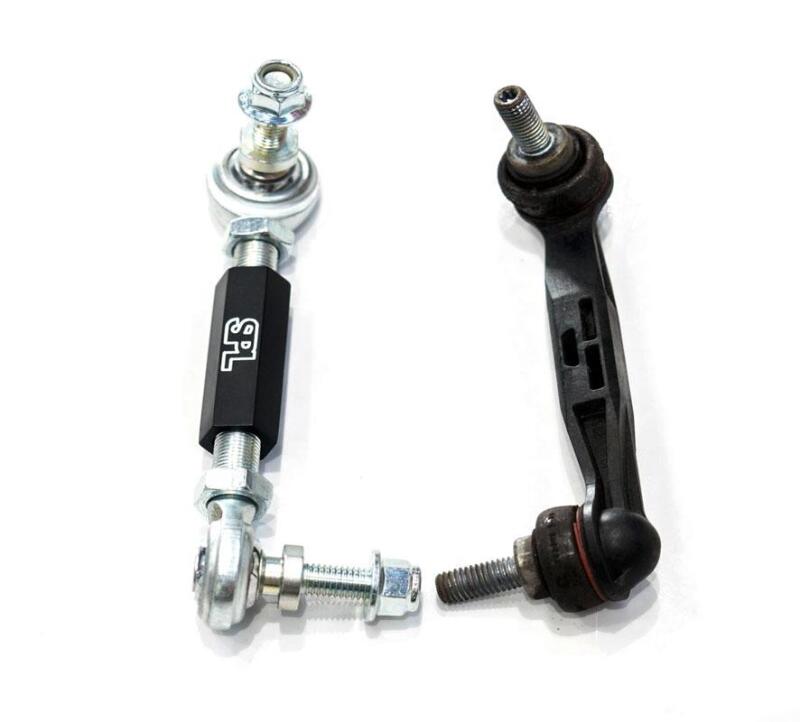

The SPL Parts SPL RE F3X is a PRO-series adjustable rear sway bar endlink engineered for the BMW F2X platform (1-Series F20/F21, 2-Series F22/F23) and F3X platform (3-Series F30/F31/F34/F35, 4-Series F32/F33/F36) in all engine and drivetrain configurations, covering both RWD and xDrive AWD variants from 2010 through 2021. The factory rear endlinks on these platforms are fixed-length units that introduce sway bar preload whenever spring settling, driver weight, ride height adjustment, or corner weighting shifts the sway bar away from its ideal horizontal position. This preload generates unequal roll resistance between left- and right-hand corners - an effect that becomes more pronounced with stiffer aftermarket rear bars, lowering springs, or coilover setups. The SPL RE F3X resolves this with its length-adjustable turnbuckle design: set the endlink to the exact length needed to hold the sway bar horizontal at your ride height, lock the jam nuts, and the setting stays put.

The core of the endlink's durability advantage is its Teflon-lined FK 1/2" spherical bearing, which provides a significantly higher static radial load capacity than the smaller bearings found in many budget alternatives. This matters most at the rear axle under high-grip cornering loads and with stiffer aftermarket bars that amplify forces on the endlink mounting points. Custom heat-treated chromoly high misalignment studs deliver up to 65 degrees of articulation to keep the endlink completely bind-free through full suspension travel and when the sway bar is placed in different adjustment holes on multi-position bars. The black anodized 6061-T6 aluminum turnbuckle uses opposing left-hand and right-hand threads, allowing on-car adjustment by simply turning the body and snugging the jam nuts - no need to remove the endlink from the vehicle.

This endlink is designed specifically for the standard non-M F2X and F3X chassis. It is not compatible with the F80 M3, F82/F83 M4, or F87 M2, which use different rear sway bar mounting geometry and require the SPL RE F8X. For the matching front endlink on the same platforms, see SPL FE F3X. The SPL RE F3X is equally effective on stock suspension and as part of a full performance build with coilovers and aftermarket sway bars. Designed and manufactured entirely in the USA. Sold as a pair.
