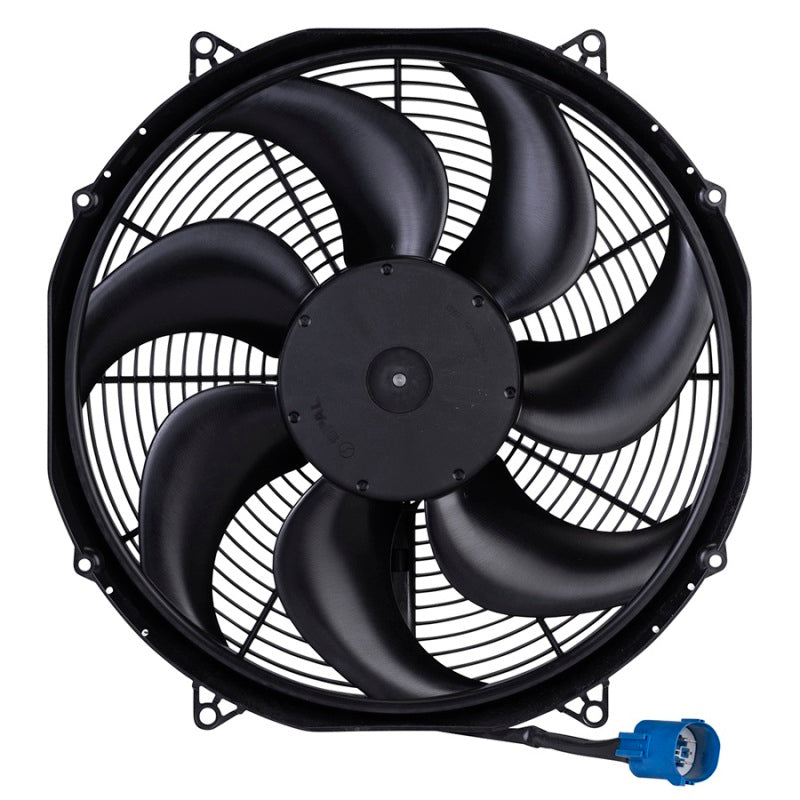

SPAL 30107328-PKG 500W 15.2in Brushless Fan w/ Jumper Harness

Vehicle Fitment

• Universal fit - compatible with a wide range of OEM and aftermarket cooling applications. Shares the same mounting footprint as SPAL's existing 16" VA18 and VA33 brushed fans, easing installation for anyone replacing an existing SPAL brushed fan.

Fitment Notes

• Listed dimension varies by source: some list this as a 16" fan (overall frame/blade diameter), others as 15.2" (flush-mount cutout dimension). Confirm the correct measurement against the customer's shroud cutout or mounting location before purchase.
• The "-PKG" suffix on this part number indicates the version that includes the jumper harness. Confirm the customer needs this bundled harness rather than the base fan sold separately.

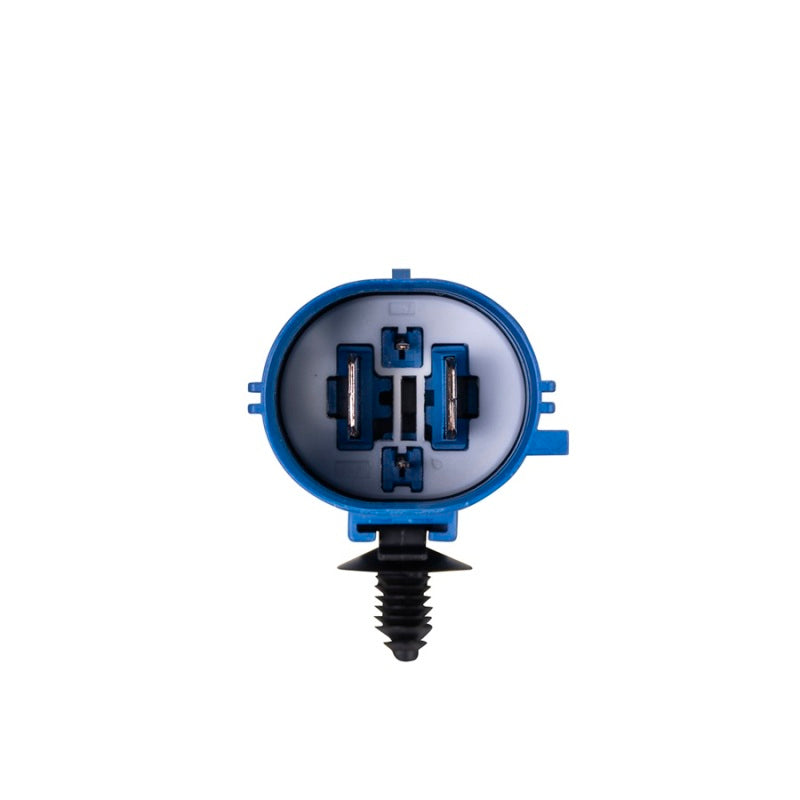

• Requires a mating connector harness (SBL-YAZ-PT10) for each fan used - one is needed per fan even if this kit includes a jumper harness, depending on final wiring configuration.

Features

• Brushless (SBL) motor technology - longer service life than standard brushed fans
• 500W motor output
• 2,433 CFM rated airflow at free-air conditions
• Flush mount, curved blade, puller (pull-through) configuration
• Motor sealed to IP6K9K standard - waterproof, dustproof, and waterjet capable
• Integrated power and signal electronics
• "Soft start" technology eliminates electrical in-rush spike
• Digital control for smooth, reliable operation
• Compatible with SPAL temperature sensors for full variable speed control
• Patented Sine Wave Technology for quieter, smoother operation with reduced noise and vibration
• Reduced axial dimensions and low weight versus comparable brushed fans
• Includes jumper harness (per "-PKG" designation)

Specifications

• Fan diameter: 16 in. (frame) / 15.2 in. (flush mount cutout - confirm which applies)
• Thickness: 3.5 in.
• Blade type: Curved
• Airflow type: Puller
• Motor type: Brushless (SBL)
• Wattage: 500W
• Airflow: 2,433 CFM (free air)
• Current draw: ~42 amps
• Voltage: 12V
• Seal rating: IP6K9K

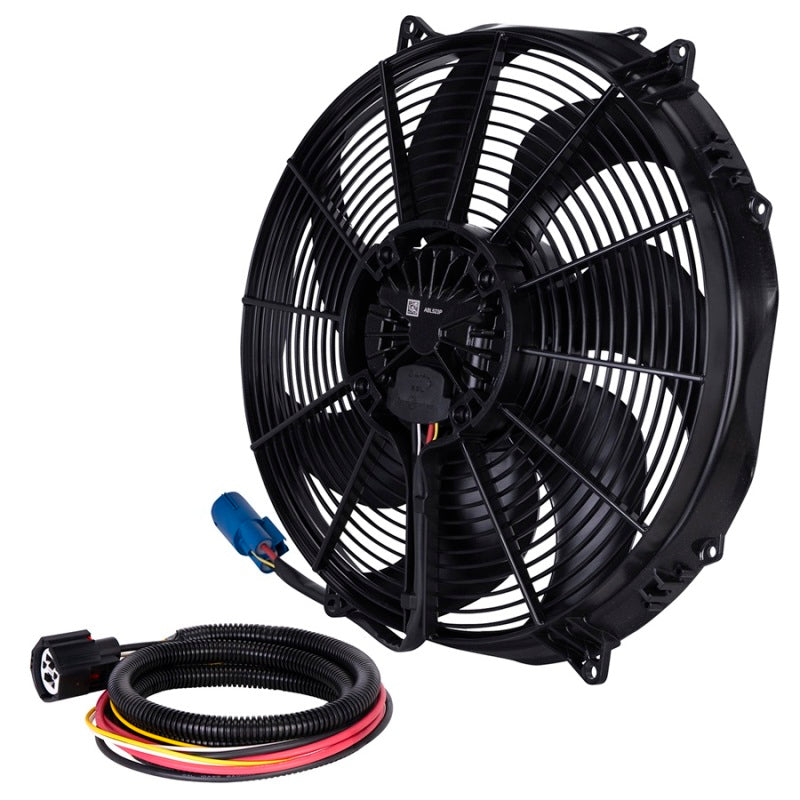

Included Components

• 1x SPAL 30107328 brushless fan

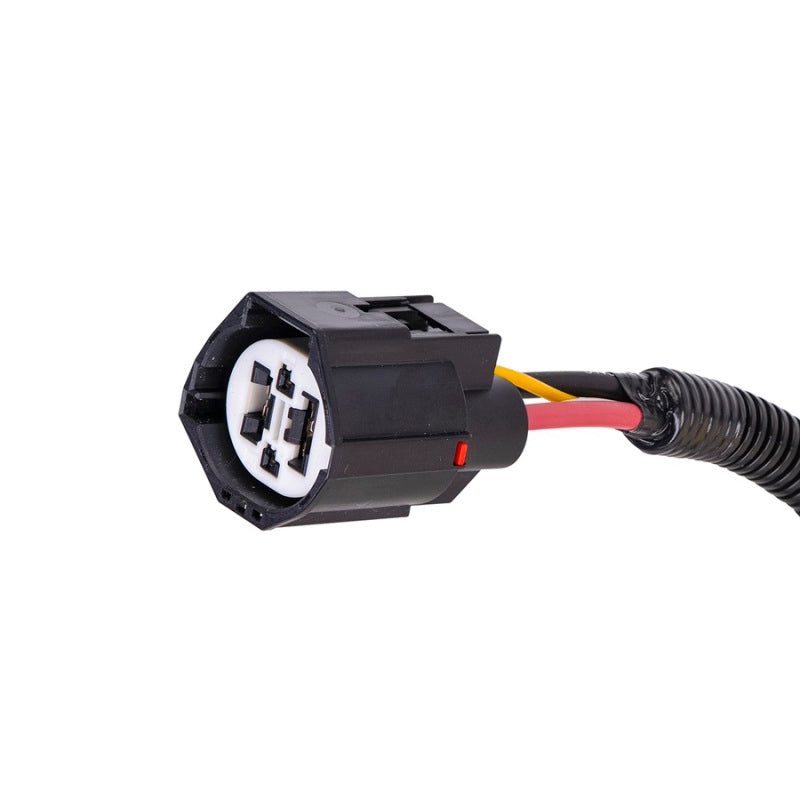

• 1x Jumper harness

Product Description

The SPAL 30107328-PKG is a 500-watt brushless flush-mount cooling fan, sold with a jumper harness included. As one of SPAL's newer SBL (sealed brushless) fans, it's built to replace aging brushed cooling fans with a longer-lasting, quieter, and more efficient design - it even shares the same mounting footprint as SPAL's existing 16" VA18 and VA33 brushed fans, so it drops into an existing mounting location without requiring new brackets or a modified shroud cutout in most cases.

The brushless motor design brings several real advantages over a standard brushed fan: soft-start technology prevents the electrical inrush spike that brushed fans produce on startup, the sealed IP6K9K rating means the motor can handle direct water exposure without failing, and SPAL's patented Sine Wave Technology keeps the fan noticeably quieter and smoother-running than a comparable brushed unit. The fan is also compatible with SPAL's temperature sensor line for full variable-speed control rather than a simple on/off relay setup.

Since this fan is sold with the "-PKG" suffix specifically because it bundles a jumper harness, confirm the customer actually needs that harness rather than ordering the base fan separately - and because a mating connector harness (SBL-YAZ-PT10) is required per fan for the wiring to the SPAL connector, factor that into a complete parts list if it's not already accounted for. Given the mixed 16"/15.2" sizing found across sources, double-check which dimension applies to the customer's mounting location before cutting or modifying a shroud.
