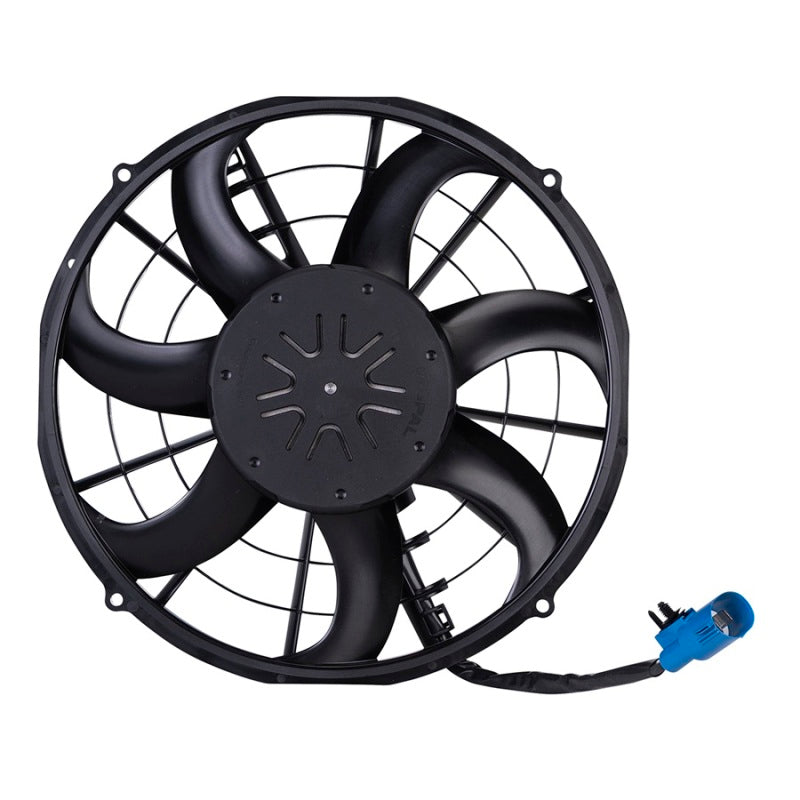

SPAL 30107102-PKG 14in Brushless Puller Fan, 500W 2395 CFM, Drop-In

Vehicle Fitment

• Universal - drop-in design fits directly into most existing 14" fan shroud openings without modification

Fitment Notes

• Confirm your shroud's mounting dimensions before ordering; overall dimensions are 15.04" x 15.04" x 3.1" thick

Features

• Brushless motor delivers quieter operation and longer service life than traditional brushed fans
• Variable speed operation - fan speed increases automatically as coolant temperature rises when paired with SPAL's temperature sensor, an ECU, or a PWM controller
• Sealed to IP68/IP6K9K standards for water and dust resistance
• 7 curved plastic blades for efficient airflow
• Includes jumper harness for simplified wiring
• Made in Italy

Specifications

• Fan diameter: 14"
• Configuration: Puller
• Motor type: Brushless
• Power: 500W
• Peak airflow: 2,395 CFM
• Voltage: 12V
• Max amp draw: ~42A
• Blade count: 7
• Blade material: Plastic
• Color: Black
• Overall dimensions: 15.04" x 15.04" x 3.1"

Included Components

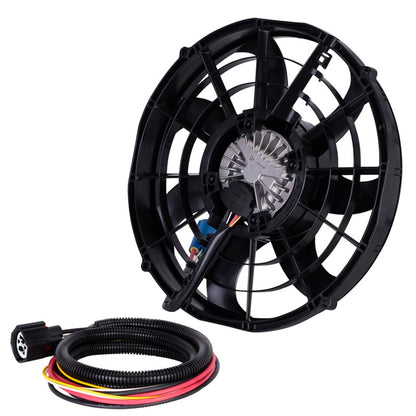

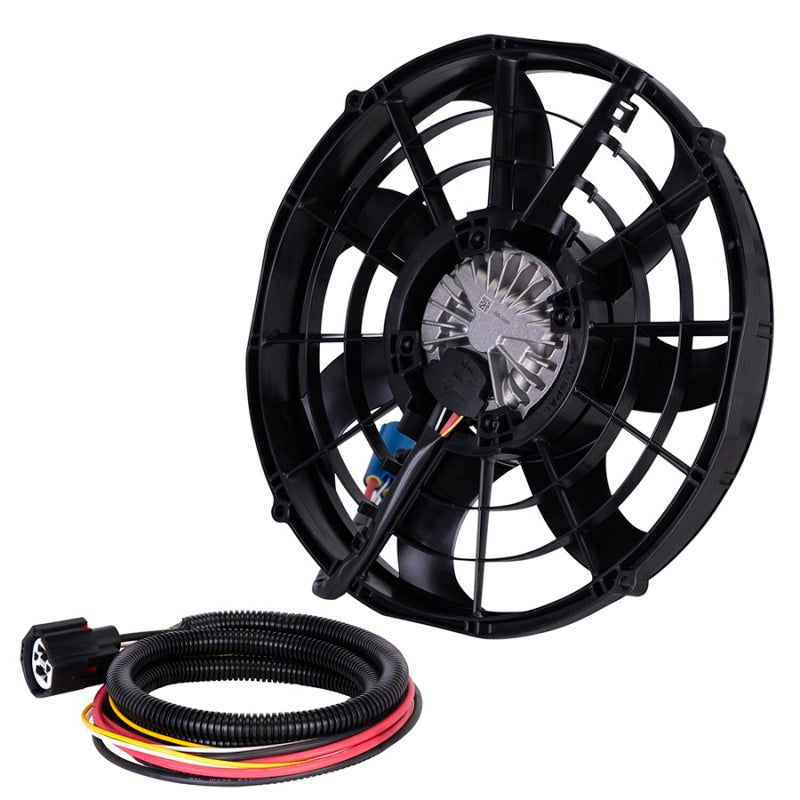

• 1x Brushless puller fan

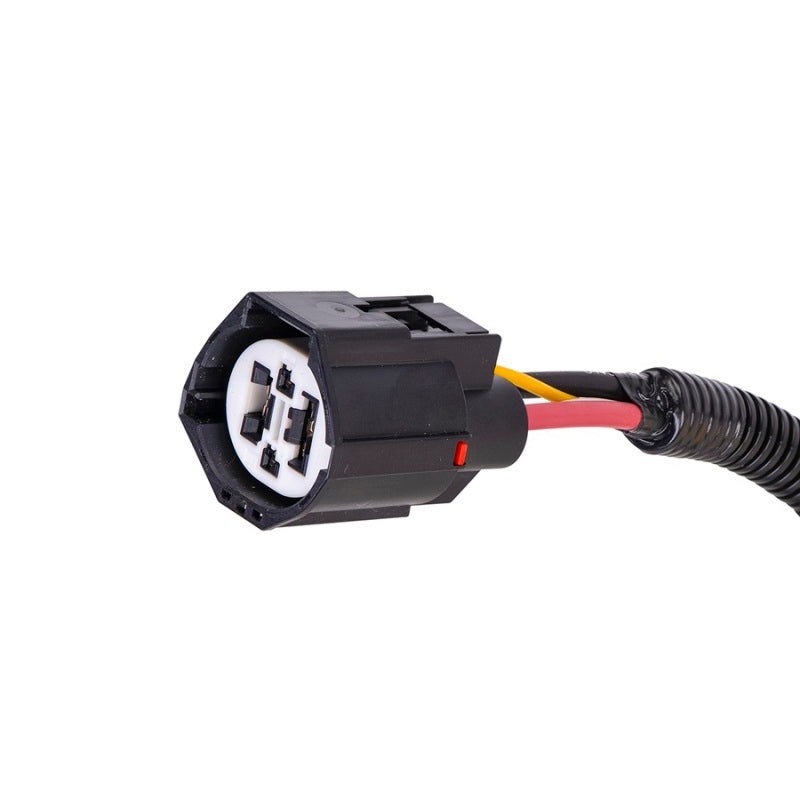

• Jumper harness

Product Description

This 14" brushless puller fan from SPAL's Plus Series delivers serious airflow - up to 2,395 CFM at peak - while running quieter and lasting longer than a traditional brushed motor design. Its drop-in mounting profile is built to sit directly into most existing fan shroud openings, making it a straightforward upgrade for hot rods, kit cars, or V8 swaps without custom fabrication.

The variable speed motor automatically ramps up as coolant temperature rises, keeping noise and current draw down until real cooling demand kicks in - whether you're controlling it with SPAL's own temperature sensor, your engine's ECU, or a PWM controller. Sealed to IP68/IP6K9K standards, it's built to handle harsh under-hood conditions, and the included jumper harness keeps wiring simple.
