SPAL 30107125-PKG 300W 15.2in Flush Mount Brushless Fan w/ Harness

Vehicle Fitment

• Universal fit - uses the same bolt pattern as SPAL's existing medium-profile and high-performance 16" brushed fans, making it a straightforward drop-in upgrade for any radiator already set up for that mounting pattern.

Fitment Notes

• This is a flush/surface mount fan - it sits on top of the shroud, not partially inside it like SPAL's 11", 12", 14", and 16" drop-in fans in this same product family. Confirm mount style before assuming interchangeability.
• Requires Plus Series-specific sensors and harnesses (SBL-YAZ-PT10 pigtail, SBL-TS-HARN, and a Plus Series temperature sensor) for full variable-speed operation - sold separately.
• Wiring note: the white trigger wire carries a pull-up resistor to battery positive, meaning system voltage is normal on that wire when the control system is off. Grounding the white wire alone turns the fan "on" without necessarily producing full running speed - a proper PWM signal is expected for correct variable-speed operation. Recommend fusing per SPAL's documented amp draw rather than oversizing based on assumption.

Features

• 300W brushless motor
• ~1,972 peak CFM airflow
• Fully sealed motor - IP68 and IP6K9K rated, waterproof and dustproof
• Uses the same bolt pattern as SPAL's existing 16" brushed fan lineup for easy upgrades

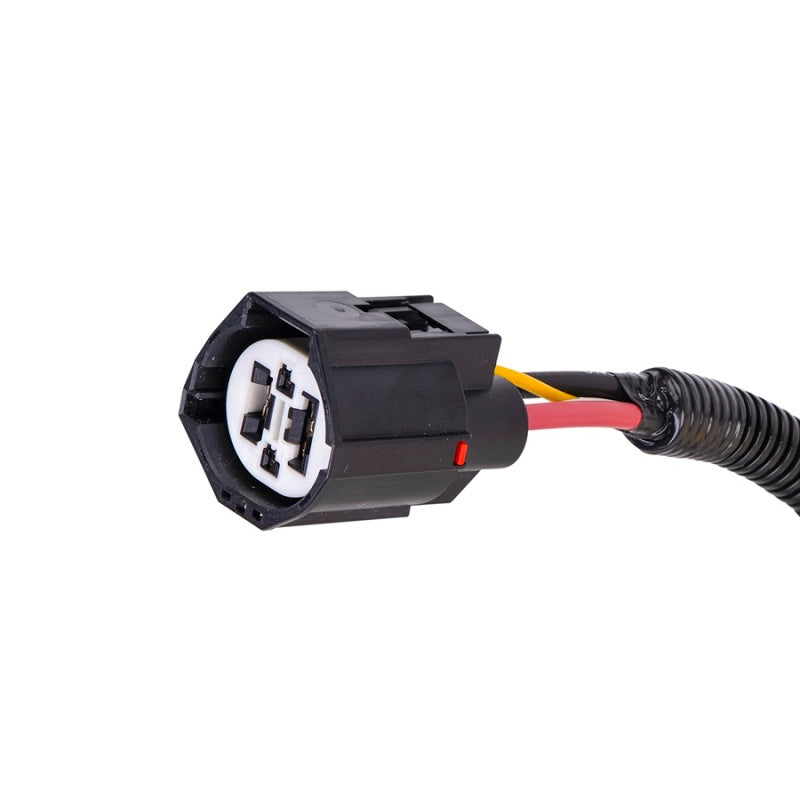

• Includes jumper harness for connection to SPAL's Plus Series sensor and harness ecosystem
• Negative/grounding-type PWM control compatible with any low-current PWM controller
• Integrated EMC filtering and electrical protection built into the motor

Specifications

• Fan diameter: 15.2 in. (385 mm)
• Model: VA91-ABL326P/N-65A
• Configuration: Puller
• Mount style: Flush/surface mount
• Motor type: Brushless
• Wattage: 300W
• Voltage: 12V (operating range 9.0-16.0V at drive connector; 13.0V+ to reach max speed)
• Peak amperage: ~25 amps
• Airflow: ~1,972 peak CFM
• Max fan speed: 2,500 rpm
• Min fan speed: 850 rpm
• Sound pressure level: 77 dBA at 1m, lateral side
• Weight: 2.4 kg (~5.3 lbs.)
• Seal rating: IP68 / IP6K9K
• Jumper harness: Included

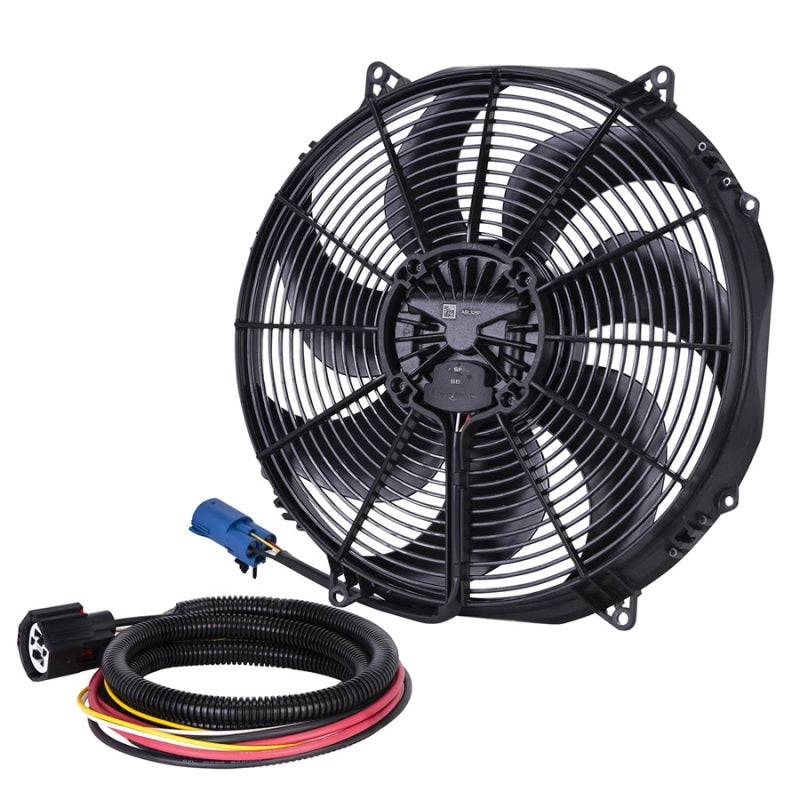

Included Components

• 1x SPAL 30107125 brushless fan
• 1x Jumper harness

Product Description

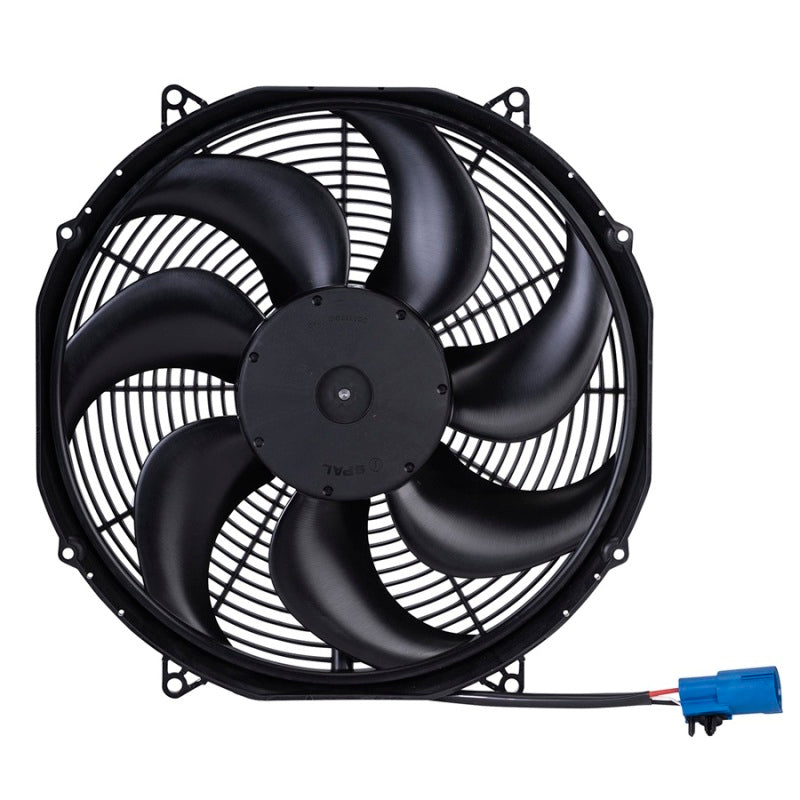

The SPAL 30107125-PKG is a 300-watt, 15.2-inch flush mount brushless puller fan producing around 1,972 peak CFM, notable for using the exact same bolt pattern as SPAL's existing medium-profile and high-performance 16" brushed fan lineup. That shared bolt pattern is a genuinely practical detail - it means this fan can be dropped in as a direct upgrade on any radiator already set up for one of SPAL's older 16" brushed fans, without needing to modify mounting points.

Backed by SPAL's own published engineering data, the fan runs between 850 and 2,500 rpm depending on cooling demand, with a measured sound level of 77 dBA at full speed - useful for anyone weighing noise considerations in a street-driven build. The sealed IP68/IP6K9K motor and integrated EMC filtering carry through from the rest of the Plus Series line, and the fan uses SPAL's standard negative-grounding PWM control logic, where the fan itself supplies the +12V portion of the signal and the controller or ECU supplies the ground/zero-volt portion.

One wiring detail worth flagging directly to installers: the white trigger wire has a pull-up resistor to battery positive, so seeing voltage on that wire with the system off is normal and doesn't indicate a fault - grounding it alone will turn the fan "on" but won't necessarily drive it to running speed without a proper PWM signal. As with the rest of this fan family, a complete variable-speed install needs the SBL-YAZ-PT10 pigtail, SBL-TS-HARN, and a Plus Series temperature sensor, all sold separately from this kit.
