SPAL 30107103-PKG 300W 14in Drop-In Brushless Fan w/ Harness

Vehicle Fitment

• Universal fit - designed for drop-in installation into a compatible 14" fan shroud, deep enough to accommodate the fan. Suited to off-road racing, hot rods, and high-performance applications.

Fitment Notes

• Drop-in mount - the fan sits partially inside the shroud. Confirm shroud depth accommodates this fan before ordering.
• Do not confuse with SPAL 30107102-PKG - the 500W version of this same 14" fan, with higher CFM and amp draw. This part number (30107103) is the 300W tier specifically.
• One retailer's spec sheet lists this part as CARB approved. This should be confirmed against SPAL's own documentation before representing it as California-legal for a specific customer's application.
• Requires Plus Series-specific sensors and harnesses (SBL-YAZ-PT10 pigtail, SBL-TS-HARN, and a Plus Series temperature sensor) for full variable-speed operation - sold separately, not compatible with SPAL's older Nuova series components.

Features

• 300W brushless motor
• ~2,036-2,050 peak CFM airflow
• Fully sealed motor - IP68 and IP6K9K rated, waterproof and dustproof
• Drop-in mount, sits partially inside the shroud

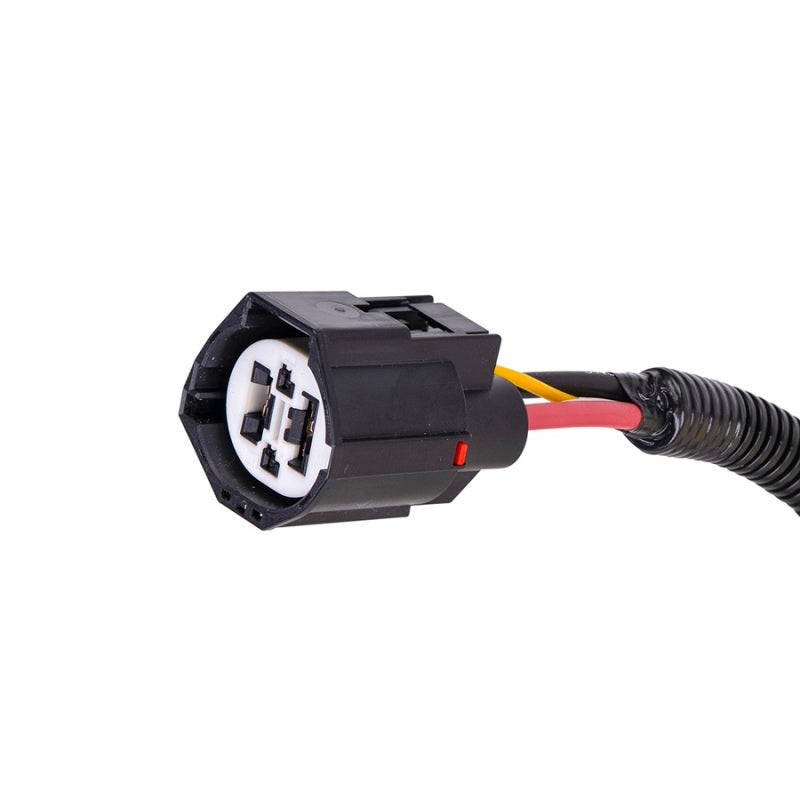

• Includes jumper harness for connection to SPAL's Plus Series sensor and harness ecosystem
• Compatible with any low-current, negative-grounding PWM controller as an alternative to SPAL's sensor system

Specifications

• Fan diameter: 14 in.
• Critical thickness: 3.50 in.
• Configuration: Puller
• Mount style: Drop-in
• Motor type: Brushless
• Wattage: 300W
• Voltage: 12V
• Peak amperage: ~25 amps (at full/peak fan speed)
• Airflow: ~2,036-2,050 peak CFM
• Seal rating: IP68 / IP6K9K
• Weight: 5.0 lbs. (fan only)
• Jumper harness: Included

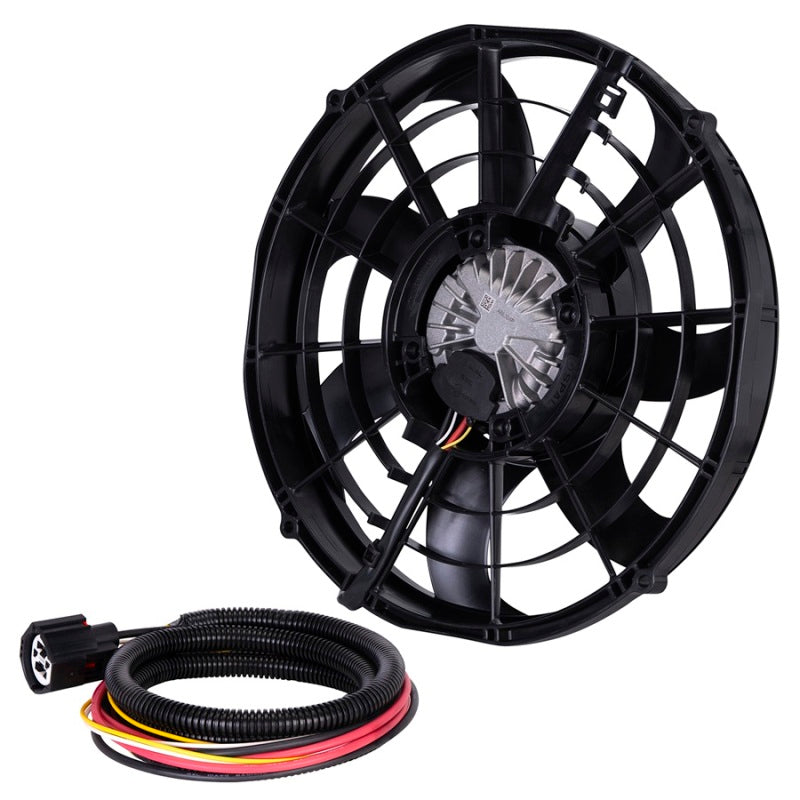

Included Components

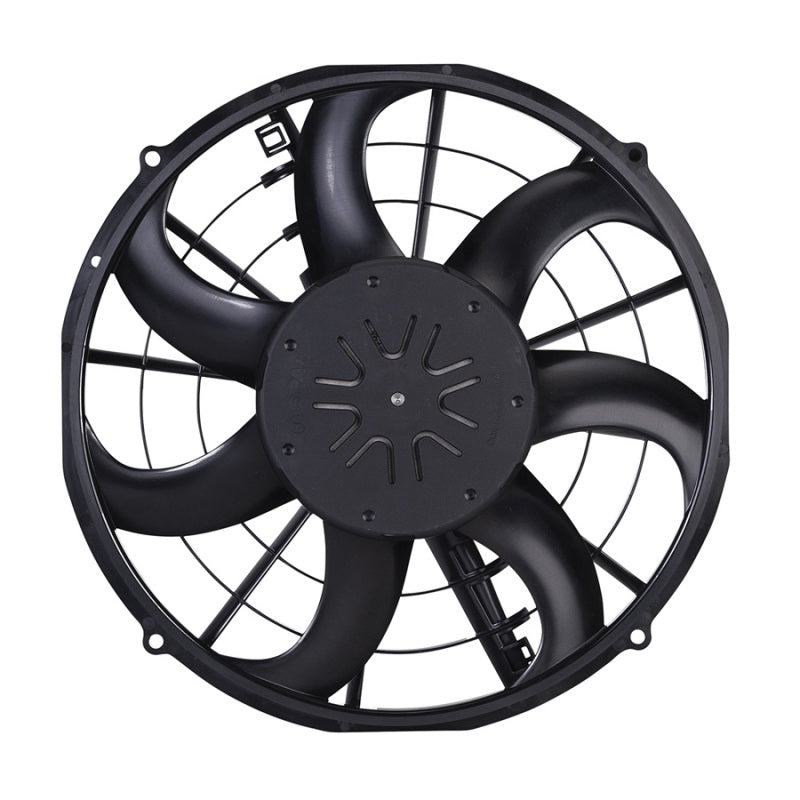

• 1x SPAL 30107103 brushless fan
• 1x Jumper harness

Product Description

The SPAL 30107103-PKG is the 300-watt version of SPAL's 14-inch drop-in brushless puller fan, producing around 2,036-2,050 peak CFM - the lower-power sibling to the 500W 30107102 fan in the same 14" size class. It's a good fit for builds that need strong airflow in a 14" footprint without the higher current draw of the 500W version, which matters for electrical systems with more limited amperage headroom.

Like the rest of SPAL's Plus Series lineup, it uses a fully sealed brushless motor rated to IP68/IP6K9K standards for water and dust protection, and mounts drop-in style, sitting partially inside the shroud. The included jumper harness connects into SPAL's Plus Series temperature sensor system for automatic variable-speed operation, with the fan spinning faster as coolant temperature climbs.

Since 30107102 and 30107103 share the same 14" diameter and nearly identical part numbers, double-check which wattage tier the customer actually needs before ordering - the 300W version here draws meaningfully less current (about 25A vs. 42A peak) but also moves less peak airflow. As with the rest of this fan family, a complete variable-speed install needs the SBL-YAZ-PT10 pigtail, SBL-TS-HARN, and a Plus Series temperature sensor, all sold separately from this kit.
