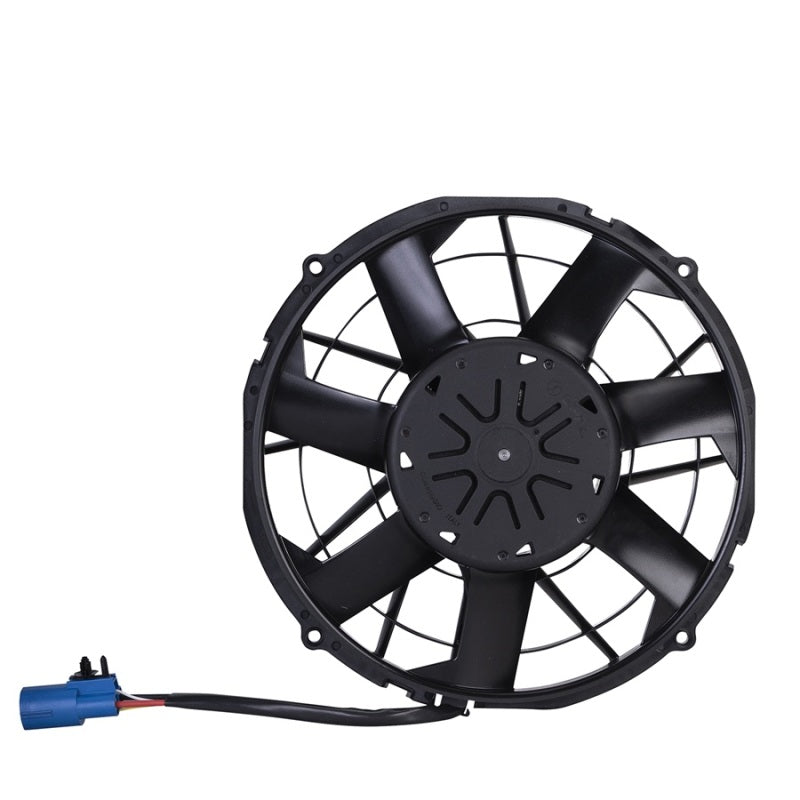

SPAL 30107087-PKG 300W 12in Drop-In Brushless Fan w/ Harness

Vehicle Fitment

• Universal fit - designed for drop-in installation into a compatible 12" fan shroud opening. Suited to off-road racing, hot rods, and high-performance applications.

Fitment Notes

• Drop-in mount - the fan body sits partially inside the shroud rather than mounting flush to its surface. Confirm the target shroud is built for drop-in mounting, and matches the 12" diameter, before ordering.
• Do not confuse with the closely related SPAL Plus Series siblings: 30107059-PKG (11" drop-in) or 30107089-PKG (10" flush mount) - different sizes and mount styles, not interchangeable.
• The "-PKG" suffix confirms this version includes the jumper harness bundled in.

Features

• 300W brushless motor
• 1,802 peak CFM airflow
• Straight blade design
• Fully sealed motor - dust proof and water proof
• OEM-approved brushless technology
• Drop-in mount, sits inside the shroud

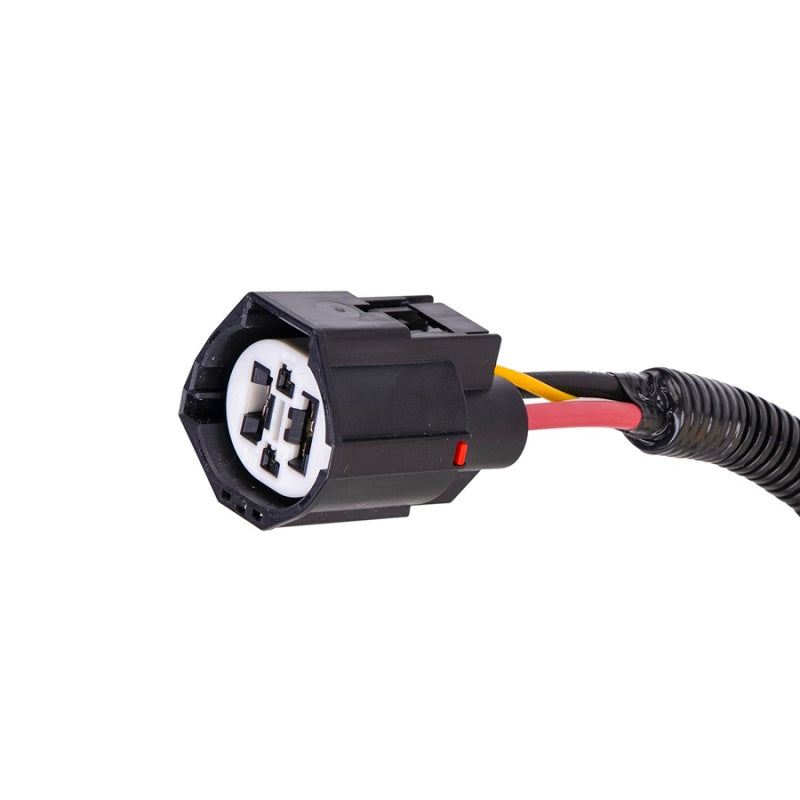

• Includes jumper harness for connection to SPAL's temperature sensor and harness system for variable-speed operation
• Compatible with any low-current, negative-grounding PWM controller as an alternative control method

Specifications

• Fan diameter: 12 in.
• Critical thickness: 3.50 in.
• Configuration: Puller
• Motor type: Brushless
• Wattage: 300W
• Voltage: 12V
• Airflow: 1,802 peak CFM
• Blade style: Straight
• Color: Black
• Model: VA89-ABL320P/R/A/N-94A
• Jumper harness: Included

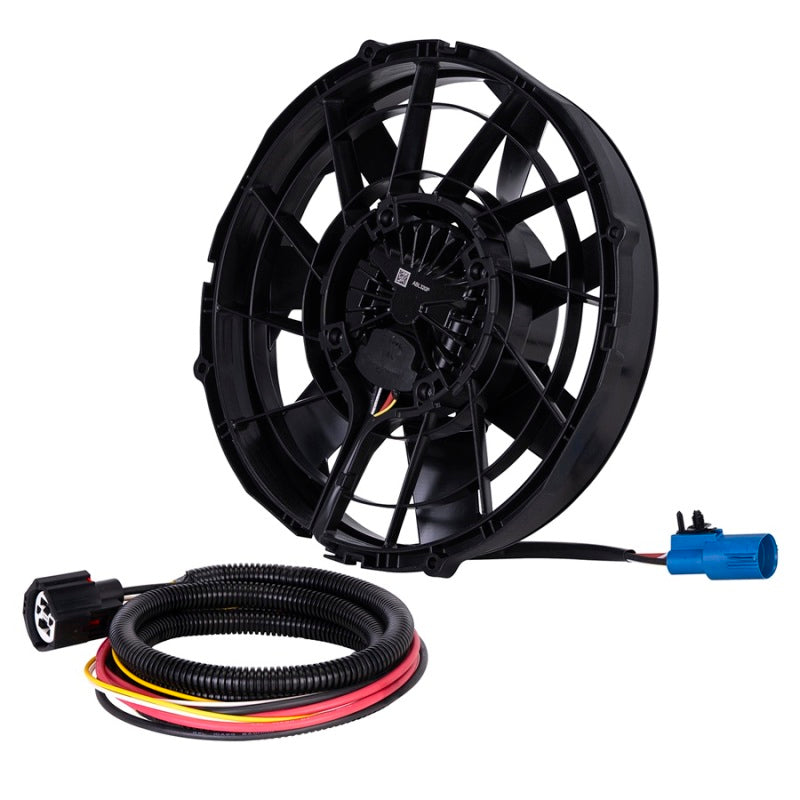

Included Components

• 1x SPAL 30107087 brushless fan
• 1x Jumper harness

Product Description

The SPAL 30107087-PKG is a 300-watt, 12-inch drop-in brushless puller fan from SPAL's Plus Series lineup, delivering 1,802 peak CFM in a fully sealed, OEM-approved package. It's built for demanding applications - off-road racing, high-heat engine bays, and builds where a sealed, high-output fan needs to hold up to water, dust, and vibration without the reliability concerns of an older brushed design.

The drop-in mount means the fan body sits partially inside the shroud rather than surface-mounting to it, which is a specific mounting style worth confirming against the customer's existing shroud before ordering. The included jumper harness connects into SPAL's full sensor ecosystem - running through the SBL-YAZ-PT10 connector and SBL-TS-HARN sensor harness to a SPAL temperature sensor - giving the fan true variable-speed operation where fan speed scales directly with engine temperature, rather than a blunt on/off relay setup. For builders who prefer their own control logic, the fan is also compatible with any low-current, negative-grounding PWM controller.

This is one of three closely related SPAL Plus Series brushless fans at different sizes and mount styles - the 11" drop-in (30107059-PKG) and 10" flush mount (30107089-PKG) round out the lineup. Confirm the correct diameter and mount style for the customer's shroud before finalizing the order, since these aren't interchangeable despite sharing the same product family and jumper harness design.
