SPAL 30107089-PKG 300W 10in Flush Mount Brushless Fan w/ Harness

Vehicle Fitment

• Universal fit - designed for flush/surface mount installation onto a compatible 10" fan shroud. Suited to off-road racing, hot rods, and high-performance applications.

Fitment Notes

• This is a flush/surface mount fan - it sits on top of the shroud rather than dropping partially inside it, unlike the related 11" and 12" fans in this SPAL Plus Series lineup (30107059-PKG, 30107087-PKG), which are drop-in mount. Confirm mount style matches the target shroud before ordering.
• The "-PKG" suffix confirms this version includes the jumper harness bundled in.

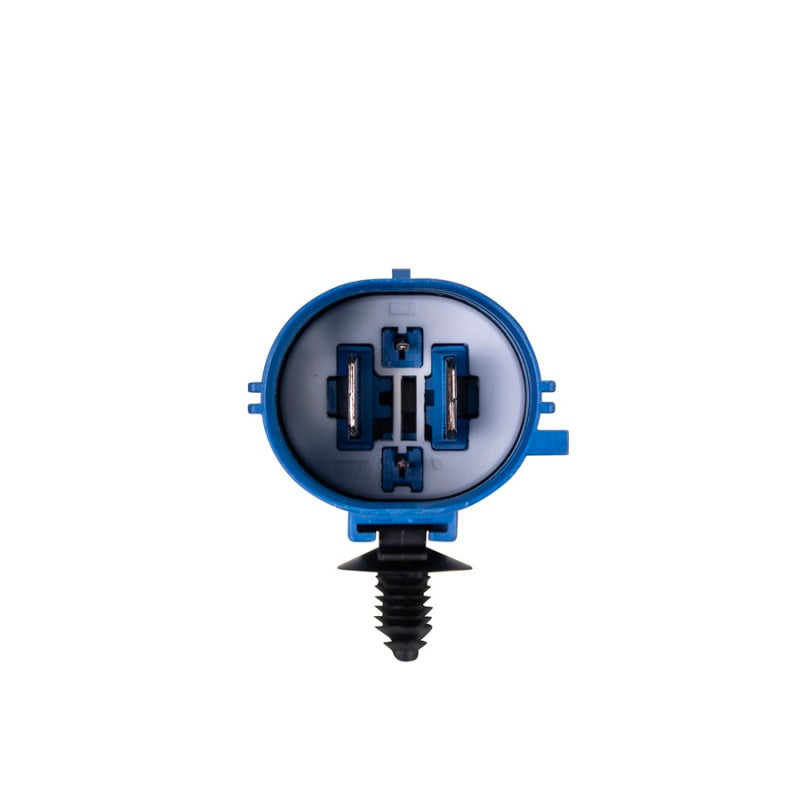

• Requires a specialty SPAL connector (sold separately by most retailers) and connects directly to the battery.

Features

• 300W brushless motor
• Up to 1,345 peak CFM airflow (rated at peak fan speed, hottest cooling system condition)
• Curved blade design
• Fully sealed motor - IP68 and IP6K9K rated for water resistance and dust protection
• Surface/flush mount - sits on top of the shroud
• Variable speed operation via SPAL's temperature sensor system, an engine's ECU, or a PWM controller
• Includes jumper harness for connection to SPAL's sensor and harness ecosystem

Specifications

• Fan diameter: 10 in.
• Critical thickness: 3.50 in.
• Configuration: Puller
• Mount style: Flush/surface mount
• Motor type: Brushless
• Wattage: 300W
• Voltage: 12V
• Peak amperage: ~25 amps (at full/peak fan speed)
• Airflow: ~1,300-1,345 peak CFM
• Blade style: Curved
• Seal rating: IP68 / IP6K9K
• Weight: 5.0 lbs.
• Jumper harness: Included

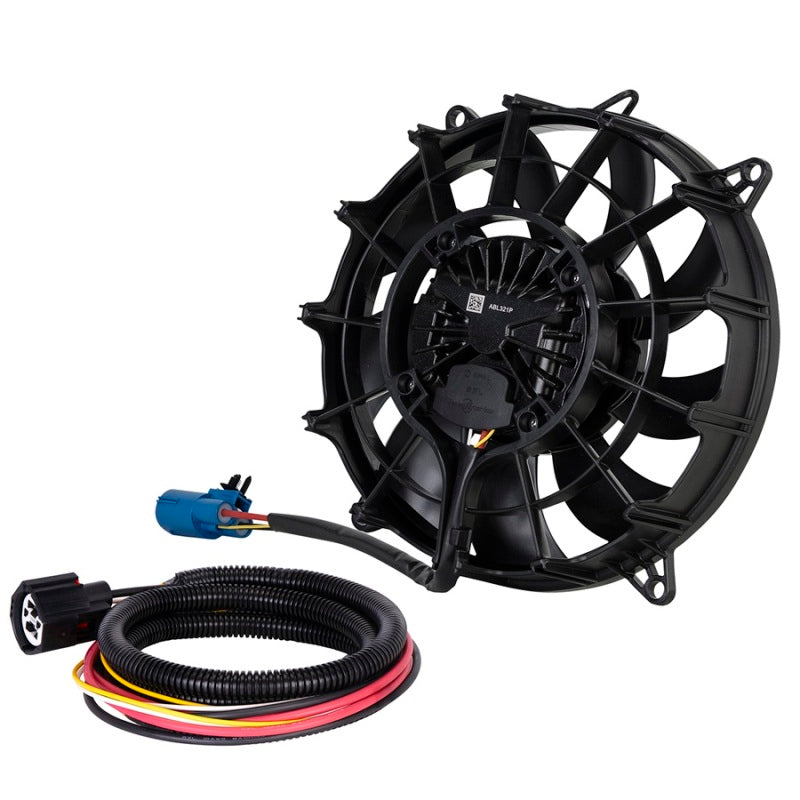

Included Components

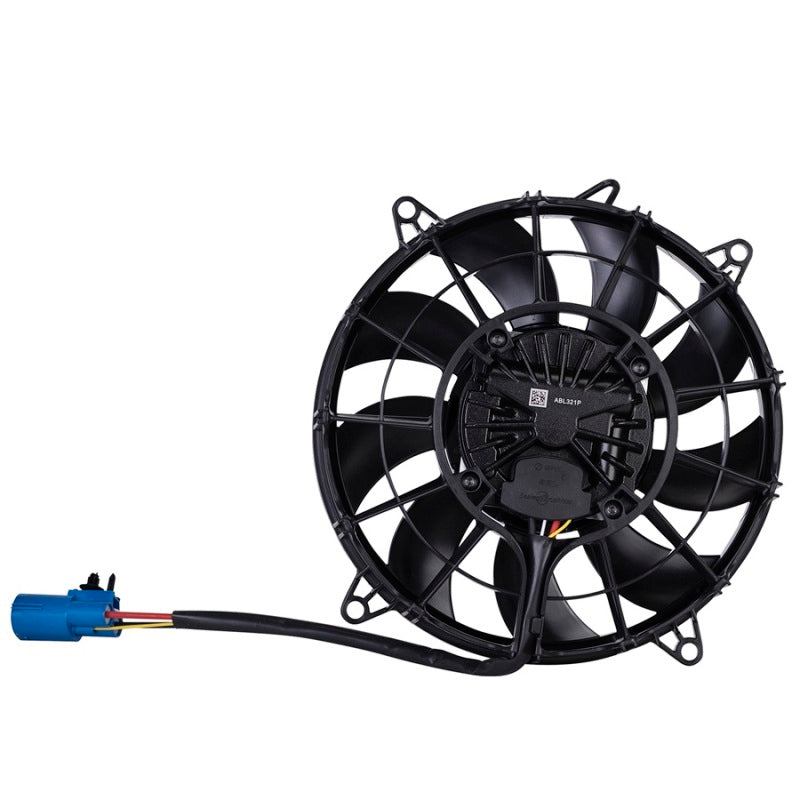

• 1x SPAL 30107089 brushless fan

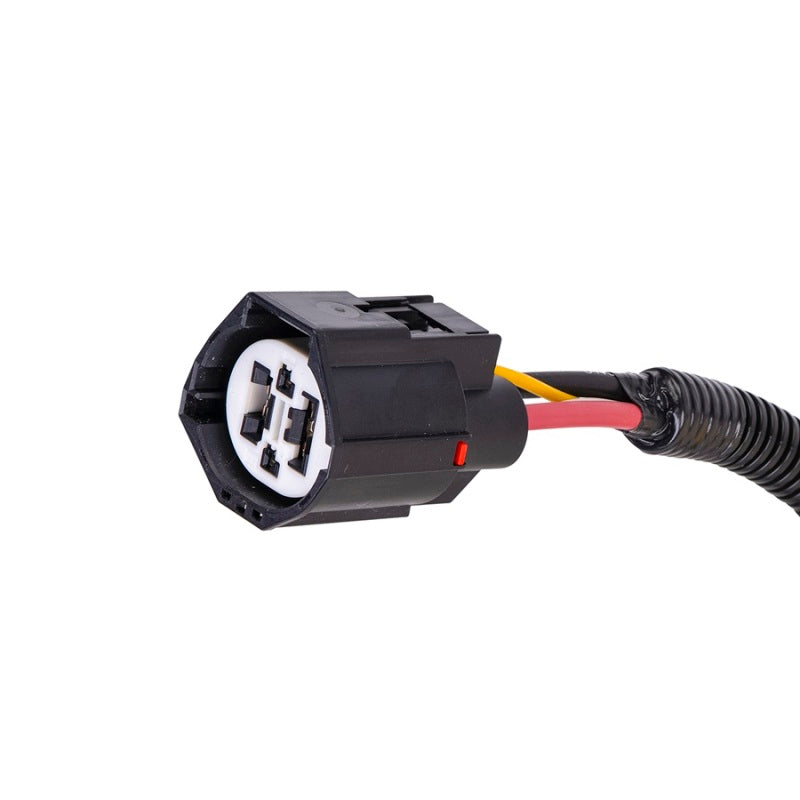

• 1x Jumper harness

Product Description

The SPAL 30107089-PKG is a 300-watt, 10-inch flush/surface mount brushless puller fan from SPAL's Plus Series lineup, delivering up to 1,345 peak CFM in a fully sealed package. Unlike the larger 11" and 12" fans in this same product family, which use a drop-in mount that sits partially inside the shroud, this 10" model mounts flush to the surface of the shroud - a meaningful difference worth confirming against the customer's shroud design before ordering.

The CFM figure here is a peak rating, measured at the fan's fastest speed when the cooling system is at its hottest, or when running the fan at full speed via an override switch on the blue wire. Since this is a variable-speed brushless fan, actual airflow scales down as coolant temperature drops - the fan runs slower (and quieter) most of the time and only reaches its peak CFM rating under real cooling demand, which is worth explaining to customers who might otherwise expect the fan to always run at its rated maximum.

Like its siblings in this lineup, the included jumper harness connects into SPAL's full temperature sensor ecosystem for automatic variable-speed control, or the fan can be run off any compatible low-current, negative-grounding PWM controller or an engine's ECU. It requires a specialty SPAL connector for installation and wires directly to the battery. Given the sealed IP68/IP6K9K rating, it holds up well in dusty, wet, or off-road racing environments where a standard brushed fan would be more prone to failure.
