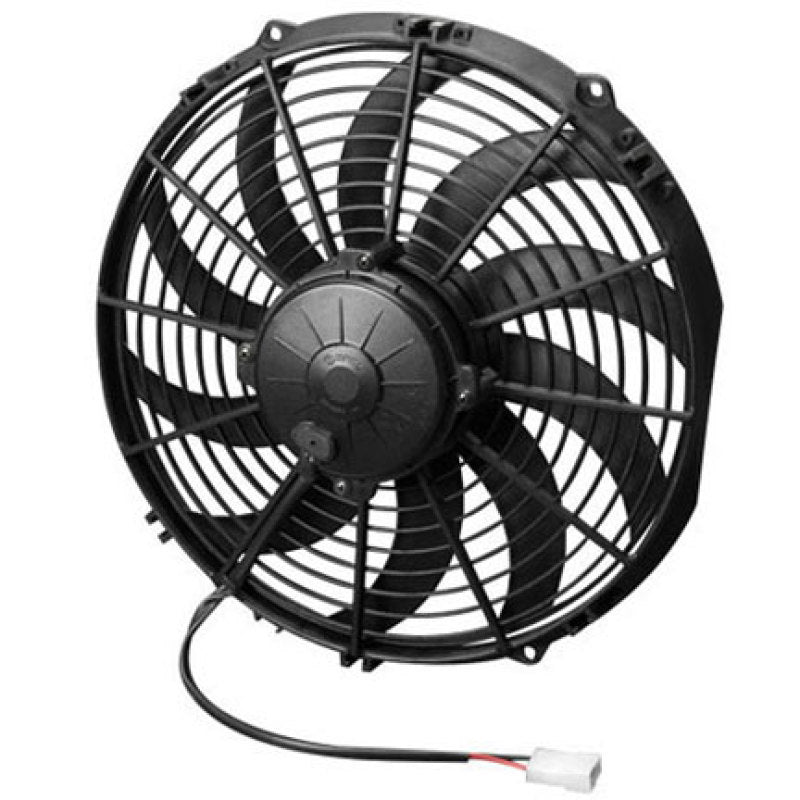

SPAL 30102030 12 in High Performance 1292 CFM 12V Curved Blade Pusher Fan IP68

Vehicle Fitment

• Universal Fitment - Compatible with automotive radiators, AC condensers, intercoolers, and heat exchangers across all vehicle types including cars, trucks, hot rods, street rods, sport compacts, and off-road vehicles requiring a 12 in. diameter high-performance 12V pusher fan where maximum airflow in a compact footprint is the primary requirement

Fitment Notes

• Pusher (blower) orientation - mounts on the front face of the cooling core and pushes air through from front to back; the companion puller version is SPAL 30102029 (VA10-AP70/LL-61A)
• Overall outside dimensions are 13.19 in. H x 12.56 in. W x 3.44 in. D (335 mm x 319 mm x 88 mm) - the 3.44 in. installation depth reflects the larger Long-Life (LL) motor; verify front clearance between the cooling core and any forward obstruction (grille, bumper, hood latch) before installation
• Uses SPAL FRPT wiring plug connector - verify connector compatibility with your wiring harness or plan for appropriate adapter when integrating into vehicle wiring
• For off-road vehicle applications, CBR aluminum fan support brackets are recommended to reinforce the plastic shroud webbing against damage from vibration and trail impacts
• Mounts using the same 4-tab pattern as Maradyne M122K and M123K fans - compatible with Maradyne mounting hardware and shroud solutions in addition to SPAL's own mounting accessories
• Mounting hardware is not included - SPAL universal mounting kits or compatible Maradyne mounting hardware (sold separately) required for installation
• Wiring relay and thermostat/controller are not included; a 30A fuse at 13V is specified by SPAL for this fan; SPAL relay harness kits are sold separately
• Designed for 12V DC electrical systems only
• Sold individually (1x fan)

Features

• 1,292 CFM in a 12 in. diameter footprint - the highest airflow output available from SPAL in the 12 in. standard-diameter class; delivers primary radiator cooling capacity in a compact form factor that fits where 14 in. and 16 in. fans cannot, making it ideal for engine swaps, custom builds, and vehicles with limited frontal area between the grille and cooling core
• High-Performance Long-Life (LL) motor - the VA10-AP70/LL designation indicates SPAL's Long-Life brushed motor, a larger and more powerful motor design than the standard "C" motor used in SPAL's low-profile and medium-profile fan lines; the LL motor delivers higher CFM output and greater sustained duty-cycle capability than standard-motor fans of the same diameter
• 10-blade curved blade design - curved blades reduce aerodynamic noise at high airflow rates compared to straight blades, while maintaining strong CFM output through dense radiator and condenser cores; the curved profile also reduces blade harmonic resonance under sustained high-speed operation
• IP68-rated fully sealed motor - provides complete waterproof and dustproof protection; the motor is sealed against sustained water immersion and fine dust, suitable for exposed radiator pusher applications, off-road builds, and any installation where the fan may be subject to water splash or debris
• Individually balanced fan blade assembly - each SPAL fan is factory-balanced to minimize vibration, reduce bearing wear, and extend service life; individual balancing is especially important for high-speed LL motor fans operating continuously at elevated duty cycles
• 14.20A rated current draw - consistent with other SPAL LL-motor fans of this diameter; requires a 30A fuse circuit and a properly rated relay for safe continuous operation; the higher amp draw relative to standard-motor fans reflects the LL motor's greater power output and sustained cooling capacity
• Recommended for high-performance street and track builds, engine swaps requiring maximum cooling in a compact footprint, sport compact radiator cooling, and off-road heat exchanger applications where high CFM and structural durability are both required
• SPAL ISO/TS-16949 certified manufacturing - all products manufactured to OEM-level quality and tolerance standards
• Made in Italy

Specifications

• Part Number: 30102030
• SPAL Model: VA10-AP70/LL-61S
• UPC: 816211020351
• Fan Series: High Performance
• Motor Type: Long-Life (LL) Brush Motor
• Fan Type: Pusher (Blower)
• Blade Style: Curved Blade
• Blade Count: 10
• Fan Diameter: 12 in.
• Overall Height: 13.19 in. (335 mm)
• Overall Width: 12.56 in. (319 mm)
• Installation Depth: 3.44 in. (88 mm)
• Airflow: 1,292 CFM
• Voltage: 12V DC
• Amp Draw: 14.20A
• Recommended Fuse: 30A (at 13V)
• Wiring Plug: FRPT connector
• Motor Sealing: IP68 (Waterproof/Dustproof)
• Shroud Material: Black Plastic
• Mounting: 4-Tab, same pattern as Maradyne M122K / M123K (hardware sold separately)
• Country of Manufacture: Italy
• ISO Certification: ISO/TS-16949
• Quantity: Sold individually

Included Components

• 1x SPAL 30102030 12 in. High-Performance Curved Blade Pusher Electric Fan (with integrated black plastic shroud)

Product Description

The SPAL 30102030 (model VA10-AP70/LL-61S) is a 12 in. high-performance electric pusher fan rated at 1,292 CFM and 12V DC, built around SPAL's Long-Life (LL) brushed motor - the most powerful motor option in SPAL's standard-diameter fan lineup. The LL motor designation distinguishes this fan from SPAL's standard "C" motor low-profile and medium-profile fans: it is a physically larger motor with higher sustained output, resulting in the 3.44 in. installation depth versus 2.05-2.48 in. for standard-motor fans. This depth is the trade-off for delivering 1,292 CFM in a 12 in. footprint - the highest CFM output available from SPAL at this diameter. It is the preferred choice for sport compact engine swaps, performance street and track builds, and custom radiator installations where the available frontal area limits fan diameter to 12 in. but maximum cooling capacity is still required.

The 10-blade curved blade design moves air efficiently through radiator and condenser cores while generating less aerodynamic noise than comparable straight-blade designs at equivalent CFM - a meaningful advantage for street-driven vehicles where continuous fan operation is expected at idle and low-speed driving. The IP68-rated sealed motor is fully waterproof and dustproof, making the 30102030 appropriate for off-road builds as well as conventional automotive radiator applications. Kartek Off-Road recommends CBR aluminum fan support brackets for off-road installations to protect the plastic shroud webbing from vibration damage on rough terrain. The 4-tab mounting pattern is the same as Maradyne M122K and M123K fans, allowing use of compatible mounting hardware from either brand.

The 30102030 draws 14.20A and requires a 30A fuse at 13V - a relay and wiring harness must be sourced separately for a complete installation. Mounting hardware is not included; SPAL universal mounting pin kits or compatible Maradyne mounting hardware are required. The fan uses SPAL's FRPT wiring connector - verify compatibility with your installation harness. The companion puller version is SPAL part number 30102029 (VA10-AP70/LL-61A). SPAL is an ISO/TS-16949 certified OEM manufacturer producing fans in Italy, and the 30102030 is backed by SPAL's manufacturer warranty.
